Jenn-Air JDB3200AWS4 undercounter dishwasher Parts

The most common dishwasher failure is a drain or fill problem: the unit will not drain, will not fill, or stops mid-cycle because water flow is restricted. On the Jenn-Air JDB3200AWS4, start with the quick checks in the JDB3200AWS4 owner's manual before replacing parts.

What you typically see when this happens

• Standing water in the bottom of the tub after the cycle
• Humming sound but little or no water movement
• Cycle stops or seems to pause repeatedly
• Dishes come out dirty because spray pressure is low
• Clean light flashing or the dishwasher will not fill

Fast checks we recommend first (no parts guessing)

• Confirm the door is fully closed and latched; press START/RESUME and close the door promptly.
• Verify the house breaker is on and the dishwasher has power.
• Make sure the water shutoff valve is turned on.
• Check the overfill protection float moves freely; press down to release it.
• If the dishwasher is not draining well, check and clean the drain air gap (if your setup has one).

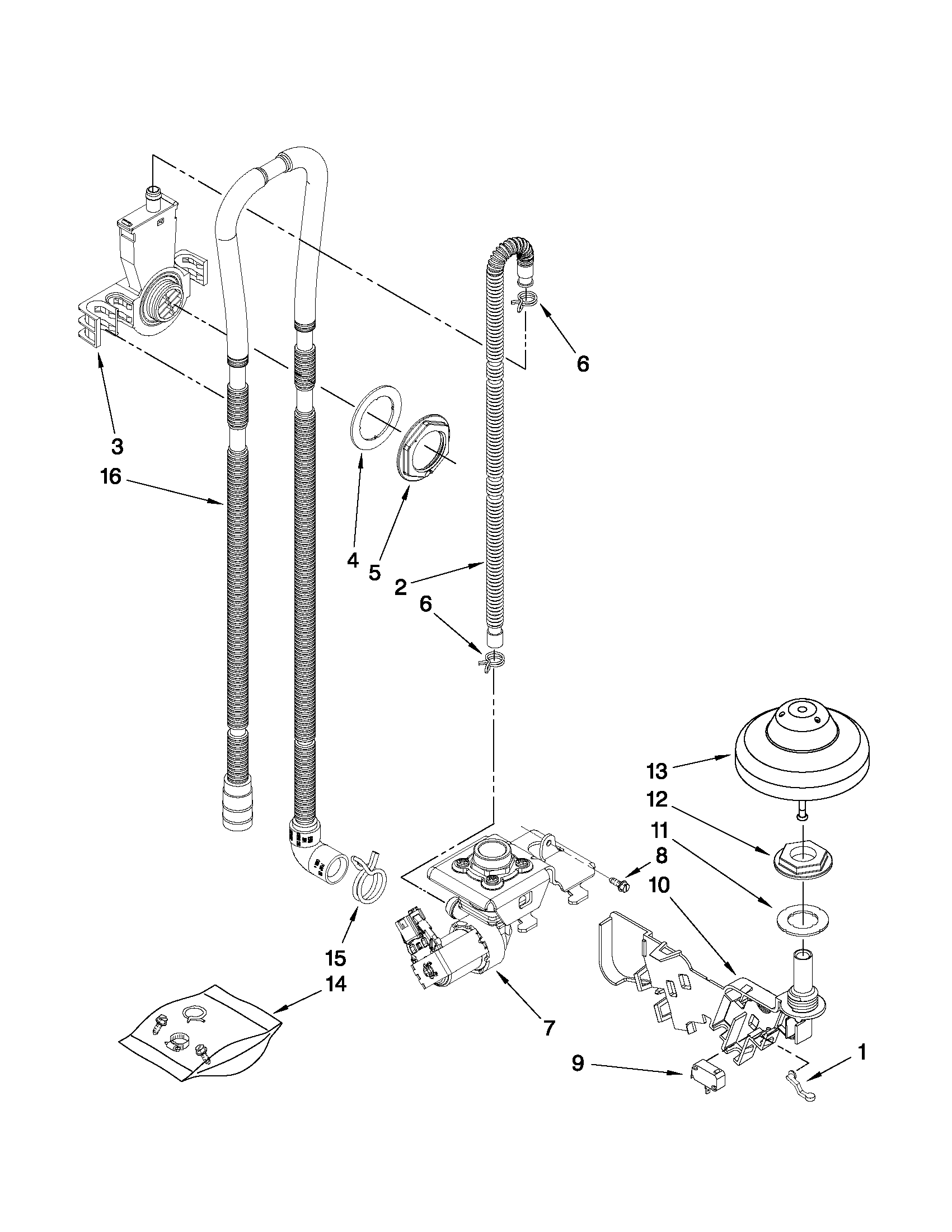

Common parts involved (when symptoms point to a failure)

If the basic checks pass, these model-matched parts are often involved in drain or fill complaints:

Symptom	Most likely system	Model-matched part example
Water left in tub	Drain system	Dishwasher drain pump WPW10348269
Slow drain or backflow	Drain path	Dishwasher drain hose (inspect for kinks/clogs)
Will not fill or fills slowly	Water supply	Dishwasher water inlet valve W10648041
Poor cleaning, low spray	Wash circulation	Dishwasher spray arm WPW10491331

Why it matters

Drain and fill issues are the most common because they are affected by everyday conditions: food debris, labels, suds from the wrong detergent, kinked hoses, and water supply valves. Fixing the water-flow problem restores proper wash pressure and prevents long cycle times.

Last updated: February 2026

On the Jenn-Air dishwasher model JDB3200AWS4, we find the model number on the rating label inside the tub, near the door opening. Check the right-hand or left-hand side of the dishwasher interior, close to the door.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look along the inner tub frame near the door opening.
• Check the right-hand side first, then the left-hand side.
• Find a printed rating label with Model and Serial information.
• Write down the full model number exactly as shown.

What the label typically includes

Most Jenn-Air dishwasher rating labels list these items:

• Model number (example: JDB3200AWS4)
• Serial number
• Electrical information (voltage/amps)
• Manufacturer information

What you need	Why you need it	Example format
Model number	Ensures parts fit your exact dishwasher	JDB3200AWS4
Serial number	Helps match production series and revisions	Letters and numbers

Why it matters

We use the model number to match the correct parts and diagrams for your dishwasher. Even small model-number differences can change which items fit, such as a drain pump, spray arm, or door seal.

For the exact label location details and how Jenn-Air describes it, use the JDB3200AWS4 owner’s manual.

Last updated: February 2026

A Jenn-Air dishwasher typically lasts 10 to 15 years with normal household use and basic maintenance. For your JDB3200AWS4, age plus symptoms matter most: if cleaning, draining, or heating performance is slipping, targeted part replacement often restores reliable operation.

Typical lifespan and what affects it

Most dishwashers reach the end of their service life due to wear in the wash system, drainage, or controls. The biggest factors are:

• Water quality (hard water speeds mineral buildup)
• Detergent choice and correct dosing
• Filter and spray arm cleanliness
• Frequency of use (multiple loads daily shortens lifespan)
• Heat and drying demands (heater use adds wear)

Quick “repair vs. replace” guide

Use this as a practical rule of thumb for a Jenn-Air dishwasher like JDB3200AWS4.

Dishwasher age	Condition	Best next step
0 to 5 years	Any recurring issue	Repair is usually the best value
6 to 10 years	One major failure	Repair if the tub is sound and leaks are not present
11 to 15 years	Multiple issues or poor wash results	Replace unless a single, clear failure is identified
15+ years	Frequent breakdowns	Replace

Parts that commonly extend dishwasher life

If the unit is not cleaning, not draining, or not drying well, these model-matched parts are common fixes:

• Clogs or no drain: dishwasher drain pump WPW10348269
• Poor spray or coverage: dishwasher spray arm WPW10491331
• Not heating or weak drying: dishwasher heater element WPW10082892
• Slow fill or no fill: dishwasher water inlet valve W10648041
• Soil buildup and redepositing: filter W10872845

Why it matters

Knowing the expected lifespan helps you avoid over-investing in an older dishwasher and helps you prioritize the repairs that restore core functions (wash, drain, heat). For operating and care guidance specific to JDB3200AWS4, follow the maintenance and loading recommendations in the JDB3200AWS4 owner's manual.

Last updated: February 2026

In the Jenn-Air JDB3200AWS4 dishwasher, the most commonly replaced parts are the ones that handle draining, washing, heating, sealing, and controls. When you see leaks, poor cleaning, no-heat drying, or no-drain symptoms, these parts are the first places we check using the JDB3200AWS4 owner's manual.

Commonly replaced dishwasher parts (and what they affect)

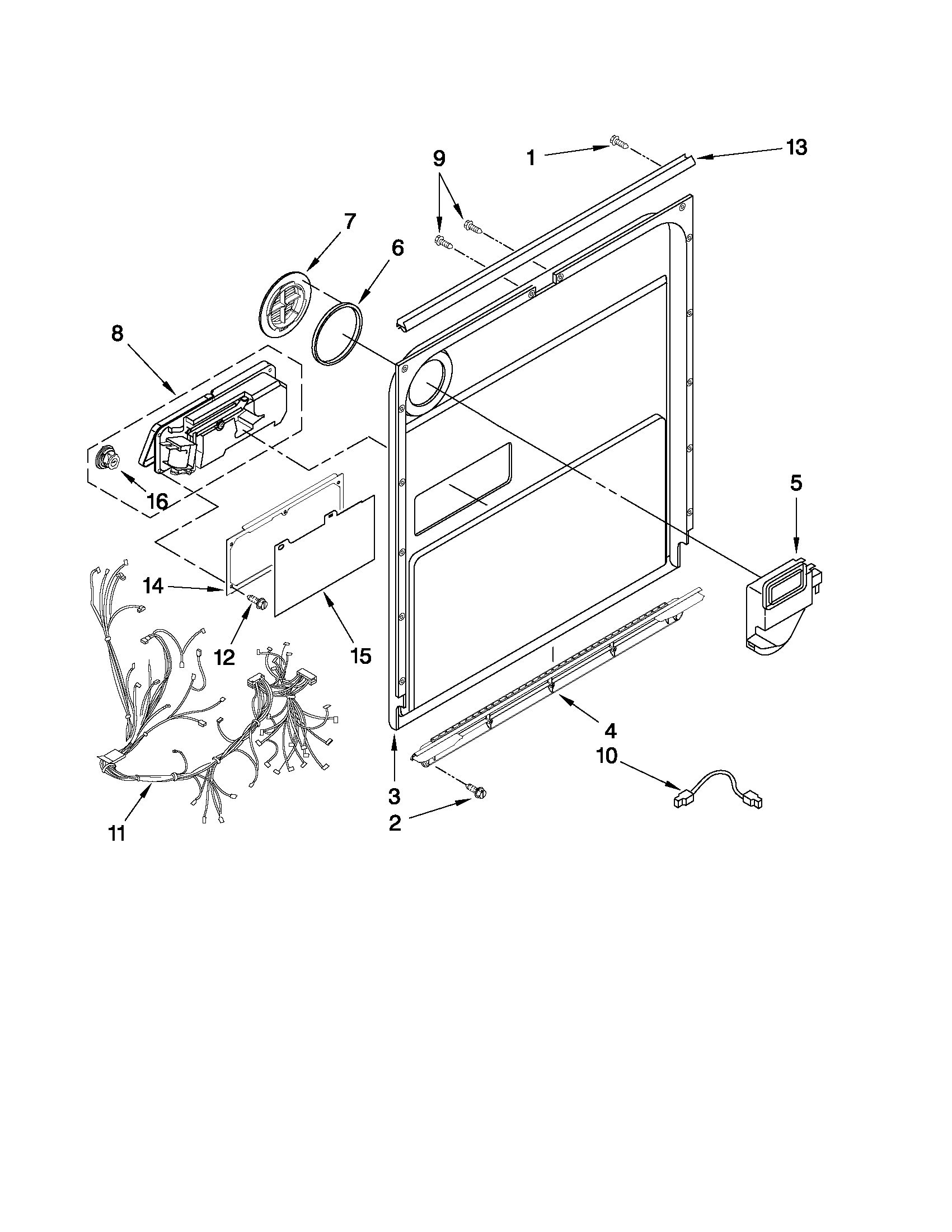

• Door sealing and leak prevention: door seal, vent gasket, other seals

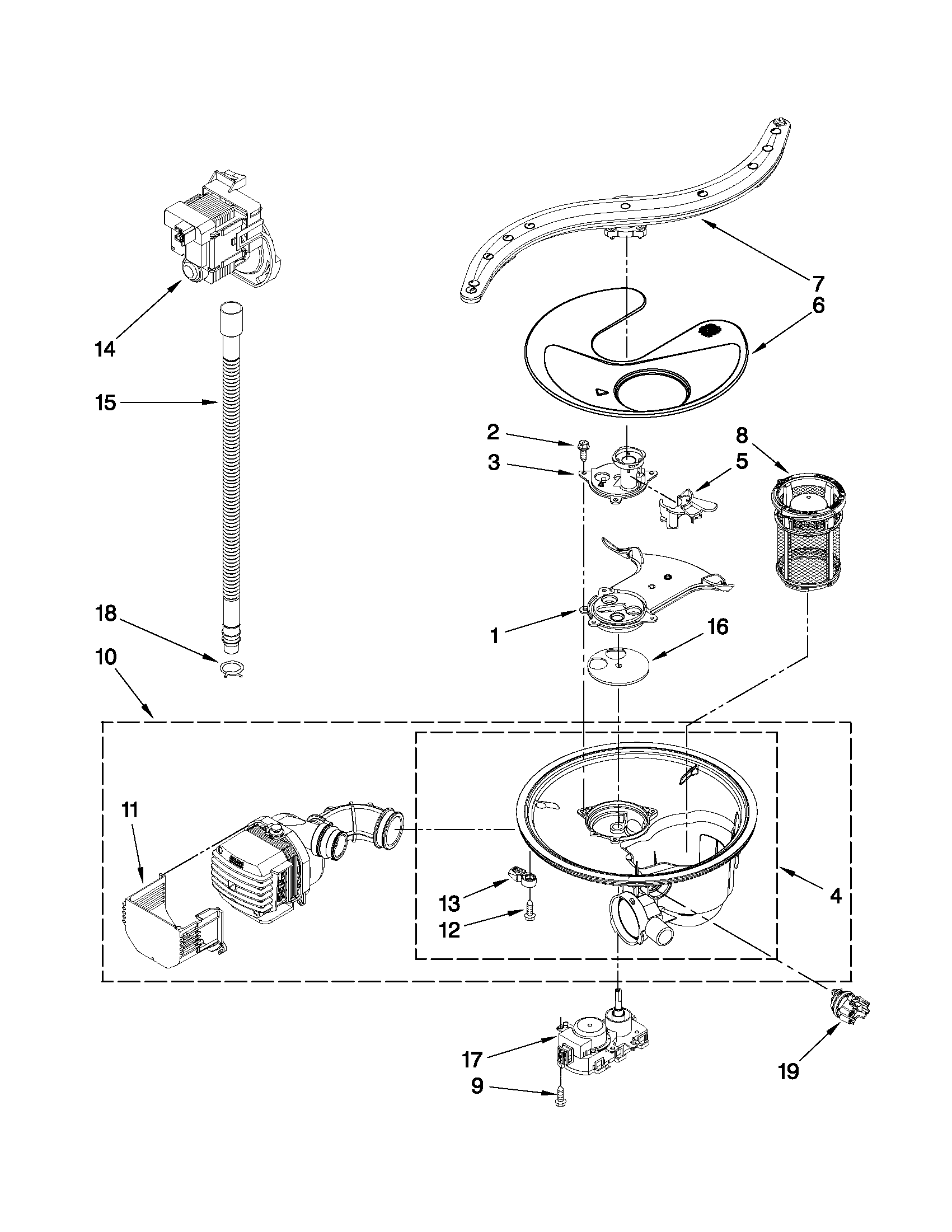

• Washing performance: spray arm, filters, sump components
• Draining problems: drain pump, drain hose
• Filling problems: water inlet valve

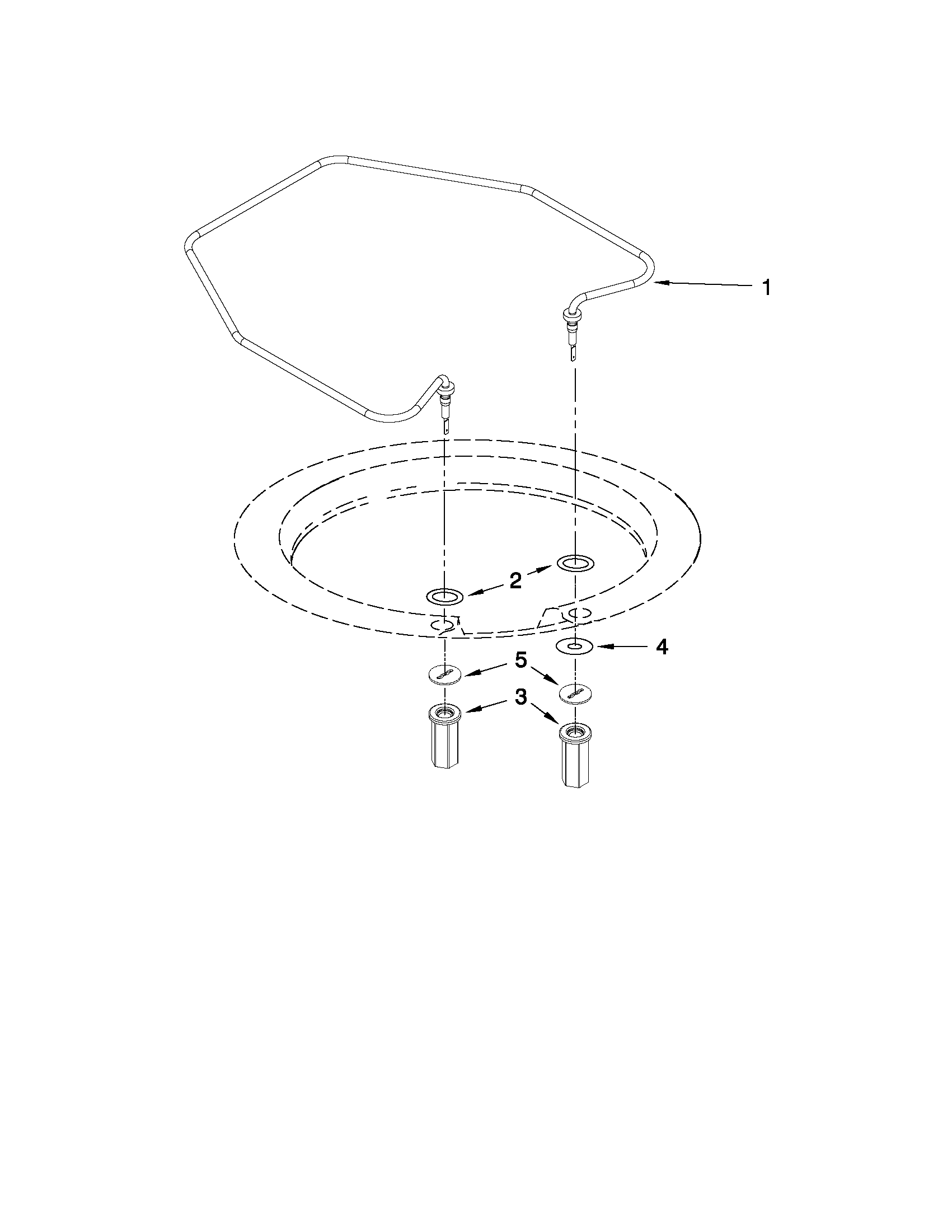

• Heating and drying: heater element
• Power and operation: fuse, electronic control board

Model-specific examples for JDB3200AWS4

These are popular replacement parts we see for this model:

Symptom you notice	Common part to check/replace	Example part for this model

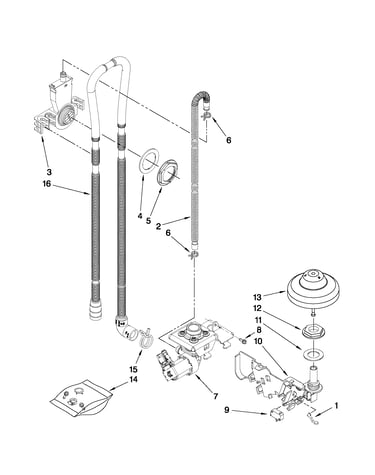

Dishwasher will not drain	Drain pump or drain hose	Dishwasher drain pump WPW10348269 or dishwasher drain hose 8269144A

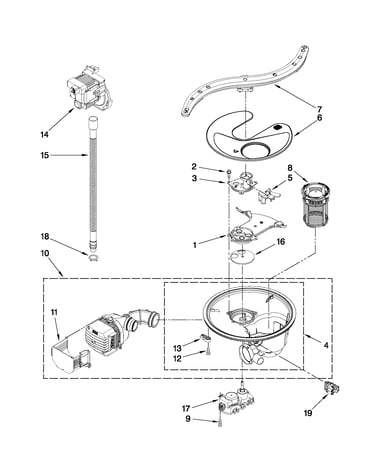

Dishes not getting clean	Spray arm or filter	Dishwasher spray arm WPW10491331 or filter W10872845
Poor drying or no heat	Heater element	Dishwasher heater element WPW10082892

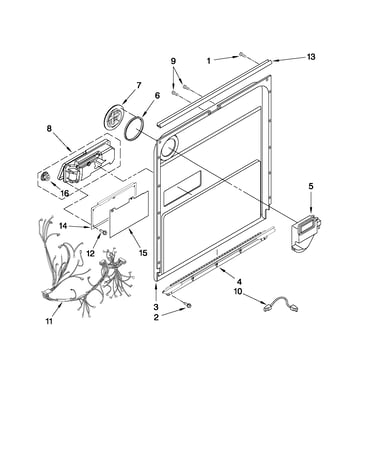

Leaks at the door	Door seal	Dishwasher door seal W11196317
Dead or intermittent power	Fuse or control board	Fuse W10258275 or dishwasher electronic control board WPW10285178

Why it matters

Dishwashers are a system; one worn part can cause multiple symptoms. For example, a clogged filter can reduce wash pressure, and a restricted drain path can leave dirty water in the tub. Keeping filters properly installed and locked also helps prevent damage during operation.

Quick tips before you order parts

• Match the model number JDB3200AWS4 when selecting parts.
• Check for simple causes first: blocked spray arm holes, a dirty filter, or a kinked drain hose.
• If the unit is not draining well, check and clean the drain air gap (if your installation uses one).
• If the cycle did not finish, restart properly (START/RESUME and close the door promptly).
• Avoid running the dishwasher without filters correctly installed.

Last updated: February 2026
