Samsung DV419AEW/XAA-02 dryer Parts

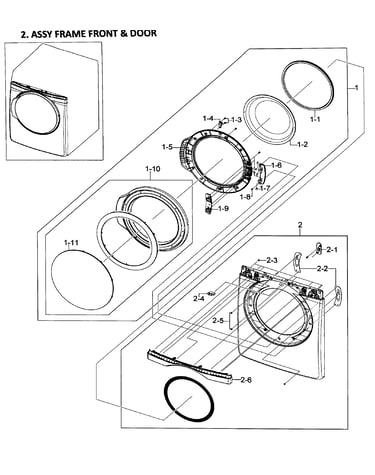

To find the correct part number for your Samsung dryer, we match parts to the model number first. On Samsung dryers like model DV419AEW, the model and serial tag is typically on the front frame behind the door; if it’s missing, check the back panel, then use the model to look up the exact part.

Where to look for the model and serial tag

Check these common locations on Samsung dryers:

• Front frame behind the dryer door opening (most common)
• Back of the dryer cabinet (secondary label)
• Inside the door area near the opening (around the rim)
• On the rear panel near the power cord entry

How we use the model number to get the right part number

Once you have the model number (for this page, DV419AEW), use it to select the exact replacement part for the symptom you’re fixing.

• Heating problem: look up the heating circuit parts
• No heat but drum turns: check thermostats and thermal fuses
• Loud rumbling: check blower wheel and drum support-related parts
• Won’t start or hums: check motor and wiring connections

Common DV419AEW parts customers look up

Symptom	Part type	Example part for this model

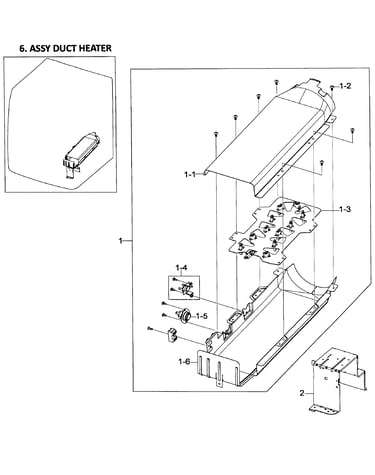

No heat	Heating element	Samsung dryer heating element DC47-00019A
Overheats or shuts off	High-limit thermostat	Dryer high-limit thermostat DC47-00018A
No heat, dryer stops mid-cycle	Thermal cut-off fuse	Dryer thermal cut-off fuse DC96-00887A

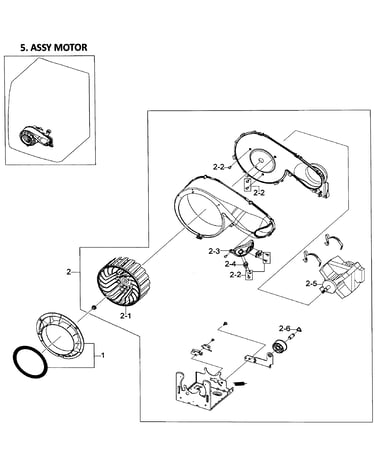

Poor airflow, loud noise	Blower wheel	Dryer blower wheel DC67-00180B

Why it matters

Samsung dryers often have multiple versions that look similar, and parts can vary by revision. Using the model and serial information prevents ordering a heating element, thermostat, or fuse that does not fit your exact DV419AEW configuration.

Tip before ordering heating parts

If you’re replacing a heater, thermostat, or thermal fuse, we recommend checking and cleaning the lint filter and the entire vent path first. Restricted airflow is the most common reason heating parts fail early.

For model-specific label locations and diagrams, use the DV419AEW owner’s manual.

Last updated: February 2026

Common problems we see with Samsung dryers like model DV419AEW are no heat or weak heat, long dry times, the drum not turning, unusual noises, and shutting off mid-cycle. Most of these issues trace back to airflow restrictions, a failed heating circuit component, or worn drive components; start with venting and lint checks, then test parts.

Most common symptoms and likely causes

• No heat / weak heat: failed heater, thermal cut-off, or high-limit thermostat; also caused by a clogged vent
• Long dry times: restricted exhaust duct, crushed vent hose, lint buildup at the blower housing, or overloaded drum
• Drum not spinning: drive motor issue, drum support wear, or a seized blower wheel
• Loud squealing, thumping, or grinding: worn drum supports, loose blower wheel, or something caught in the blower
• Shuts off mid-cycle: overheating from poor airflow; safety devices opening to protect the dryer

Parts that commonly fix heating and airflow-related problems

For DV419AEW, these model-matched parts are often involved when the dryer will not heat or overheats:

• Samsung dryer heating element DC47-00019A
• Dryer high-limit thermostat DC47-00018A
• Dryer thermal cut-off fuse DC96-00887A
• Dryer blower wheel DC67-00180B

Quick checks we recommend before replacing parts

1. Clean the lint screen and confirm strong airflow at the outside vent hood.
2. Inspect the vent path for kinks, crushed flex duct, or heavy lint buildup.
3. Run a timed dry cycle and note whether the drum turns, heat comes on, and airflow stays strong.
4. If heat is missing, test the heating circuit components with a multimeter (power disconnected).

Symptom-to-part starting point

Symptom	Best first check	Common part involved
No heat	Airflow and heater circuit	Heating element, thermal cut-off, high-limit thermostat
Long dry times	Vent restriction	Blower wheel, exhaust duct connector
Drum not turning	Belt path and motor function	Drive motor
Burning smell / shuts off	Overheating from blocked vent	High-limit thermostat, thermal cut-off

Why it matters

A restricted vent can cause poor drying, repeated thermal fuse failures, and overheating. Fixing airflow first protects the heating element and thermostats and restores normal cycle times.

For model-specific operating tips and maintenance intervals, follow the DV419AEW owner's manual.

Last updated: February 2026

Yes. For a Samsung DV419AEW dryer that otherwise runs well (drum turns, controls work, airflow is good), replacing the heating element is usually worth it because it restores heat for far less than the cost of a new dryer. Use the DV419AEW owner's manual to confirm your exact no-heat checks and access steps.

When replacement makes sense

We typically recommend replacing the heating element when the dryer has a clear “runs but won’t heat” symptom and the rest of the machine is in good condition.

• The dryer tumbles normally but clothes stay cold or damp
• You have normal airflow at the exhaust (not a crushed or clogged vent)
• The breaker is not tripping and the dryer has proper power
• The drum, belt, and motor sound normal (no grinding or squealing)
• You want a repair that’s usually completed in one service visit or one DIY session

Parts that commonly fix “no heat” on this model

On DV419AEW, “no heat” is often caused by the heater circuit (element plus safety thermostats/fuses). These are common replacement candidates:

• Heating element: Samsung dryer heating element DC47-00019A
• High-limit thermostat: dryer high-limit thermostat DC47-00018A
• Thermal cut-off fuse: dryer thermal cut-off fuse DC96-00887A

Quick comparison

Symptom	Most likely area	Common part to check/replace
Runs, no heat at all	Heater circuit open	Heating element, thermal cut-off fuse
Heats briefly, then stops	Overheating condition	High-limit thermostat, vent restriction
Long dry times, weak heat	Airflow problem	Venting, lint buildup (then recheck heater parts)

Why it matters

A failed heating element or safety cut-off can make the dryer run without drying, which wastes energy and can overheat the heater housing if airflow is restricted. Fixing the root cause (often venting plus the failed heater component) restores normal dry times and helps prevent repeat failures.

Before you buy parts (fast checks)

• Clean the lint screen and confirm strong airflow outside
• Inspect the vent path for kinks, crushed flex duct, or heavy lint
• Verify the dryer is getting full power (many electric dryers can run but not heat on partial power)
• If a safety fuse is blown, correct airflow issues before installing new parts

Last updated: February 2026

On a Samsung DV419AEW dryer, a “419 code” is not a standard dryer error code; it is usually a misread display or a shorthand for a different fault (often a 2-letter/number code). For the correct code list and what each code means on your model, check the DV419AEW owner's manual.

How to identify the real code on the display

Many Samsung dryer codes look similar at a glance (especially if a segment on the display is dim). Before troubleshooting parts, we recommend:

• Power the dryer off, then back on, and re-check the code
• Look for letters that can resemble numbers (for example, E can look like 3, b can look like 6)
• Note whether the code is two characters (like “HE”) or three characters
• Check if the code appears only during a specific cycle (Timed Dry vs. Sensor Dry)
• If the display is flickering or missing segments, inspect wiring connections and the control area for loose plugs

Common code categories and what they point to

Even without the exact characters, most Samsung dryer codes fall into a few buckets:

Code type you see	Usually relates to	What to check first
Heating-related	Heater circuit, thermostats, thermal fuse, airflow	Lint filter, venting, heater safety devices
Motor/tumble-related	Drive motor, drum, blower wheel	Drum turns freely, unusual noise, airflow
Door-related	Door switch/latch alignment	Door closes firmly, strike/catch condition
Sensor/communication	Moisture sensor, wiring harness, control	Harness connections, sensor bars cleanliness

Parts that commonly fix “no heat” or overheating faults

If your “419” turns out to be a heating or temperature code, these model-compatible parts are commonly involved:

• Samsung dryer heating element DC47-00019A (no heat, weak heat)
• Dryer high-limit thermostat DC47-00018A (overheating protection)
• Dryer thermal cut-off fuse DC96-00887A (opens if temperatures get too high)
• Dryer blower wheel DC67-00180B (poor airflow, long dry times)

Why it matters

Troubleshooting the wrong code can lead to replacing the wrong part. Confirming the exact characters first helps us target the right system (heat, motor, door, or airflow) and avoid repeat failures caused by a clogged vent.

Last updated: February 2026

For the Samsung DV419AEW dryer, the correct belt length is the one specified for your exact model configuration; confirm it in the DV419AEW parts list and the DV419AEW owner's manual before ordering. Samsung dryer drum belts are commonly in the low-90-inch range, but the exact size must match your unit.

How to confirm the exact belt length on DV419AEW

Use these checks so you order the correct replacement belt the first time:

• Verify the model tag reads DV419AEW (and match your full model variant on the ID label)
• Look up the drum belt in the model-specific parts breakdown for DV419AEW
• Compare the replacement belt to the old belt you remove (length, rib profile, width)
• Count the ribs and grooves on the belt (it must match the motor pulley and idler setup)
• Replace any worn tensioning parts if the old belt shows glazing or fraying

What to measure on the old belt (if it is still intact)

What to check	How to check it	What a mismatch causes
Total length (circumference)	Lay belt flat, mark, then measure around	Slipping or belt will not install
Rib profile	Count ribs and grooves	Noise, tracking issues, premature wear
Width	Measure across the belt	Poor alignment, squeal, belt walk-off

Why it matters

A belt that is slightly off in length or rib profile changes drum tension. That leads to squealing, thumping, slow drum rotation, or repeated belt failure on your Samsung dryer.

If the drum will not turn after a belt issue

We typically check these items next:

• Idler pulley binding or misaligned
• Drum rollers worn (drum drags and overloads the belt)
• Blower wheel jammed (can stall the motor)
• Motor problem (hums but will not start)

If you are also troubleshooting overheating or no-heat symptoms, common related safety parts include the dryer high-limit thermostat DC47-00018A and dryer thermal cut-off fuse DC96-00887A.

Last updated: February 2026
