Model # MDE6800AYQ Official Maytag dryer

Here are the diagrams and repair parts for Official Maytag MDE6800AYQ dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

Dryer Drum Light Bulb 22002263
#23

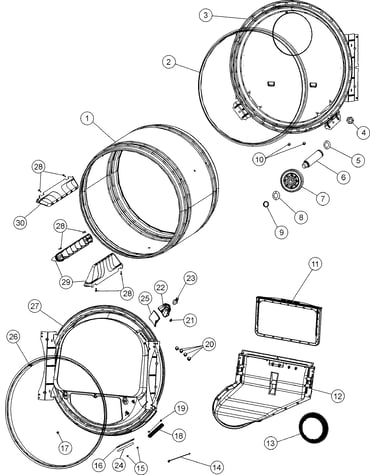

Tumbler diagram

Dryer drum light bulb

Part #22002263

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 22002263. Substitute parts can look different from the original.
BEST SELLER
$18.02
18% OFF MSRP : $22.00
In Stock
Dryer Drum Support Roller (replaces W10116741, Y303373) 12001541
#7

Tumbler diagram

Dryer drum support roller (replaces w10116741, y303373)

Part #12001541

BEST SELLER
$26.68
16% OFF Phone Price : $31.68
In Stock
Tumbler Shaft 312948
#6

Tumbler diagram

Tumbler shaft

Part #312948

Replaced by #WP6-3129480

?
Manufacturer substitution
This part replaces 312948. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.19
58% OFF MSRP : $17.00
In Stock
Dryer Lint Filter 33001808
#11

Tumbler diagram

Dryer lint filter

Part #33001808

Replaced by #WP33001808

?
Manufacturer substitution
This part replaces 33001808. Substitute parts can look different from the original.
BEST SELLER
$56.61
8% OFF Phone Price : $61.61
In Stock
Dryer Drum Support Roller Retainer 410233
#9

Tumbler diagram

Dryer drum support roller retainer

Part #410233

Replaced by #WP9703438

?
Manufacturer substitution
This part replaces 410233. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79
75% OFF MSRP : $15.00
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Dryer Drum Baffle 33002032
#29

Tumbler diagram

Dryer drum baffle

Part #33002032

Replaced by #WP33002032

?
Manufacturer substitution
This part replaces 33002032. Substitute parts can look different from the original.
BEST SELLER
$25.07
22% OFF MSRP : $32.00
In Stock
Dryer High-limit Thermostat 303396
#25

Base (elec) diagram

Dryer high-limit thermostat

Part #303396

Replaced by #WP303396

?
Manufacturer substitution
This part replaces 303396. Substitute parts can look different from the original.
$25.19
43% OFF MSRP : $44.00
In Stock
Idler Arm 33001840
#5

Base (elec) diagram

Idler arm

Part #33001840

Replaced by #WP6-3705180

?
Manufacturer substitution
This part replaces 33001840. Substitute parts can look different from the original.
$37.97
14% OFF MSRP : $44.00
In Stock
Outer Screw 22002063
#14

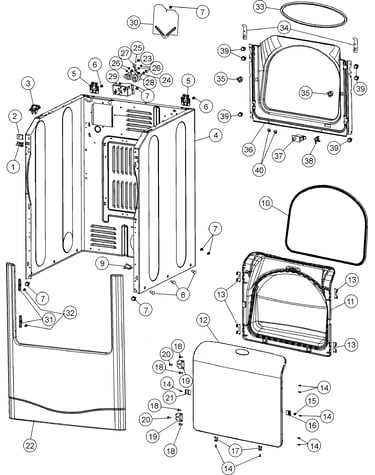

Cabinet diagram

Outer screw

Part #22002063

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 22002063. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
