Whirlpool WDF770SAFZ0 dishwasher Parts

Whirlpool “Quiet Partner III” is a series name used on multiple built-in dishwashers, not one single model. To identify the exact Quiet Partner 3 model you have, we use the model and serial number label located inside the tub near the door (typically on the right or left side). For parts and diagrams, your Sears PartsDirect page here is for Whirlpool dishwasher model WDF770SAFZ0.

How to find the exact Quiet Partner 3 model number

Check the rating label inside the dishwasher and write down the full model number exactly as shown.

• Open the door and look along the inner tub frame near the door opening
• Record the full model number and serial number (letters and numbers)
• Use the model number to match the correct parts list, wiring, and troubleshooting steps
• If the label is hard to read, clean it gently and use a flashlight
• Confirm you are not using a partial number from the control panel badge

For label location and other identification tips, use the WDF770SAFZ0 user manual.

Quiet Partner 3 vs. WDF770SAFZ0: what this means for parts

“Quiet Partner III” is branding; parts must match the exact model number.

What you have	What it tells us	What to do next
Quiet Partner III badge	Series/marketing name	Find the model number on the tub label
Model number (example: WDF770SAFZ0)	Exact engineering build	Use that model’s parts diagrams
Serial number	Production details	Helps confirm correct replacement parts

Why it matters

Dishwashers that look similar can use different door latches, pumps, and heating circuits. Using the exact model number prevents ordering the wrong items and helps ensure correct fit and performance.

If your Quiet Partner 3 is not WDF770SAFZ0, match your model first, then choose parts such as a dishwasher door latch WPW10653840 only after confirming it is listed for your exact model.

Last updated: January 2026

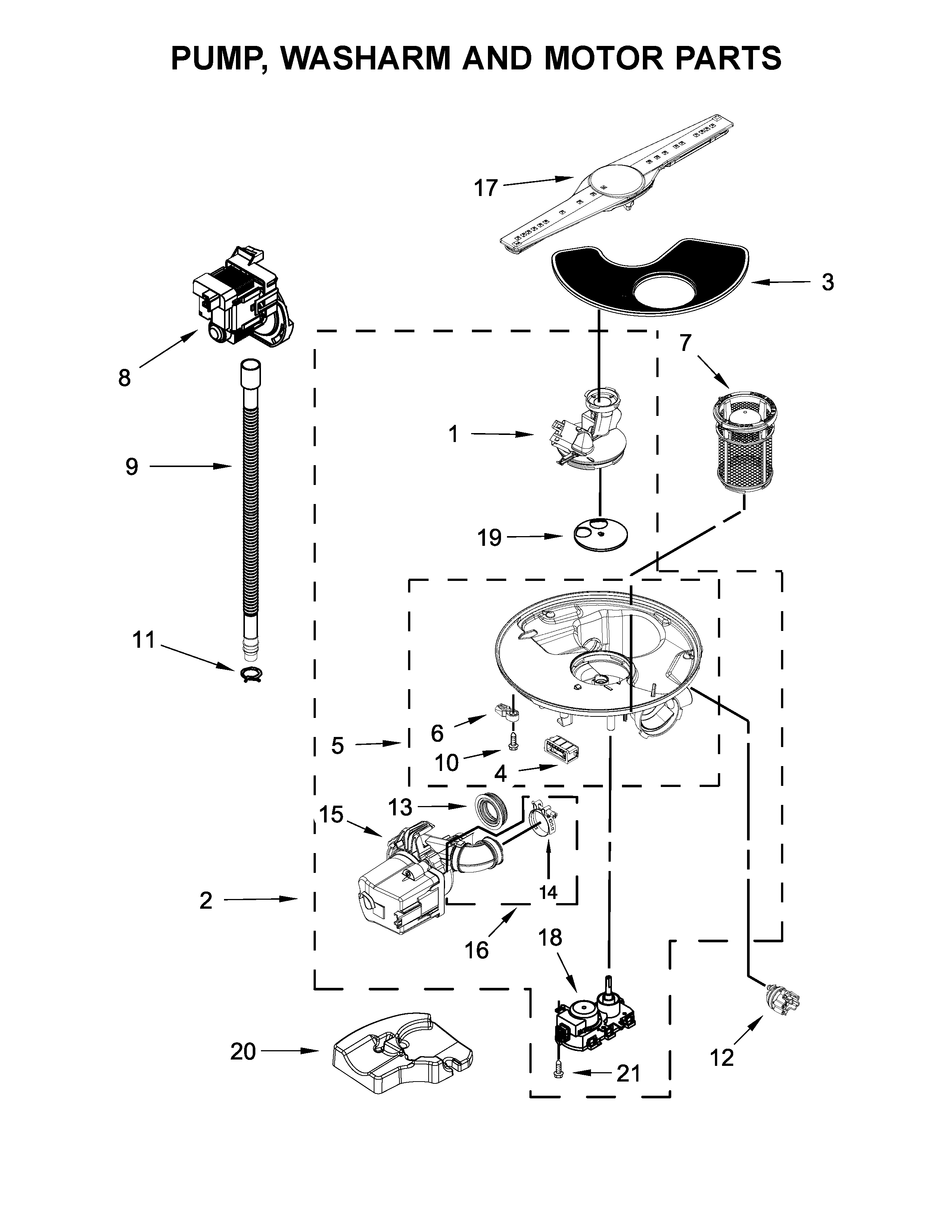

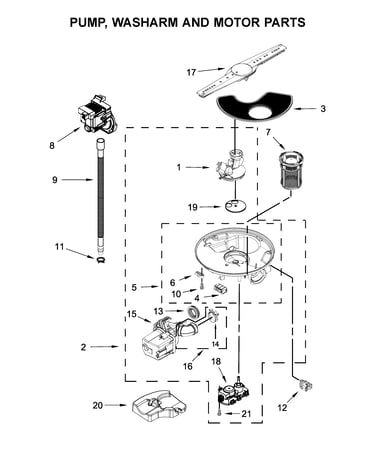

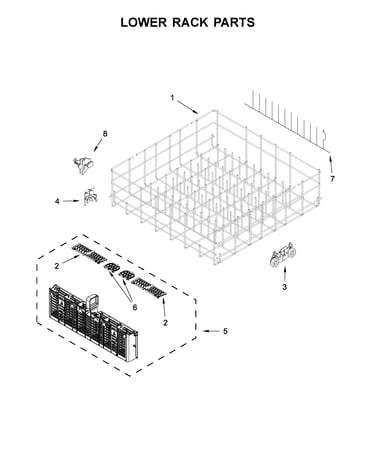

On the Whirlpool WDF770SAFZ0 (Quiet Partner 3 series), the filter is in the bottom of the dishwasher tub under the lower rack. Pull the lower rack out, then look around the base of the lower spray arm for the filter assemblies you twist to remove.

How to access and remove the filter

1. Turn the dishwasher off.
2. Slide the lower rack out.
3. Locate the filter area at the bottom of the tub (near the lower spray arm base).
4. Remove the upper filter assembly by turning it to unlock, then lift it out.
5. Lift out the lower filter.

For the exact lock and unlock direction and reinstallation steps for this model, follow the diagrams in the WDF770SAFZ0 user manual.

What you should check while you are there

• Rinse the filter screens under warm running water.
• Use a soft brush to remove grease or stuck-on debris.
• Make sure the filter seats fully and locks when reinstalled.
• Check the sump area for glass, labels, or food scraps.
• Spin the lower spray arm by hand to confirm it moves freely.

Filter symptoms and what they usually mean

Symptom	Common cause	What to do first
Grit or food left on dishes	Filter clogged or not locked in place	Clean and reinstall filter, confirm it locks
Dishwasher not draining well	Filter or drain path restricted	Clean filter, then check drain hose routing
Bad odor	Debris trapped in filter/sump	Clean filter and run a cleaning cycle

Why it matters

A clean, properly locked filter helps the wash pump circulate water correctly, improves cleaning performance, and reduces drain problems. If the dishwasher still drains poorly after cleaning the filter, the drain system may need attention (for example the drain hose or drain pump).

Last updated: January 2026

A Whirlpool Gold Series dishwasher typically lasts 10 years with normal household use and basic maintenance. For your Whirlpool WDF770SAFZ0, keeping filters clear, using rinse aid, and fixing small leaks or draining issues early helps you reach that expected lifespan. See the WDF770SAFZ0 owner's manual for model-specific care and operating guidance.

Typical lifespan and what affects it

Most dishwashers reach their full service life when wash performance stays strong and water is managed correctly.

• Water quality: hard water can cause mineral buildup on the heating system and internal passages
• Detergent and rinse aid use: rinse aid improves drying and helps reduce deposits
• Loading habits: overloading can block spray arms and reduce cleaning
• Drain health: slow draining strains the drain system and can leave standing water
• Heat and dry performance: poor drying can signal a heating or airflow issue

Quick maintenance checklist (5 minutes a month)

These steps prevent the most common “wear-out” problems like odors, poor cleaning, and standing water.

• Clean the filter area and remove debris from the sump
• Check that spray arms spin freely and holes are not clogged
• Use rinse aid consistently (especially with hard water)
• Run a cleaning cycle periodically to reduce grease and mineral buildup
• Watch for slow draining; address it before it stresses the pump

When a repair makes sense vs replacement

Symptom	Common cause	Often worth repairing?
Won’t drain	drain restriction or failing pump	Yes
Not drying	heating circuit or rinse aid issue	Yes
Door won’t latch	latch wear or alignment	Yes
Multiple major leaks or repeated failures	several worn systems	Sometimes

If your WDF770SAFZ0 is not draining, a common fix is replacing the dishwasher drain pump WPW10348269 after confirming the drain path is clear.

Why it matters

Dishwashers are designed to run long, energy-efficient cycles (often 2 to 5 hours per load), so keeping water flow, draining, and drying systems healthy directly impacts both cleaning results and overall service life.

Last updated: January 2026

For the Whirlpool WDF770SAFZ0 dishwasher, the most common problems we see are poor cleaning and draining issues caused by routine maintenance items (especially a dirty or incorrectly seated filter) and normal wear on water-moving parts like the drain pump and hoses. Use the WDF770SAFZ0 user manual troubleshooting section to match symptoms to the right fix.

Most common issues and what usually causes them

• Dirty dishes or grit left behind: filter needs cleaning or is not locked in place; spray arms can also be blocked.
• Not draining well: filter or drain path restriction; a clogged drain air gap (if your setup has one); drain pump wear.
• Won’t start or stops mid-cycle: door not fully closed and latched; cycle pauses can be normal; household power issue.
• Leaks at the bottom of the door: lower door seal wear or debris on the sealing surfaces.
• No heat or poor drying: heating circuit issue, rinse aid use, or cycle selection.

Quick checks we recommend first (fast, no parts)

1. Turn off power at the breaker.
2. Remove and clean the filter; reinstall it so the upper filter rotates clockwise and locks (it should not spin freely).
3. Check for standing water and clear any visible debris in the sump area.
4. If draining is weak, clean the drain air gap (when present) and confirm the drain hose is not kinked.
5. Confirm the door closes tightly and latches.

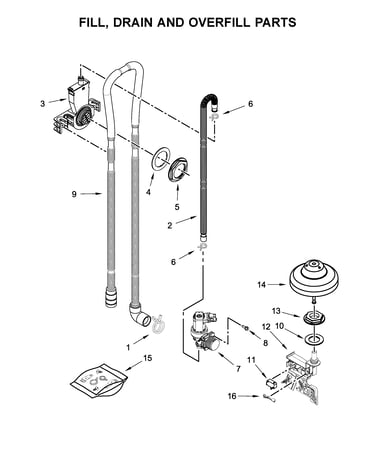

Parts that commonly fix these symptoms on WDF770SAFZ0

Symptom	Common part to inspect/replace	What it does
Dishwasher won’t drain	Dishwasher drain pump WPW10348269	Pumps water out to the drain line
Slow drain or drain leaks	Dishwasher drain hose 8269144A	Carries drain water to disposal/standpipe

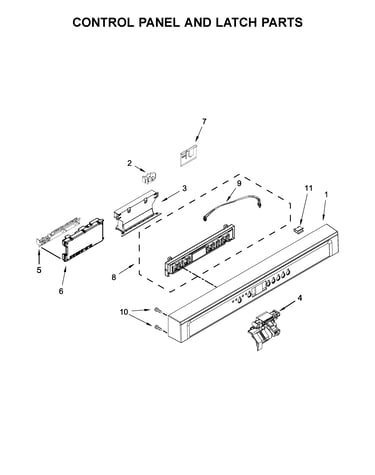

Won’t start or stops	Dishwasher door latch WPW10653840	Confirms door is closed so the cycle can run
Not filling	Dishwasher water inlet valve WPW10327249	Controls water entering the dishwasher

Why it matters

Most “big” dishwasher complaints start as small flow problems. A clean, properly locked filter helps protect the drain pump, improves wash performance, and prevents repeat clogs that can shorten the life of the sump and motor assembly.

Last updated: January 2026
