Model # 247772460 Official Craftsman edger/trencher

Here are the diagrams and repair parts for Official Craftsman 247772460 edger/trencher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
#17

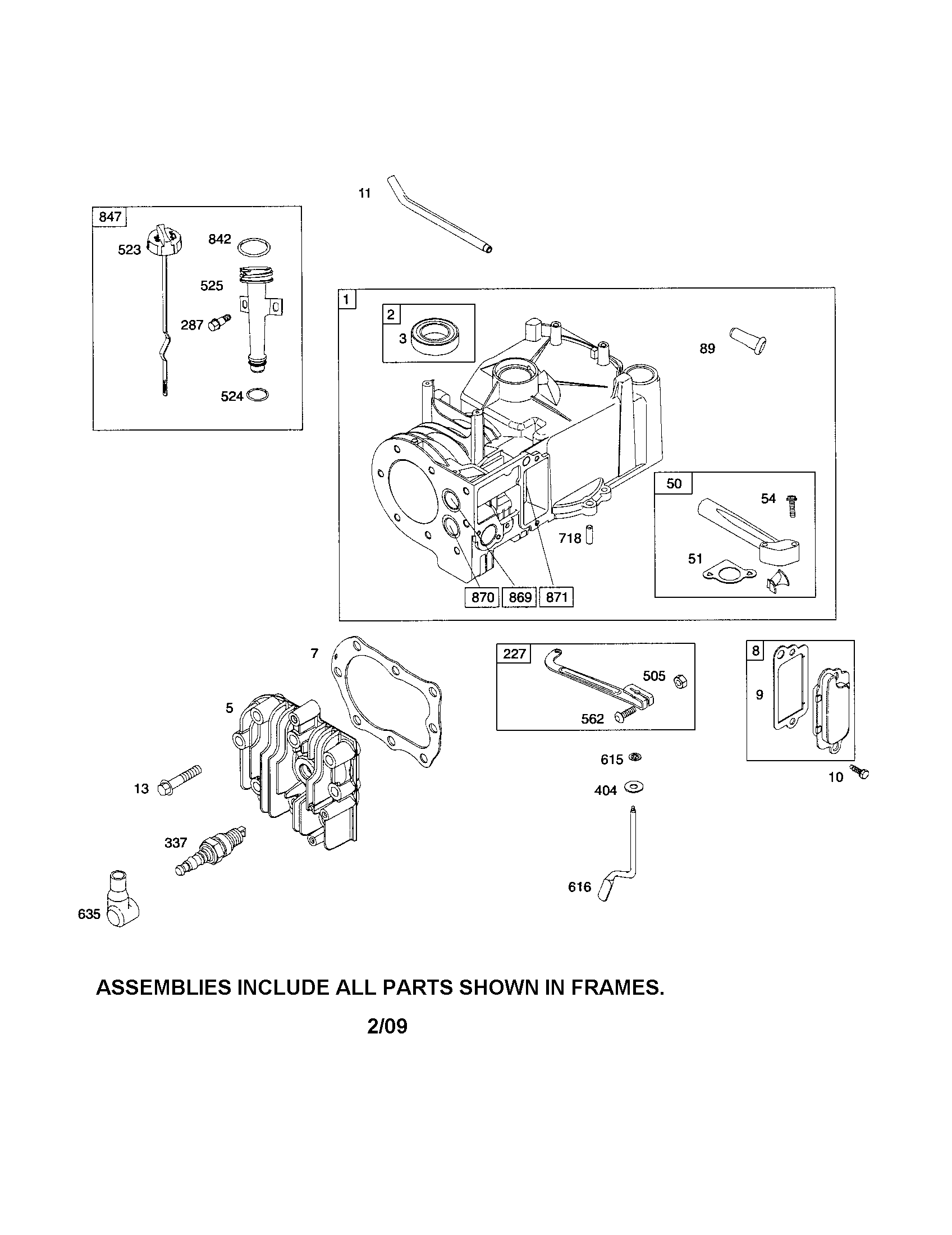

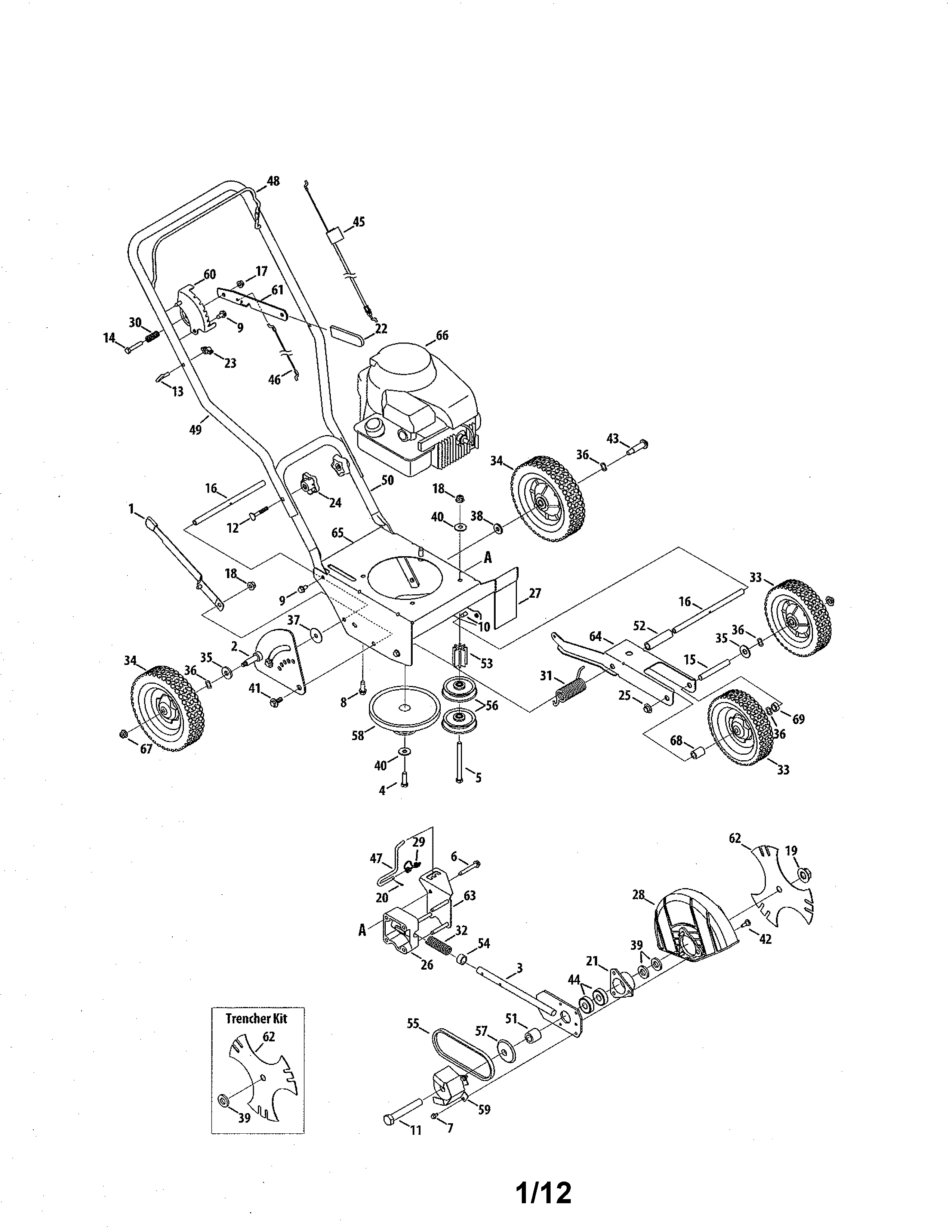

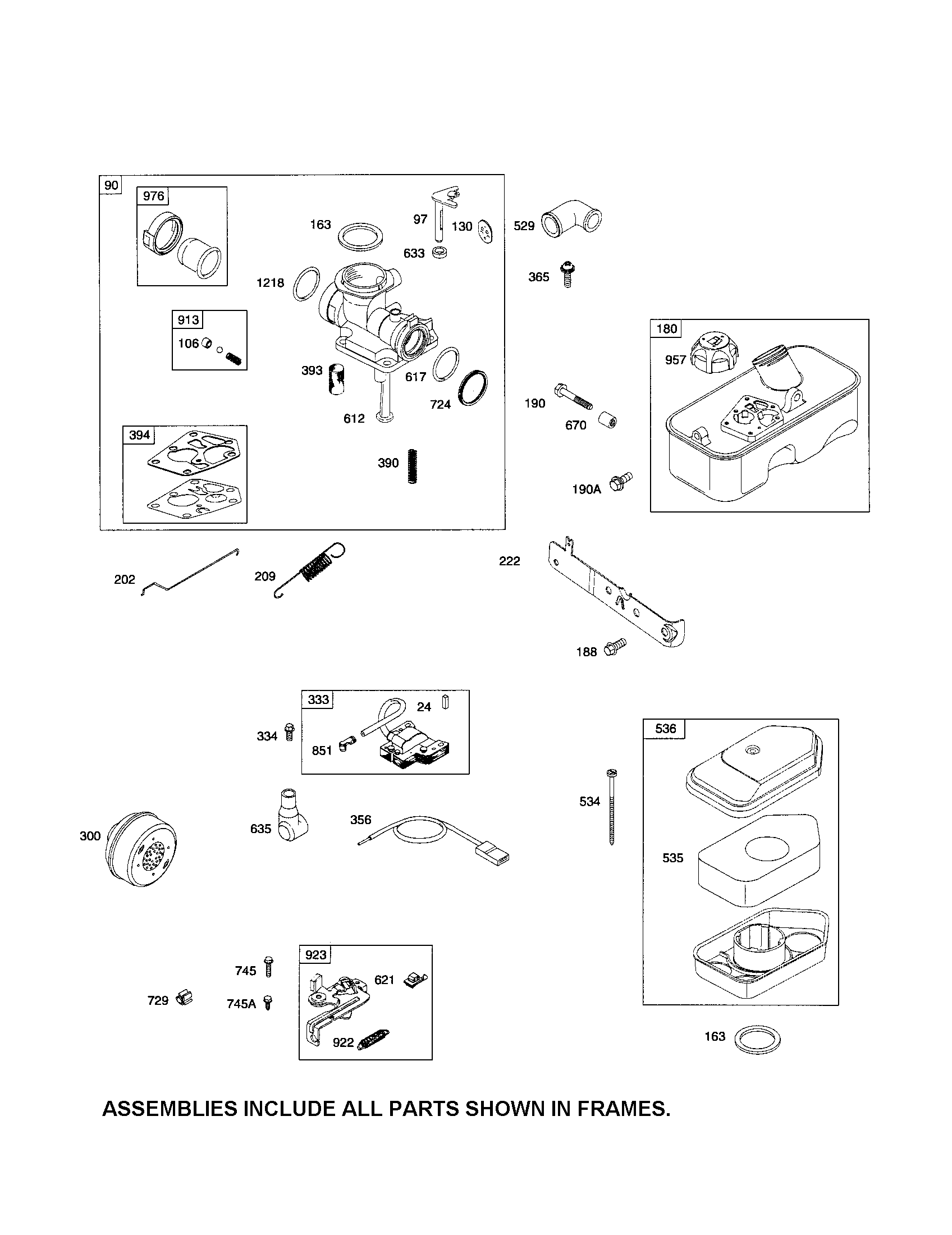

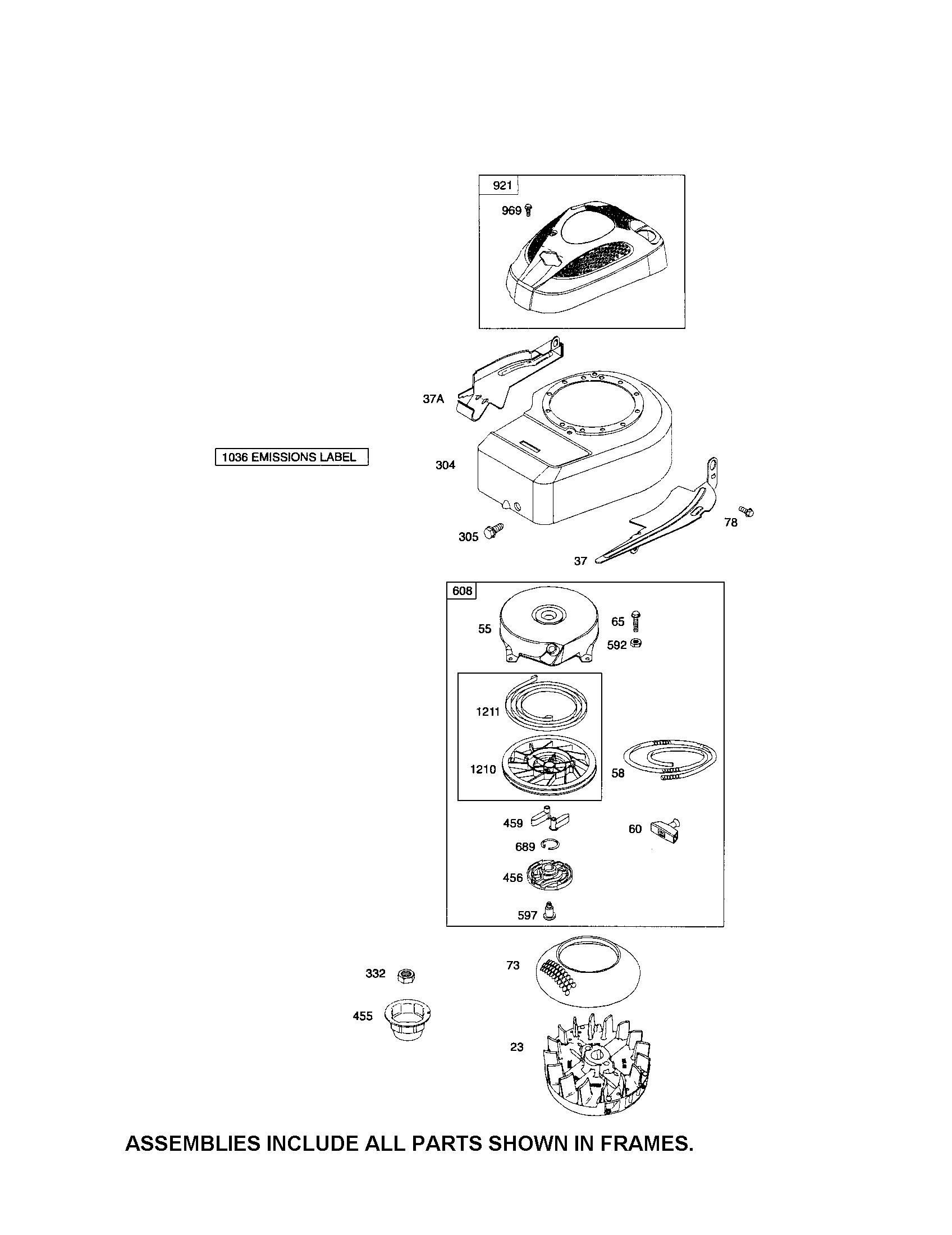

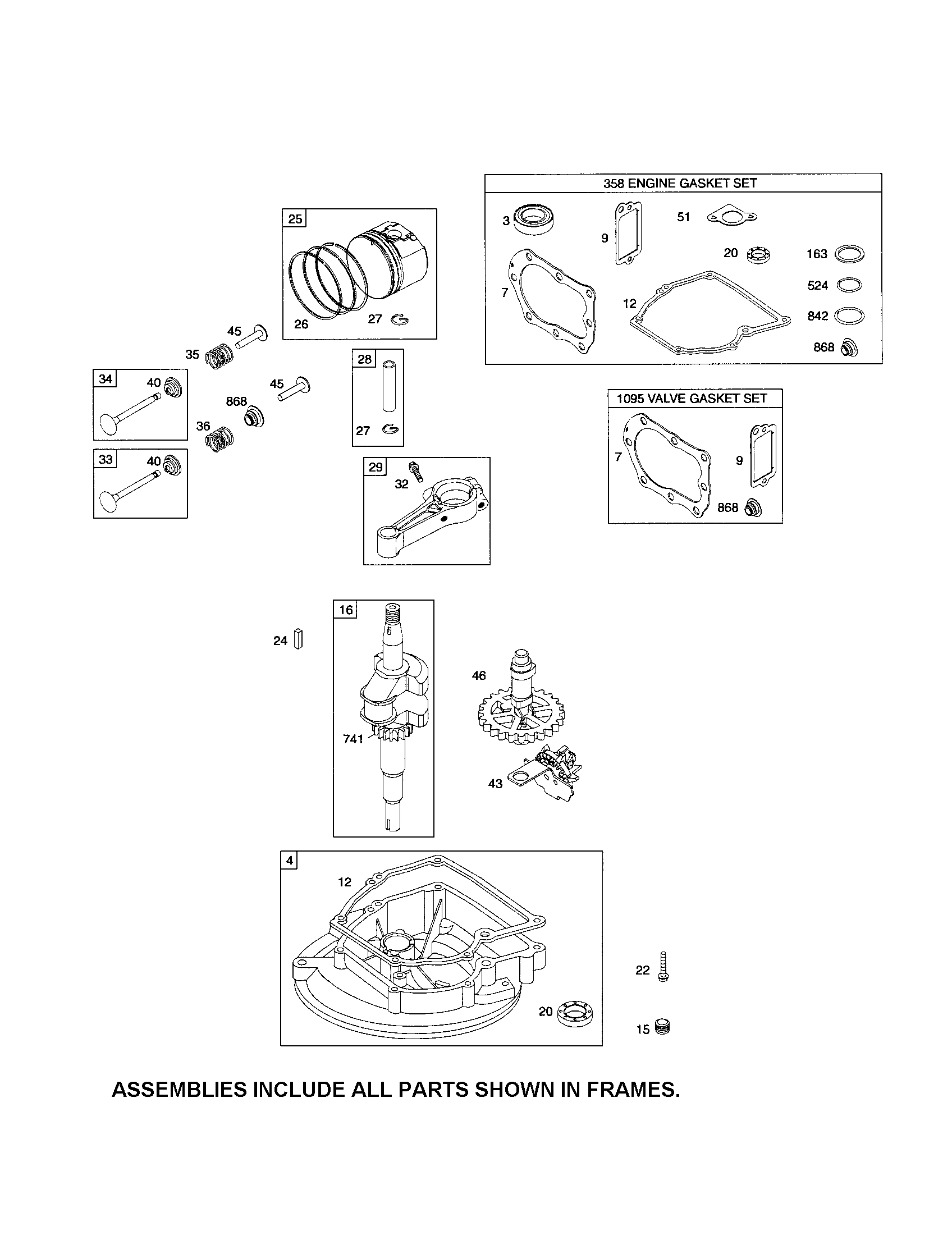

Edger/trencher diagram

Lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Lawn & Garden Equipment Hex Flange Nut (replaces 753-05549, 912-0417a) 712-0417A
#19

Edger/trencher diagram

Lawn & garden equipment hex flange nut (replaces 753-05549, 912-0417a)

Part #712-0417A

BEST SELLER
$7.66 |
20% OFF MSRP : $9.60
In Stock
Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#18

Edger/trencher diagram

Lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
23% OFF MSRP : $6.80
In Stock
Lawn Mower Ground Drive Belt, 3/8 X 36-1/8-in (replaces 754-04032b, 954-04032, 954-0465) 954-04032B
#55

Edger/trencher diagram

Lawn mower ground drive belt, 3/8 x 36-1/8-in (replaces 754-04032b, 954-04032, 954-0465)

Part #954-04032B

BEST SELLER

Get free shipping with Automatic Reorder

$28.69 |
15% OFF Phone Price : $33.69
In Stock
Edger Blade (replaces 781-0748, Oem-781-0748) 781-0748-0637
#62

Edger/trencher diagram

Edger blade (replaces 781-0748, oem-781-0748)

Part #781-0748-0637

BEST SELLER

Get free shipping with Automatic Reorder

$30.19 |
14% OFF Phone Price : $35.19
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#7

Edger/trencher diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lawn & Garden Equipment Wing Nut (replaces 01002925, 920-0279) 720-0279
#23

Edger/trencher diagram

Lawn & garden equipment wing nut (replaces 01002925, 920-0279)

Part #720-0279

This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
Lawn & Garden Equipment Hex Bolt 710-3180
#14

Edger/trencher diagram

Lawn & garden equipment hex bolt

Part #710-3180

This item is not returnable
$6.93 |
13% OFF Phone Price : $7.93
In Stock
Lawn & Garden Equipment Screw 710-0411
#5

Edger/trencher diagram

Lawn & garden equipment screw

Part #710-0411

$12.51 |
14% OFF Phone Price : $14.51
In Stock
Edger Bail Handle 747-0976A-0637
#48

Edger/trencher diagram

Edger bail handle

Part #747-0976A-0637

Replaced by #747-0976B

?
Manufacturer substitution
This part replaces 747-0976A-0637. Substitute parts can look different from the original.
$26.50
In Stock
