GE ZIFP360NXARH freezer - x series Parts

Here are the diagrams and repair parts for GE ZIFP360NXARH freezer - x series, as well as links to manuals and error code tables, if available.

GE ZIFP360NXARH freezer - x series
By Schematic
By Part

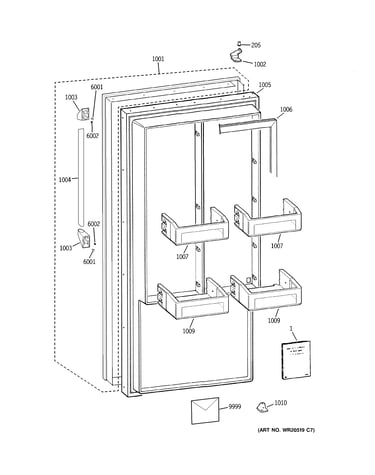

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ZIFP360NXARH Freestanding Freezers

  • Halogen Ligh for GE ZIFP360NXARH - Part WR02X32331

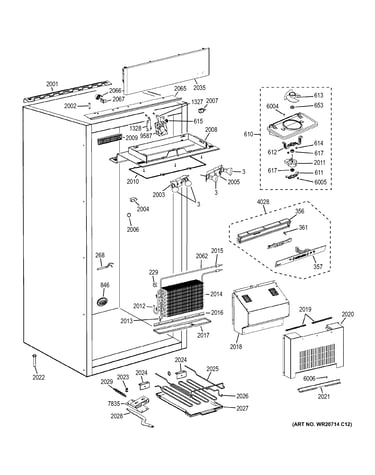

    Cabinet (1) diagram

    Halogen Bulb

    Part #WR02X13308

    Replaced by #WR02X32331

    Info Icon
    Manufacturer substitution
    This part replaces WR02X13308. Substitute parts can look different from the original.
    In Stock
    $40.47
    Minus Item
    Qty
    Plus Item
  • Badge for GE ZIFP360NXARH - Part WB02X26123

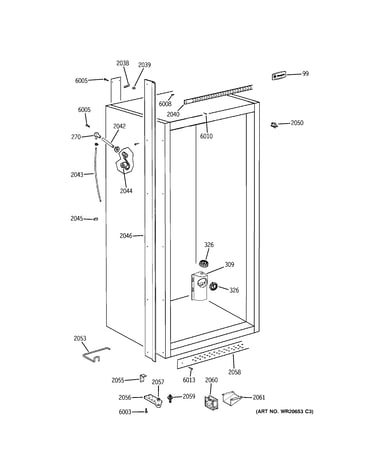

    Cabinet (2) diagram

    Mg Logo Larg

    Part #WB02X10830

    Replaced by #WB02X26123

    Info Icon
    Manufacturer substitution
    This part replaces WB02X10830. Substitute parts can look different from the original.
    In Stock
    $10.07
    17% OFF Phone Price : $12.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Filter Head And Tubing for GE ZIFP360NXARH - Part WR17X22069

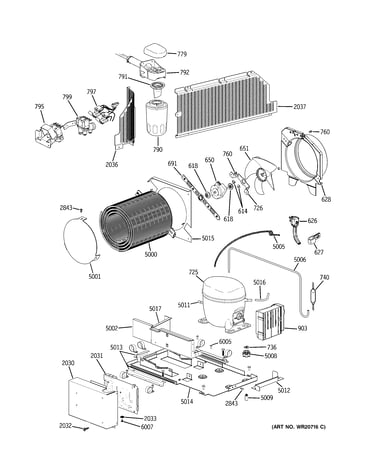

    Machine compartment diagram

    Refrigerator Water Filter Head And Tubing

    Part #WR02X13046

    Replaced by #WR17X22069

    Info Icon
    Manufacturer substitution
    This part replaces WR02X13046. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $52.09
    10% OFF Phone Price : $58.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Ice Maker for GE ZIFP360NXARH - Part WR30X28698

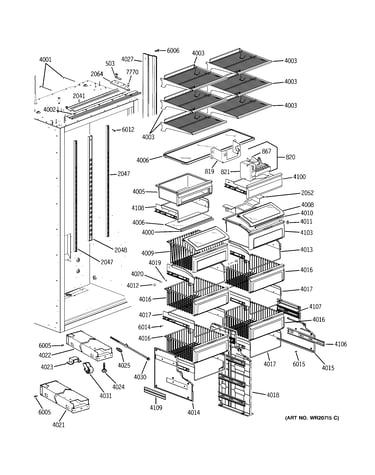

    Shelves & drawers diagram

    Ice Maker Fill

    Part #WR30X10112

    Replaced by #WR30X28698

    Info Icon
    Manufacturer substitution
    This part replaces WR30X10112. Substitute parts can look different from the original.
    In Stock
    $88.15
    6% OFF Phone Price : $94.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Filter Bypass for GE ZIFP360NXARH - Part WR17X22070

    Machine compartment diagram

    Refrigerator Water Filter Bypass

    Part #WR02X11705

    Replaced by #WR17X22070

    Info Icon
    Manufacturer substitution
    This part replaces WR02X11705. Substitute parts can look different from the original.
    This item is not returnable
    Get free shipping with Automatic Reorder
    In Stock
    $8.66
    10% OFF Phone Price : $9.66Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Base Channel, Right for GE ZIFP360NXARH - Part WR13X30113

    Shelves & drawers diagram

    Base Channel

    Part #WR13X10693

    Replaced by #WR13X30113

    Info Icon
    Manufacturer substitution
    This part replaces WR13X10693. Substitute parts can look different from the original.
    In Stock
    $223.53
    5% OFF Phone Price : $235.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Cover for GE ZIFP360NXARH - Part WR74X10355

    Cabinet (1) diagram

    Evaporator Cover Assembly

    Part #WR74X10306

    Replaced by #WR74X10355

    Info Icon
    Manufacturer substitution
    This part replaces WR74X10306. Substitute parts can look different from the original.
    In Stock
    $619.82
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for GE ZIFP360NXARH - Part WR1X5278

    Cabinet (2) diagram

    Refrigerator Ice Maker Water Supply Tube Retainer

    Part #WR02X12265

    Replaced by #WR1X5278

    Info Icon
    Manufacturer substitution
    This part replaces WR02X12265. Substitute parts can look different from the original.
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Mounting Post for GE ZIFP360NXARH - Part WR1X1779

    Machine compartment diagram

    Stud Mtgcomp

    Part #WR01X1779

    Replaced by #WR1X1779

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1779. Substitute parts can look different from the original.
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for GE ZIFP360NXARH - Part WR1X1826

    Shelves & drawers diagram

    #8-18ab X 1/

    Part #WR01X10052

    Replaced by #WR1X1826

    Info Icon
    Manufacturer substitution
    This part replaces WR01X10052. Substitute parts can look different from the original.
    In Stock
    $31.64
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Ge Refrigerator Water Filter MWF

Ge Refrigerator Water Filter

Part #MWF
In Stock
$37.14
34% OFF Was : $56.64Info Icon
Minus Item
Qty
Plus Item
Refrigerator Ice Maker Module Cover WR29X10082

Refrigerator Ice Maker Module Cover

Part #WR29X10082
In Stock
$67.07
8% OFF Phone Price : $73.07Info Icon
Minus Item
Qty
Plus Item
Pan Protector Cover, Rear WR02X13038

Pan Protector Cover, Rear

Part #WR02X13038
In Stock
$45.60
Minus Item
Qty
Plus Item
Leveling Leg WR02X10479

Leveling Leg

Part #WR02X10479
In Stock
$65.87
Minus Item
Qty
Plus Item
