Bosch SHPM98W75N/01 dishwasher Parts

Yes. Bosch model SHPM98W75N is a past-production dishwasher model, so it’s typically considered discontinued as a “new-in-box” item; you’ll usually find it only as existing retail stock or used. Even when a model is discontinued, we still support repairs by helping you match parts to your exact unit.

How to confirm for your exact unit

Use the model and FD (factory date) information on the rating plate, then compare it to the documentation and parts list.

• Check the rating plate for the full model and FD number
• Confirm the exact suffix (for example, “/01”) when ordering parts

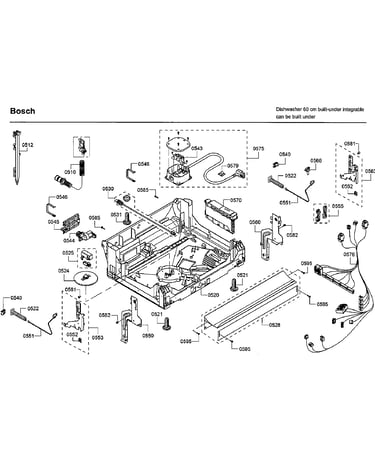

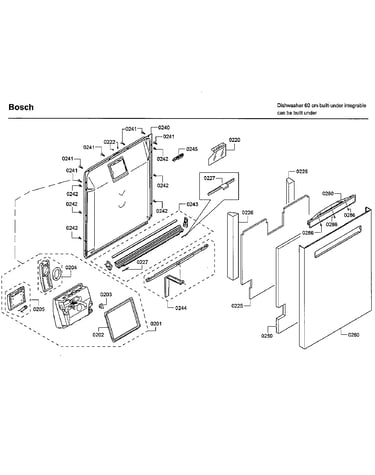

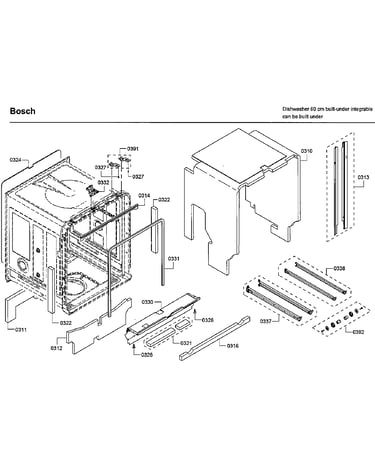

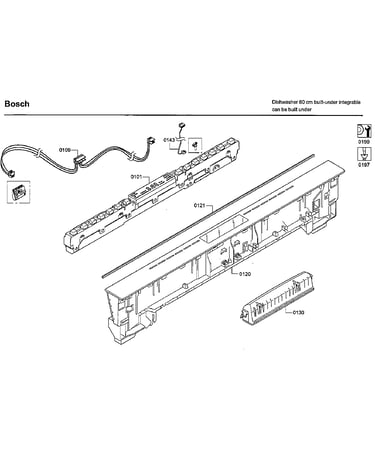

• Use the parts diagrams to match by shape, mounting points, and connectors
• If you’re troubleshooting, note any error code or symptom before ordering parts
• Verify electrical and plumbing requirements before swapping major components

For model-specific identification details and where to find the rating plate, use the SHPM98W75N owner’s manual.

What “discontinued” means for repairs

A discontinued dishwasher model can still be very serviceable. The key is ordering by the exact model and using the correct component for the symptom.

What you need	What to do	Example part for this model
Drain problem	Check filters, hose routing, then pump	Dishwasher drain pump 00631200
No fill or slow fill	Confirm water supply, then valve	Dishwasher water inlet valve (match by model)
Poor wash or no heat	Check circulation system	Dishwasher circulation pump with heater

Why it matters

Bosch dishwashers often share platforms across series, but parts can still vary by revision. Confirming the exact model variant helps prevent wrong-part returns and gets your dishwasher back to cleaning and draining correctly.

Last updated: January 2026

Yes. Most Bosch built-in dishwashers, including model SHPM98W75N, are designed to fit a standard 24-inch-wide opening, while some Bosch models are compact 18-inch-wide units. For the exact cutout and clearance requirements, use the SHPM98W75N installation guide.

What “standard size” means for dishwashers

Most kitchens are built around two common dishwasher widths. Height and depth vary slightly by model and installation style (flush vs. proud).

• Standard (full size): about 24 inches wide
• Compact: about 18 inches wide
• Typical opening height: roughly 34 to 35 inches (adjustable legs help)
• Typical depth: roughly 24 inches to align with cabinets
• Panel-ready vs. standard door: can change the finished look, not the cabinet opening width

How to confirm fit for SHPM98W75N

Use these checks before ordering parts or planning an install.

• Measure the cabinet opening width, height, and depth in three spots (front, middle, back)
• Confirm toe-kick clearance and door swing clearance
• Verify water line and drain hose routing space
• Confirm electrical connection method (hardwired vs. cord)
• Match the guide’s requirements for side clearances and leveling

Fit item	What to check	Why it matters
Opening width	24-inch vs. 18-inch class	Determines whether the dishwasher can physically slide in
Opening height	Floor to underside of countertop	Prevents binding and helps the door seal correctly
Depth	Cabinet face to back wall	Keeps the unit flush and avoids hose kinks

Why it matters

A dishwasher that is even slightly too tall, too deep, or not properly leveled can rub the cabinet, leak at the door, or vibrate loudly. Confirming the opening size also helps when replacing installation items like the dishwasher junction box and power cord assembly 11031987.

Last updated: January 2026

On Bosch dishwasher model SHPM98W75N, an E01 error typically clears by canceling the cycle and forcing a drain, then power-cycling the dishwasher. This resets the control so you can restart a normal wash after the tub is empty.

Quick reset steps (cancel and drain)

• Press and hold the Start/Reset (Cancel/Drain) control until the dishwasher begins draining.
• Let the drain run until it stops on its own.
• Turn the dishwasher off, wait about 60 seconds, then turn it back on.
• Start a new cycle and listen for normal fill and wash sounds.
• If E01 returns immediately, stop the cycle and check for standing water or unusual pump noise.

What to check if E01 comes back

E01 often points to a control detecting a problem with draining, water movement, or a related component. These checks help narrow it down:

• Drain path: Make sure the sink drain connection and air gap (if used) are not clogged.
• Filter area: Clean the filter and sump area so water can move freely.
• Drain hose: Look for kinks, crushing, or a low loop issue; confirm the hose routing matches the SHPM98W75N installation guide.

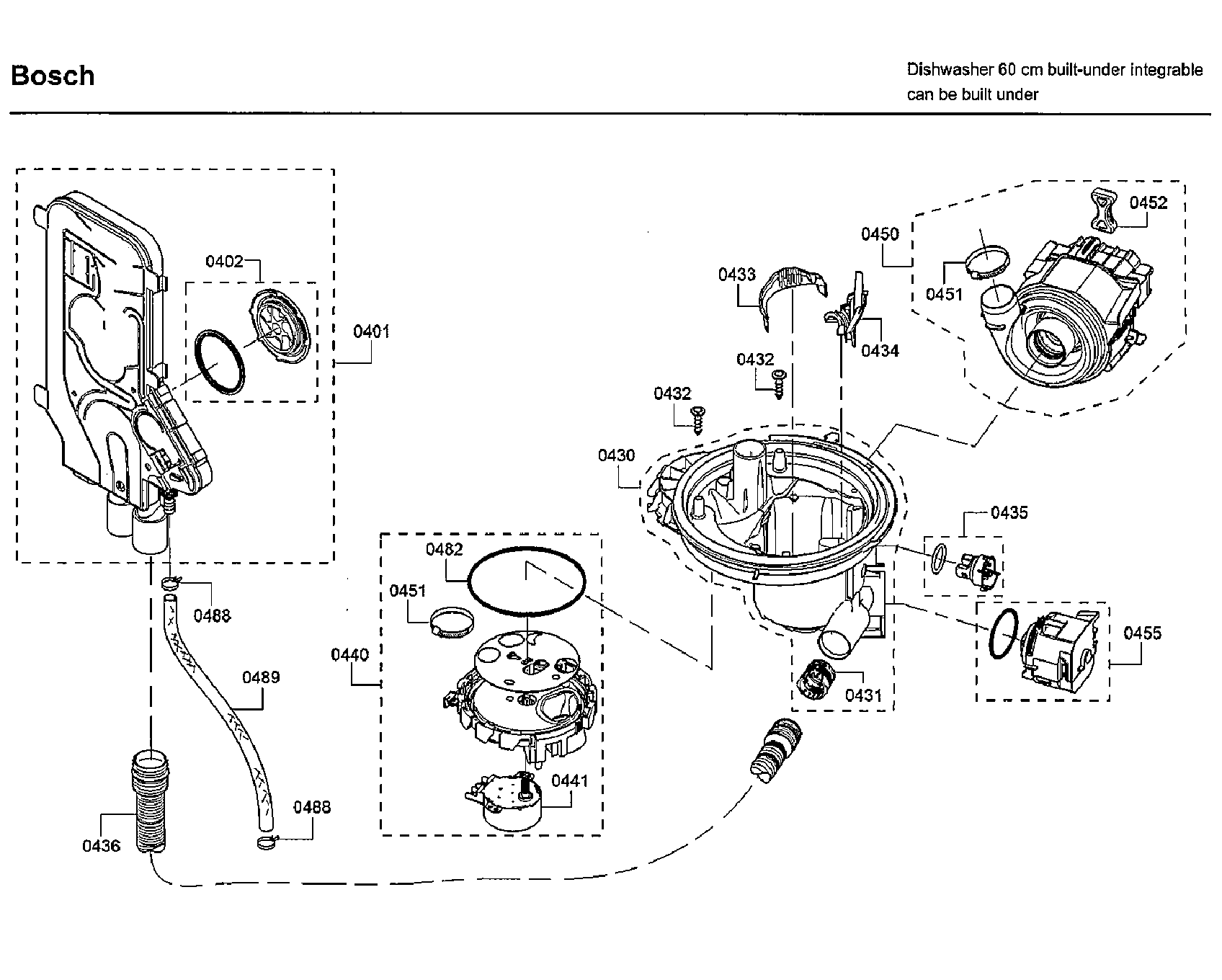

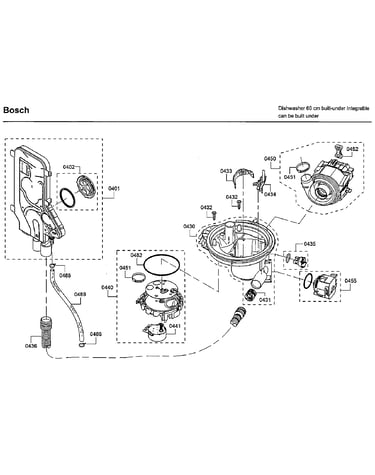

• Drain pump: If you hear humming but no draining, inspect the pump area for debris; replacement is the dishwasher drain pump 00631200.
• Error details: Use the Bosch dishwasher error codes reference to confirm what E01 indicates for Bosch units and what symptoms match.

Common symptoms and likely causes

Symptom	Most likely area	Example part to consider
Water remains in tub after cancel/drain	Drain restriction or failed pump	Drain pump, drain hose
Hums but won’t drain	Pump jam or pump failure	Drain pump
Drains but won’t wash correctly	Water circulation issue	Circulation pump with heater
Intermittent errors	Wiring/connection or control input issue	Wire harness, user interface

Why it matters

Resetting clears the control logic, but if E01 returns, the dishwasher is protecting itself from running with poor water movement or drainage. Fixing the underlying drain or pump issue prevents repeat errors and helps avoid poor cleaning and standing water.

Last updated: January 2026

The most common Bosch dishwasher problems are poor cleaning and draining issues, and on the Bosch SHPM98W75N these are usually caused by maintenance items (filters, spray arm clogs, loading, water temperature) or a restriction in the drain path. We start with cleaning and flow checks before replacing parts.

Most common symptoms and what they usually mean

• Dishes still dirty or gritty: clogged filter, blocked spray arms, low water temperature, or heavy soil overload
• Water left in the bottom: drain hose restriction, blocked sump area, or a failing drain pump
• Detergent not dispensing well: dispenser door obstruction, waxy buildup, or a failing dispenser
• Not drying well: rinse aid empty, plastic-heavy loads, or cycle selection (condensation drying is sensitive to rinse aid)
• Fills slowly or not at all: shutoff valve not fully open, inlet screen clogged, or inlet valve issue

Quick checks we recommend first (before buying parts)

1. Clean the filter system and remove any debris from the sump area.
2. Confirm the spray arms spin freely and the holes are not plugged.
3. Run hot water at the sink until it is hot, then start the cycle.
4. Verify the drain hose routing is not kinked and has a proper high loop/air gap.
5. Use rinse aid and avoid blocking the detergent cup with tall items.

When a part is the likely fix

If cleaning and hose checks do not help, these parts commonly solve the same “most common” complaints:

Symptom	Common culprit	Example part for SHPM98W75N
Won’t drain or drains weakly	Drain pump or drain restriction	Dishwasher drain pump 00631200
Not filling or fills slowly	Water inlet valve or inlet screen blockage	Dishwasher water inlet valve 10023852
Poor wash pressure or heating issues	Circulation pump with heater	Dishwasher circulation pump with heater 12008381

Why it matters

Bosch dishwashers are efficient, so small restrictions (food debris, hard-water scale, a kinked drain hose) can quickly show up as poor cleaning, standing water, or long cycle times. Fixing flow and maintenance issues first prevents unnecessary part replacement.

For model-specific operating tips, cleaning intervals, and cycle guidance, use the SHPM98W75N manual. For mounting and drain hose routing best practices, use the SHPM98W75N installation guide.

Last updated: January 2026
