Craftsman 917270762 42" lawn tractor Parts

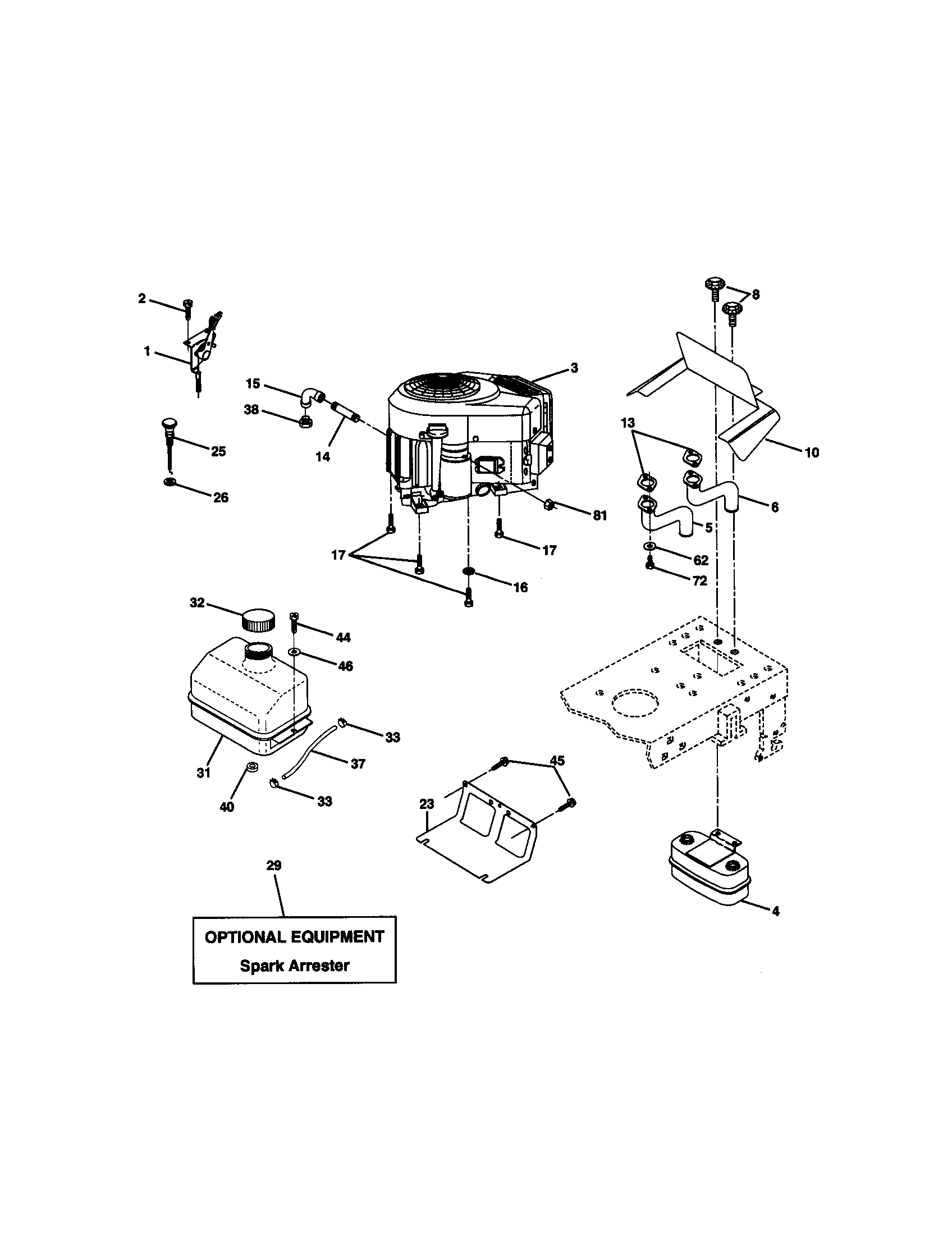

The Craftsman lawn tractor model 917270762 uses a Briggs & Stratton engine (manual shows 407777-0121-E5); oil capacity is set by that engine and the correct fill level is the FULL mark on the dipstick. Use the oil type and fill procedure in the 917270762 owner's manual.

How we recommend filling it (accurate every time)

Use the dipstick as the final target; that prevents underfilling or overfilling even if a little old oil remains in the crankcase.

• Park on level ground and let the engine cool.
• Drain oil completely; replace the drain plug securely.
• If you replace the oil filter, install the new filter per the manual.
• Add oil slowly, then wait 30 to 60 seconds for it to settle.
• Check the dipstick; top off in small amounts until it reads FULL.
• Do not overfill; excess oil can cause smoking and leaks.

Typical capacity range for this engine class

Most twin-cylinder riding-mower engines like the Briggs 407777 family take about 1.5 to 2.0 quarts total, depending on sump design and whether the filter is changed.

Service situation	Typical amount to add	Final check
Oil change only	About 1.5 to 2.0 qt	Dipstick at FULL
Oil + filter change	Slightly more than oil-only	Dipstick at FULL

Why it matters

Correct oil level protects internal engine parts (crankshaft, bearings, valve train) from heat and wear. Low oil causes rapid damage; overfilled oil can foam and reduce lubrication.

Last updated: February 2026

For Craftsman model 917270762, the fastest way to find the right replacement part is to use the parts diagram and parts list in the 917270762 owner's manual. Match the part name and reference number from the diagram to the exact part listing before you order.

Step-by-step: how we recommend finding the correct part

• Confirm the model number on the tractor’s ID tag is 917270762.

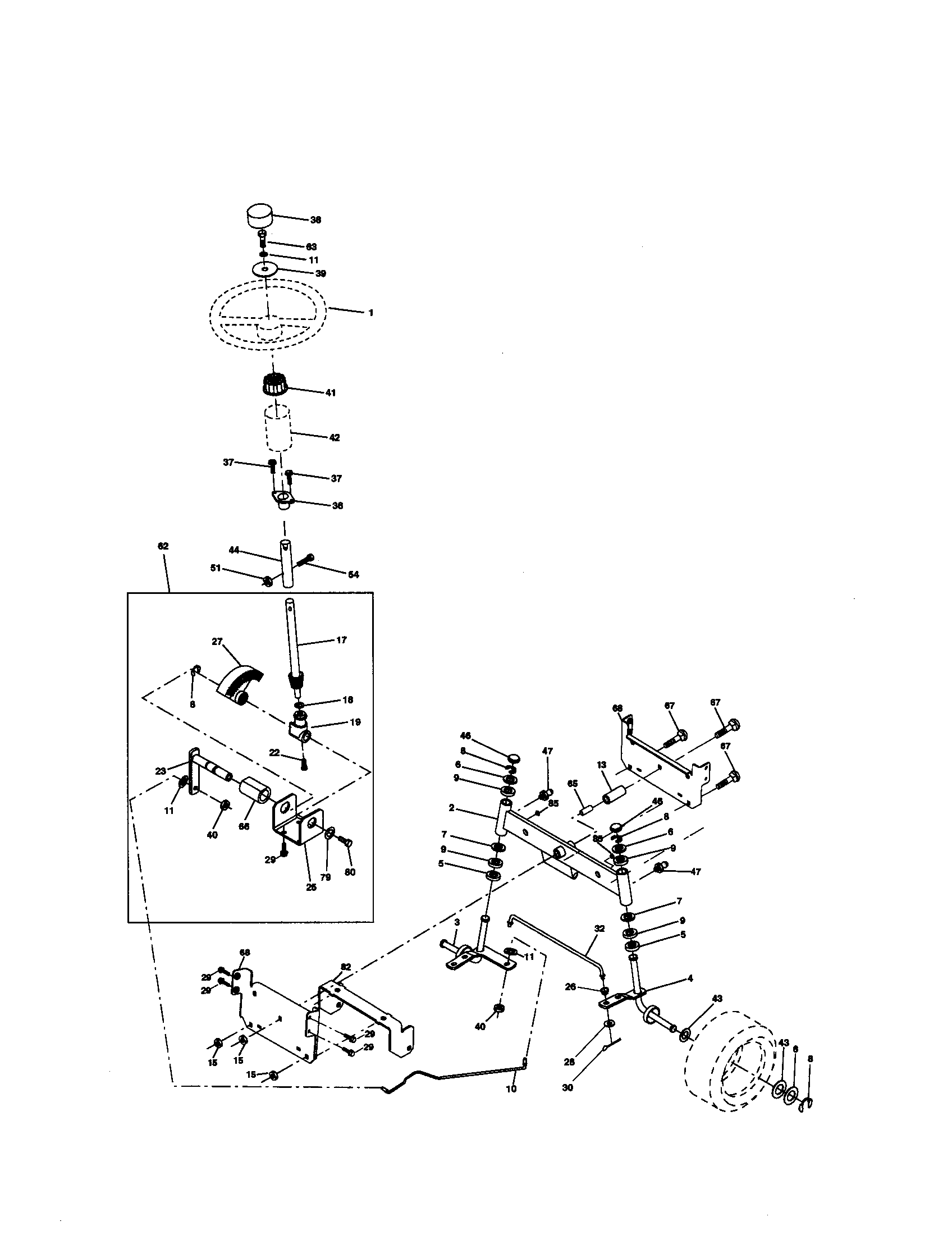

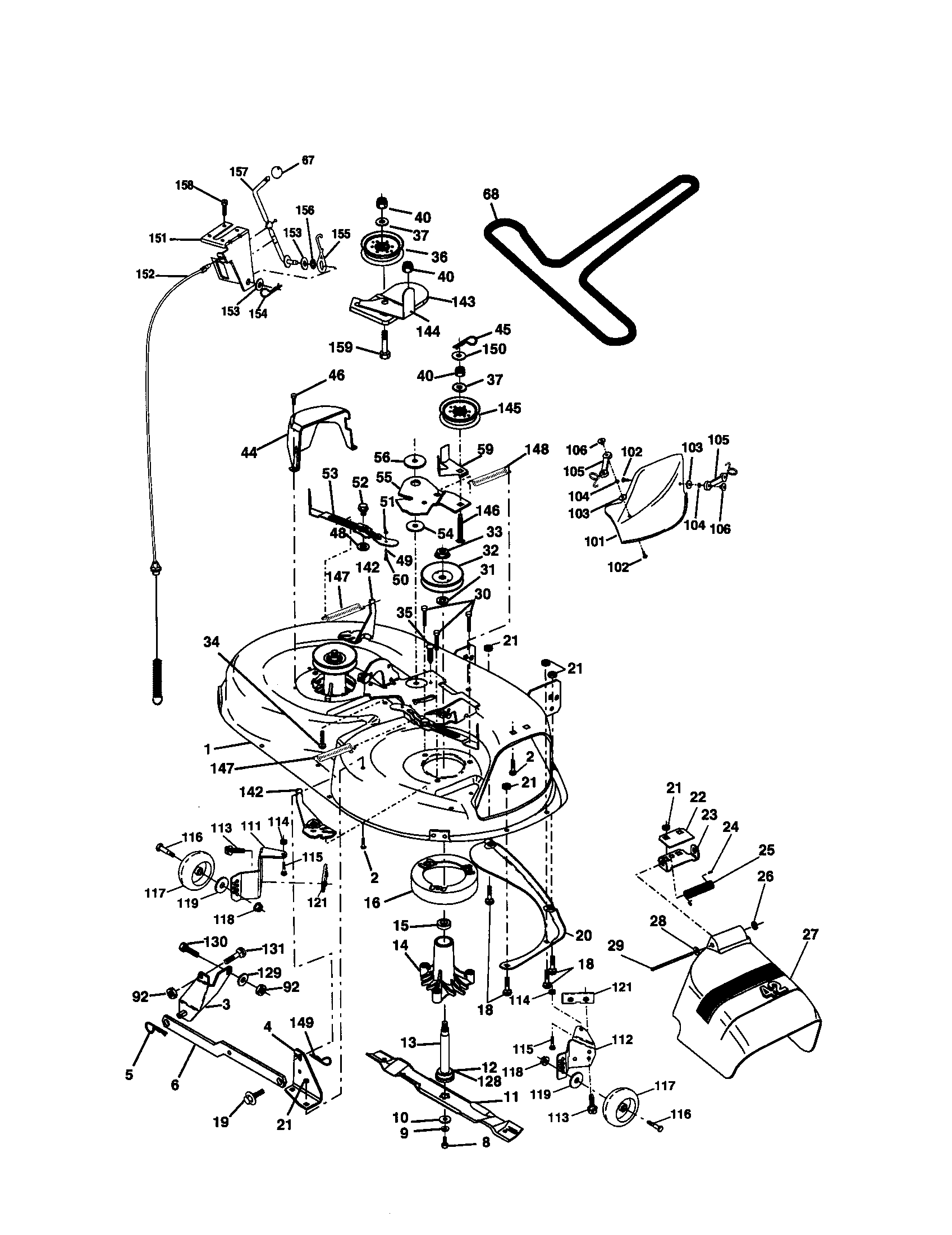

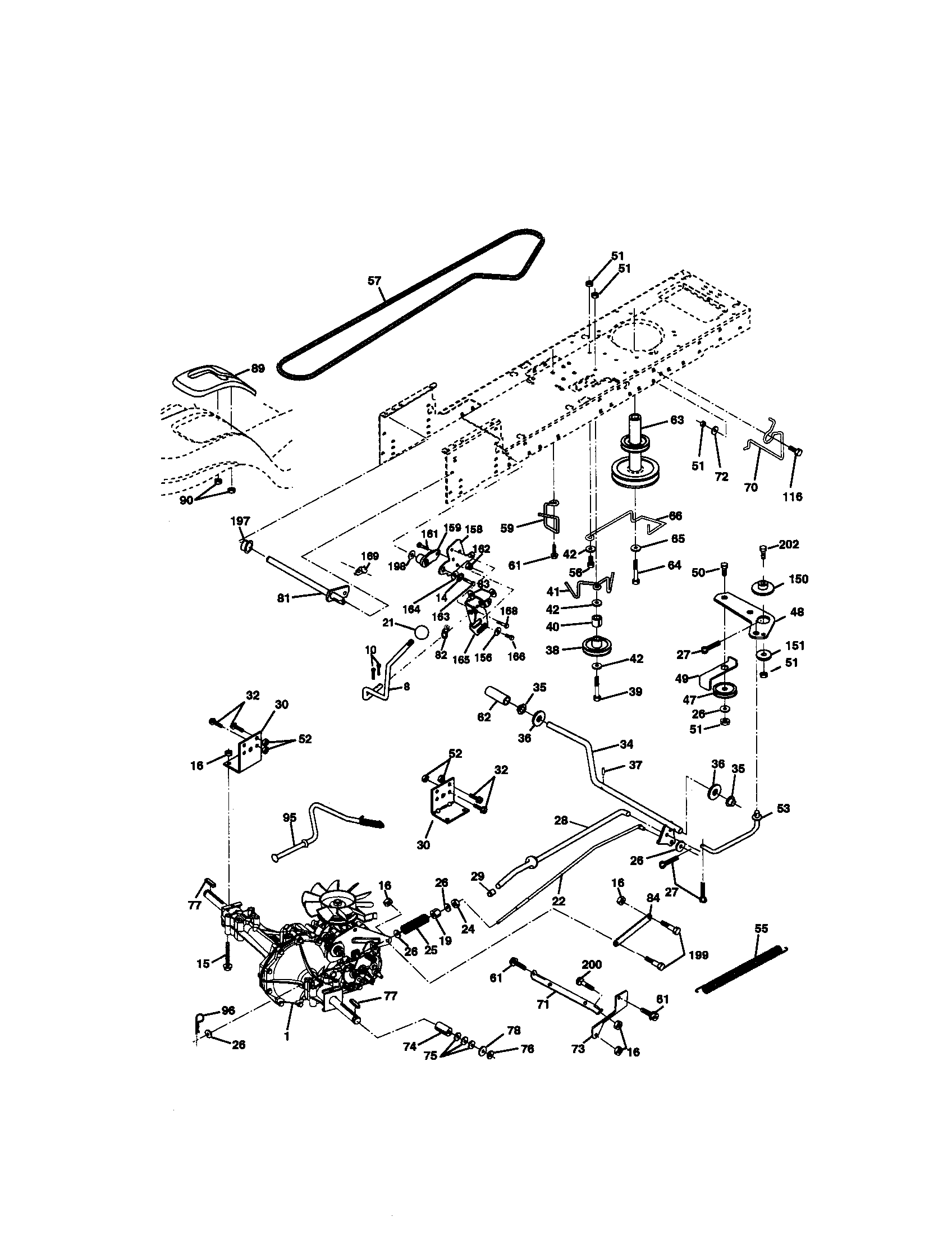

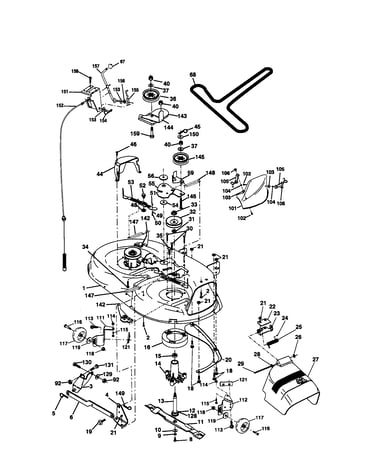

• Open the parts diagrams and locate the system you are repairing (mower deck, steering, drive, engine area).
• Identify the part by its diagram callout number and description.
• Cross-check the part’s measurements and application (deck size, belt length, tire size) before purchasing.
• If you are replacing a wear item, inspect related hardware (nuts, clips, springs) at the same time.

Common parts customers look up on this model

These are examples of parts available for 917270762 that are often searched when mowing or drive performance changes:

What you are fixing	Part type to look up	Example part for this model
Poor cut quality, clumping	Blade	Husqvarna lawn tractor mulching blade, 21-in 532134149
Tractor will not move or slips	Ground drive belt	Lawn tractor ground drive belt, 1/2 x 82-in 532140294
Deck vibration or loud rumble	Mandrel/spindle	Husqvarna lawn tractor mandrel assembly 532130794
Lost key	Ignition key	Molded ignition key 532140403

Why it matters

Riding mower parts are highly model-specific. Using the diagram and manual prevents ordering a look-alike part that fits a different deck, pulley, or mandrel setup, which can cause poor cutting, belt throw-off, or premature wear.

Last updated: February 2026

The model number for this Craftsman front-engine lawn tractor is 917.270762 (often written without the dot as 917270762). You can confirm it on the identification label and in the 917270762 owner's manual.

Where to confirm the model number

Use these quick checks to make sure you are matching parts and diagrams to the right tractor:

• Check the model label on the tractor frame (commonly under the seat area or near the rear fender)
• Match the model number format: 917.270762 and 917270762 refer to the same model
• Verify the manual cover page lists Model No. 917.270762
• Use the model number when searching for parts like blades, belts, and steering components
• If the tractor has multiple decals, rely on the model label and manual, not deck stickers

Why the model number matters for parts

Many Craftsman riding mowers look similar, but parts can differ by steering assembly, deck configuration, and engine setup. Using the exact model number helps ensure the correct fit for items such as a ground drive belt, mandrel parts, and deck hardware.

Examples of parts that depend on the exact model

Part type	What can vary by model	Example part for 917270762
Mower blade	Deck size and mounting pattern	Husqvarna lawn tractor mulching blade, 21-in 532134149
Drive belt	Length and width	Lawn tractor ground drive belt, 1/2 x 82-in 532140294
Steering linkage	Geometry and connection points	Lawn tractor drag link 532169832

Related note about similar model numbers

Craftsman model numbers can be very close (for example, 917.273820 is a different tractor). For ordering parts, we always use the exact model number shown on the tractor label and in the 917270762 owner's manual.

Last updated: February 2026

Craftsman model 917270762 was produced in the early 2000s era (the LT1000-style 42-inch tractors). The exact build year is identified by the tractor’s product ID and date code; we use the model’s documentation and ID label details in the 917270762 owner's manual to match the correct production date.

How to find the exact year on your tractor

Look for the product identification label (commonly under the seat or on the rear fender area). Once you have the full ID information, you can pinpoint the build year.

• Write down the model number: 917270762
• Record the product number (often shown as a longer number on the ID label)
• Note any date code or serial number printed on the label

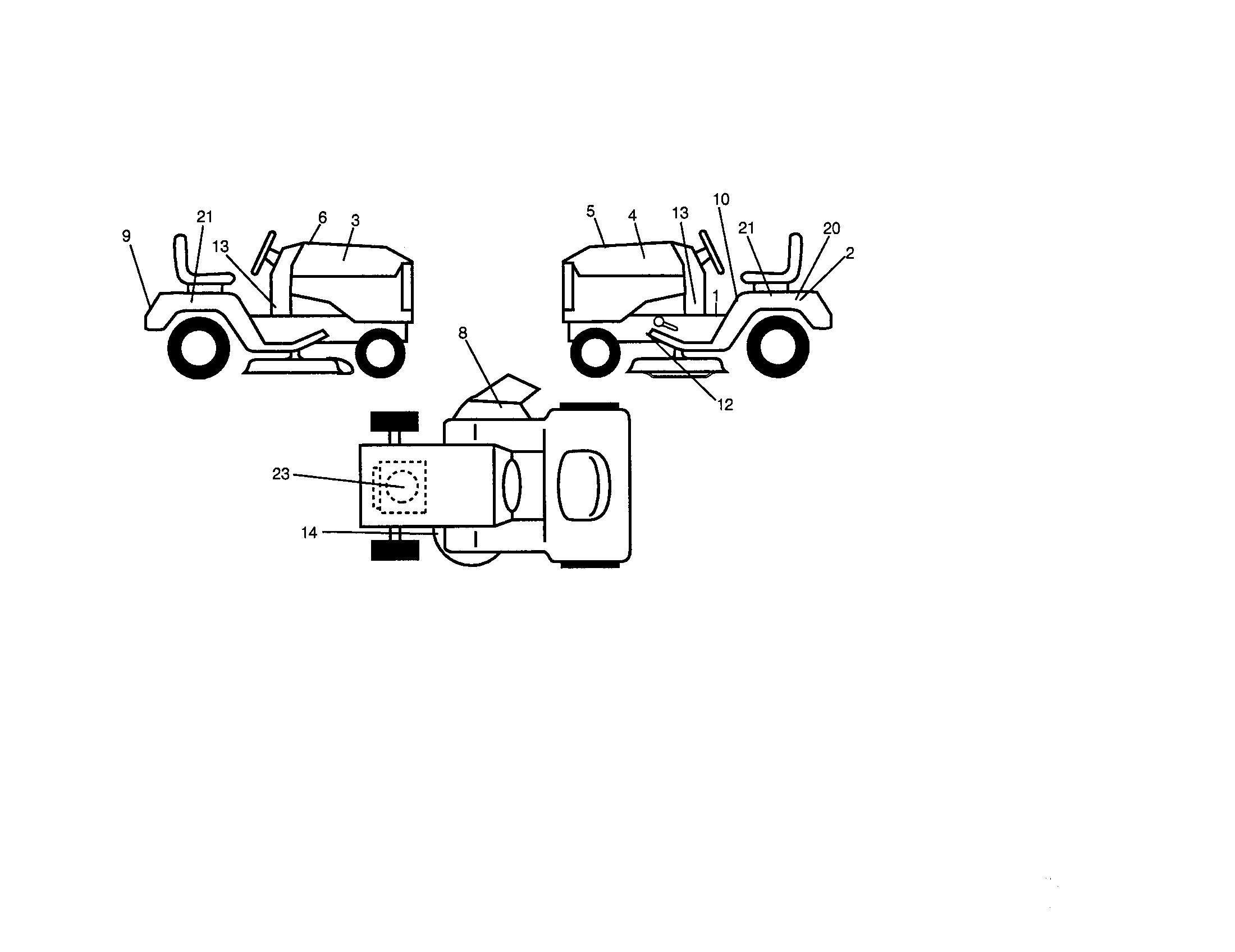

• Check for a decal set or hood/fender decal style changes (these often align with a production run)
• Use the parts diagrams in the manual to confirm you are matching the correct tractor configuration

What we can confirm from the manual

The owner’s manual for this unit identifies it as an electric start, 42-inch mower, automatic lawn tractor under model number 917.270762. That places it in the LT1000-type Craftsman tractor family sold broadly during the early 2000s.

Quick identification checklist

Item to check	What to look for	Why it helps
ID label	Product number and date/serial code	Pins down the exact build year
Transmission type	“Automatic” drive	Confirms the correct variant
Deck size	42-inch deck	Confirms the correct platform

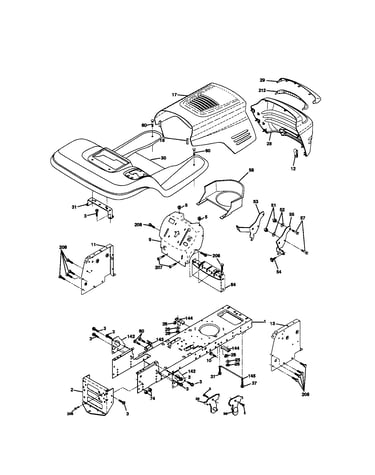

Steering and chassis parts	Match diagrams/part lists	Verifies you are not mixing similar models

Why it matters

The build year affects parts fitment for high-wear items like belts, blades, mandrel components, and steering hardware. For example, if you are servicing the mower deck, confirming the correct blade style helps you choose the right replacement such as the husqvarna lawn tractor mulching blade, 21-in 532134149 when it matches your deck setup.

Last updated: February 2026
