Samsung WF330ANB/XAA-05 washer

Samsung WF330ANB/XAA-05 washer Parts

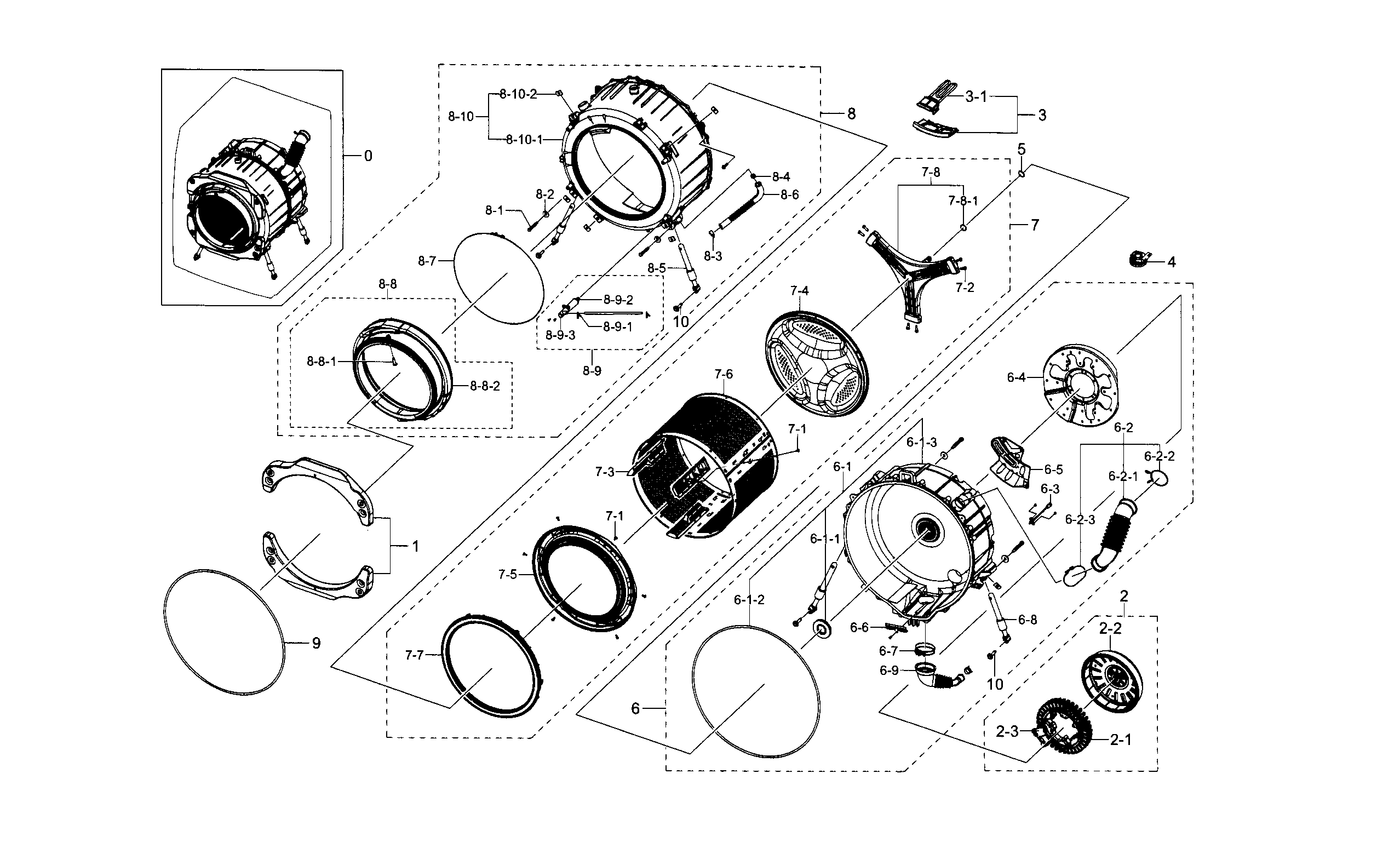

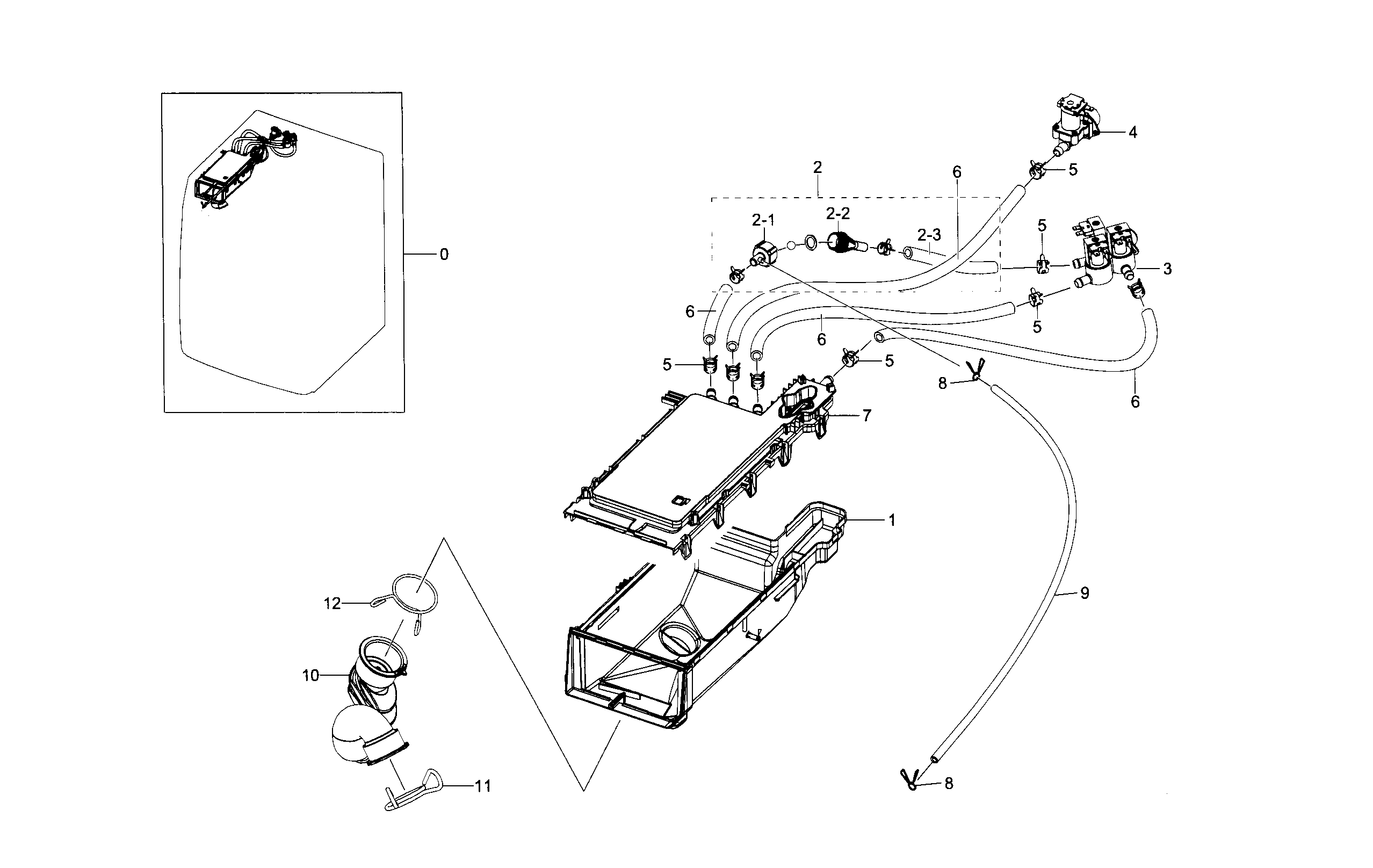

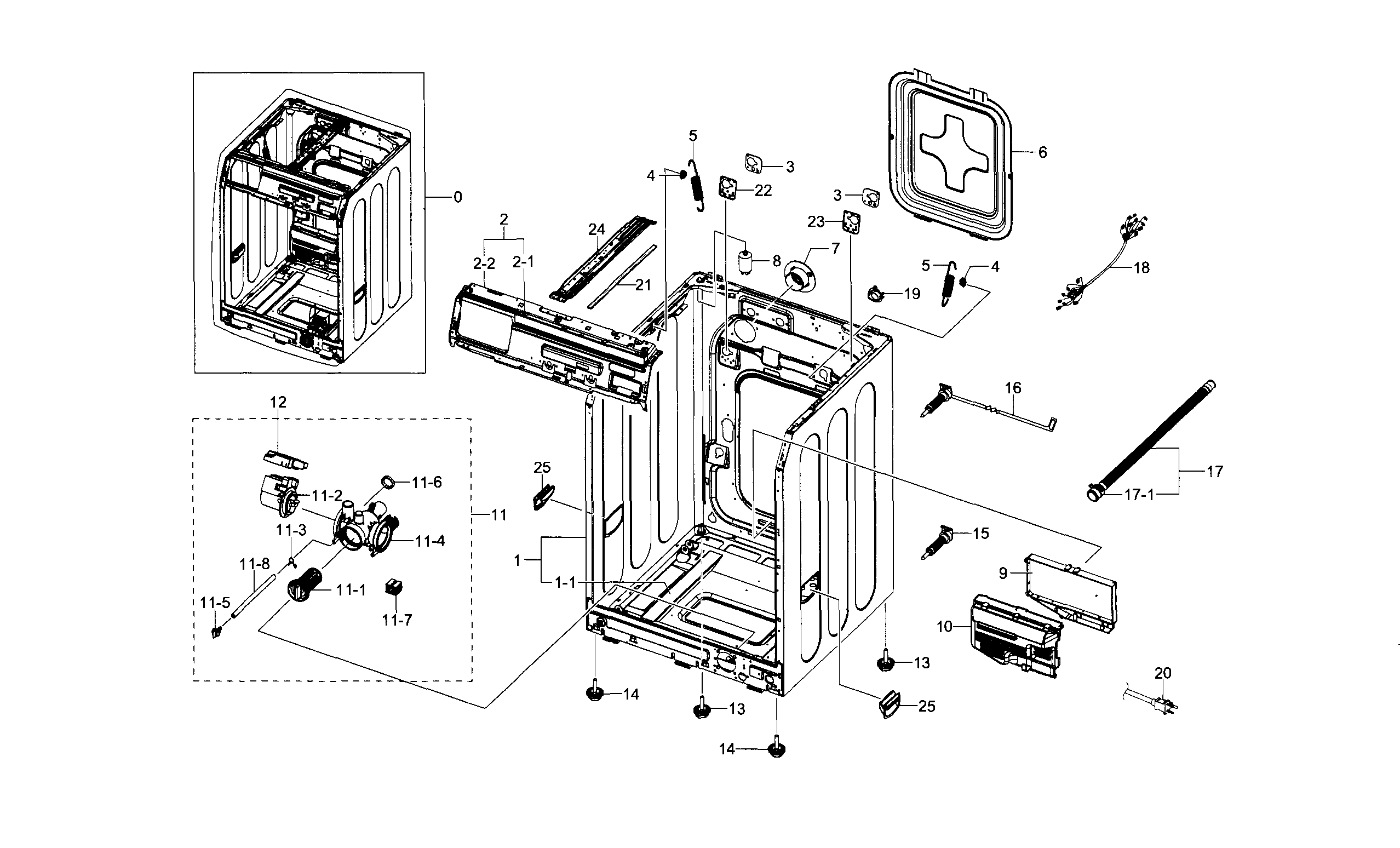

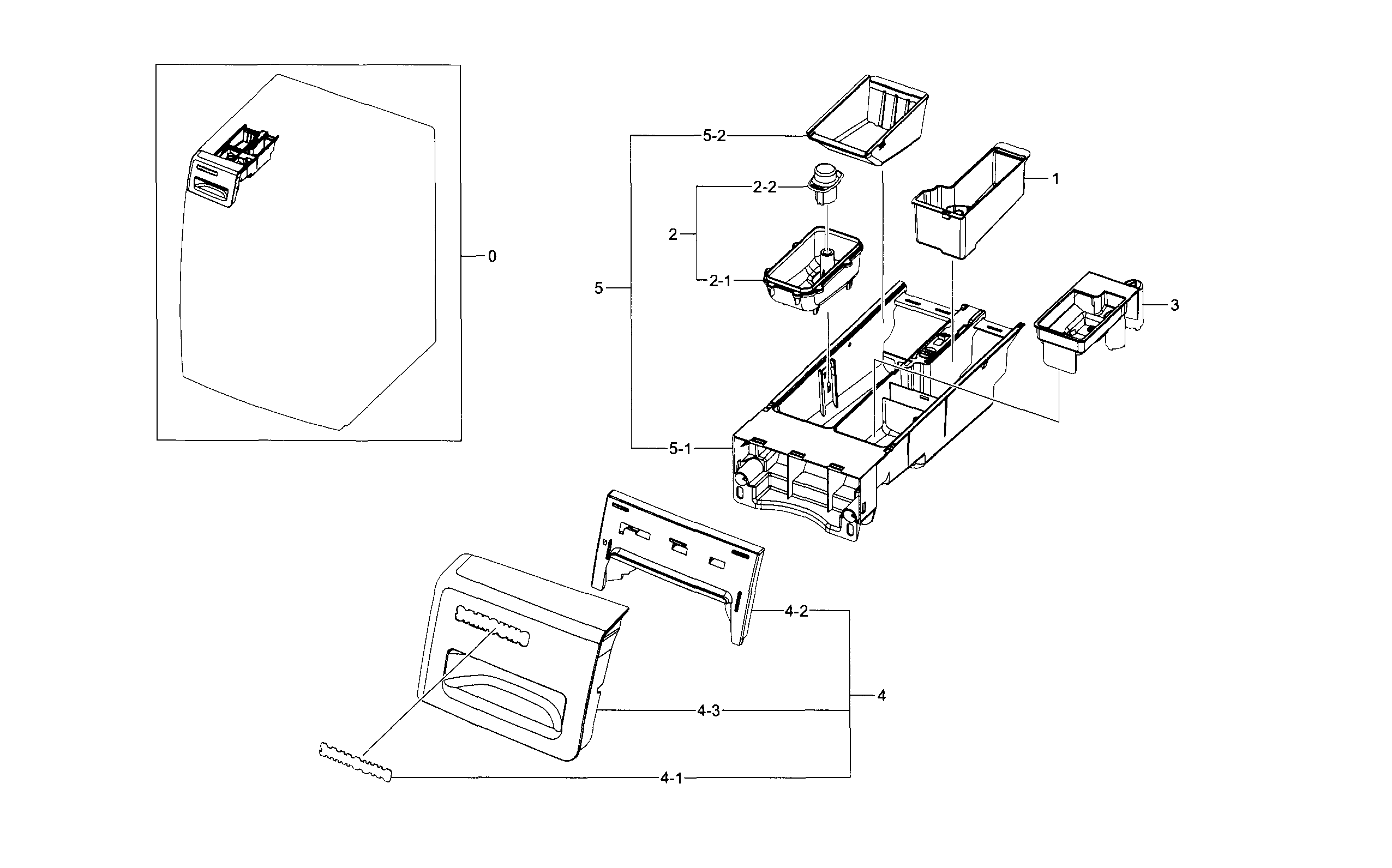

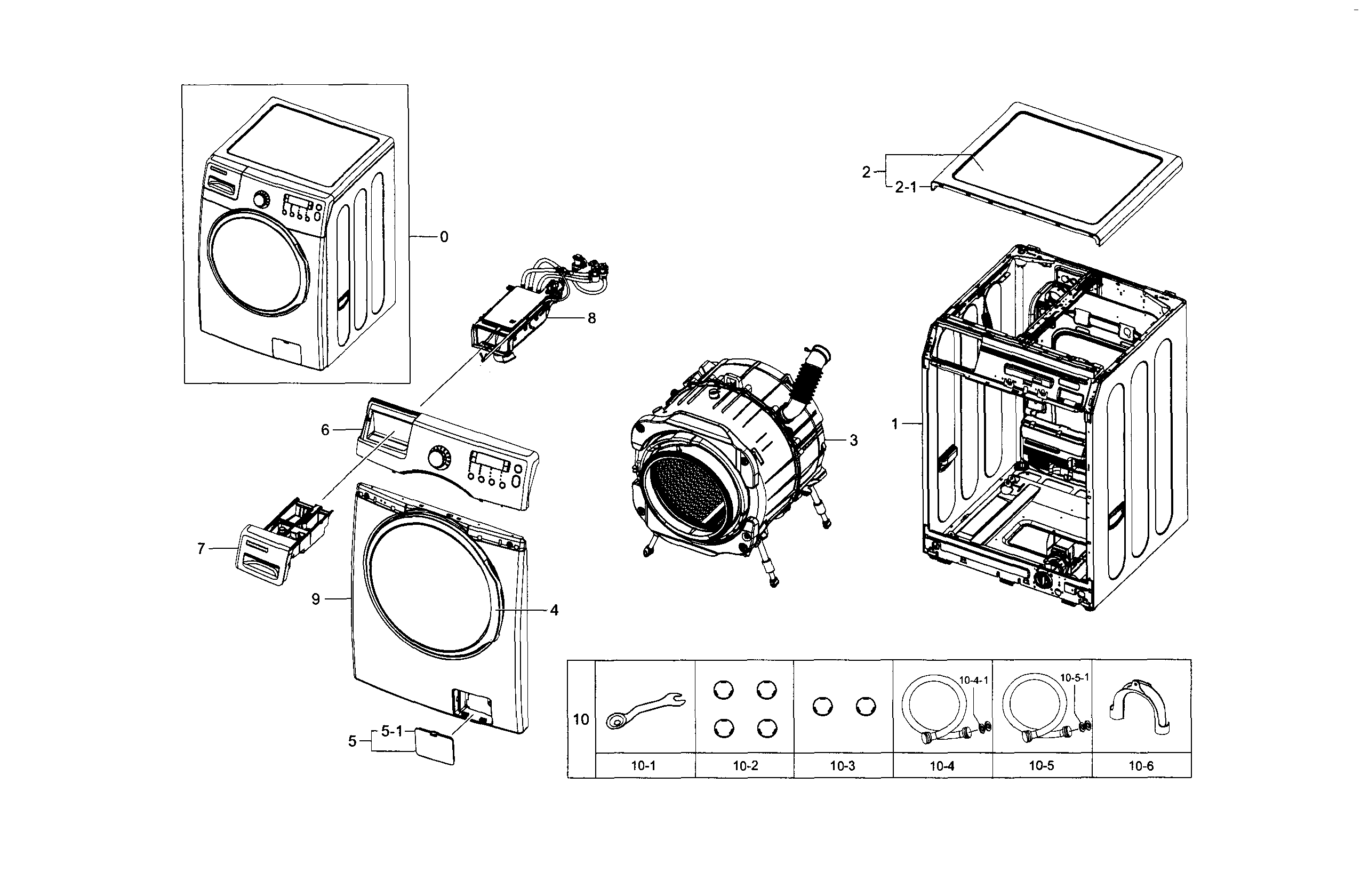

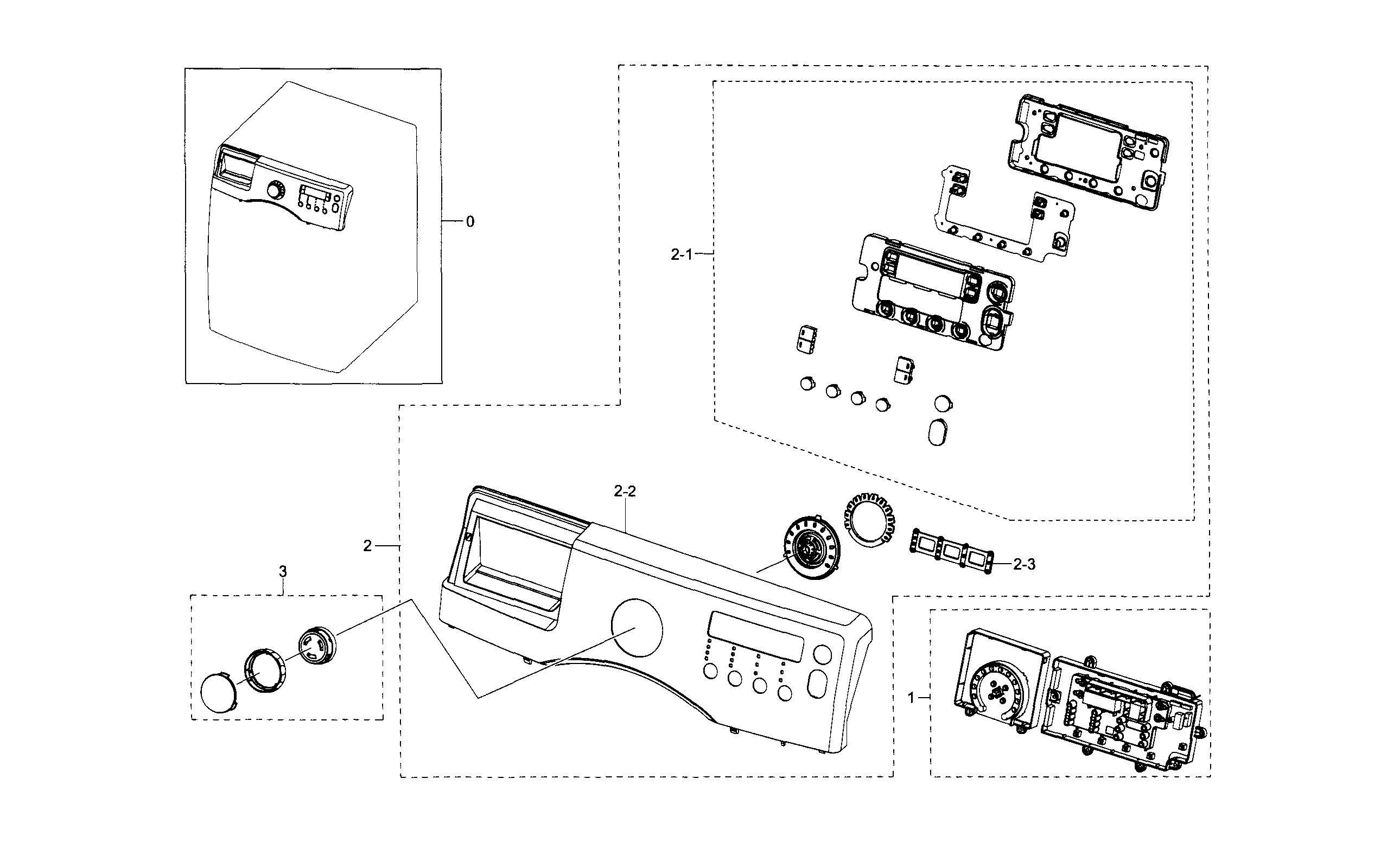

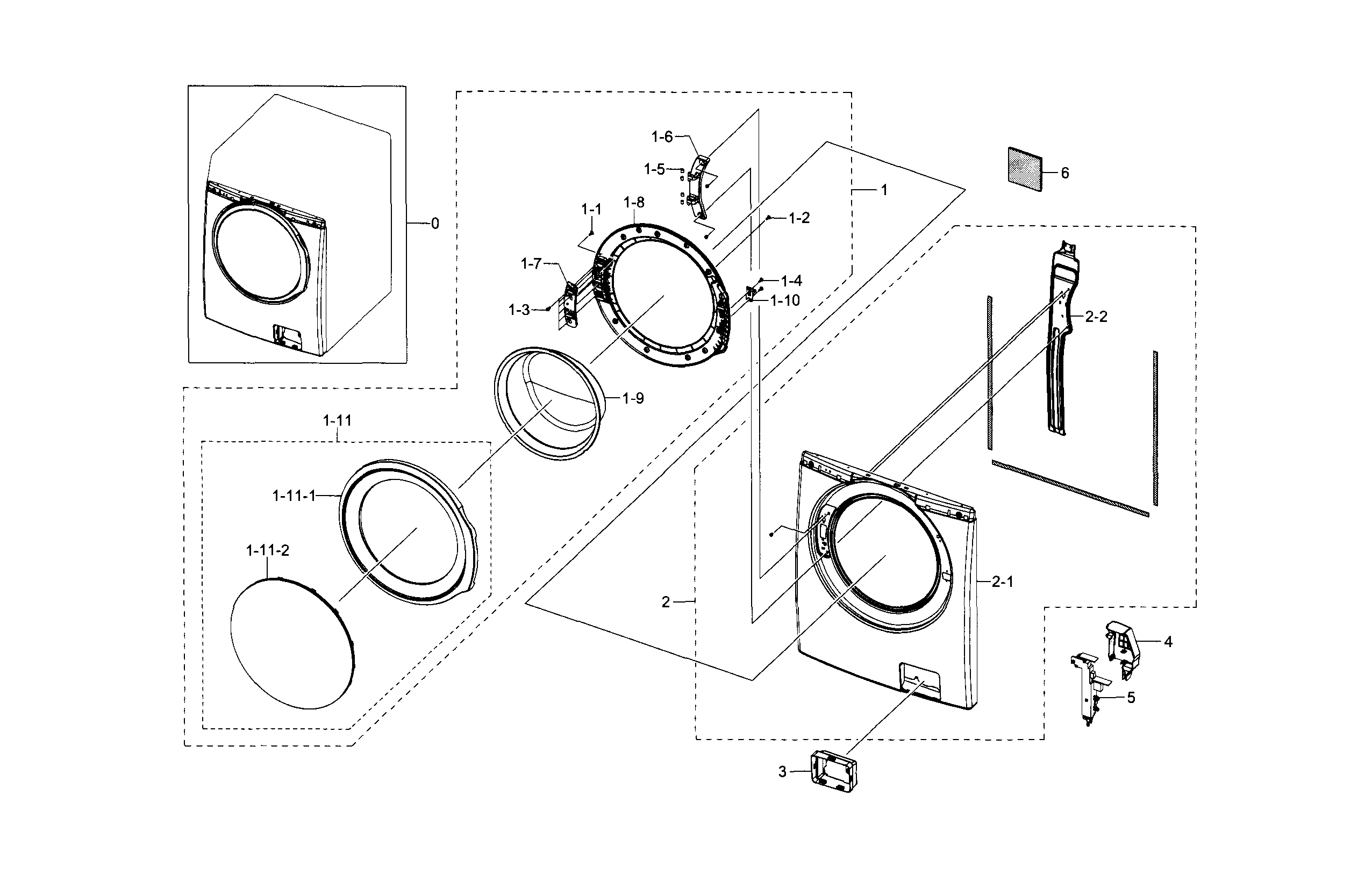

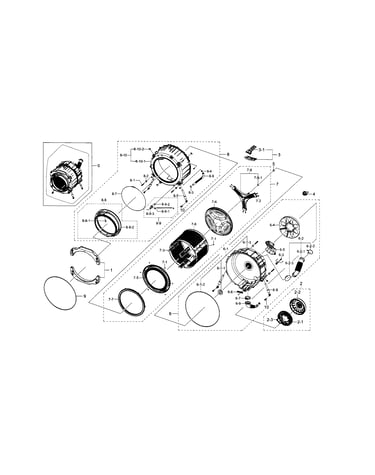

Here are the diagrams and repair parts for Samsung WF330ANB/XAA-05 washer, as well as links to manuals and error code tables, if available.

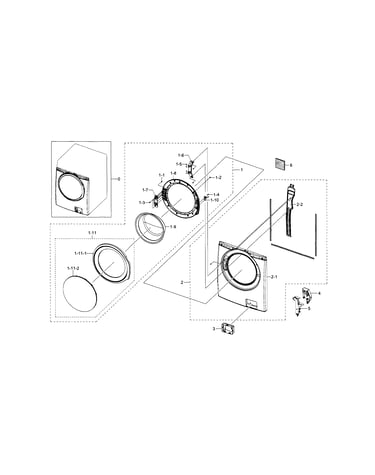

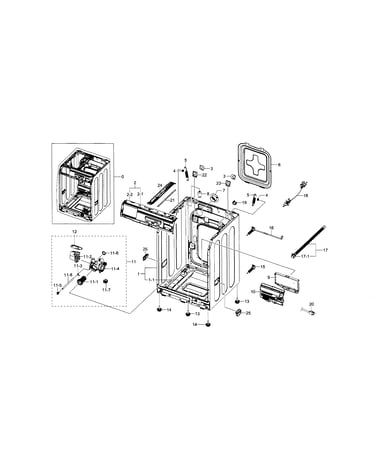

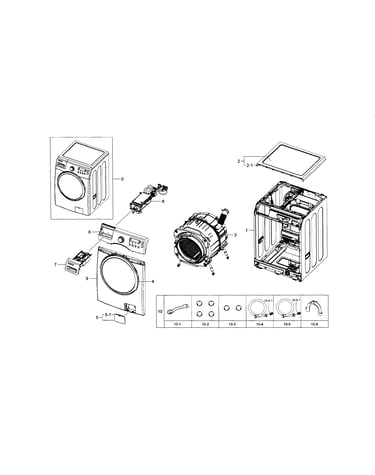

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WF330ANB/XAA-05 Washer

Samsung Washer WF330ANB/XAA-05 FAQs

A Samsung WF330ANB washer typically lasts 10 to 15 years with normal household use. Consistent maintenance (proper loading, cleaning, and addressing vibration or draining issues early) is what most often determines whether you land closer to 10 years or push beyond it. For care and maintenance routines, use the owner's manual.

Typical lifespan and what affects it

Most front-load washers like the Samsung WF330ANB fall into a predictable lifespan range.

  • Typical service life: 10 to 15 years
  • Heavy use (large family, daily loads): closer to 8 to 12 years
  • Light use and strong maintenance habits: often 12 to 15 years
  • Hard water and frequent overdosing detergent: can shorten life by causing buildup
  • Chronic vibration or unbalanced loads: accelerates wear on suspension and tub components
Quick checklist to help your washer last longer

These habits reduce strain on the motor, drain system, and door seal.

  • Keep loads balanced; avoid washing single heavy items alone.
  • Use HE detergent and measure carefully; too much causes residue and odors.
  • Leave the door slightly open between loads so the door boot can dry.
  • Clean the pump filter and check pockets to prevent drain clogs.
  • Level the washer to reduce shaking and suspension wear.
Common wear items and what they usually mean
Symptom Most common cause What to check first
Loud banging or walking Worn suspension, leveling issue Leveling feet, load balance, shocks
Won’t drain or drains slowly Clogged filter, failing pump Filter/hoses, then pump
Door won’t lock or won’t start Door lock problem Door latch alignment, lock switch
Water leaks at door Door boot issue Boot for tears, clamp seating

If your WF330ANB is shaking excessively, replacing worn suspension parts is a common fix; the Samsung washer shock absorber DC66-00470B is one option listed for this model.

Why it matters

Knowing the expected lifespan helps you decide whether to maintain and repair (often cost-effective for mid-life issues like draining or vibration) or plan for replacement when multiple major components start failing.

Last updated: February 2026

The Samsung WF330ANB washer is an ultra-capacity front-load model; this series is commonly listed at about 3.7 cu. ft. capacity. For the exact capacity specification for your WF330ANB, we recommend confirming it in the WF330ANB owner's manual.

How to confirm the capacity on your exact washer

Capacity is usually shown in the specifications section of the manual and sometimes on the model/serial label.

  • Check the Specifications or Product information section in the manual
  • Look for wording such as “capacity” or “cu. ft.”
  • Verify the full model suffix (for example, XAA-05) on the rating label so you match the right spec sheet
  • If you are comparing washers, confirm you are looking at a front-load WF330 series listing
Why capacity matters

Capacity affects how much laundry you can wash per load and how well the washer tumbles items. Overloading a front-load washer can also increase vibration and out-of-balance conditions.

Quick guide: what “3.7 cu. ft.” means in everyday use
Load type Typical fit in a 3.7 cu. ft. front-load washer What to avoid
Everyday mixed load Medium to large load Packing items tightly to the top
Towels Several bath towels Washing too many heavy towels at once
Bulky items 1 comforter (size depends on fill and thickness) Multiple bulky items together
If you are seeing vibration or “DC” type balance errors

Capacity and loading technique go together. If your WF330ANB shakes or shows balance-related errors, we recommend reviewing Samsung front load washer dc error code for loading and leveling tips.

Last updated: February 2026

The most common issue we see with Samsung washers (including the Samsung WF330ANB) is poor spinning or not finishing the spin properly, which leaves clothes wet. The root cause is usually an unbalanced load, a drain problem, or excessive vibration from worn suspension parts.

What “won’t spin out” usually means

When a washer cannot reach or maintain high-speed spin, it typically stops early or slows down to protect the tub and bearings.

Common symptoms:

  • Clothes come out dripping wet
  • The washer bangs, thumps, or walks during spin
  • The cycle ends with water still in the drum
  • The washer pauses and tries to rebalance repeatedly
  • You see a balance, drain, or fill-related error code
Most common causes (and what to check first)

Start with the simplest checks before replacing parts:

  • Load balance: Wash similar-weight items together; avoid one heavy item (blanket, rug) by itself.
  • Leveling: Make sure the washer is level and all feet are firmly on the floor.
  • Drain path: Check the drain hose for kinks and make sure the standpipe is not clogged.
  • Pump/filter area: Clear coins, lint, and debris that can restrict draining.
  • Suspension wear: If the tub bounces easily by hand, the shocks are often worn.
Parts that commonly fix vibration and spin problems

If the washer is level and loads are balanced but it still shakes hard, suspension parts are a frequent fix.

Problem you notice Likely area Example part for WF330ANB
Excessive shaking, banging in spin Suspension/dampening Samsung washer shock absorber DC66-00470B
Won’t drain well, stops before spin Drain system Washer drain pump DC31-00054D
Won’t fill correctly, long fill times Water inlet Washer water inlet valve DC62-30314K
Why it matters

Repeated out-of-balance spinning and heavy vibration can loosen fasteners, stress the tub, and accelerate wear on suspension and drive components. Fixing the underlying cause helps the washer spin normally and protects major assemblies.

Helpful model-specific references

Last updated: February 2026
