Frigidaire FAFW3511KR0 washer Parts

Yes. Frigidaire makes front load washers, and your Frigidaire FAFW3511KR0 is a front load washer model. For cycle options, features, and operating details specific to this washer, use the FAFW3511KR0 owner's manual.

How we know your washer is front load

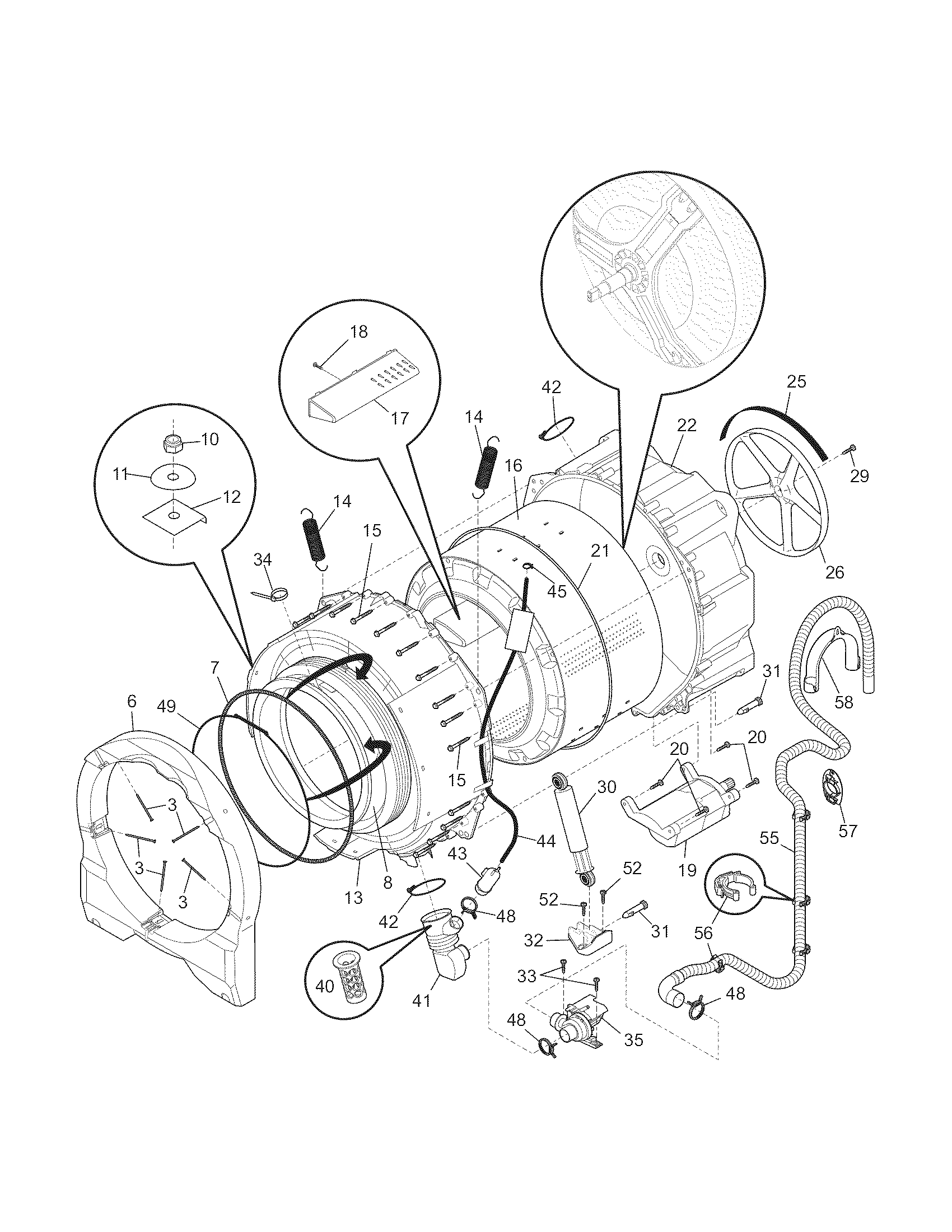

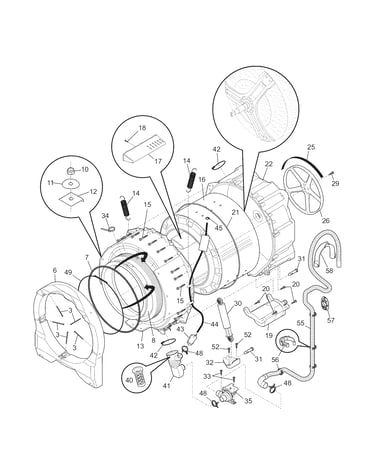

Front load washers have a front door that locks during operation and seal components around the opening. On the FAFW3511KR0, common front load components you may see referenced in troubleshooting and parts diagrams include:

• Door lock assembly (controls door locking and safety interlock)
• Door boot (bellows) and retaining clamp (prevents leaks at the door opening)
• Drain pump (removes water during drain and spin)
• Shock absorbers (reduce vibration during spin)

Common front load washer symptoms (and the parts often involved)

If you are diagnosing an issue on the FAFW3511KR0, these are typical front load patterns:

• Door will not lock or unlock: check the door lock switch 131763256
• Water will not drain or washer stops mid-cycle: drain pump or a clogged pump path
• Leaks at the door: door boot (bellows) or clamp seating issues
• Excessive vibration or banging: shock absorbers, leveling, or load balance

Symptom	What to check first	Why it matters
Door won’t start cycle	Door lock and latch alignment	Washer will not run unless it senses a locked door
Not draining	Pump, hoses, obstructions	Standing water prevents high-speed spin
Leaking at front	Door boot seal area	Small tears or mis-seating quickly become bigger leaks

Why it matters

Front load washers rely on a tight door seal and a working door lock system to prevent leaks and allow high-speed spin. Using the correct model-specific procedures helps avoid repeat leaks, error codes, and unnecessary part replacements.

Last updated: February 2026

On the Frigidaire FAFW3511KR0 washer, error code E35 means the washer senses an overfill condition (the water level is reading too high). The most common causes are a filling problem (inlet valve not closing) or a water-level sensing issue.

What to do first (safe, quick checks)

• Press Cancel to stop the cycle; if the tub is still filling, turn off both water supply valves at the wall.
• Unplug the washer for 1 minute, then restore power and try a rinse and spin.
• Check that the drain hose is installed correctly (not shoved too far down the standpipe, and not sealed airtight).
• If the washer overfills only sometimes, reduce suds: use HE detergent and the correct dose.
• Review the error code and reset steps in the FAFW3511KR0 owner’s manual.

Likely causes and the parts that usually fix it

E35 is typically triggered by one of these conditions:

What’s happening	Most likely cause	What to check next
Water keeps entering even when paused/off	Inlet valve stuck open	Inspect/replace the washer water inlet valve 134371220
Water level reads wrong (fills too much, then stops with E35)	Pressure sensing system issue (air trap/hose, wiring, control)	Check for kinks/soap buildup in the pressure hose and air dome; inspect connections
Washer drains poorly and “acts” overfilled	Drain restriction or weak pump	Check for clogs; verify pump operation

Why it matters

An overfill condition can lead to leaks, poor washing performance, and repeated cycle interruptions. Stopping the fill quickly and correcting the root cause protects the door boot, control components, and flooring.

When to replace a part

• Replace the inlet valve if the washer continues filling with power off (water valves open).
• If filling stops correctly but E35 returns, focus on the pressure hose/air trap cleaning and electrical connections; then consider control-related diagnosis.

Last updated: February 2026

A bottom leak on your Frigidaire FAFW3511KR0 washer almost always comes from the drain path (pump or hoses), the door boot area, or the fill system. Start by identifying whether the leak happens while filling, washing, draining, or spinning, then inspect the most likely parts.

Quick checks to pinpoint when it leaks

• Leaks only while filling: check inlet hoses and the washer water inlet valve.
• Leaks during wash/tumble: check the door boot (bellows) for tears, and the boot clamps.
• Leaks during drain/spin: check the drain pump, pump housing, and drain hose for cracks or loose clamps.
• Slow seep at all times: check tub gasket areas and any hose connections for mineral buildup or looseness.
• Water on the left or right front corner: often points to the door boot or dispenser hose routing.

Most common causes on this model

Leak timing	Most likely area	What you typically see
Fill	Inlet valve or supply hoses	Drips at the back, water trails down cabinet
Wash	Door boot and clamps	Water at front bottom, wet door opening
Drain/Spin	Drain pump or drain hose	Puddle grows quickly near the pump side
Any time	Tub gasket or internal hose	Intermittent drip, residue streaks

If you suspect a fill-side leak, inspect the washer water inlet valve 134371220 for cracks at the valve body and check that hose washers are seated. If the leak shows up during drain, the water pump 137221600 is a prime suspect, especially if you see water tracks or corrosion around the pump.

What to do next (safe, practical steps)

1. Unplug the washer and turn off both water supply valves.
2. Pull the washer forward and look for the highest wet point (water runs downward and can mislead you).
3. Run a short rinse and drain cycle while watching with a flashlight (keep hands clear of moving parts).
4. Tighten hose clamps and check for split hoses, pinholes, or a loose pump-to-tub connection.
5. If the leak is at the door opening, inspect the boot for small tears and check the washer door boot spring clamp 134527100 for proper seating.

Why it matters

A bottom leak can damage flooring and can also lead to drain errors, door lock issues, and premature wear on electrical components if water reaches the wiring harness or control area.

For model-specific access panels, hose routing, and shutoff steps, follow the FAFW3511KR0 owner's manual.

Last updated: February 2026
