Model #LXR6232EQ0 Official Whirlpool washer

Here are the diagrams and repair parts for Whirlpool LXR6232EQ0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

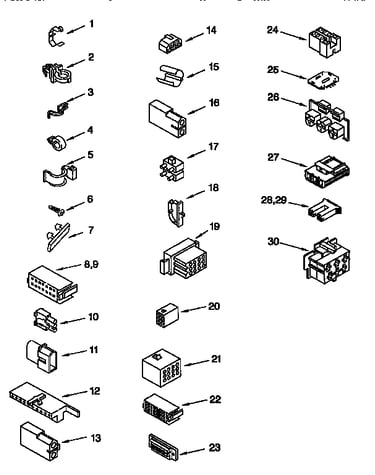

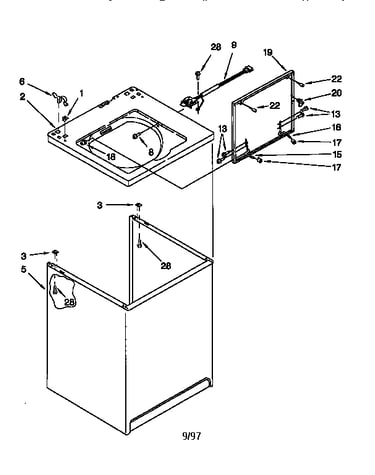

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List

Showing 10 of 176 parts

Washer Motor Coupling (replaces 280152, 285753, 8559748)#13

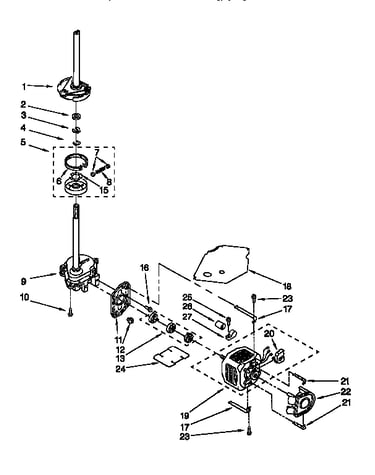

Gearcase, motor and pump Diagram

Coupling

Part #3364003
Replaced by #285753A
?
Manufacturer substitution
This part replaces 3364003. Substitute parts can look different from the original.
BEST SELLER
In Stock
$24.10 |
15% OFF
Phone Price: $28.40
Washer Agitator Bolt (replaces 358237)#2

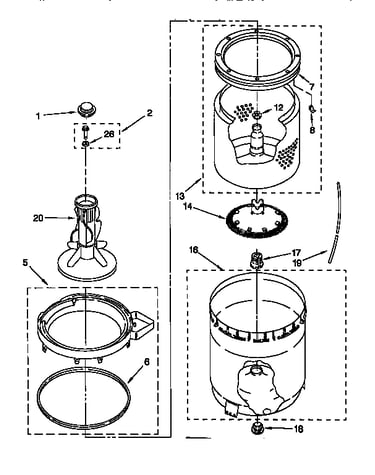

Agitator, basket and tub Diagram

Washer agitator bolt

Part #358237
Replaced by #WP358237
?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.82
Washer Drain Pump (replaces 3363394)#22

Gearcase, motor and pump Diagram

Washer drain pump

Part #3363394
Replaced by #WP3363394
?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
In Stock
$42.30 |
9% OFF
MSRP: $46.50
Washer Gear Case (replaces 285362, 3360630, 8532118, W10140307)#9

Gearcase, motor and pump Diagram

Gear case

Part #3360630
Replaced by #3360629
?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
In Stock
$201.44 |
12% OFF
MSRP: $230.00
Washer Base Pad Set (replaces 285220, 285661, 3363660)#18

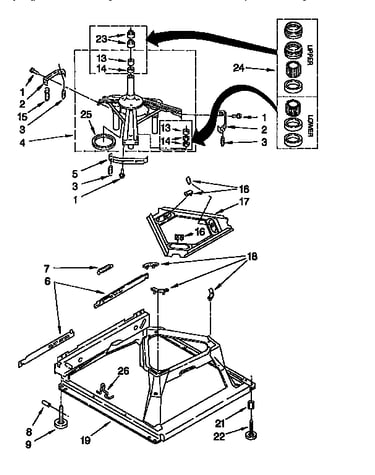

Machine base Diagram

Suspension pad

Part #3363660
Replaced by #285744
?
Manufacturer substitution
This part replaces 3363660. Substitute parts can look different from the original.
BEST SELLER
In Stock
$10.72 |
16% OFF
Phone Price: $12.72
Washer Pump Drain Hose (replaces W10358149)#26

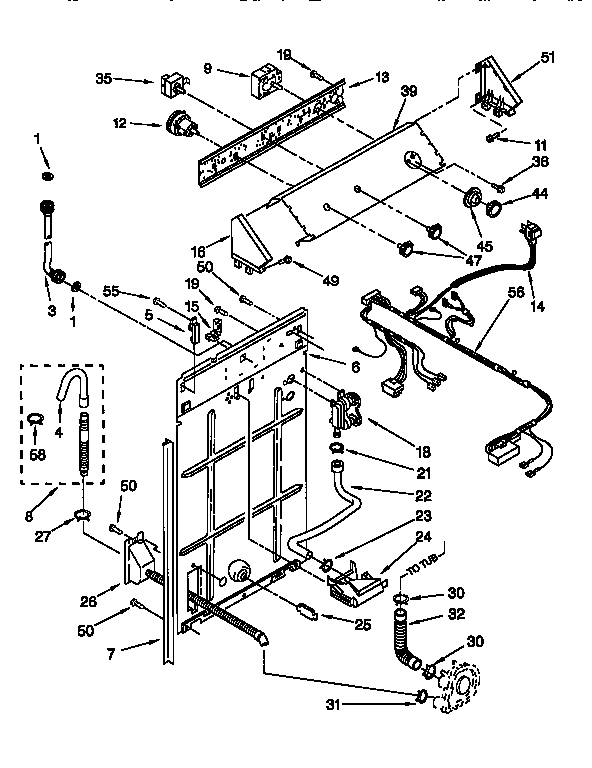

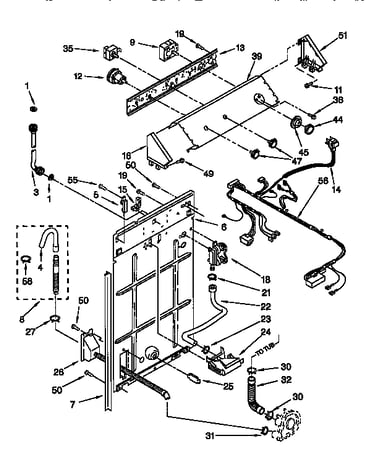

Controls and rear panel Diagram

Drain hose

Part #3361805
Replaced by #WPW10358149
?
Manufacturer substitution
This part replaces 3361805. Substitute parts can look different from the original.
BEST SELLER
In Stock
$28.58 |
13% OFF
Phone Price: $32.75
Appliance Touch-Up Paint, 0.6-oz (White) (replaces 21020, 72017R, 8006, W10813125, Y058028)

#NI

All parts Diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017
BEST SELLER
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Washer Suspension Plate Friction Pad (replaces 62568)#16

Machine base Diagram

Pad

Part #62568
Replaced by #285219
?
Manufacturer substitution
This part replaces 62568. Substitute parts can look different from the original.
BEST SELLER
In Stock
$11.00 |
42% OFF
MSRP: $19.00
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)

#NI

All parts Diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930
BEST SELLER
This item is not returnable
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Washer Leveling Leg Spring (replaces 62597, W10795103)#7

Machine base Diagram

Spring

Part #62597
Replaced by #8316845
?
Manufacturer substitution
This part replaces 62597. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.79 |
15% OFF
Phone Price: $6.79
