Kenmore Elite 66512776K311 undercounter dishwasher Parts

To hard reset the Kenmore Elite dishwasher model 66512776K311, we reset the control by canceling the current cycle: press and hold CANCEL/DRAIN twice, then reselect a cycle and press START/RESUME. This clears the control so the dishwasher can restart normally (see the 66512776K311 owner's manual).

Hard reset steps (control reset)

• Open the door slightly to stop the cycle; wait for spraying to stop.
• Open the door fully.
• Press and hold CANCEL/DRAIN until the Cancel/Drain light turns on.
• Press and hold CANCEL/DRAIN a second time to reset the control.
• Close the door; let it drain completely if water is in the bottom (the light can stay on up to about 2 minutes).
• Select your new cycle and options.
• Press START/RESUME, then close the door.

If the dishwasher still will not respond

These checks solve most “won’t start” or “buttons not working” complaints after a reset:

• Confirm the door is fully latched; a loose latch can prevent starting.
• Make sure the control panel is not in a paused state; press START/RESUME once.
• Restore power at the breaker for 1 minute, then try the reset steps again.
• If the tub is full of water, let CANCEL/DRAIN run until draining stops.
• If the unit drains poorly or hums, inspect the drain path; a failing pump can also cause no-drain symptoms.

Symptom after reset	Most common cause	What to do next
Lights on, won’t start	Door not fully latched	Check latch engagement and try START/RESUME
Water left in bottom	Drain restriction or drain pump issue	Run CANCEL/DRAIN; check drain hose and pump
No lights at all	Power supply issue	Check breaker, outlet, and wiring connections

Why it matters

A proper control reset clears a stuck cycle and forces the dishwasher to drain and restart cleanly. That prevents standing water, improves wash results, and helps you avoid replacing parts that are not actually failed.

Last updated: January 2026

Common problems on the Kenmore Elite 66512776K311 dishwasher include not starting, not filling, not draining, poor cleaning, hard-water residue, odors, noise, and weak drying. Most issues trace back to loading/door-latch problems, clogged filters or hoses, or a failed wash, drain, or heat component; use the 66512776K311 owner's manual troubleshooting chart to narrow it down fast.

Most common symptoms and what usually causes them

• Dishwasher won’t start or stops mid-cycle: door not fully latched, Start/Resume sequence not completed, power issue (breaker/fuse)
• Water left in tub or won’t drain: kinked drain hose, disposer knockout plug not removed, drain path obstruction, failed drain pump
• Won’t fill: water supply issue, inlet valve problem, door not latched
• Poor cleaning: blocked spray arms, overloaded racks, filter buildup, low water temperature, detergent issues
• Not drying: rinse aid missing, heater or thermostat issue, cycle selection
• Hard-water film or spots: very hard water, no rinse aid, not cleaning filters monthly

Quick checks we recommend first (fast, no parts)

1. Confirm the door is closed and latched; large dishes can interfere with the wash system and prevent latching.
2. If the Start/Resume light is blinking, press START/RESUME and close the door within 3 seconds.
3. Check the house breaker/fuse and that the dishwasher has power.
4. If it won’t drain, check for a kinked drain hose and disposer connection issues.
5. For white residue or spotting, use rinse aid, fresh detergent, and clean the filters at least monthly.

Parts that commonly fix these problems on model 66512776K311

Symptom	Common part involved	Example part for this model

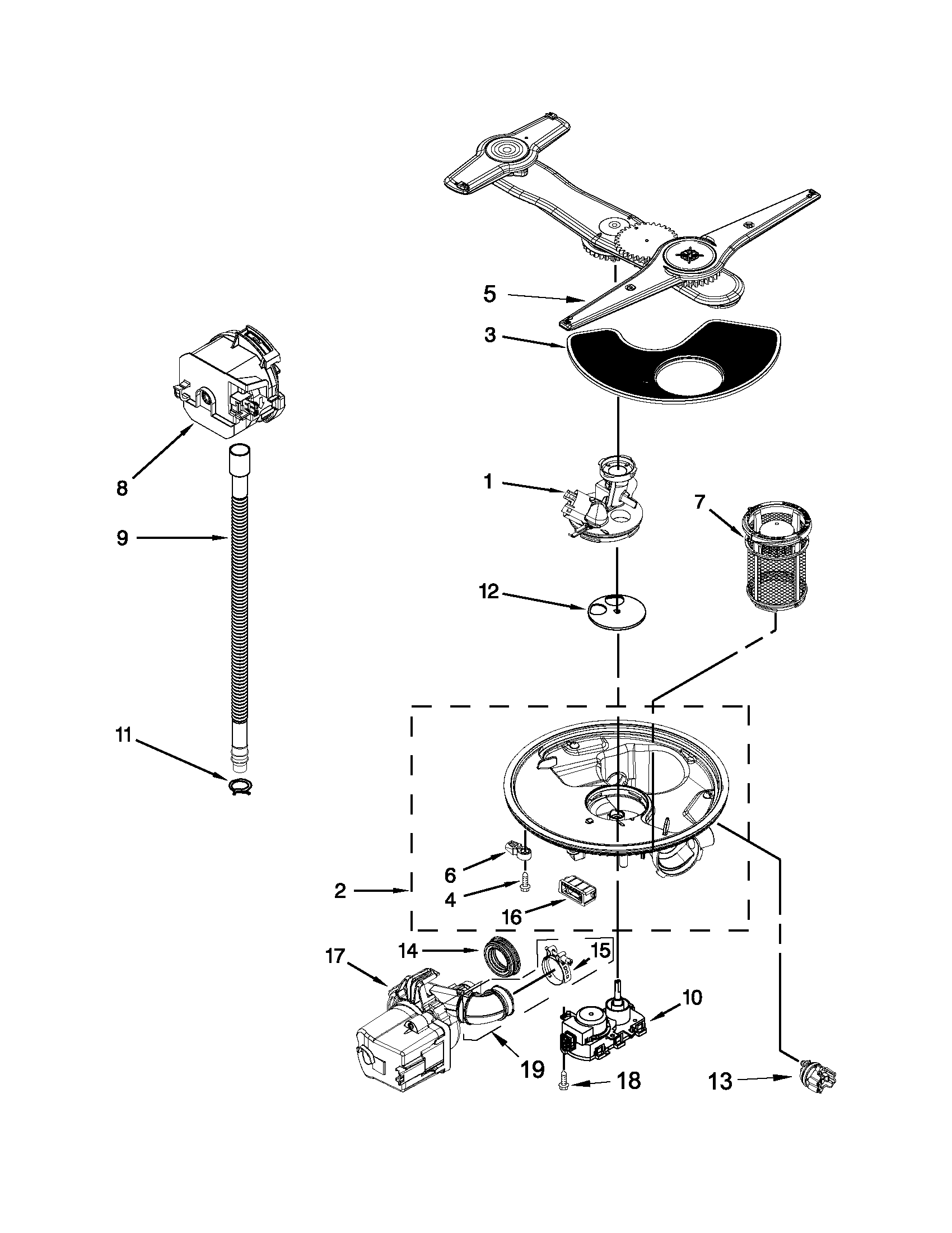

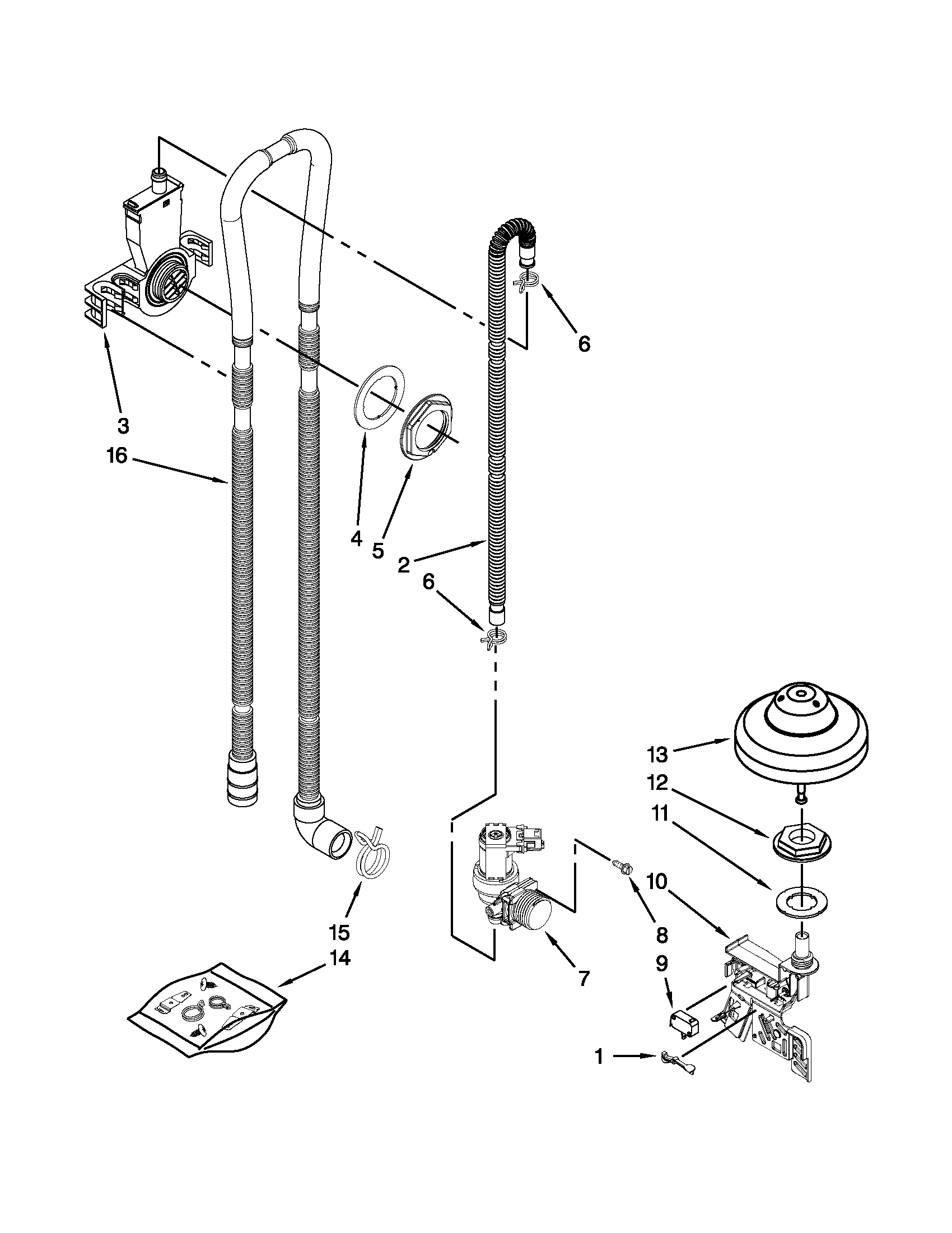

Won’t drain, water remains	Drain pump or drain hose	Dishwasher drain pump WPW10531320, dishwasher drain hose 8269144A
Won’t fill	Water inlet valve	Dishwasher water inlet valve W11175771

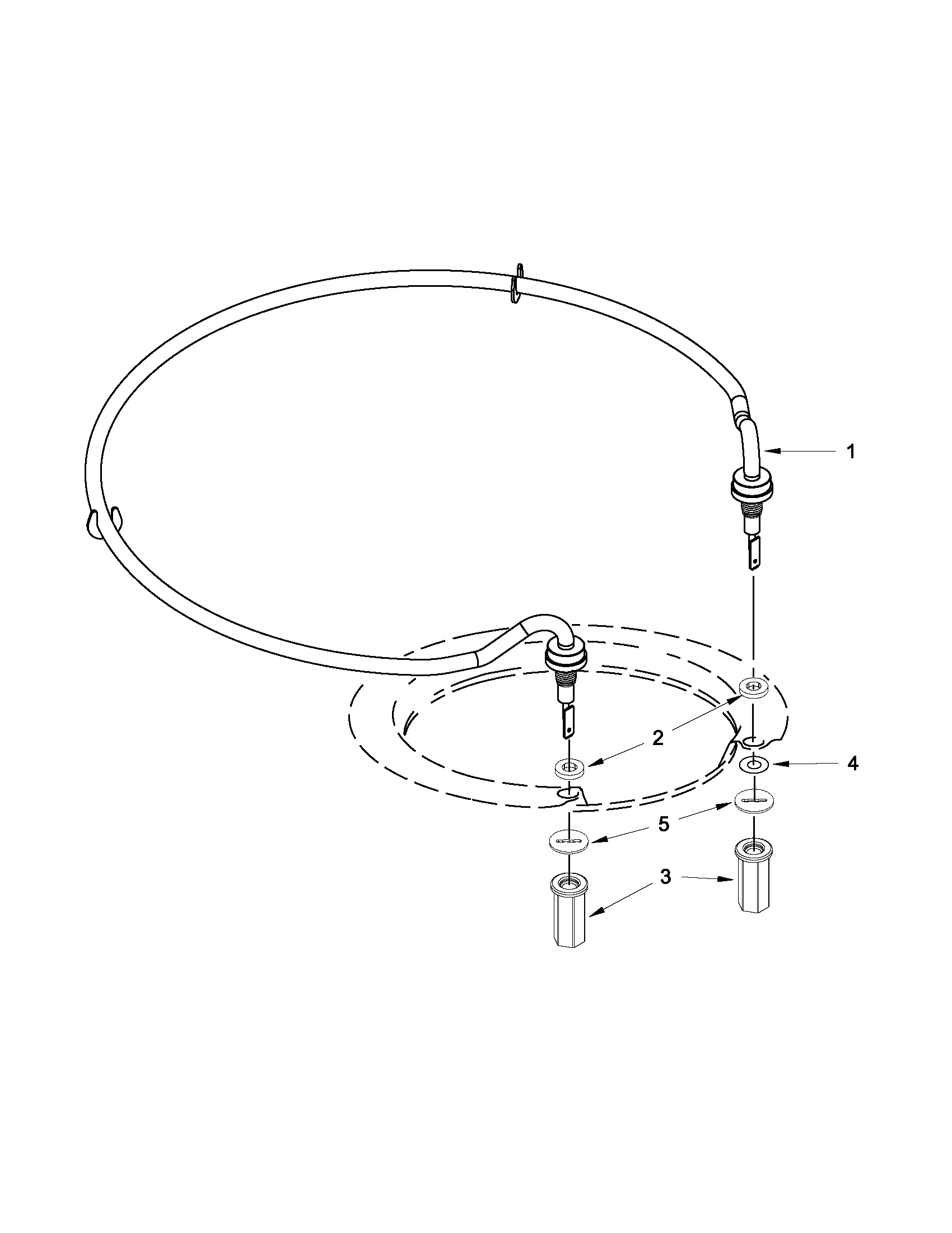

Not drying	Heater	Dishwasher heater W10703867

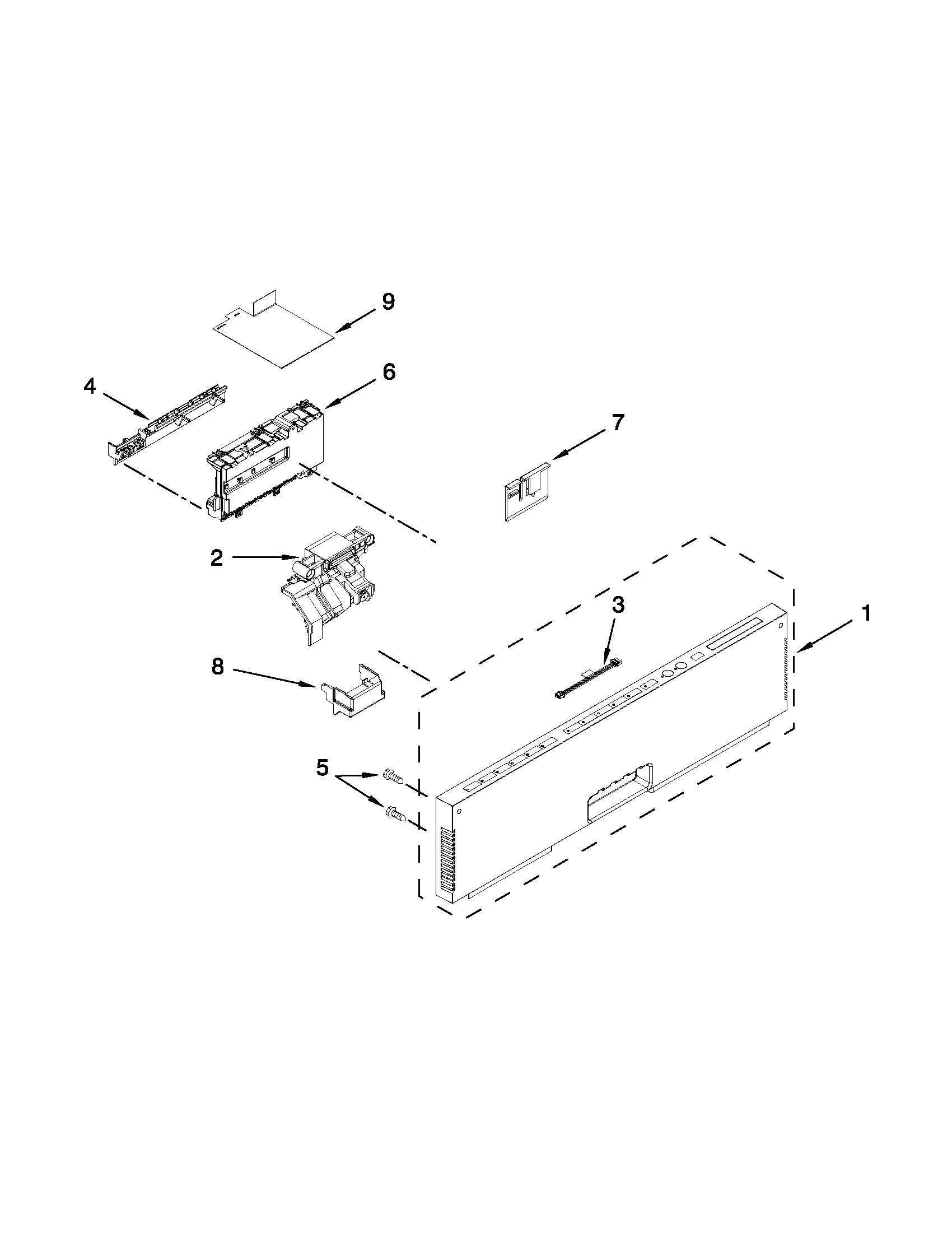

Won’t start	Door latch	Dishwasher door latch WPW10653840

Why it matters

Catching the root cause early prevents repeat cycle failures, standing water odors, and poor wash results. For example, a simple drain-hose kink can look like a pump failure, and hard-water buildup can reduce cleaning and drying performance over time.

Last updated: January 2026

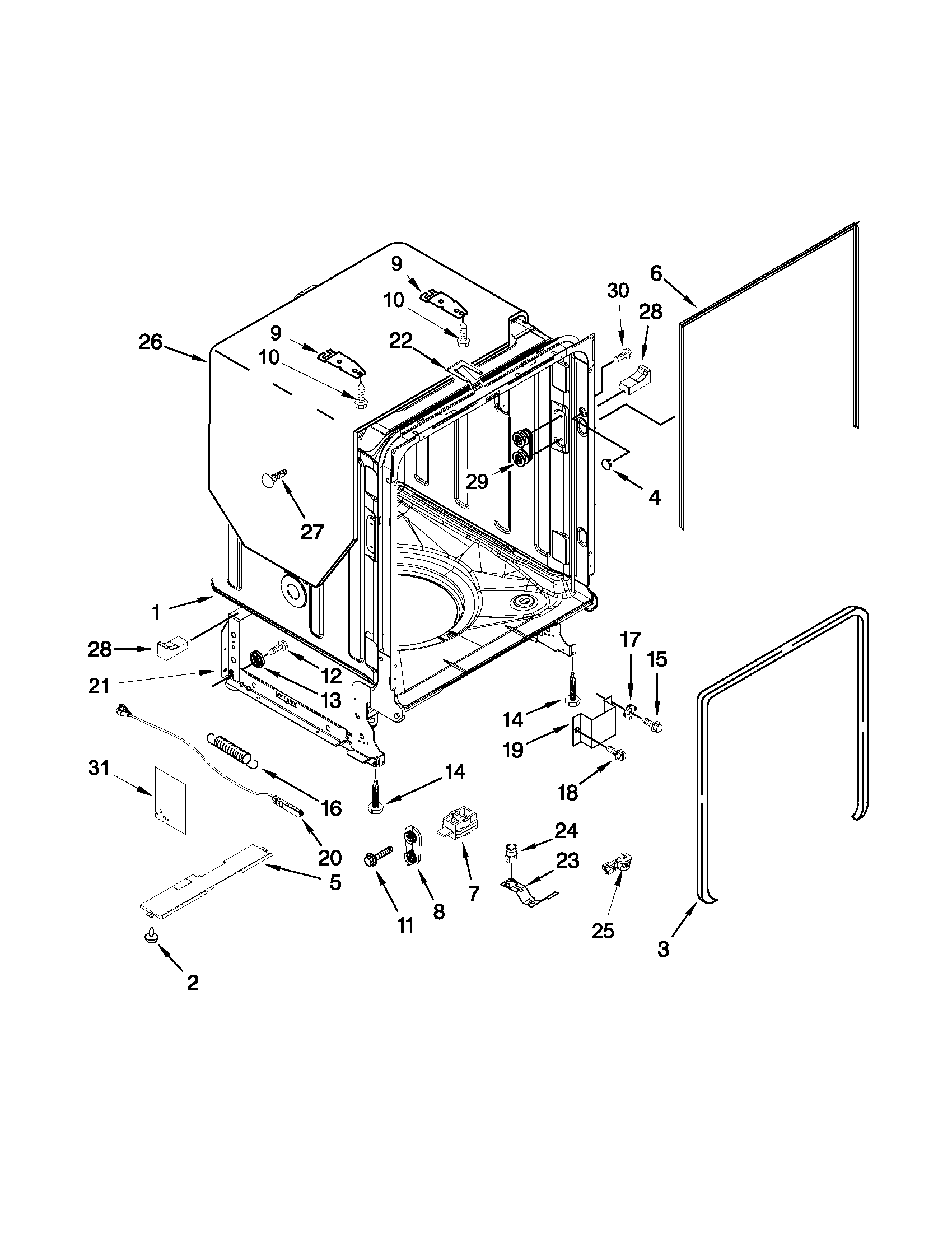

The model number for your Kenmore Elite dishwasher is printed on the appliance’s model and serial tag. On 66512776K311 units, that tag is typically located on the tub frame around the door opening; check it with the door open and copy the number exactly.

Where to look on the dishwasher

Check these common tag locations first:

• Along the left or right side of the tub opening (vertical edge)
• Across the top lip of the tub opening (under the countertop overhang)
• On the inner edge of the door (near the latch area)
• Behind the toe panel area (less common, but possible)

If the label is hard to read, wipe it gently with a damp cloth and use a flashlight from the side to make the print stand out.

What the model number looks like

Kenmore Elite dishwasher model numbers are a mix of numbers and letters. For this model, you are looking for 66512776K311 (match every character).

Item on the tag	What to do with it	Why we need it
Model number	Use it to match parts and diagrams	Ensures correct fit and compatibility
Serial number	Keep it for service history	Helps identify production details
Type/other codes	Optional to record	Sometimes used for internal reference

Why it matters

We use the exact model number to pull the correct parts list, diagrams, and documentation for your specific Kenmore Elite undercounter dishwasher. Even one digit off can point to a different version with different racks, pumps, or controls.

For more model identification details and examples, use the 66512776K311 owner's manual.

Last updated: March 2026
