Craftsman
Gas Leaf Blower

Model # 358796930 Official Craftsman gas power blower

Here are the diagrams and repair parts for Official Craftsman 358796930 gas power blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |

Line Kit 530-069247
#54

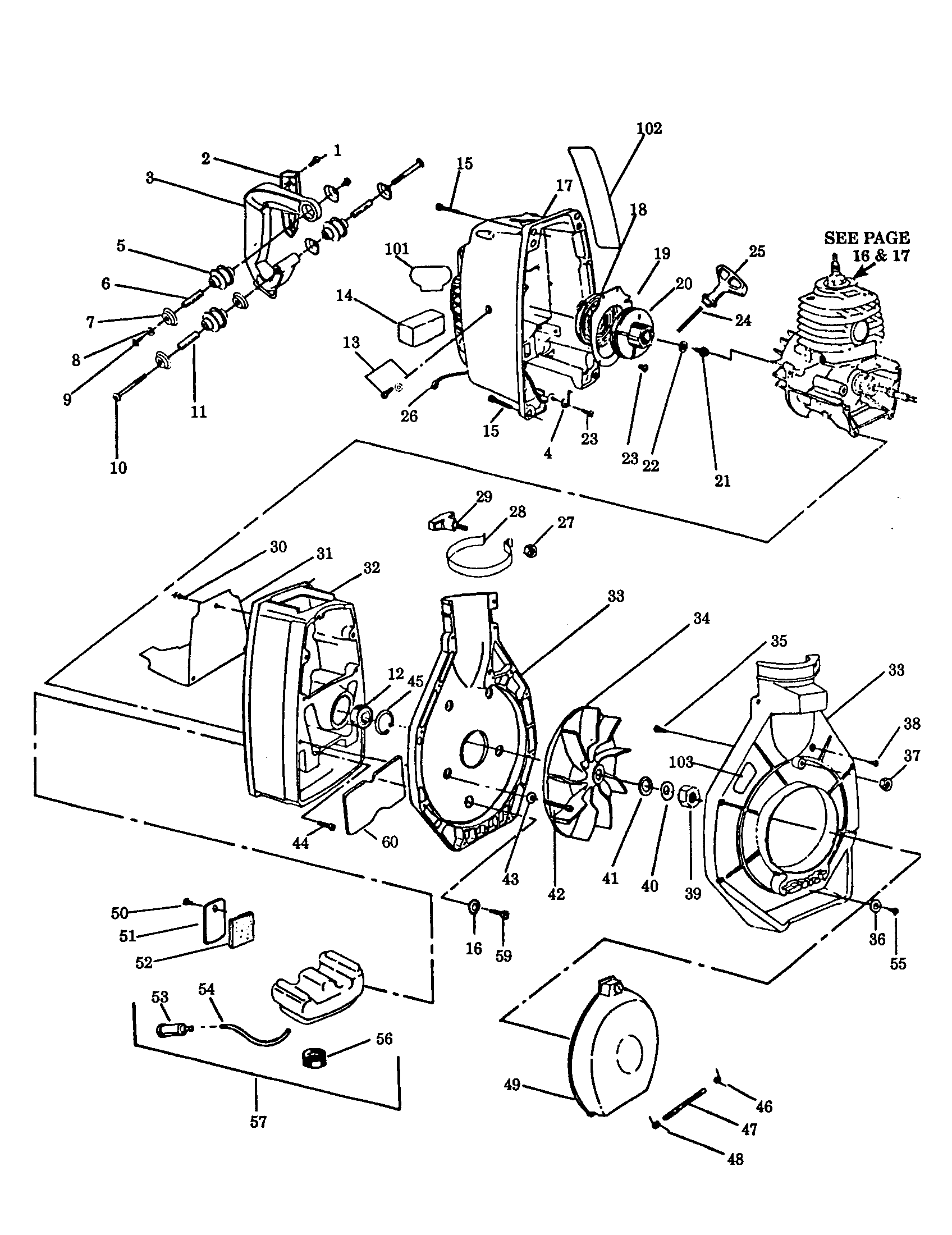

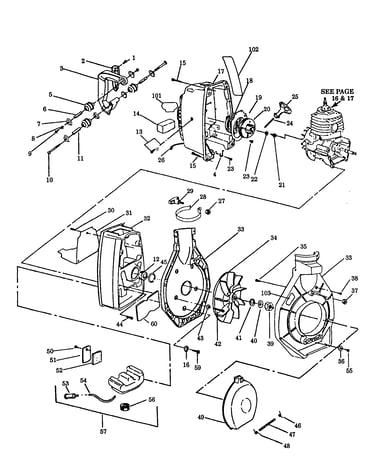

Handle/fan housing/fuel tank diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
$6.60
13% OFF Phone Price : $7.60
In Stock
Fuel Tank Assembly 530-010897
#53

Handle/fan housing/fuel tank diagram

Fuel tank assembly

Part #530-010897

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530-010897. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.07
16% OFF Phone Price : $6.07
In Stock
Fuel Cap 530-010729
#56

Handle/fan housing/fuel tank diagram

Fuel cap

Part #530-010729

Replaced by #530014347

?
Manufacturer substitution
This part replaces 530-010729. Substitute parts can look different from the original.
BEST SELLER
$7.79
11% OFF Phone Price : $8.79
In Stock
Gasket Kit 530-035186
#29

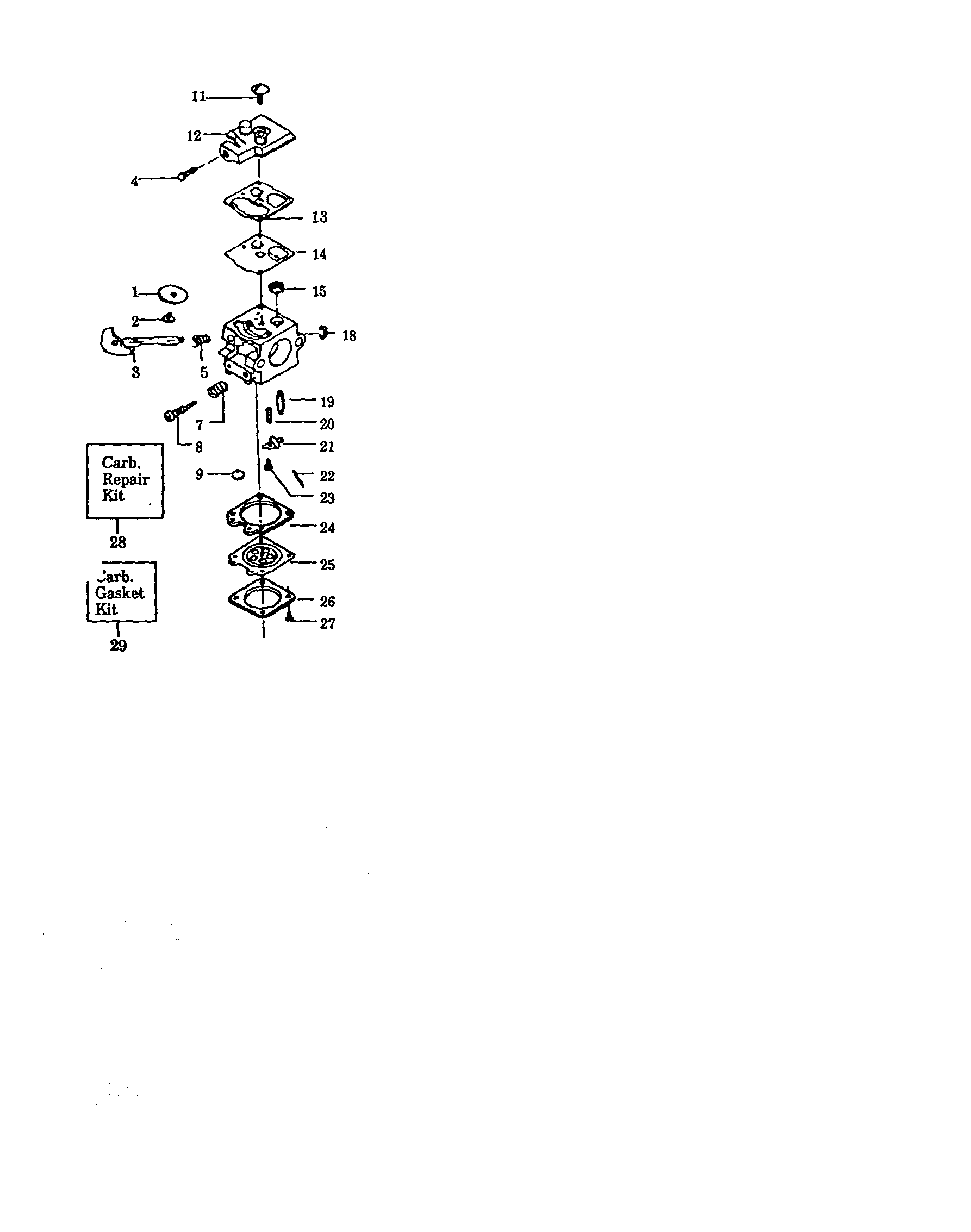

Carburetor assembly - 530-035196 diagram

Gasket kit

Part #530-035186

Replaced by #530069844

?
Manufacturer substitution
This part replaces 530-035186. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.37
12% OFF Phone Price : $16.37
Back Order
Plug STD360946
#67

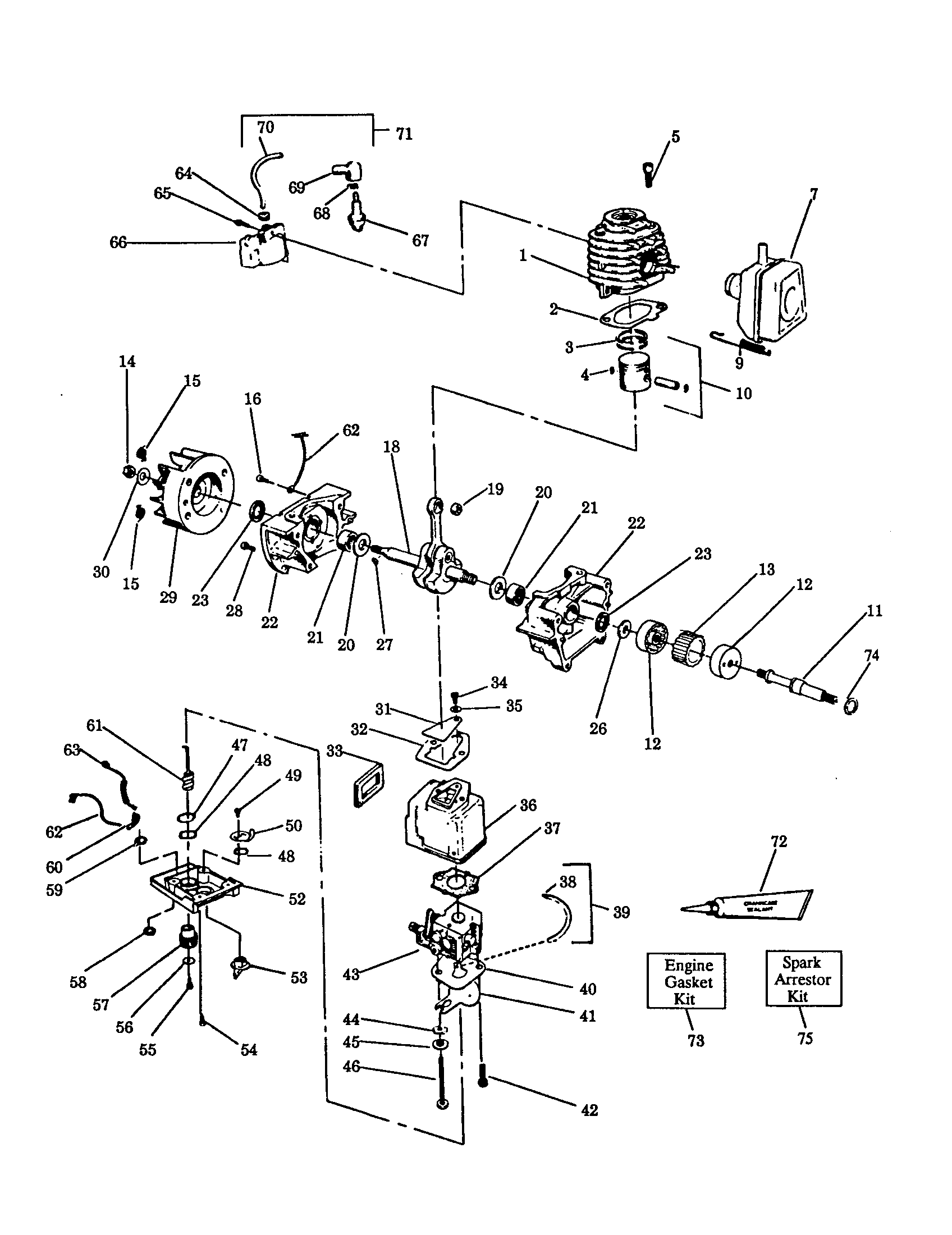

Cylinder/muffler/flywheel diagram

Plug

Part #STD360946

Replaced by #CJ8

?
Manufacturer substitution
This part replaces STD360946. Substitute parts can look different from the original.
This item is not returnable
$2.15
55% OFF MSRP : $4.80
In Stock
Bearing 530-032029
#21

Cylinder/muffler/flywheel diagram

Bearing

Part #530-032029

Replaced by #530032029

?
Manufacturer substitution
This part replaces 530-032029. Substitute parts can look different from the original.
$7.99
11% OFF Phone Price : $8.99
In Stock
Retainer Ring 530-015162
#4

Cylinder/muffler/flywheel diagram

Retainer ring

Part #530-015162

Replaced by #530015162

?
Manufacturer substitution
This part replaces 530-015162. Substitute parts can look different from the original.
This item is not returnable
In Stock
Flywheel Key 530-015126
#27

Cylinder/muffler/flywheel diagram

Flywheel key

Part #530-015126

Replaced by #530015126

?
Manufacturer substitution
This part replaces 530-015126. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 530-015127
#30

Cylinder/muffler/flywheel diagram

Washer

Part #530-015127

Replaced by #530015127

?
Manufacturer substitution
This part replaces 530-015127. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screen 530-035178
#15

Carburetor assembly - 530-035196 diagram

Screen

Part #530-035178

Replaced by #530035178

?
Manufacturer substitution
This part replaces 530-035178. Substitute parts can look different from the original.
This item is not returnable
In Stock
