Model # ZT2560 Official Swisher zero-turn riding lawn mower

Here are the diagrams and repair parts for Official Swisher ZT2560 zero-turn riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

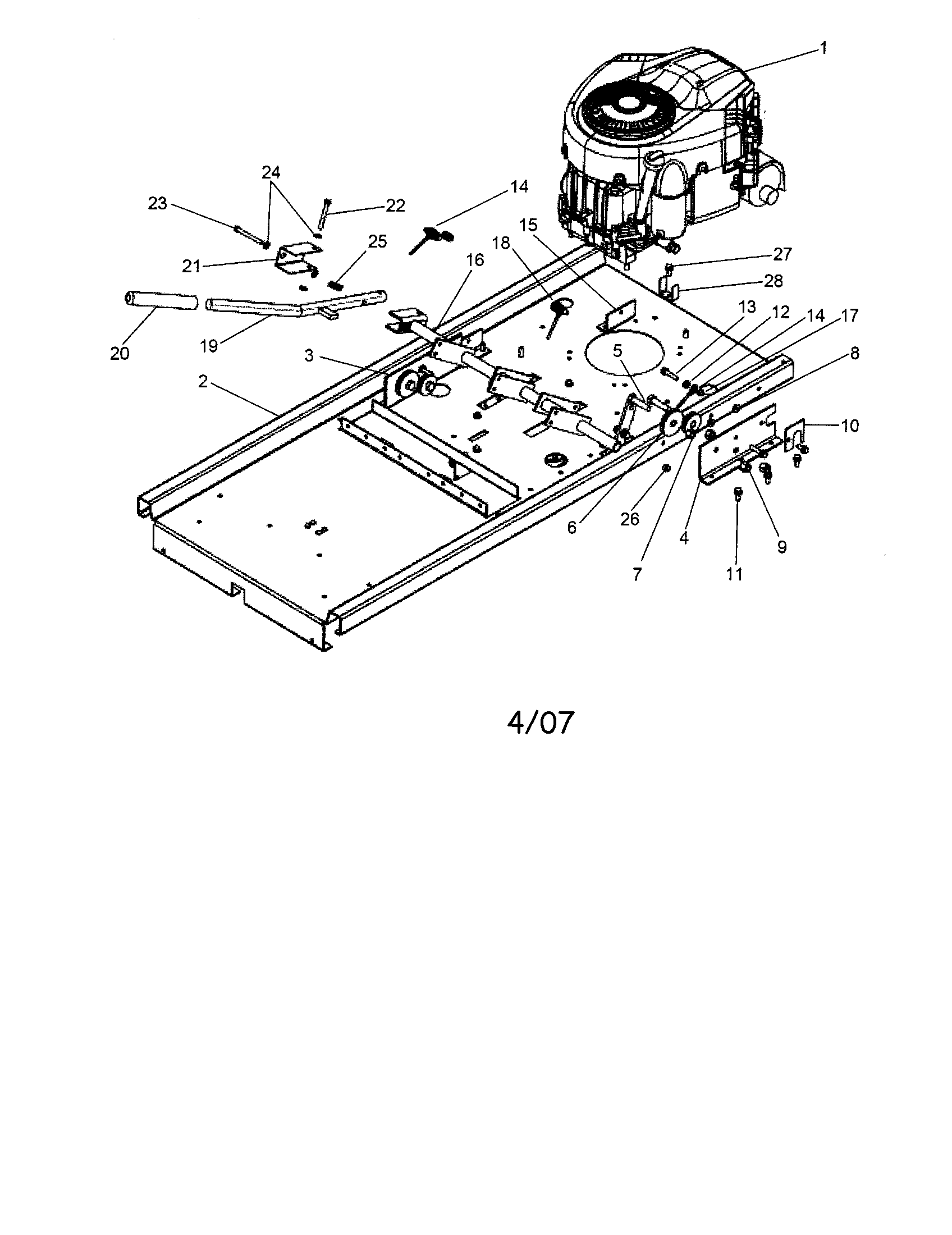

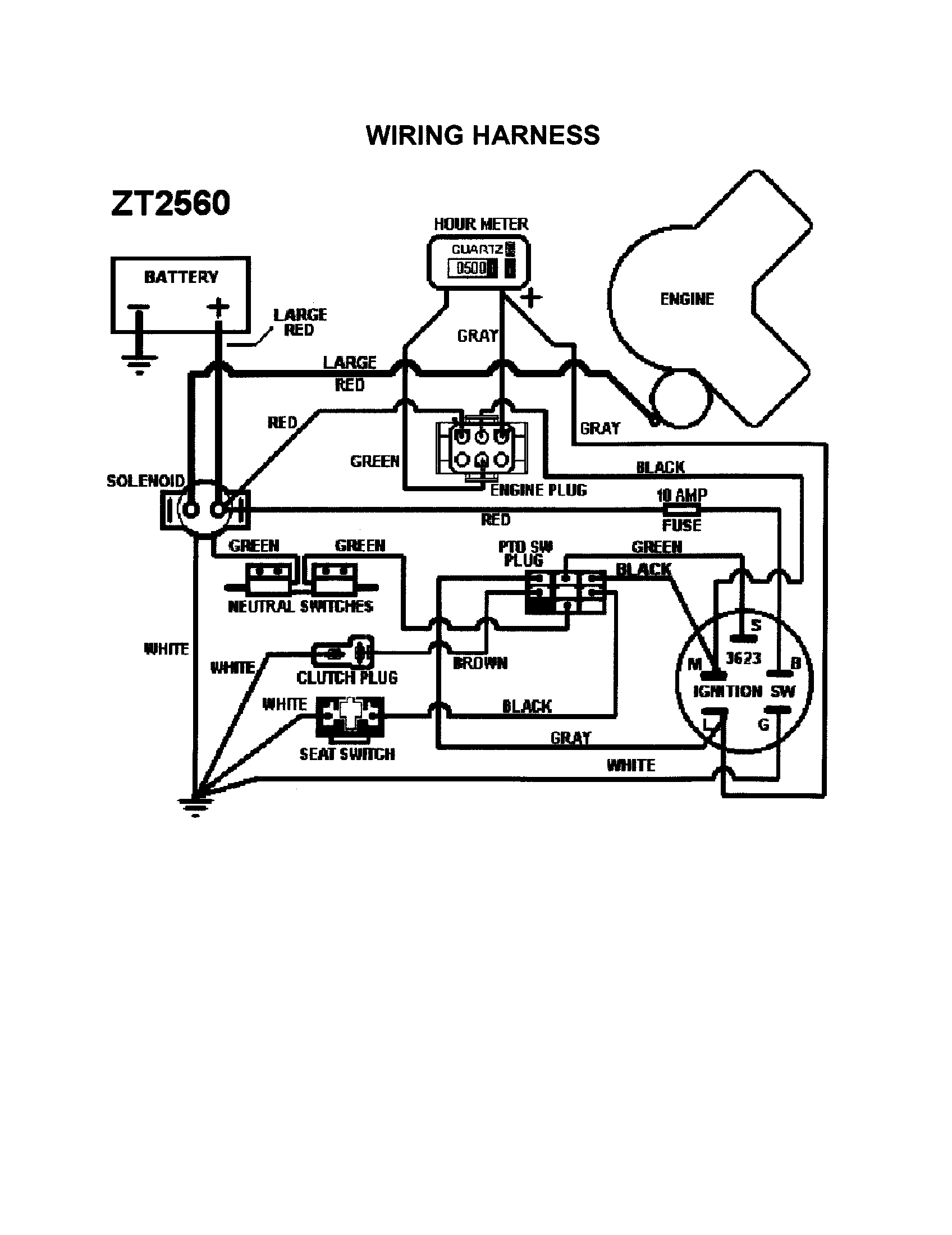

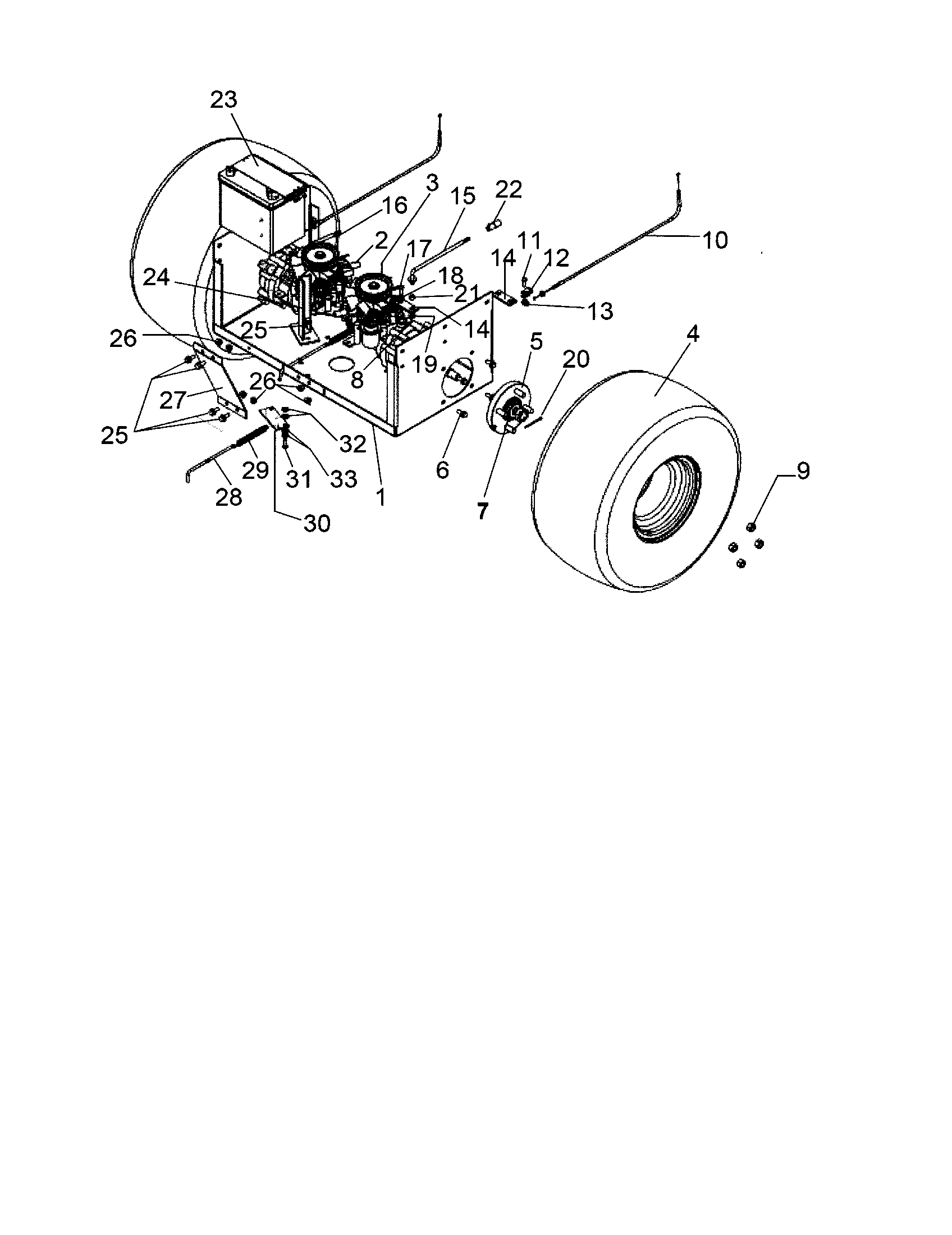

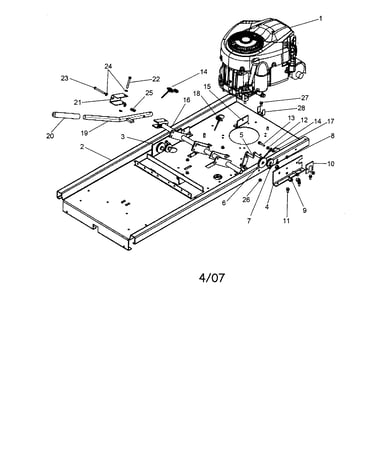

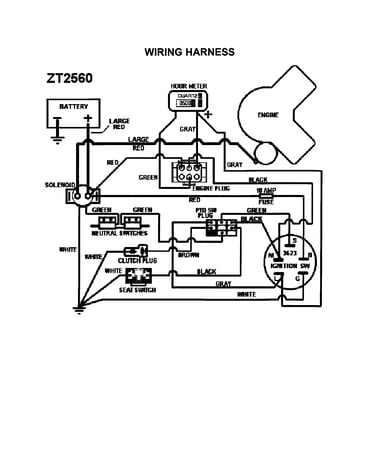

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Lawn Tractor 60-in Deck Mulching Blade 3293
#11

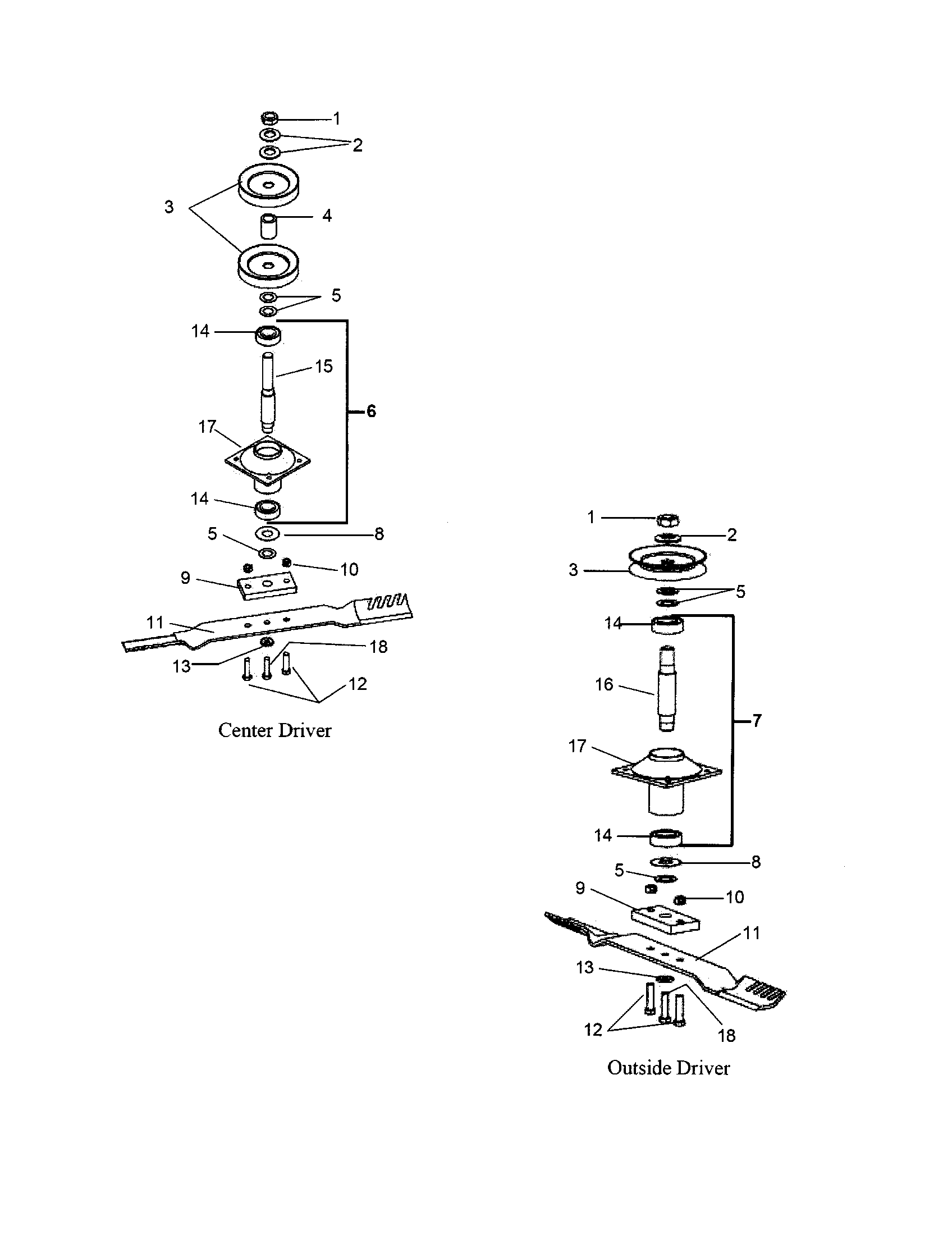

Center/outside driver diagram

Lawn tractor 60-in deck mulching blade

Part #3293

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Carriage Bolt NB707
#7

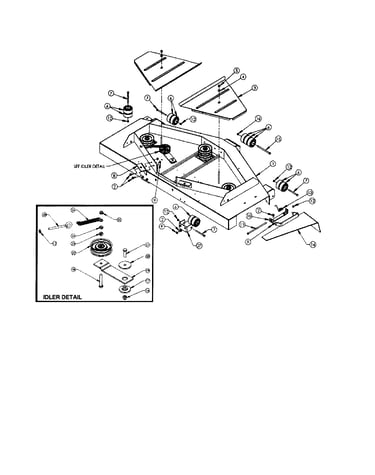

Deck hanger/chute mount diagram

Lawn & garden equipment carriage bolt

Part #NB707

The manufacturer no longer makes this part, and there's no substitute part

Decal - Medi OD99125
#12

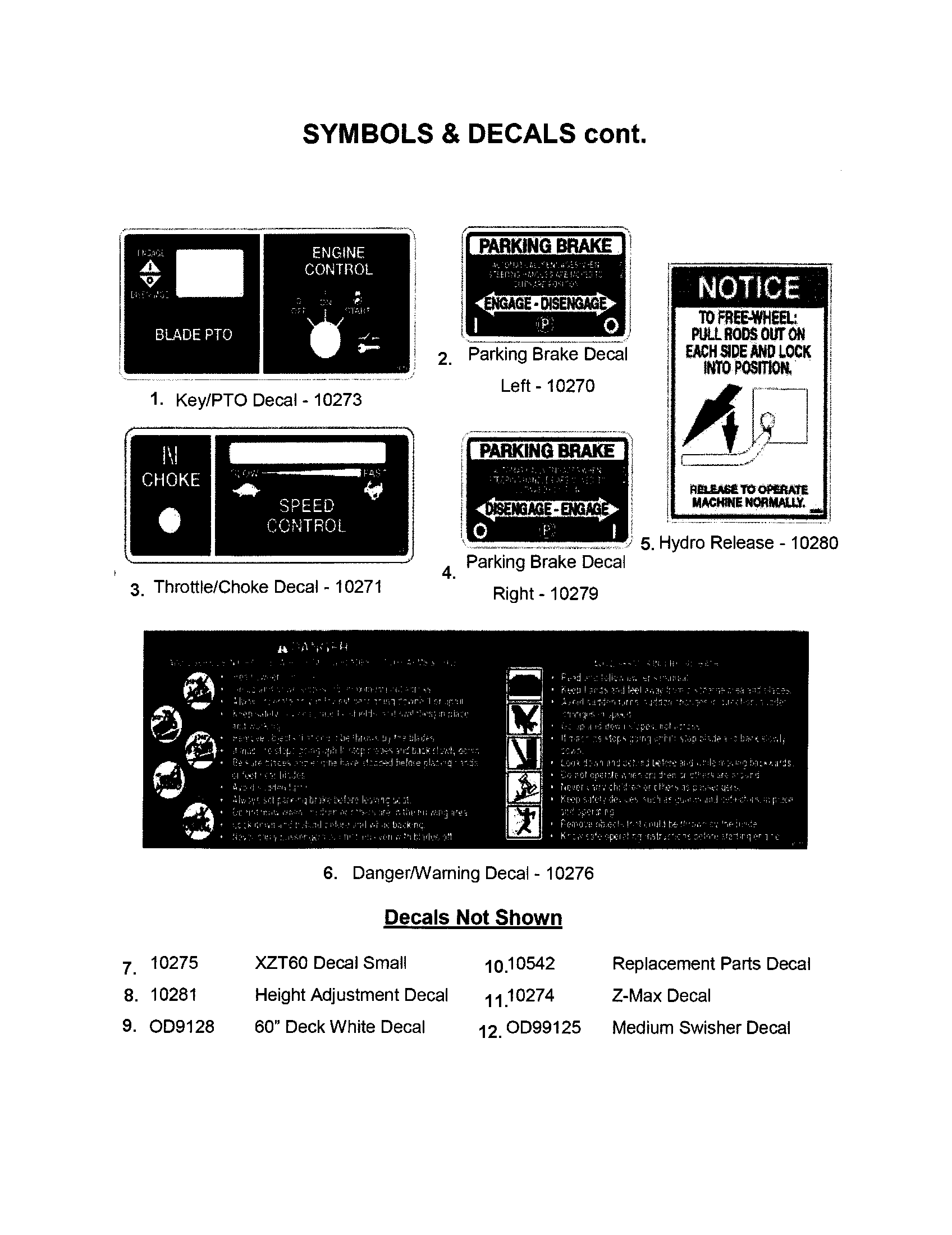

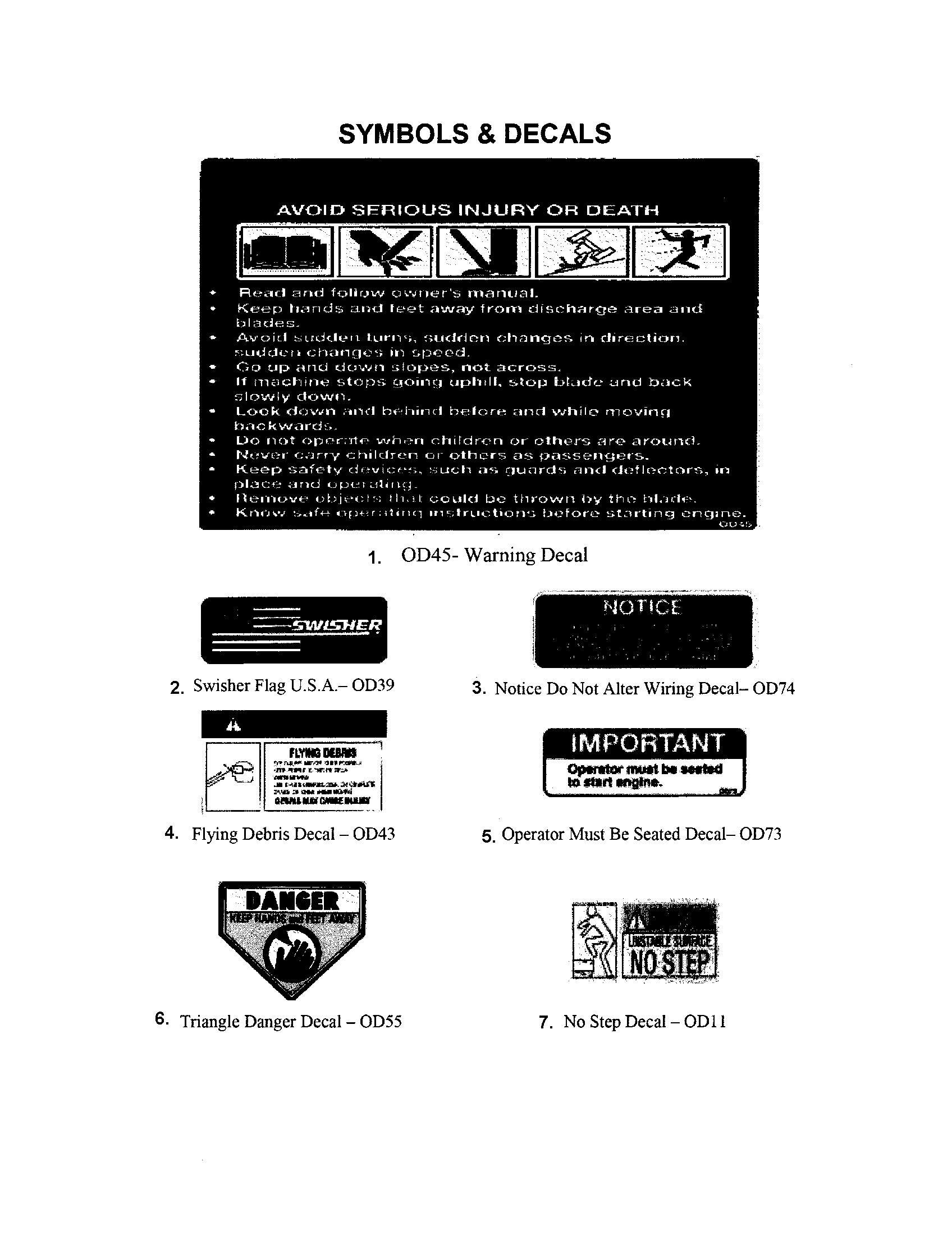

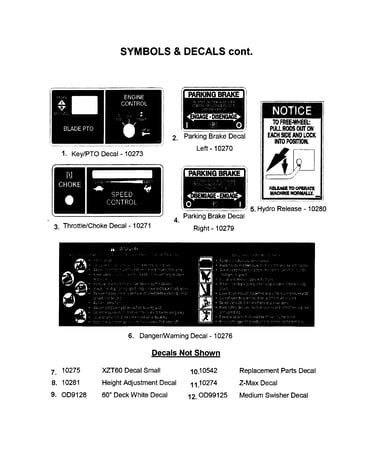

Symbols/decals diagram

Decal - medi

Part #OD99125

The manufacturer no longer makes this part, and there's no substitute part

Bracket 10899TK
#9

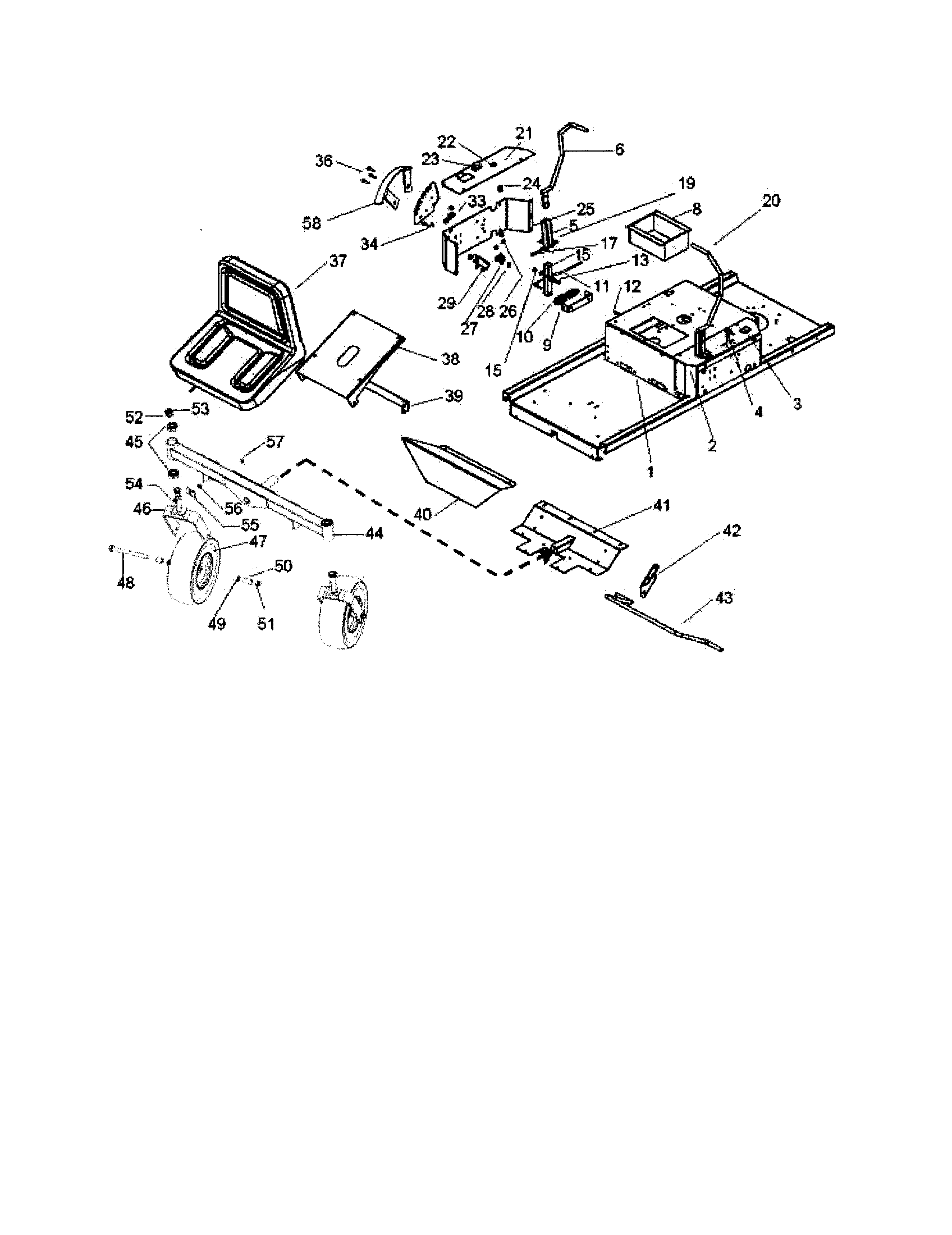

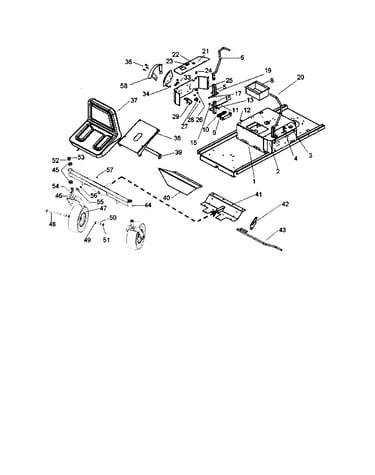

Zt seat diagram

Bracket

Part #10899TK

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Mandrel Assembly 10541
#6

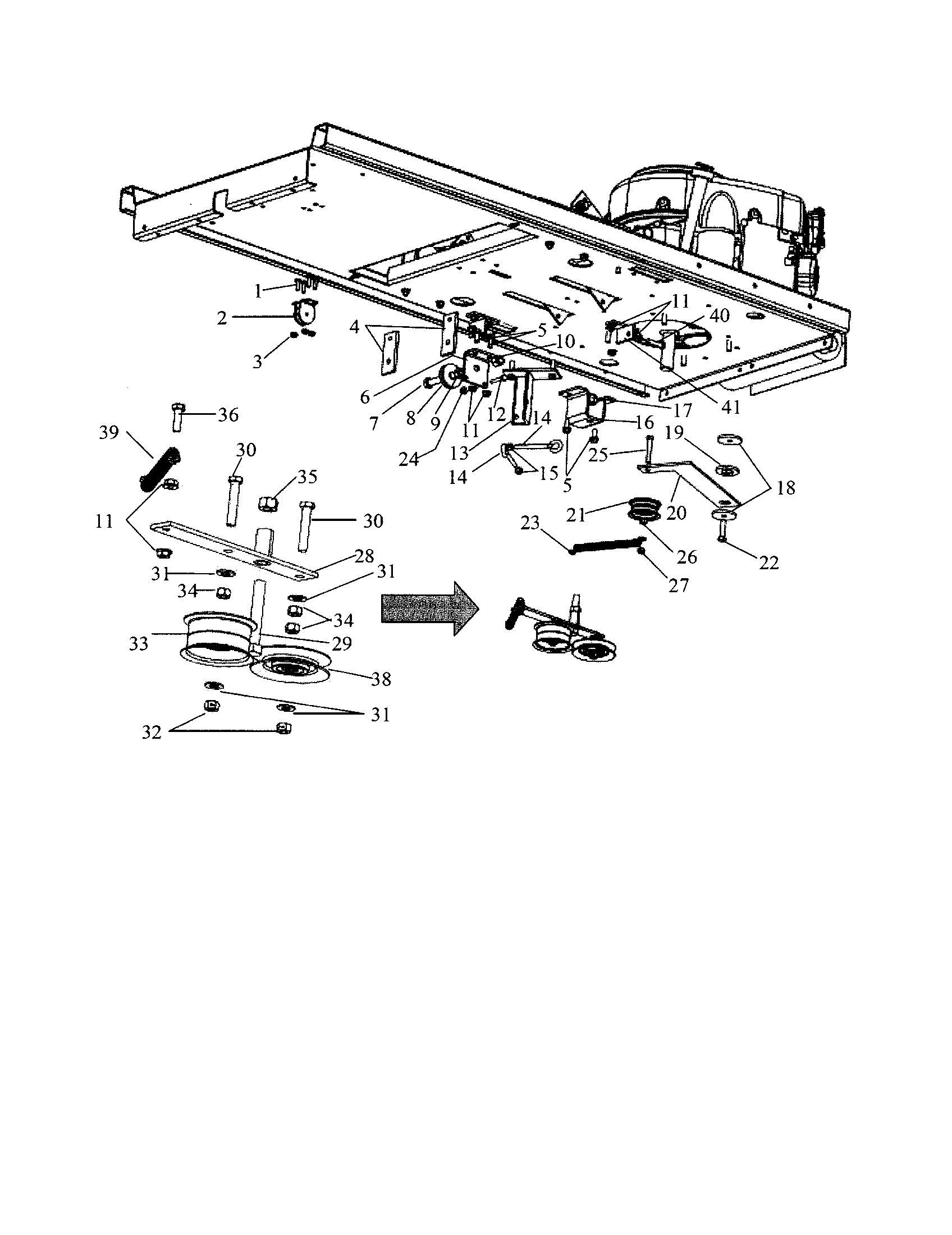

Center/outside driver diagram

Lawn tractor mandrel assembly

Part #10541

The manufacturer no longer makes this part, and there's no substitute part

5/8-11 2 Way NB595
#51

Zt seat diagram

5/8-11 2 way

Part #NB595

The manufacturer no longer makes this part, and there's no substitute part

Pivot Plate 9954TK
#41

Zt seat diagram

Pivot plate

Part #9954TK

The manufacturer no longer makes this part, and there's no substitute part

Belt Idler Arm 3691TK
#28

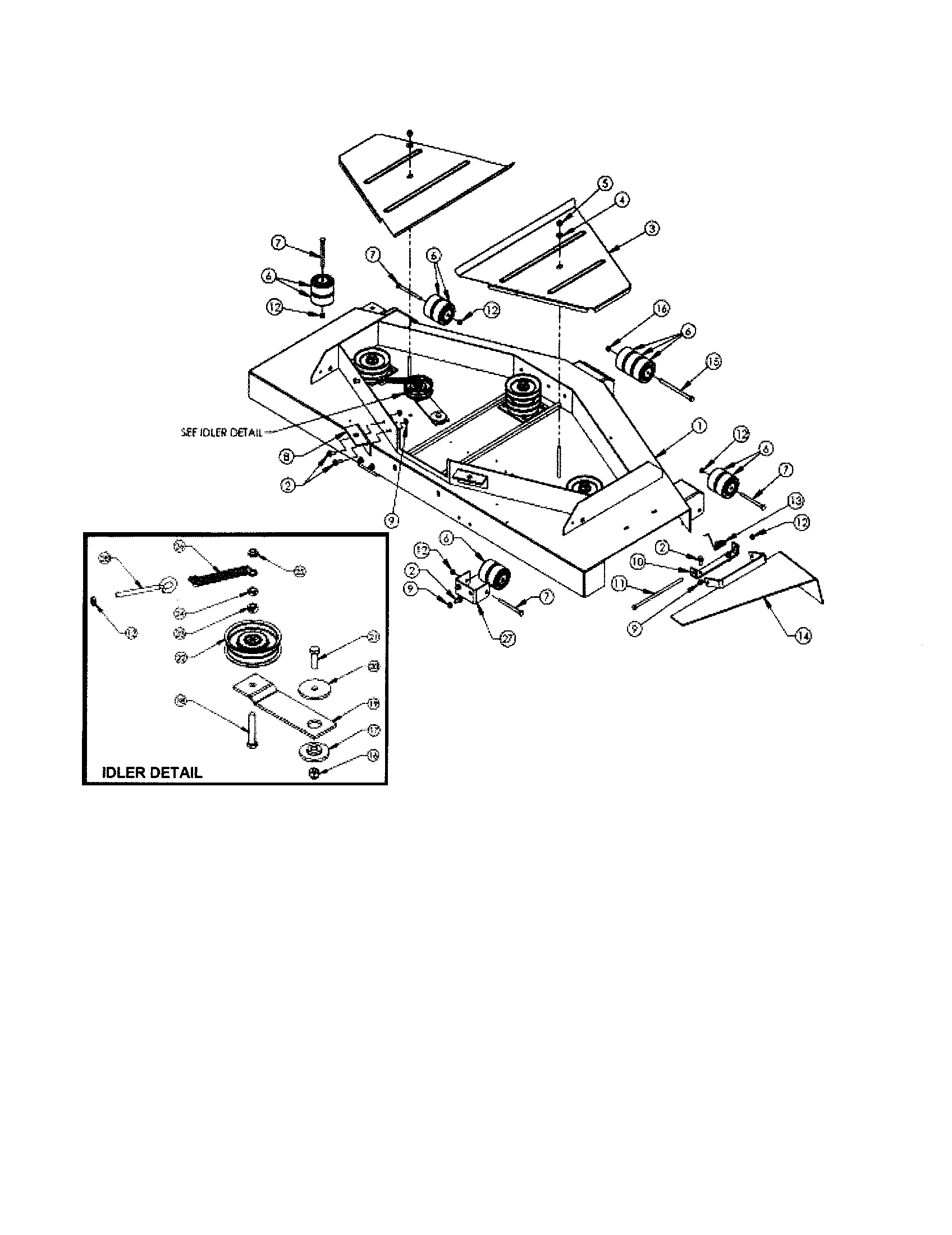

Deck hardware diagram

Belt idler arm

Part #3691TK

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Hex Head Bolt NB107
Lawn & garden equipment hex head bolt

Part #NB107

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Spacer BB105SL
#3

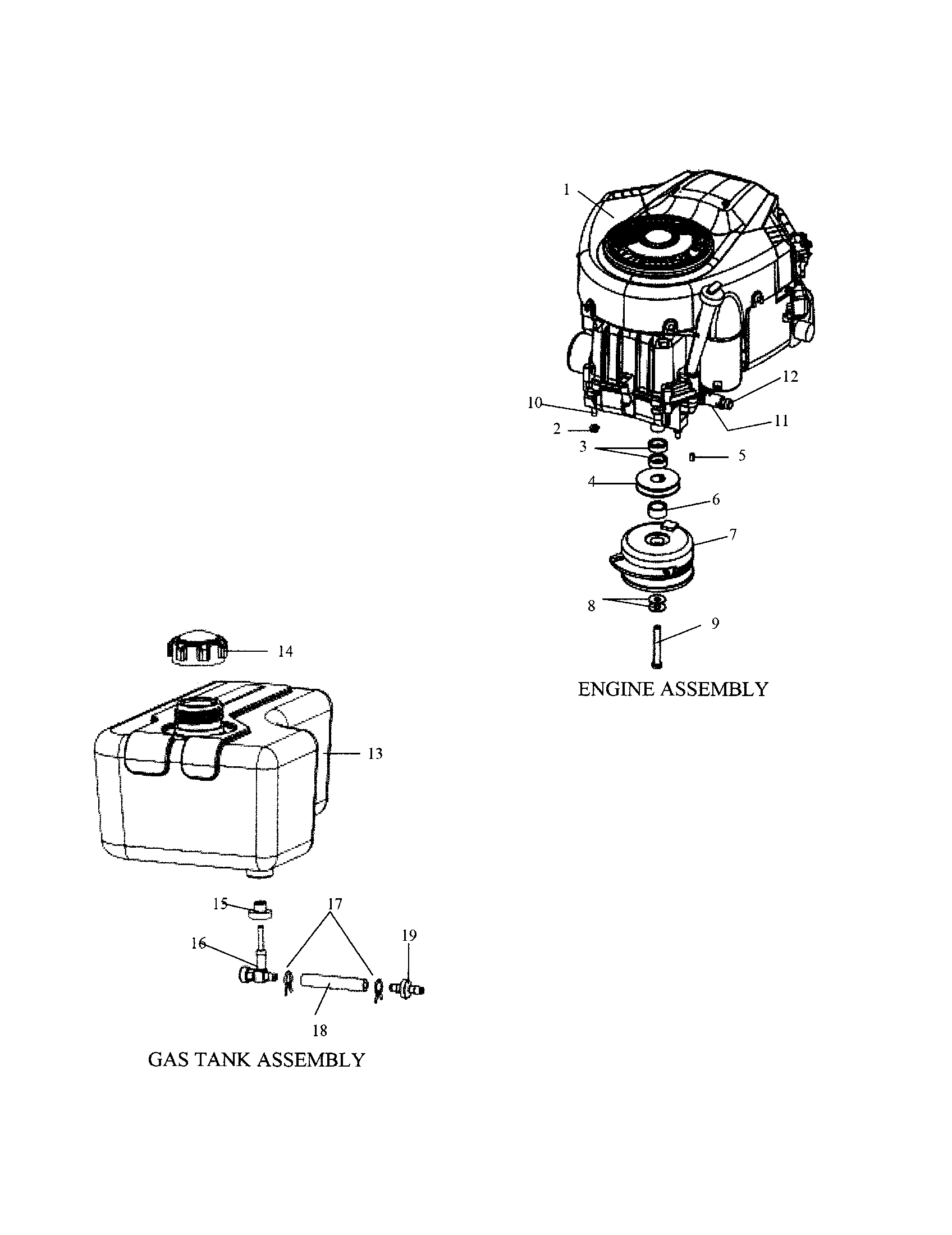

Engine/gas tank diagram

Lawn & garden equipment spacer

Part #BB105SL

The manufacturer no longer makes this part, and there's no substitute part
