Model # WFC7500VW2 Official Whirlpool compact washer

Here are the diagrams and repair parts for Official Whirlpool WFC7500VW2 compact washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Washer Electronic Control Board W10192965
#4

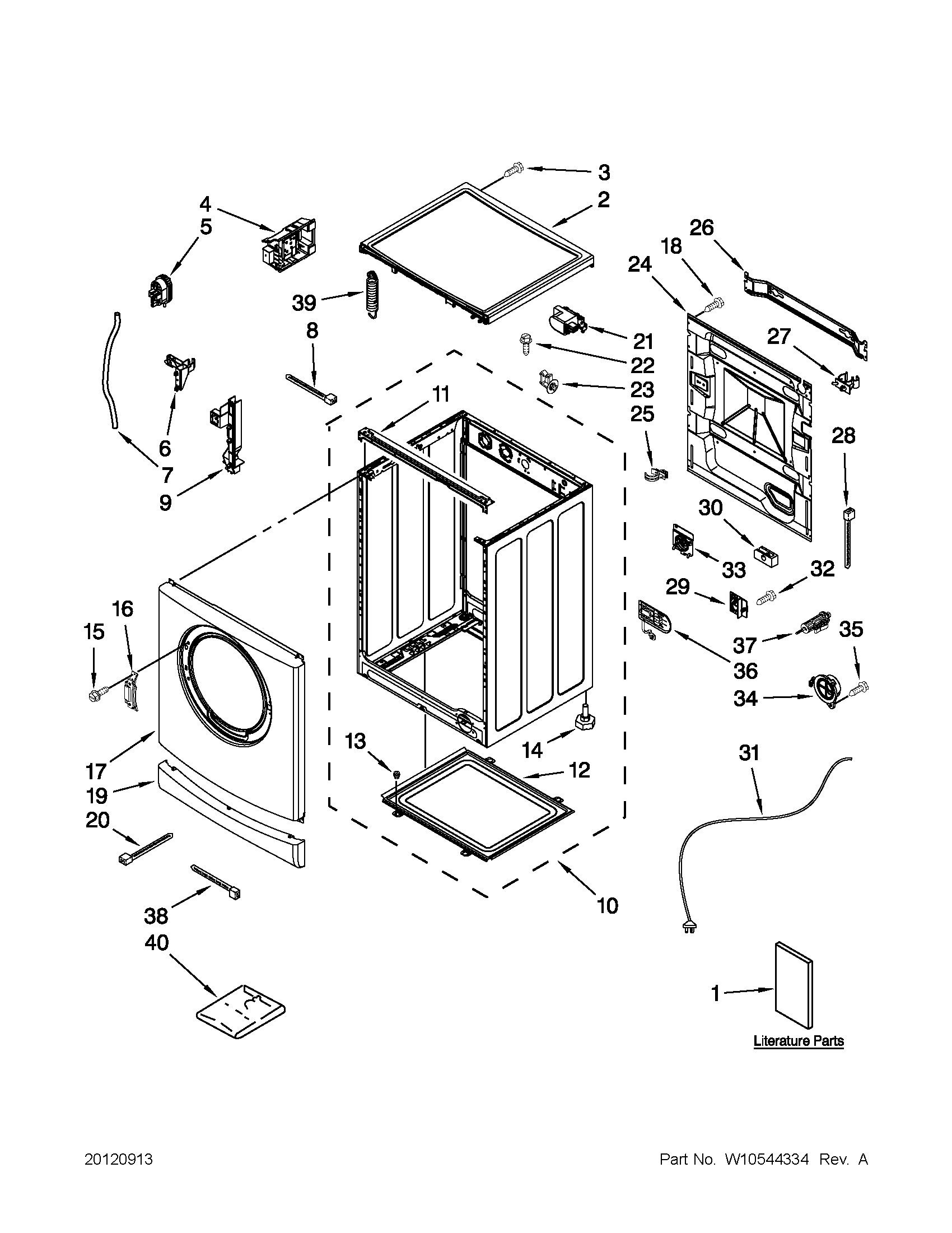

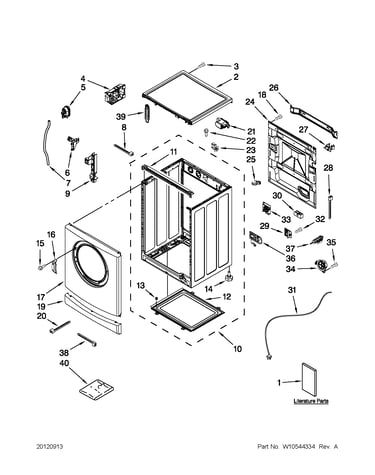

Top and cabinet parts diagram

Washer electronic control board

Part #W10192965

Replaced by #WPW10192965

?
Manufacturer substitution
This part replaces W10192965. Substitute parts can look different from the original.
$179.50 |
18% OFF MSRP : $220.00
In Stock
Washer Door Lock W10192995
#16

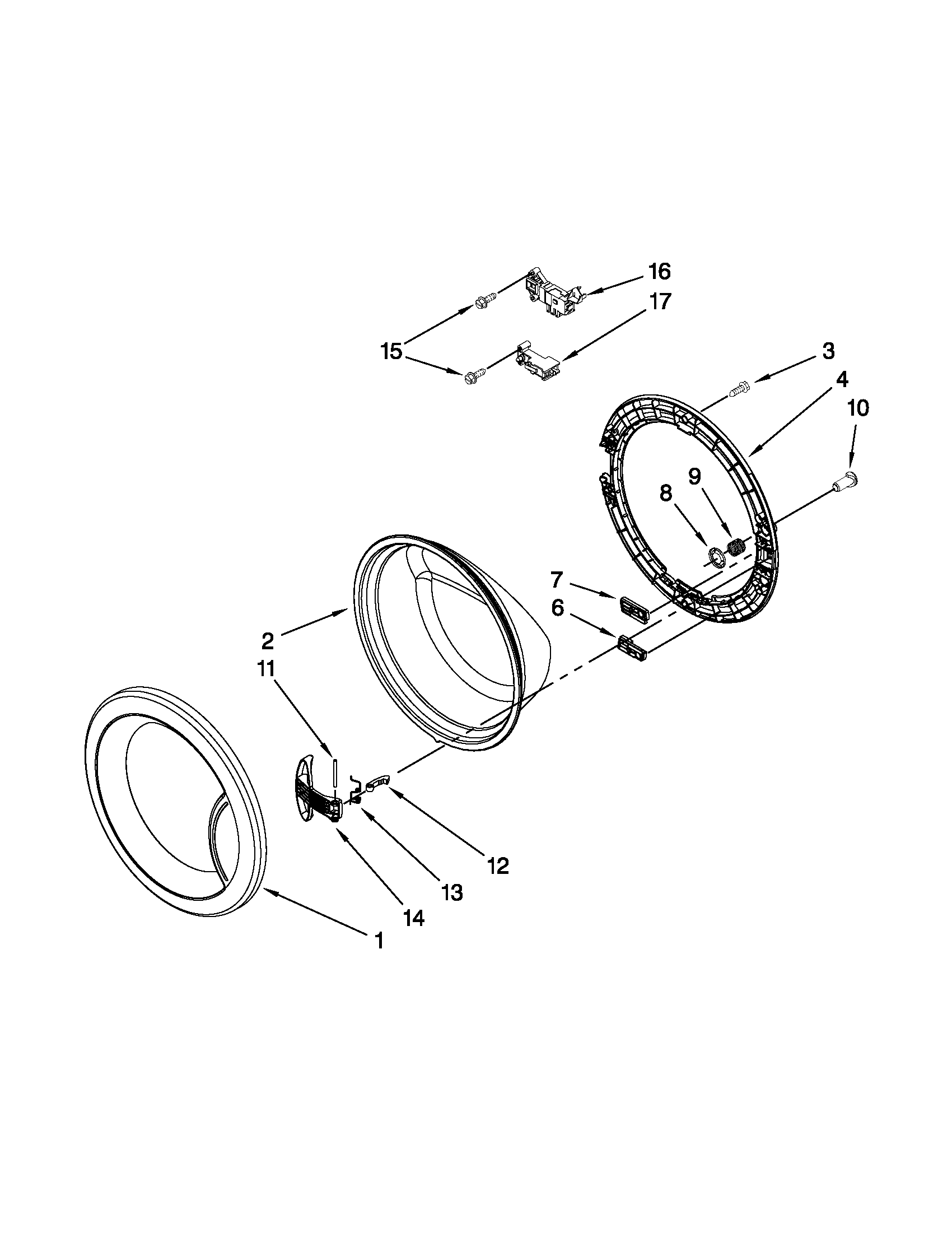

Door parts diagram

Washer door lock

Part #W10192995

Replaced by #WPW10192995

?
Manufacturer substitution
This part replaces W10192995. Substitute parts can look different from the original.
$155.69 |
6% OFF Phone Price : $165.69
In Stock
Washer Electronic Control Board W10192966
#3

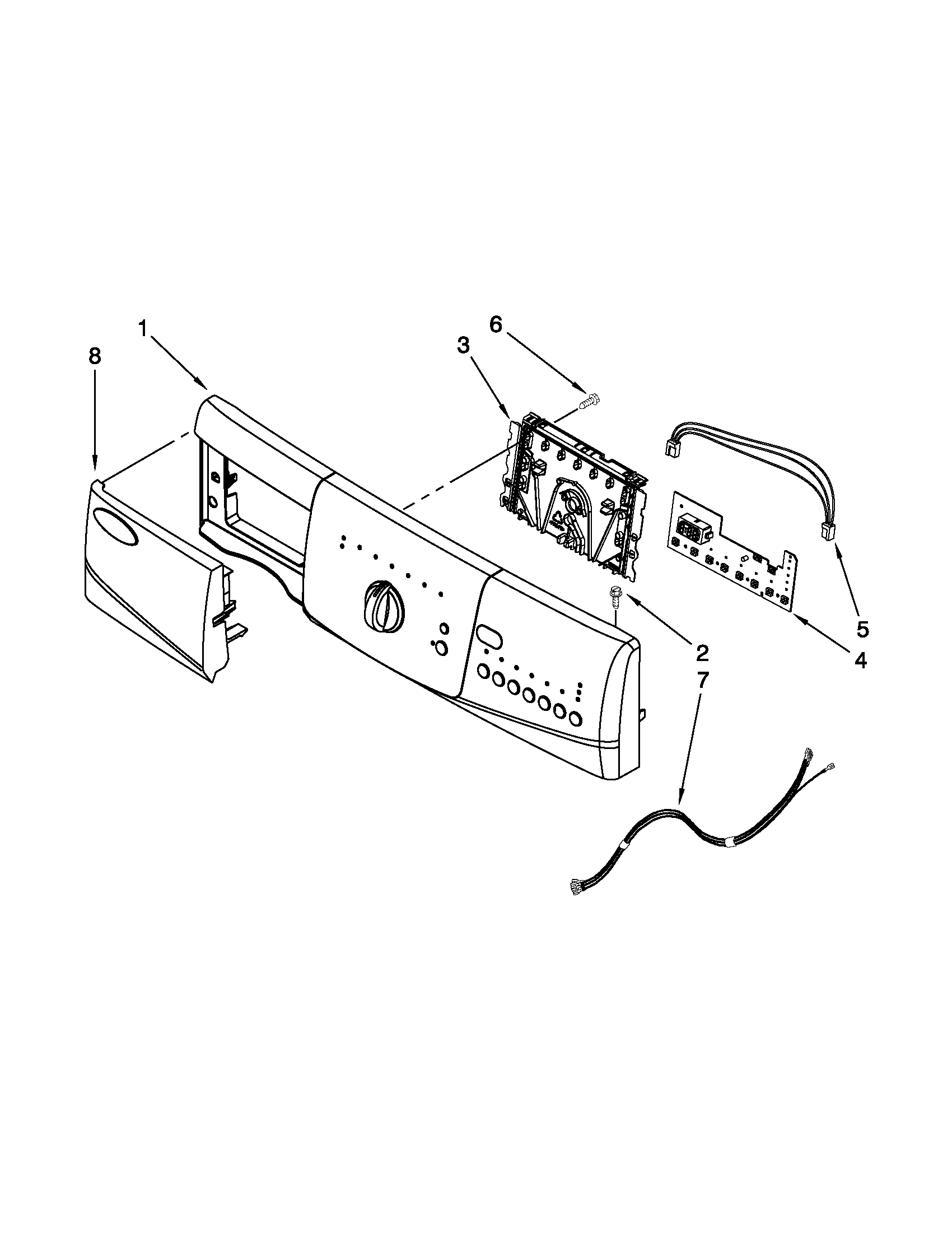

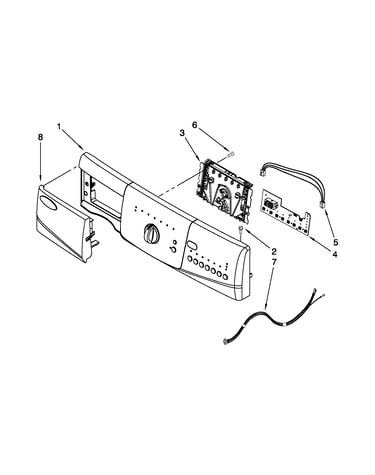

Control panel parts diagram

Washer electronic control board

Part #W10192966

Replaced by #WPW10192966

?
Manufacturer substitution
This part replaces W10192966. Substitute parts can look different from the original.
$313.38 |
$10.00 OFF Phone Price : $323.38
In Stock
Water Pump W10192988
#10

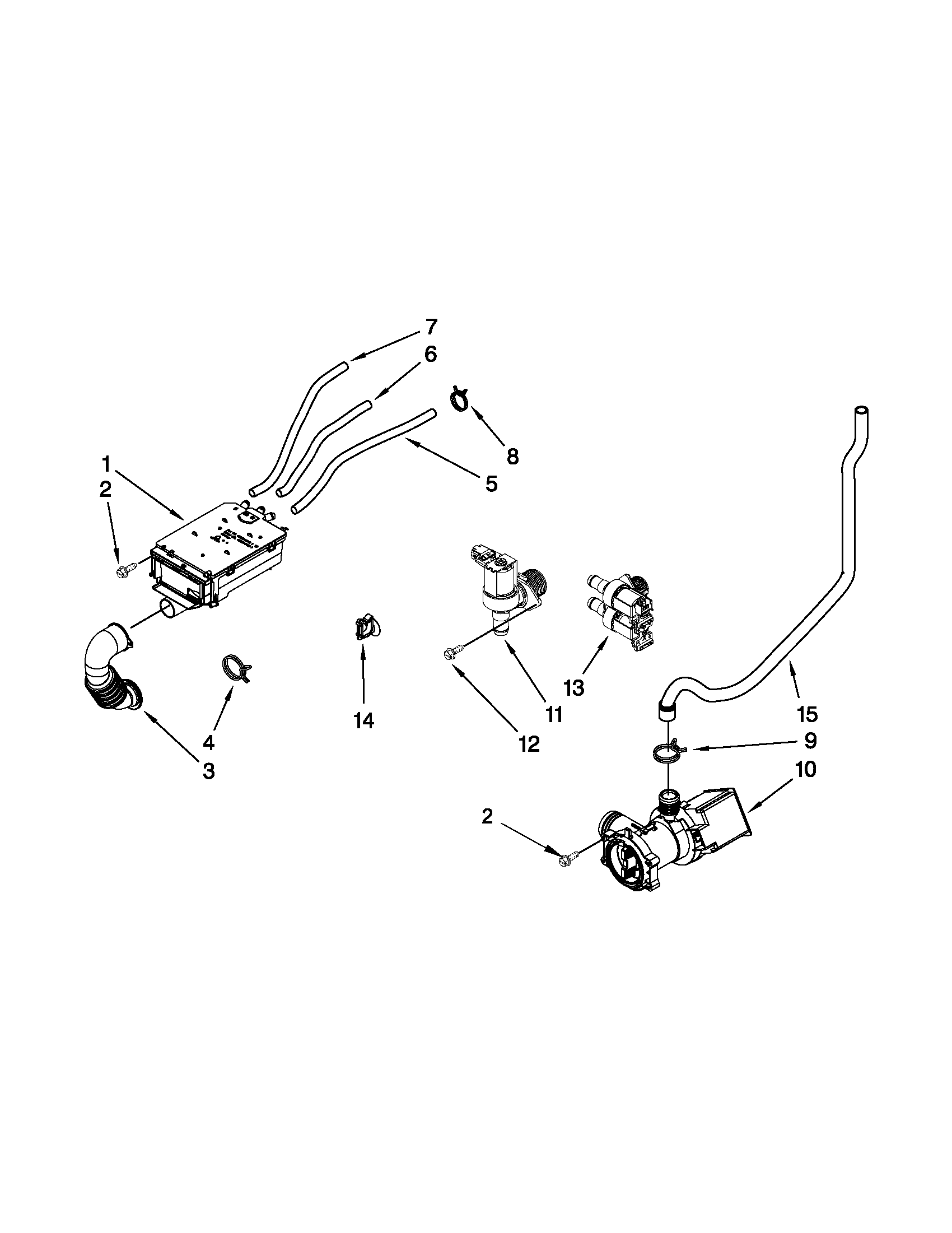

Dispenser & pump parts diagram

Water pump

Part #W10192988

Replaced by #WPW10465252

?
Manufacturer substitution
This part replaces W10192988. Substitute parts can look different from the original.
$183.49 |
5% OFF Phone Price : $193.49
In Stock
Washer Electronic Control Board W10192981
#4

Control panel parts diagram

Washer electronic control board

Part #W10192981

Replaced by #WPW10192981

?
Manufacturer substitution
This part replaces W10192981. Substitute parts can look different from the original.
$181.35 |
5% OFF Phone Price : $191.35
In Stock
Washer Control Panel W10192972
#1

Control panel parts diagram

Washer control panel

Part #W10192972

Replaced by #WPW10192972

?
Manufacturer substitution
This part replaces W10192972. Substitute parts can look different from the original.
$301.59 |
$10.00 OFF Phone Price : $311.59
In Stock
Hose W10192976
#15

Dispenser & pump parts diagram

Hose

Part #W10192976

Replaced by #WPW10192976

?
Manufacturer substitution
This part replaces W10192976. Substitute parts can look different from the original.
$17.99 |
10% OFF Phone Price : $19.99
In Stock
Washer Drive Motor W10192987
#27

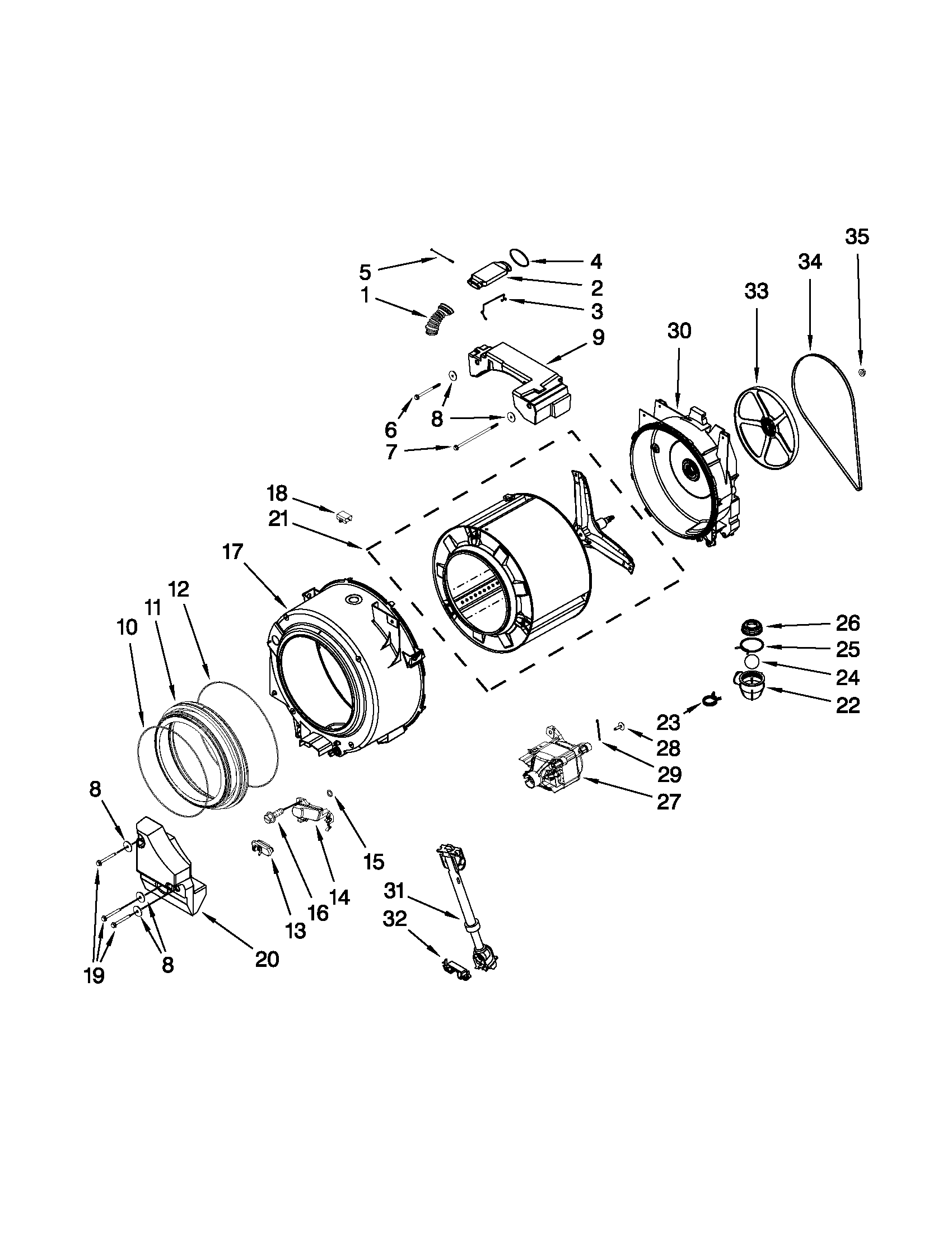

Tub and basket parts diagram

Washer drive motor

Part #W10192987

Replaced by #WPW10192987

?
Manufacturer substitution
This part replaces W10192987. Substitute parts can look different from the original.
$399.09 |
$10.00 OFF Phone Price : $409.09
In Stock
Bracket W10193005
#26

Top and cabinet parts diagram

Bracket

Part #W10193005

$44.18
In Stock
