Where is the filter located on a side-by-side refrigerator?
On the Inglis IS22AGXTQ00 side-by-side refrigerator, the water filter is typically located inside the fresh food (refrigerator) compartment near the upper right area, or it may be mounted in the base grille at the bottom front. Once you find the filter head, the cartridge twists or releases from the housing.
Quick ways to find it on IS22AGXTQ00
- Look in the upper right corner of the refrigerator section for a small cover or filter knob.
- Check the base grille (kickplate) along the bottom front of the unit.
- Look for water tubing leading to a filter head or bracket.
- If your dispenser flow is slow, the filter area is usually close to the filter housing and tubing.
What the filter area looks like (common setups)
| Location | What you usually see | Access tip |
|---|---|---|
| Upper right inside fresh food section | Filter cover or twist-in cartridge | Remove the cover, then turn the cartridge to release |
| Base grille (bottom front) | Filter cap facing outward | Pull the grille or open the small access door |
If you cannot find a cartridge-style filter
Some installations use an inline filter in the water line instead of a cartridge in the compartment or grille. If you are servicing the filter system components on this model, the refrigerator water filter housing WP2186443 is the part that the cartridge-style filter mounts into.
Why it matters
Knowing the filter location helps restore normal water dispenser and ice maker flow, reduces leaks during service, and makes routine maintenance faster. If you are also troubleshooting low water flow, the how to replace the water filter in an Inglis refrigerator guide pairs well with checking the filter housing and water line routing.
You can order replacement parts for your IS22AGXTQ00 from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
Why is my Inglis refrigerator not cooling?
If your Inglis IS22AGXTQ00 side-by-side refrigerator is not cooling, the most common causes are an airflow problem (evaporator fan not moving air), a defrost failure icing up the evaporator, or a temperature control issue. Start with simple checks, then test the likely parts.
Quick checks we recommend first
- Confirm the refrigerator is getting power and the interior lights work.
- Make sure both temperature controls are set to a normal mid-range setting.
- Check that vents inside the fresh food and freezer sections are not blocked by food packages.
- Clean dust from the condenser area (dirty coils reduce cooling performance).
- Listen for the evaporator fan in the freezer; it should run when the compressor is running.
Most likely part-related causes on this model
On the IS22AGXTQ00, these parts commonly tie directly to “not cooling” symptoms:

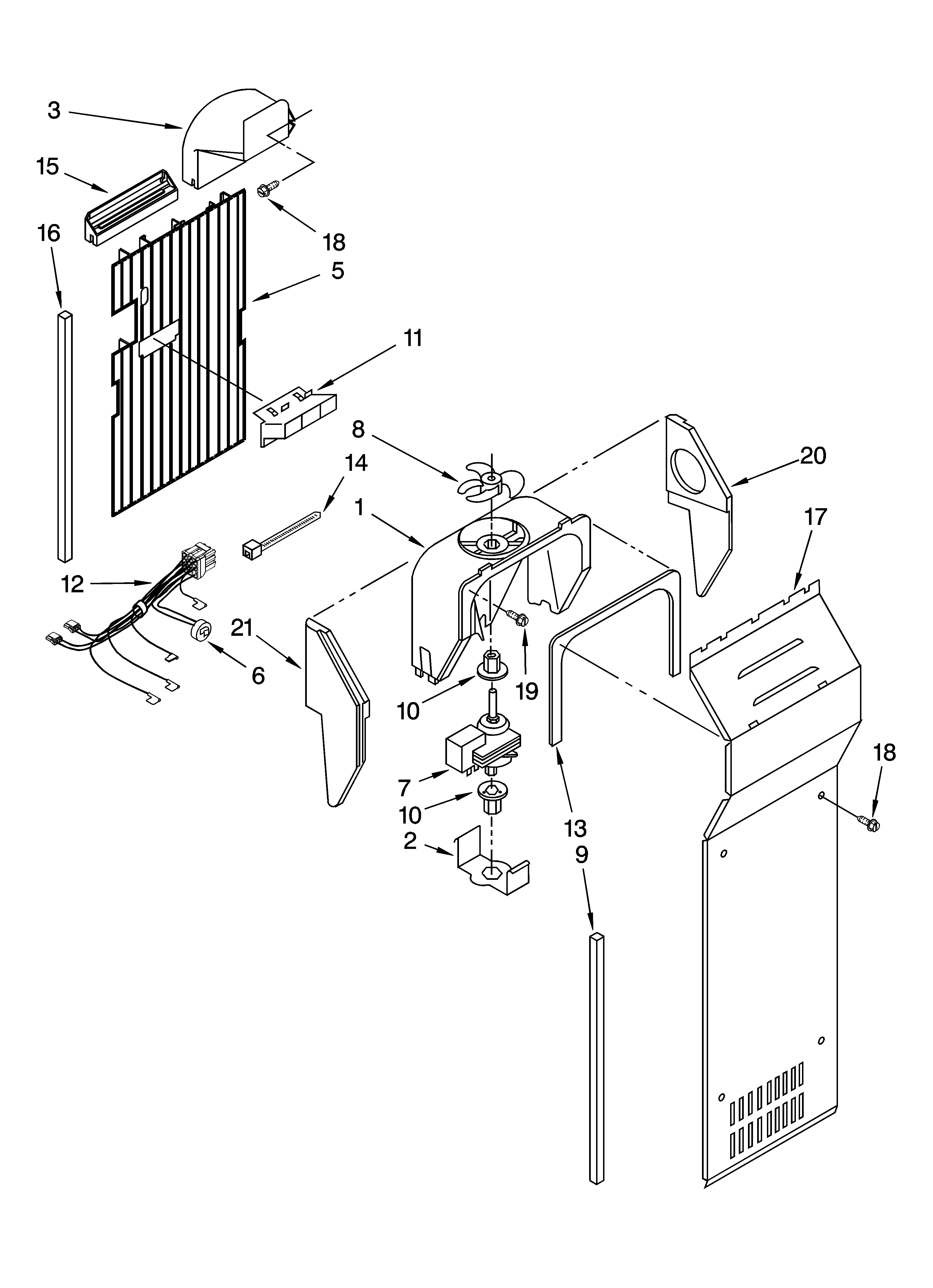

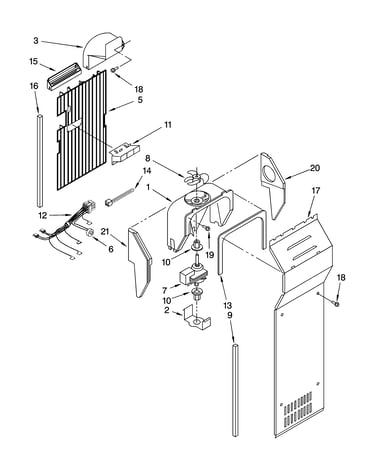

- Evaporator fan issue: If the fan blade is broken or slipping, cold air will not circulate.
- Consider the refrigerator evaporator fan blade WP2169142.
- Defrost system problem: If the evaporator coils frost over, airflow stops and temperatures rise.
- Consider the refrigerator defrost bi-metal thermostat WPW10225581.

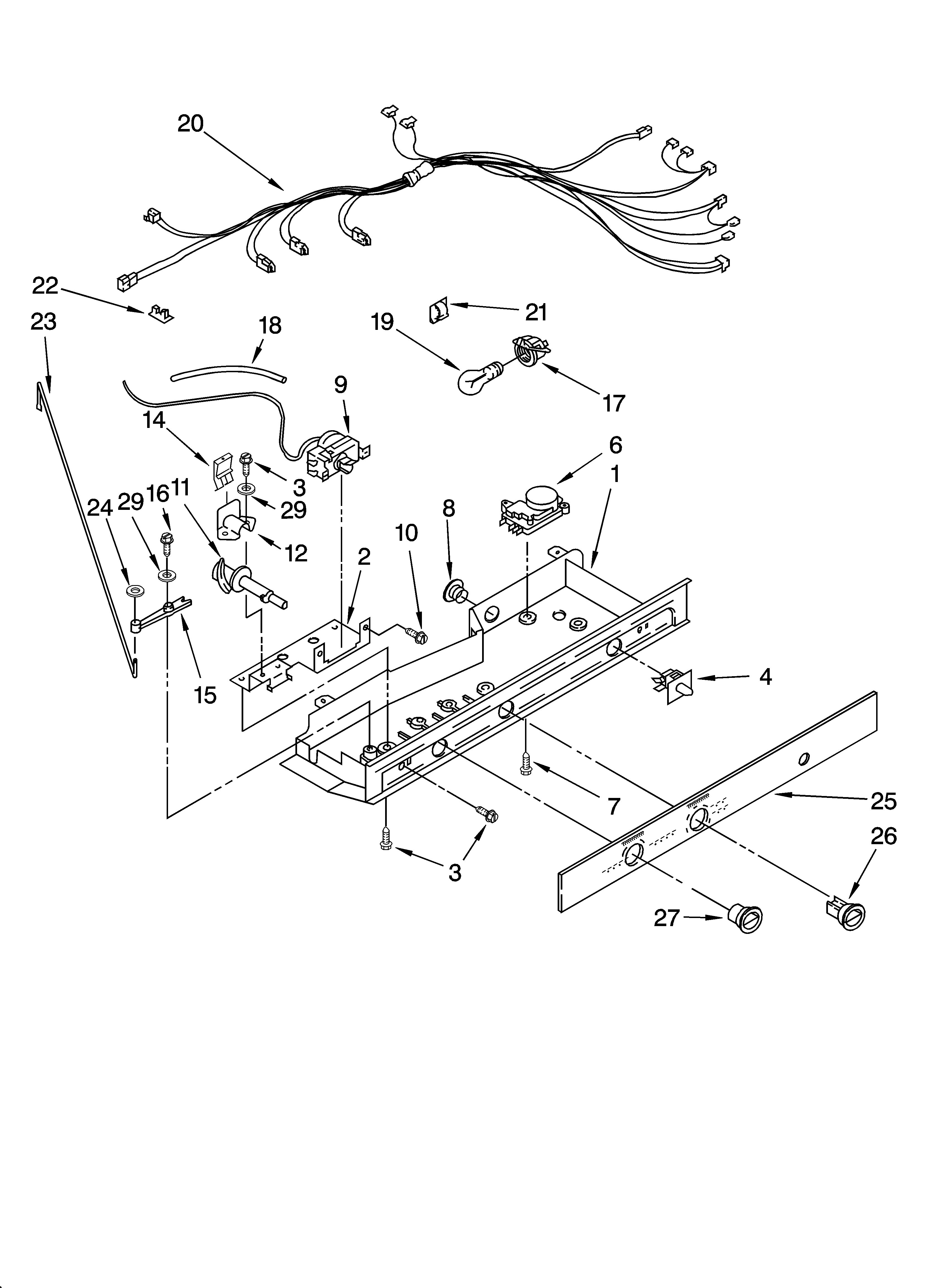

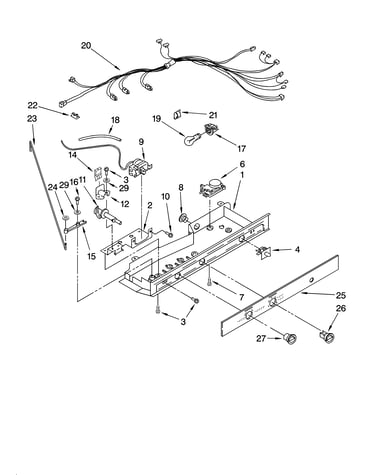

- Temperature control problem: A failed control can prevent the compressor from running long enough.
- Consider the refrigerator thermostat WP2198202.
Symptom-to-cause guide
| What you notice | Most likely direction | What to check next |
|---|---|---|
| Freezer cold, fridge warm | Airflow problem | Evaporator fan operation; ice blocking vents |
| Both sections warm | Cooling system not running enough | Thermostat/control; condenser airflow |
| Heavy frost on freezer back wall | Defrost failure | Defrost bi-metal thermostat; defrost heater circuit |
| Fan noise changed or rattling | Fan blade damage | Fan blade condition and fit |
Why it matters
A side-by-side refrigerator depends on steady airflow from the freezer to cool the fresh food section. When airflow is restricted (fan problem or frost buildup), the refrigerator side warms up first, even if the freezer still feels “kind of cold.”
Getting the right replacement part
We list model-matched parts for IS22AGXTQ00 on this page, and you can also search by model number on Sears PartsDirect if you need additional options.
Last updated: February 2026
What are the most commonly replaced parts in a refrigerator?
In our experience with the Inglis IS22AGXTQ00 side-by-side refrigerator, the most commonly replaced parts are water system components (filter housing, inlet valve, tubing), ice maker parts, and cooling or defrost controls. These parts wear from normal use, mineral buildup, and temperature cycling.
Most common replacements (and what they do)
- Water inlet valve: opens to send water to the dispenser and ice maker; a common cause of no water or slow fill (see refrigerator water inlet valve W10408179).

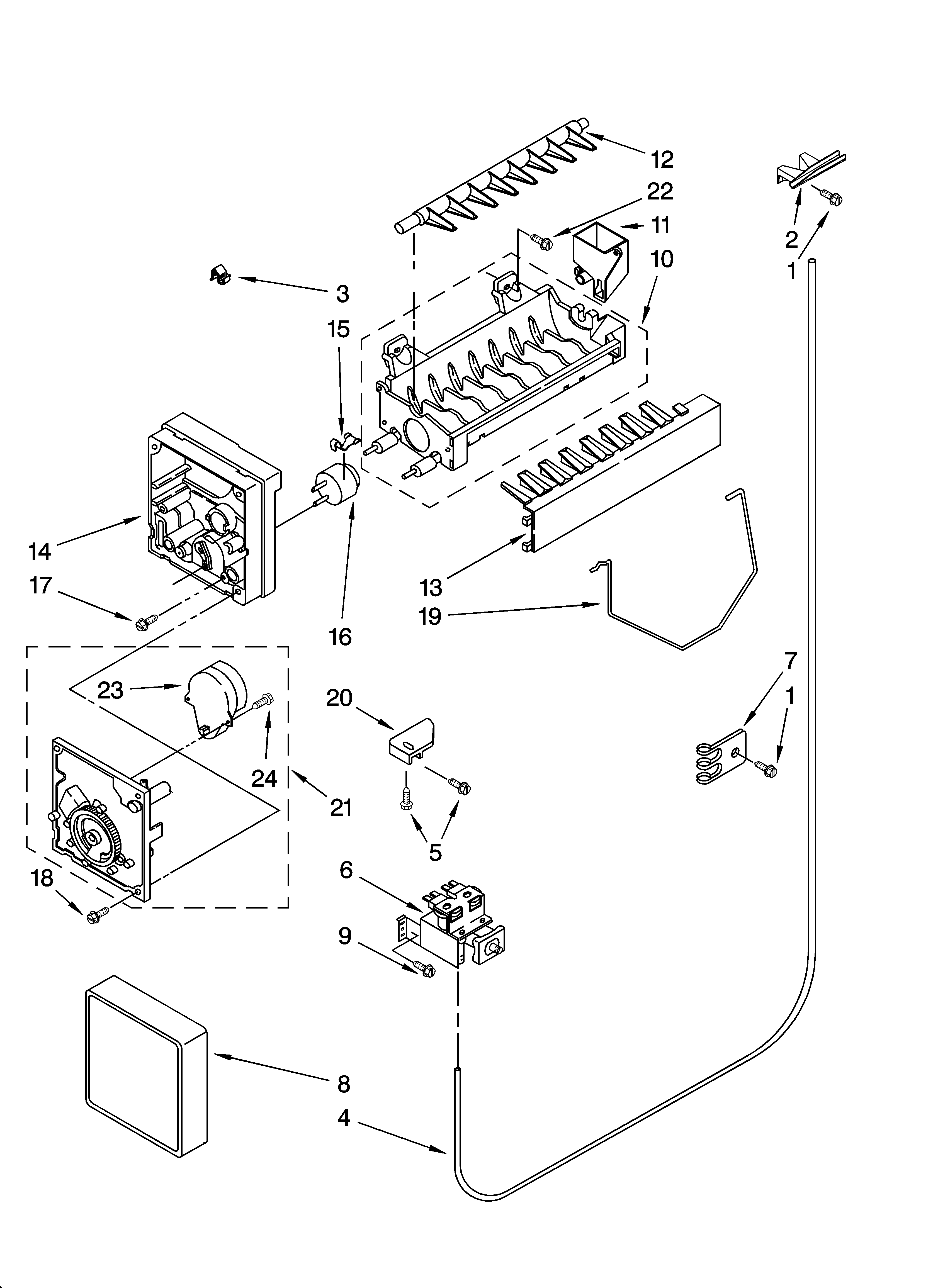

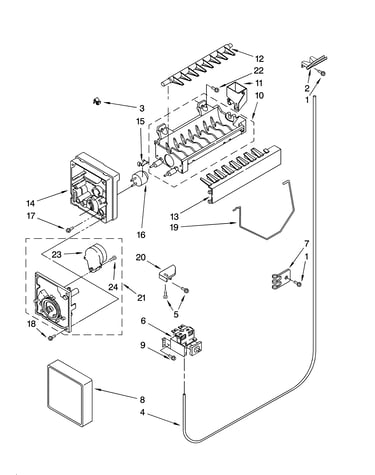

- Ice maker assembly: makes and harvests ice; replaced for no ice, small cubes, or leaking (see refrigerator ice maker WPW10190965).
- Defrost thermostat (bi-metal): helps control defrost heat to prevent frost buildup (see refrigerator defrost bi-metal thermostat WPW10225581).
- Temperature control (thermostat): regulates cooling cycles; replaced for warm temps or erratic cooling (see refrigerator thermostat WP2198202).
- Water filter housing and water tubing: common when you have leaks, cracks, or restricted flow (see refrigerator water filter housing WP2186443 and refrigerator water tube W10823511).
Quick symptom-to-part guide
| Symptom | Most likely part area | Example part on this model |
|---|---|---|
| No water at dispenser | Water supply and valve | W10408179 |
| Ice maker not making ice | Ice maker and water fill | WPW10190965 |
| Frost on back wall, warm fridge | Defrost system | WPW10225581 |
| Temps swing warm/cold | Temperature control | WP2198202 |
| Water leaking inside fridge | Tubing or housing | W10823511, WP2186443 |
Why it matters
Replacing the right “high-wear” part first saves time and prevents secondary problems like water damage (leaks) or food spoilage (temperature drift). On side-by-side refrigerators like the IS22AGXTQ00, water and ice components are especially failure-prone because they run daily.
Helpful DIY guidance
- If you are troubleshooting water filter and flow issues, follow how to replace the water filter in an Inglis refrigerator.
- For ordering, we recommend using the parts list for model IS22AGXTQ00, or searching by model number on Sears PartsDirect.
Last updated: February 2026
Can I replace fridge parts myself?
Yes. For your Inglis IS22AGXTQ00 side-by-side refrigerator, we recommend DIY replacement only for straightforward, low-risk parts (like dispenser bulbs, ice maker components, and some water system parts). For sealed-system or complex electrical repairs, use a qualified technician.
Good DIY repairs vs. repairs to leave to a pro
Many refrigerator fixes are safe if you unplug power first and shut off the water supply when working on water lines.
- Good DIY candidates: light bulbs, ice maker assemblies, door hardware, some water tubing and valves
- Usually pro-level: compressor or sealed refrigerant system work, major wiring repairs, anything requiring refrigerant handling
- When to stop: burning smell, tripped breaker, melted wiring, or repeated clicking with no cooling
Common DIY parts for this model
If your symptoms match, these are common replacements we see for IS22AGXTQ00:
- No ice or slow ice production: refrigerator ice maker WPW10190965
- No water at dispenser or weak flow: refrigerator water inlet valve W10408179
- Leaking at filter area or filter will not seat: refrigerator water filter housing WP2186443
- Frost buildup or warm freezer with fan running issues: refrigerator defrost bi-metal thermostat WPW10225581

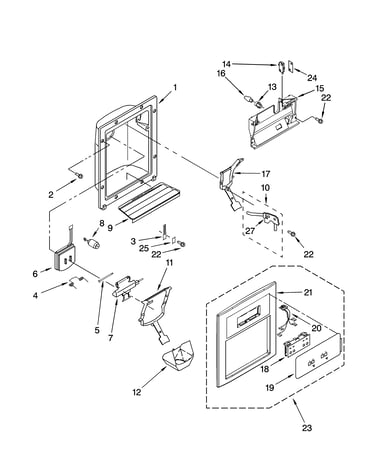

- Dispenser area dark: dispenser bulb WP22002263
Quick safety checklist before you start
- Unplug the refrigerator (or switch off the breaker)
- Shut off the house water supply to the refrigerator (for any water/ice repair)
- Use gloves; sheet metal edges inside compartments can be sharp
- Take a photo of wire and tube routing before disconnecting anything
- After reassembly, check for leaks and listen for normal fan operation
DIY decision guide
| What you are replacing | Typical DIY difficulty | Key risk to manage |
|---|---|---|
| Dispenser bulb | Easy | Hot bulb, broken lens |
| Ice maker assembly | Medium | Pinched wires, water leaks |
| Water inlet valve | Medium | Leaks, cross-threaded fittings |
| Defrost thermostat | Medium | Damaging evaporator fins, frost exposure |
| Compressor | Pro | Electrical and sealed-system work |
Why it matters
Choosing the right repair level protects your refrigerator from repeat failures (like leaks that damage flooring or wiring issues that stop cooling). It also helps you avoid replacing expensive assemblies when a simpler part is the real cause.
If you need to order parts, use the parts list for IS22AGXTQ00 or search by model on Sears PartsDirect.
Last updated: February 2026
