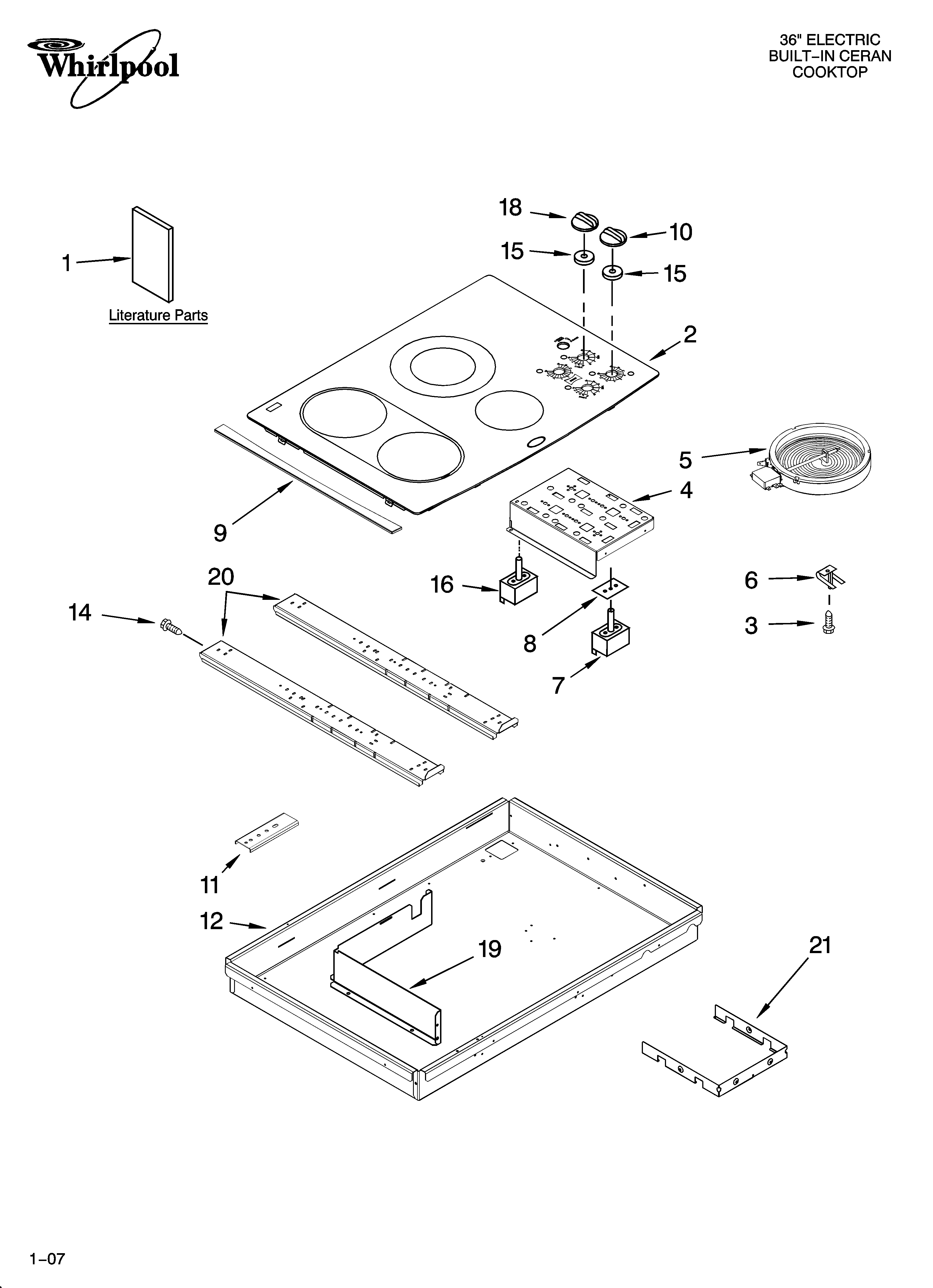

Whirlpool GJC3034RB00 cooktop Parts

Induction is the better choice for most kitchens because it heats faster, responds more precisely, and keeps the cooktop surface cooler; ceramic radiant (like the Whirlpool GJC3034RB00) costs less and works with any cookware, but it heats and cools more slowly.

Quick comparison

Feature	Induction cooktop	Ceramic radiant cooktop (GJC3034RB00 style)
Heating speed	Fastest (pan heats directly)	Slower (glass and element heat first)
Temperature control	Very responsive	Cycles on and off to hold the setting
Cookware	Magnetic cookware required	Most cookware works if the bottom is flat
Surface safety	Surface stays cooler overall (pan is the heat source)	Surface area glows red and stays hot after cooking
Cost	Higher upfront	Usually more budget-friendly

What matters most for day-to-day cooking

• If you want speed and efficiency: induction wins for quick boiling and rapid changes from high to low.
• If you want maximum cookware compatibility: ceramic radiant wins; you can use aluminum, stainless steel, cast iron, and many glass or ceramic pieces (as long as they are rated for cooktop use).
• If you cook with heavy pans: either can work well, but a flat bottom is key for even heating on ceramic glass.
• If you prioritize a cooler-to-the-touch surface: induction is typically safer because the pan is what heats up.
• If you already own a ceramic radiant cooktop: it is normal for the cooking area to glow red and for the element to cycle on and off to maintain the selected heat level.

Ceramic radiant cooktop tips (for Whirlpool GJC3034RB00)

Use these habits to get better performance and protect the glass top:

• Match pan size to the surface element; undersized pans can expose hot areas and reduce efficiency.
• Use flat-bottom cookware for the most even heating.
• Do not leave surface units unattended on high heat; boilovers can smoke and ignite.
• Clean sugary spills while the surface is still warm (with protection) to help prevent pitting and permanent marks.
• Avoid dropping heavy objects on the cooktop; the ceramic glass can crack.

For model-specific use and care details, follow the GJC3034RB00 owner's manual.

Why it matters

Choosing between induction and ceramic radiant affects cooking results, energy use, and safety. Induction rewards you with speed and control if you are willing to use compatible cookware; ceramic radiant rewards you with lower cost and broad cookware flexibility, with a bit more heat lag and a hotter surface.

Last updated: February 2026

Yes. Multiple brands make electric cooktops sold as “32-inch” class units; the exact overall width is often slightly over 32 inches, so we recommend confirming the cutout and countertop clearance requirements before you buy or install one. For your Whirlpool GJC3034RB00, use the cutout specs in the installation guide.

What “32-inch cooktop” usually means

Most manufacturers market cooktops by a nominal size. The actual outside width and the required countertop cutout can differ.

• “32-inch” is typically a class size, not an exact measurement
• Actual cooktop width is commonly a bit larger than 32 inches
• Cutout width and depth matter more than the advertised size
• Some models require specific front, side, and rear clearances
• Electrical requirements can vary by model and must match your circuit

Quick fit check before you choose a replacement

Use this checklist to avoid a countertop rework.

• Measure your existing countertop cutout width and depth (not just the glass top)
• Measure the cabinet opening and check for drawer or brace interference
• Verify the cooktop’s required clearances to walls and adjacent cabinets
• Confirm your electrical supply matches the cooktop requirements
• Compare mounting method (brackets, clips) and junction box location

Electrical requirements to plan for

For this cooktop family, the installation instructions call for a dedicated 240V supply on a separate 40-amp circuit (single phase, 60 Hz AC). Use the wiring method shown in the installation guide for 3-wire or 4-wire connections.

What to compare	What you should match	Why it matters
Cutout size	Width and depth from the install specs	Prevents gaps and avoids countertop cutting
Overall width	Outside edge-to-edge measurement	Ensures it sits correctly on the counter
Circuit	240V, dedicated amperage	Prevents nuisance trips and overheating
Connection type	3-wire vs 4-wire	Ensures safe, code-compliant hookup

Why it matters

A “32-inch electric cooktop” can fit very differently from one model to another. Matching the cutout dimensions and electrical requirements first saves time, avoids countertop damage, and helps ensure safe operation.

Last updated: February 2026

Yes. You can replace an electric cooktop like Whirlpool model GJC3034RB00, but it must be installed and grounded correctly; we recommend having a qualified technician handle the wiring and mounting to prevent shock hazards and performance problems.

What replacement typically involves

Replacing a built-in electric cooktop is usually a remove-and-reinstall job: disconnect power, lift the cooktop out, transfer any needed mounting hardware, then wire and secure the new unit per the installation guide.

• Turn off power at the breaker (cooktops are commonly hardwired).
• Verify the cooktop is properly grounded before use.
• Confirm the cutout size and countertop support match the new cooktop.
• Transfer mounting brackets or hardware if required.
• Make wiring connections exactly as specified for your home circuit.
• Test each surface element for proper heat control after installation.

Safety and “when to stop”

Your manual stresses that installation and grounding should be done by a qualified technician, and that servicing beyond what the manual recommends should be referred out. Use these as clear stop points. See the owner's manual for safety warnings and operating checks.

• If the breaker trips or a fuse blows after installation, stop and have the circuit checked.
• If the cooktop glass is cracked or broken, do not use it.
• If any control feels loose, binds, or overheats, stop using that element.

Quick troubleshooting after replacement

If the new cooktop does not heat or nothing powers on, these checks solve most first-start issues.

Symptom	Most common cause	What to do next
Nothing works	Breaker off, wiring issue	Reset breaker; recheck wiring per the installation guide
One element will not heat	Element or control issue	Verify knob operation; inspect wiring connections
Heat is erratic	Control switch problem	Consider replacing the range surface element control switch WP3191049

Why it matters

A cooktop draws high current and relies on correct grounding and secure mounting. Proper installation prevents nuisance breaker trips, uneven heating, and electric shock risk, and it protects internal wiring and controls.

Last updated: February 2026

The best electric cooktop is the one that matches how you cook and what your kitchen can power. Induction delivers the fastest, most precise heating; a radiant glass cooktop like Whirlpool model GJC3034RB00 is a strong choice for straightforward knob control and easy wipe-clean cooking.

How we recommend choosing the best electric cooktop

• Heating style: Induction is fastest and most responsive; radiant is simpler and works with any flat-bottom cookware.
• Size and fit: Measure the cutout and countertop clearance before shopping; 30-inch and 36-inch models are not interchangeable.
• Electrical supply: Many built-in electric cooktops use a dedicated 240V circuit; confirm the required amperage and wiring method for the exact model.
• Element flexibility: Dual and bridge elements help with large pans, griddles, and oval cookware.
• Controls and serviceability: Knobs are intuitive and typically easier to service than touch controls.

Quick comparison: induction vs. radiant electric

Feature	Induction cooktop	Radiant glass cooktop (like GJC3034RB00)
Heating speed	Fastest	Fast, with more heat lag
Temperature changes	Immediate	Slower to adjust
Cookware	Must be magnetic	Any flat-bottom cookware
Cleaning	Easiest (surface stays cooler)	Easy, but spills can bake on

What matters for Whirlpool GJC3034RB00 owners

If you already own GJC3034RB00, the “best” option is often keeping it heating evenly and controlling temperature correctly. When a burner will not heat, cycles erratically, or gets stuck on high/low, these model-matched parts are common fixes:

• Range surface element control switch WP3191049
• Range dual radiant surface element W10823692
• Range radiant surface element, 6-in W10823711
• Cooktop radiant bridge element W10823695

Why it matters

Choosing the right cooktop type, size, and electrical requirements prevents installation surprises and performance complaints. For GJC3034RB00, using the correct circuit and maintaining switches and radiant elements keeps heating consistent and safe.

For the exact electrical requirements and connection details for this model, follow the installation guide.

Last updated: February 2026
