GE ZICS360NXBLH bottom-mount refrigerator Parts
Here are the diagrams and repair parts for GE ZICS360NXBLH bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

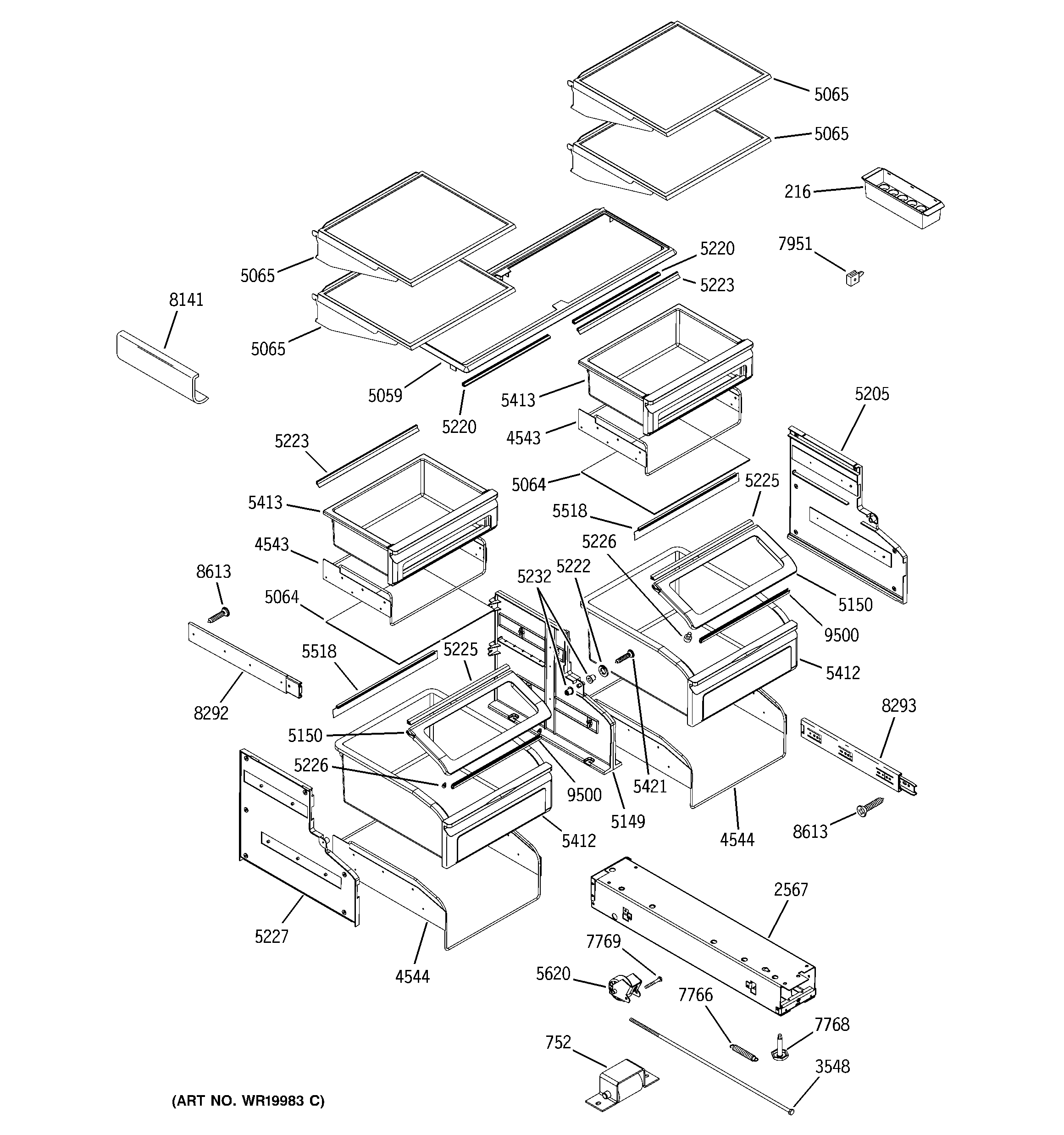

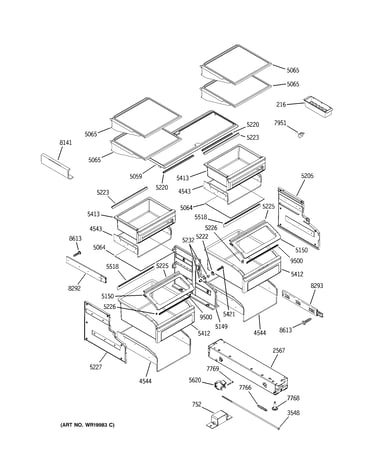

Browse Parts for ZICS360NXBLH Refrigerators

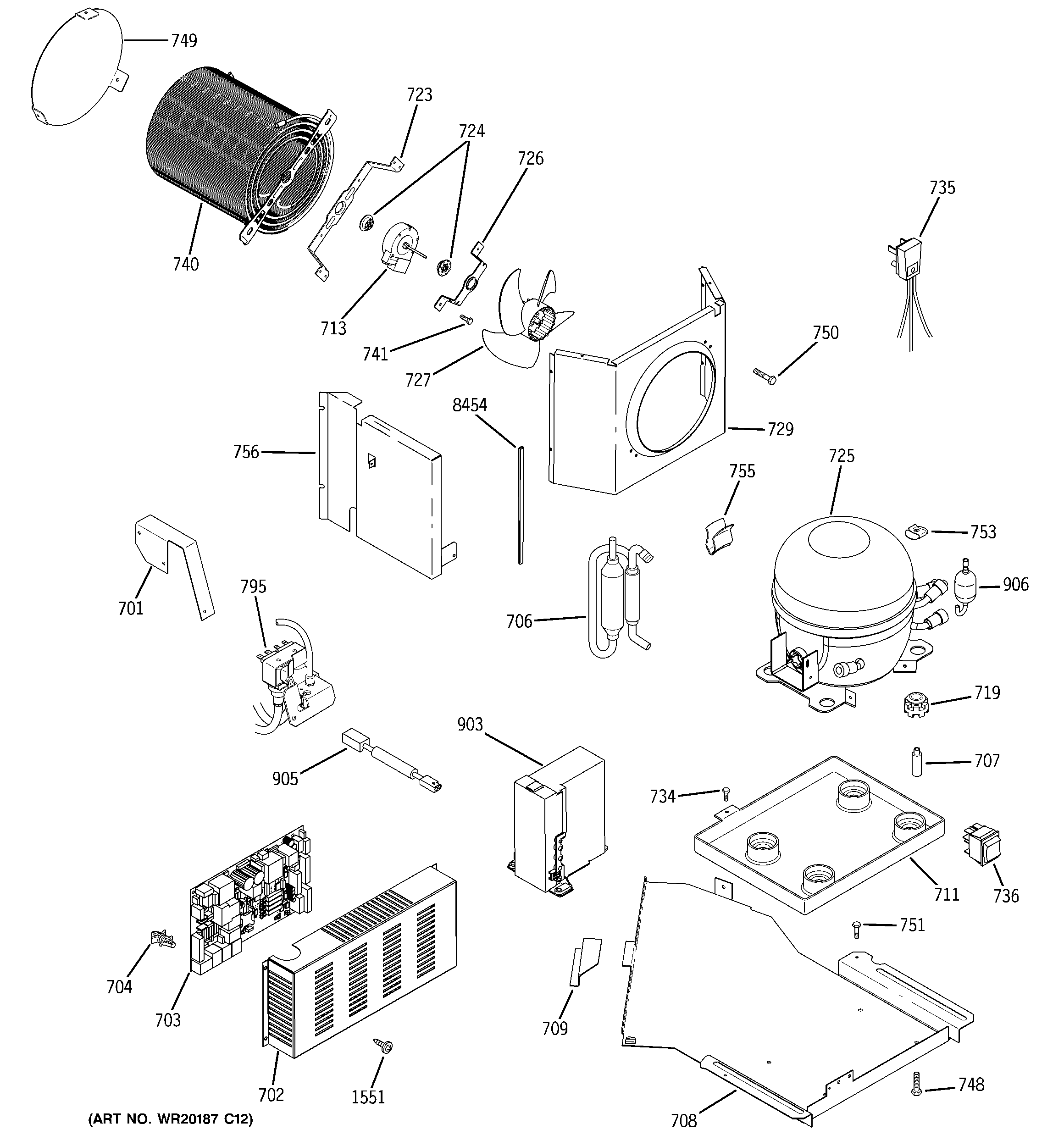

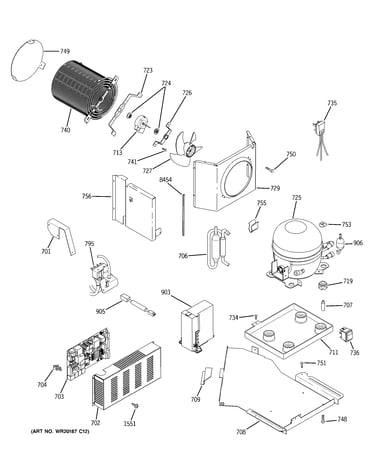

Machine compartment diagram
Inverter
Part #WR55X10685Replaced by #WR49X10283
Manufacturer substitutionThis part replaces WR55X10685. Substitute parts can look different from the original.In Stock$228.075% OFF Phone Price : $240.07
Qty

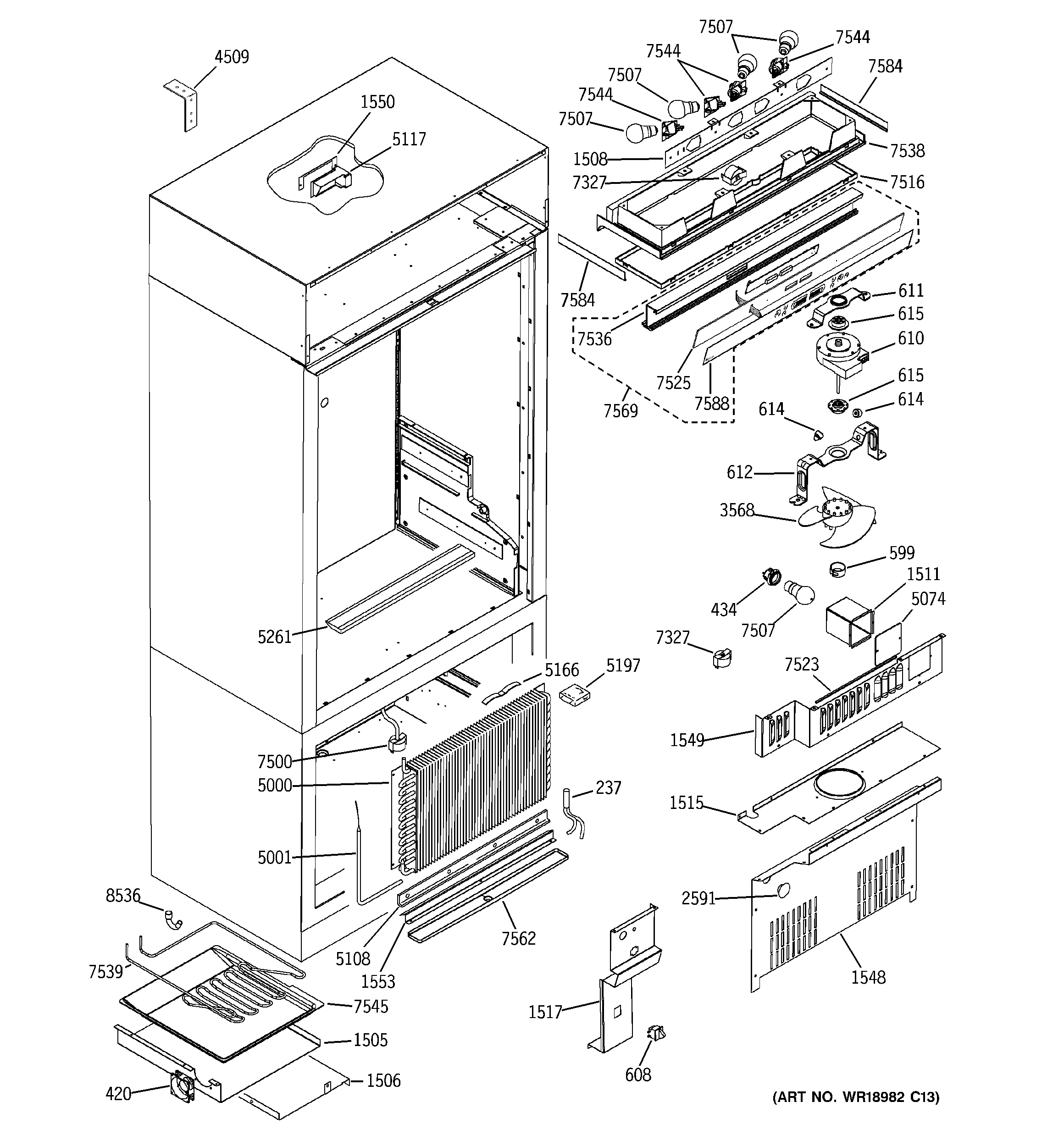

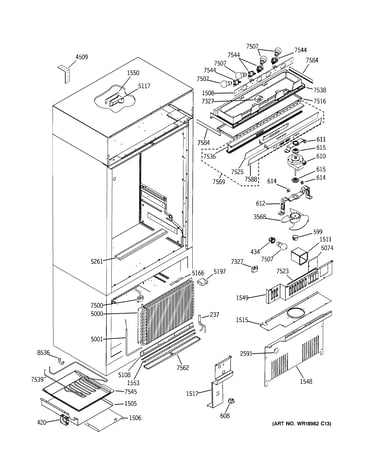

Controls & components diagram
Refrigerator Damper Motor
Part #WR09X10065Replaced by #WR60X27396
Manufacturer substitutionThis part replaces WR09X10065. Substitute parts can look different from the original.In Stock$126.029% OFF Phone Price : $138.02QtyMachine compartment diagram
Compressor V
Part #WR87X10123Replaced by #WR87X10111

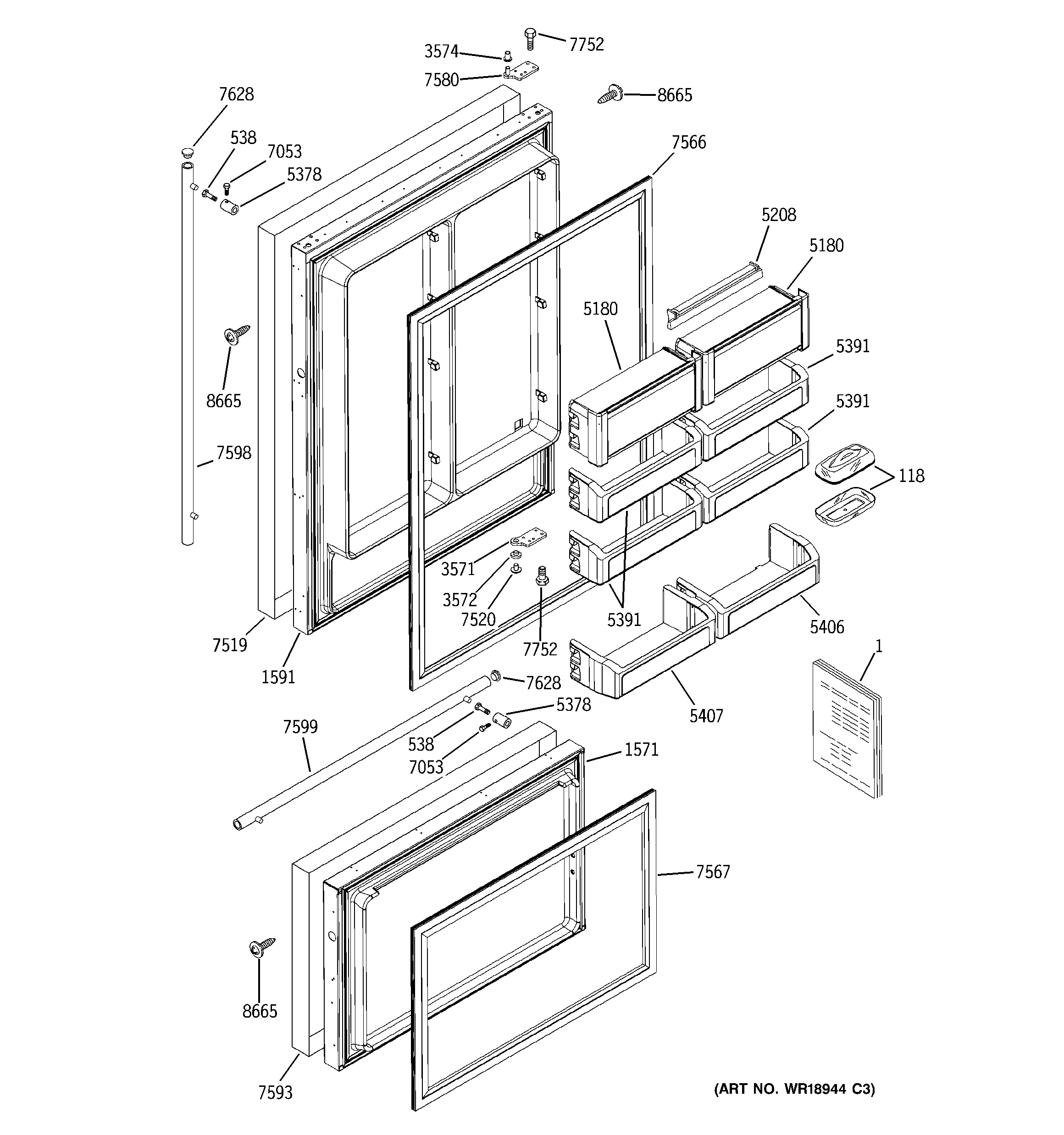

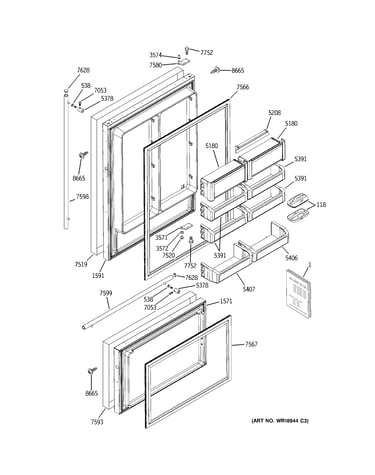

Manufacturer substitutionThis part replaces WR87X10123. Substitute parts can look different from the original.In Stock$847.39$12.00 OFF Phone Price : $859.39QtyDoors diagram
Refrigerator Door Gasket
Part #WR24X10148Replaced by #WR78X20985
Manufacturer substitutionThis part replaces WR24X10148. Substitute parts can look different from the original.In Stock$123.679% OFF Phone Price : $135.67QtyMachine compartment diagram
Shroud Condenser
Part #WR17X11252Replaced by #WR17X35527
Manufacturer substitutionThis part replaces WR17X11252. Substitute parts can look different from the original.In Stock$79.51QtyControls & components diagram
Thermodisc,
Part #WR50X10045Replaced by #WR50X10003
Manufacturer substitutionThis part replaces WR50X10045. Substitute parts can look different from the original.In Stock$140.608% OFF Phone Price : $152.60QtyMachine compartment diagram
Refrigerator Main Board Assembly

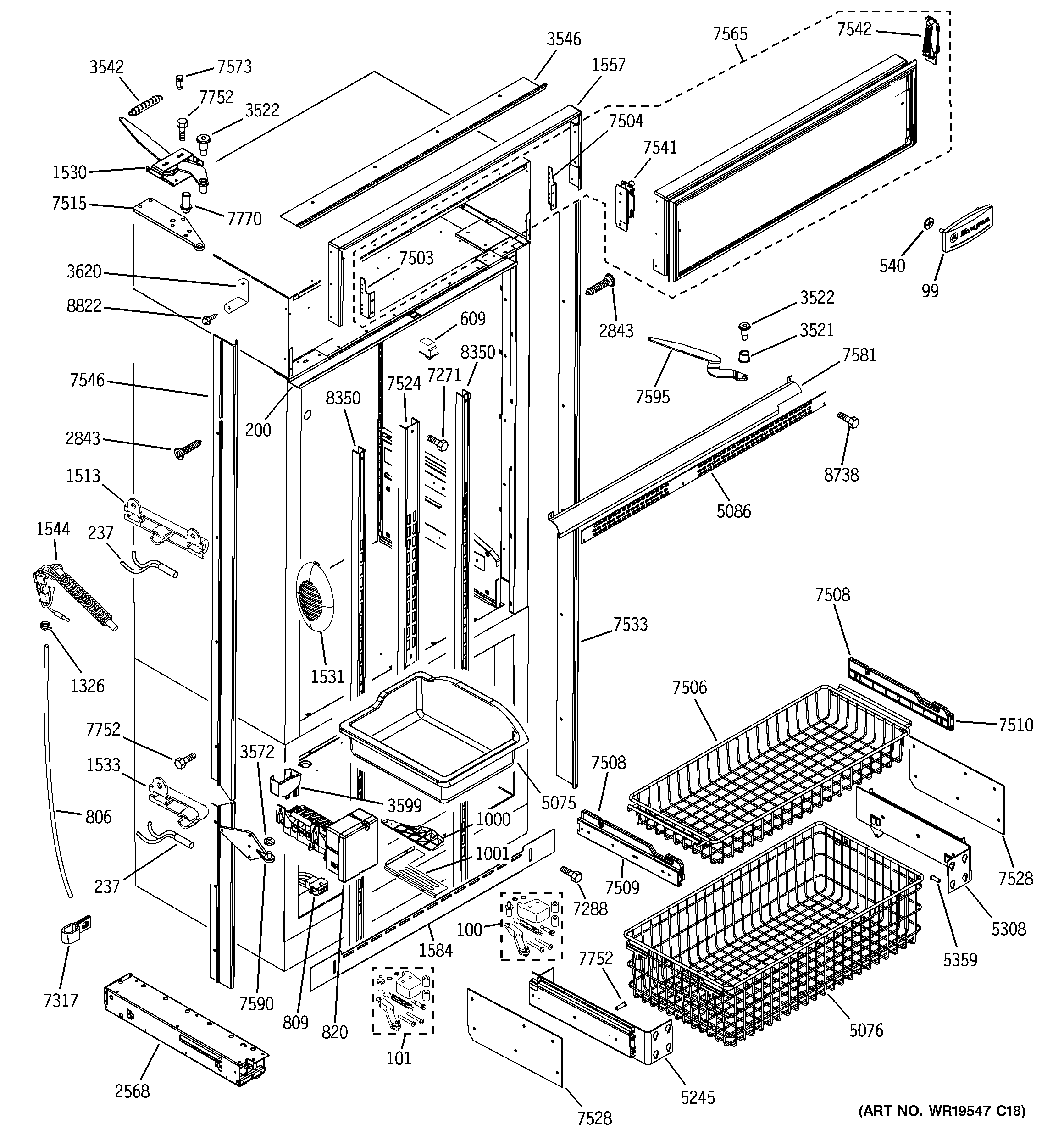

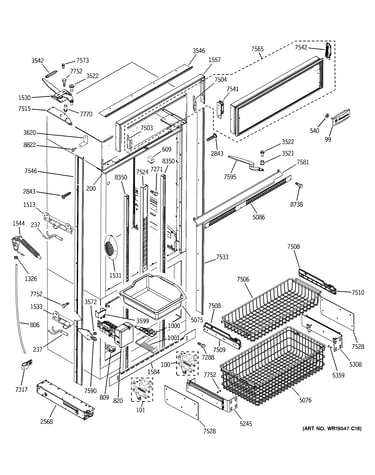

Part #WR55X11085This item is not returnableIn Stock$189.746% OFF Phone Price : $201.74QtyFreezer section, trim & components diagram
Refrigerator Slide Liner
In Stock$155.16QtyFreezer section, trim & components diagram
Refrigerator Freezer Drawer Slide Rail, Left
In Stock$564.23$12.00 OFF Phone Price : $576.23QtyFreezer section, trim & components diagram
Refrigerator Door Closure Assembly
In Stock$85.917% OFF Phone Price : $91.91Qty
