GE
Top-Mount Refrigerator

Model # PTS25SHRBRBS Official GE refrigerator - r series

Here are the diagrams and repair parts for Official GE PTS25SHRBRBS refrigerator - r series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

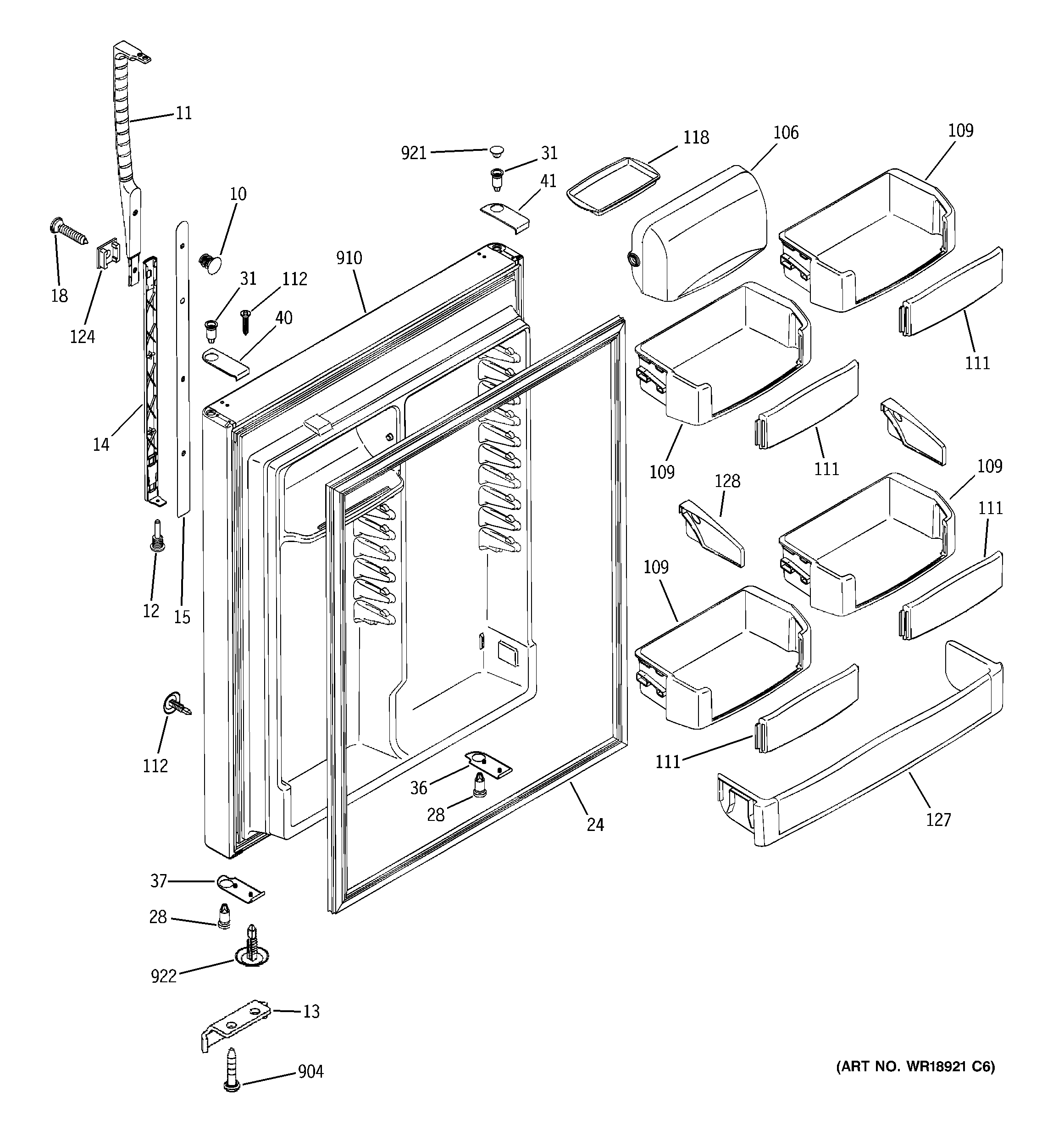

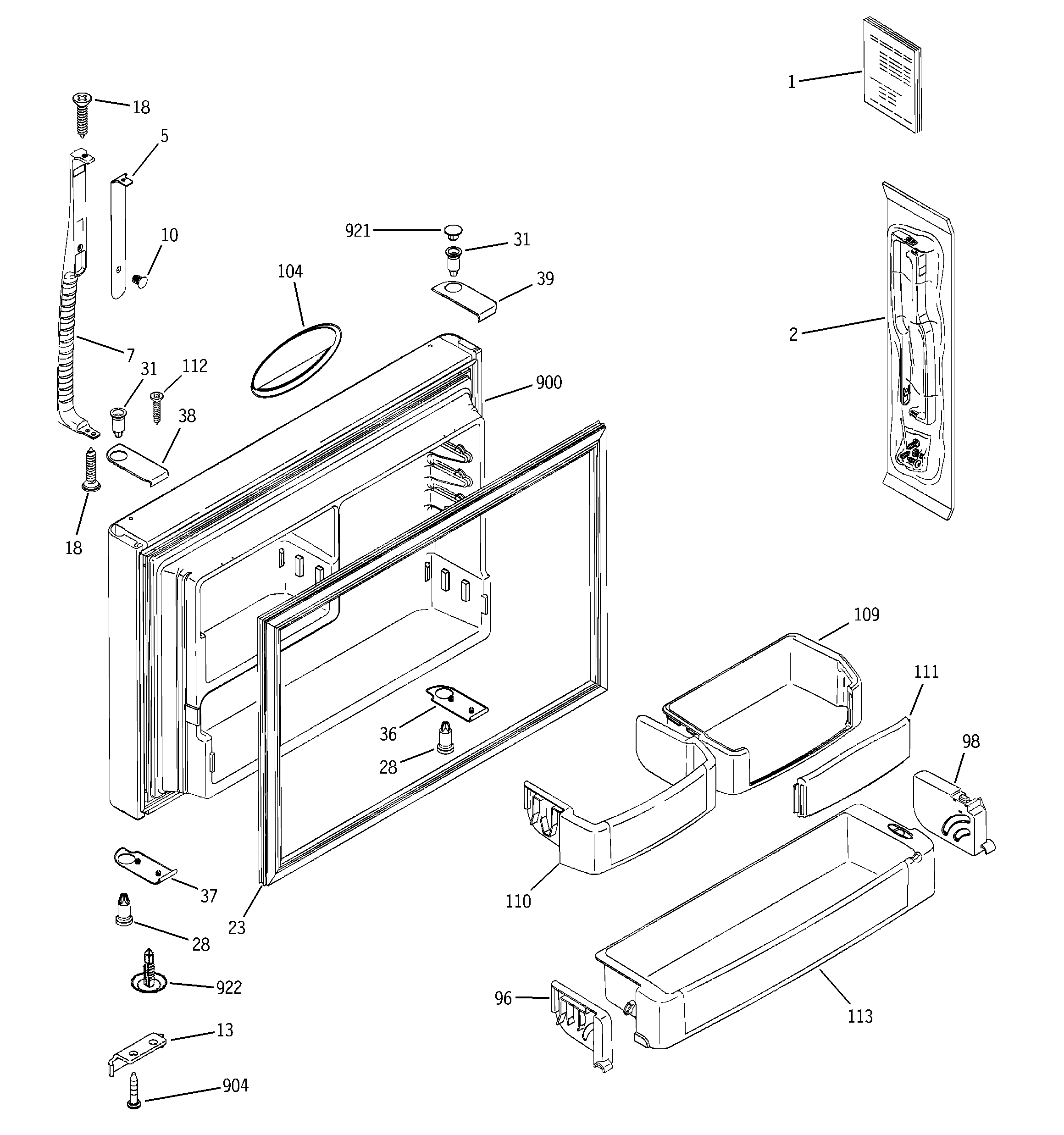

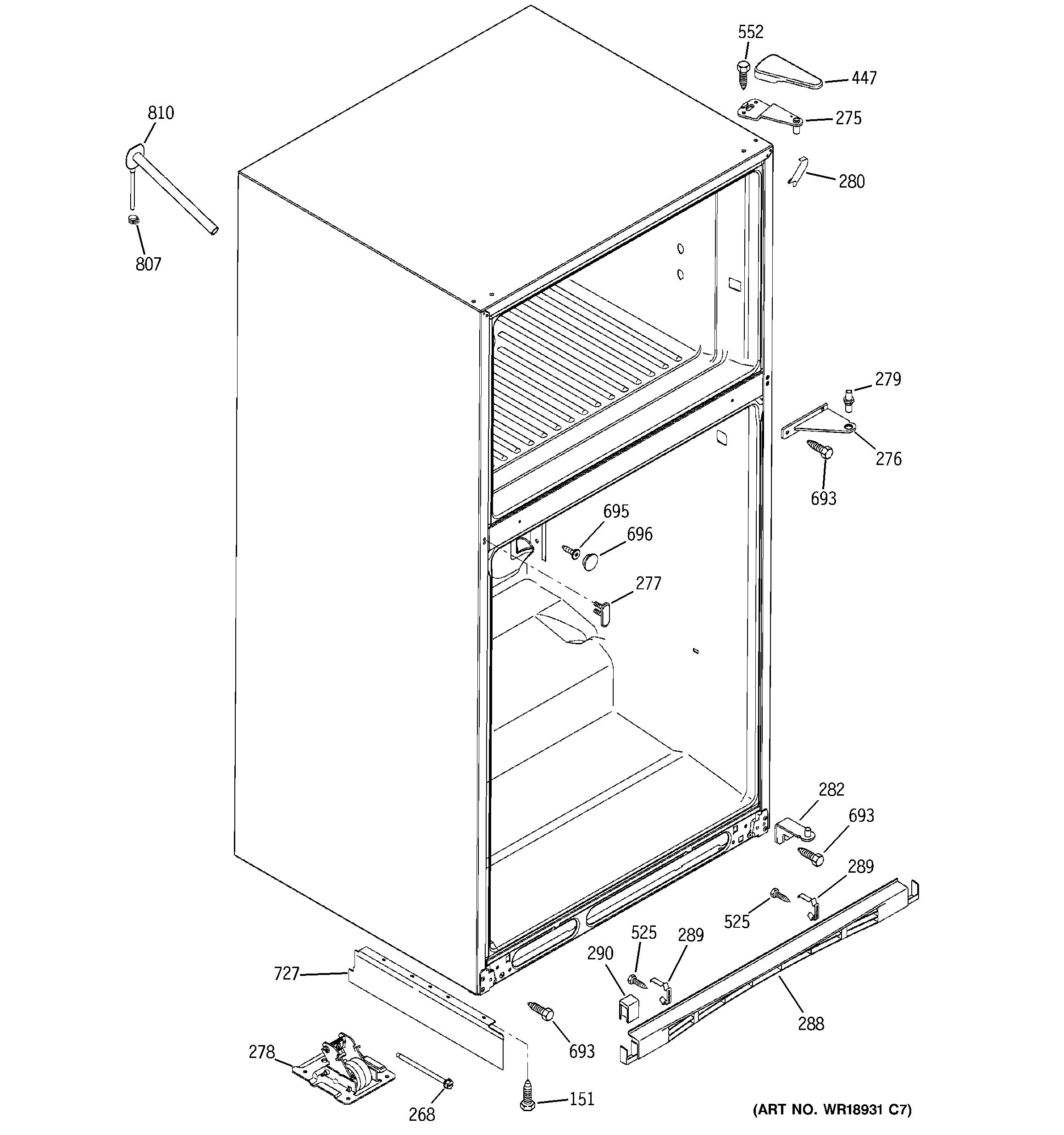

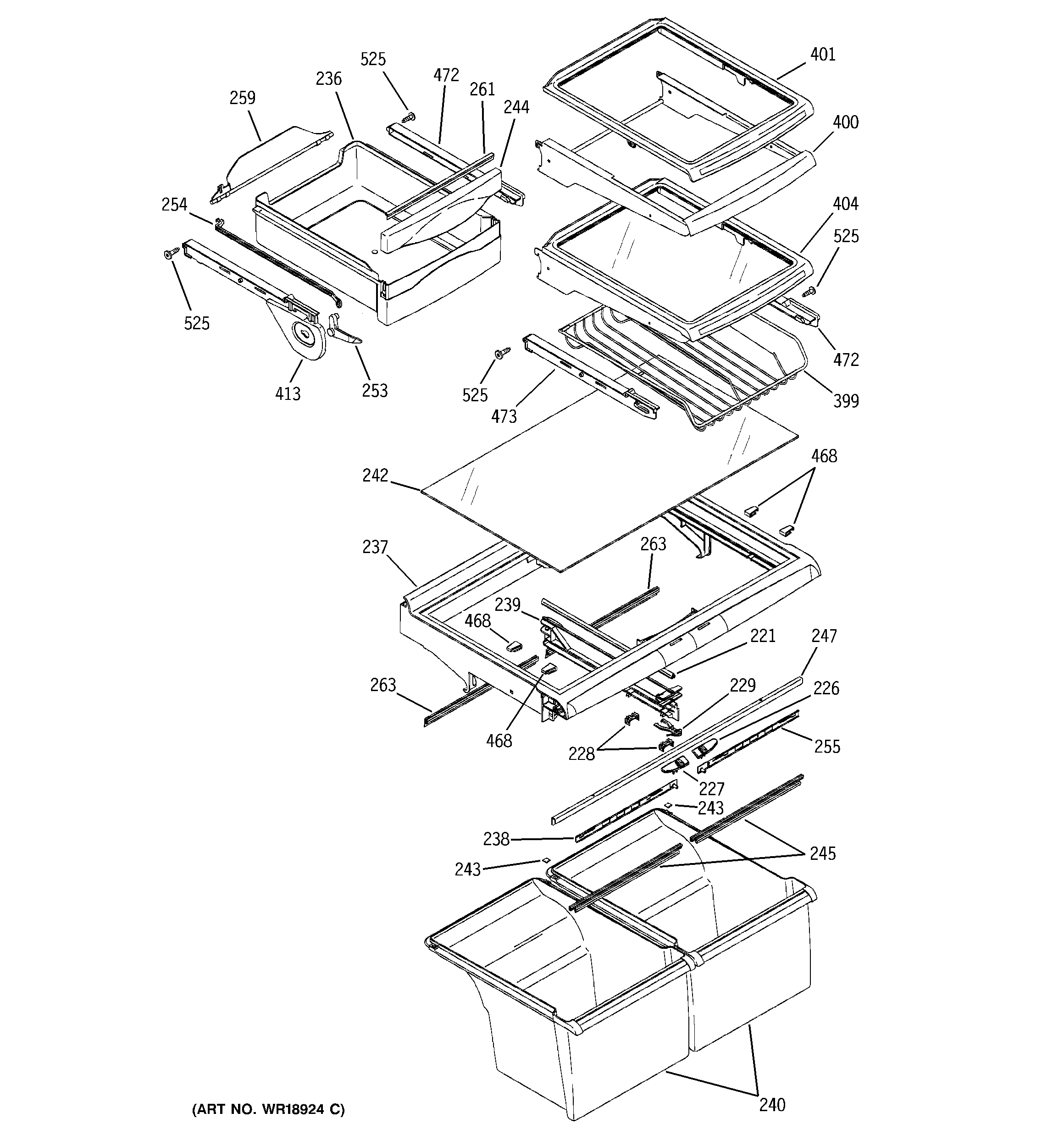

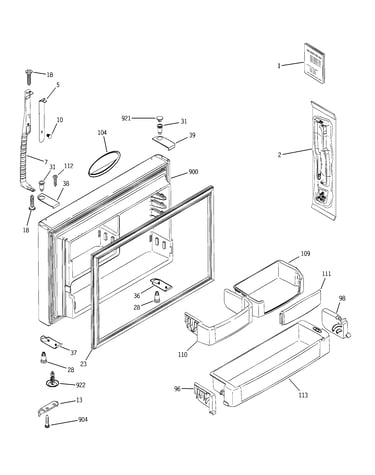

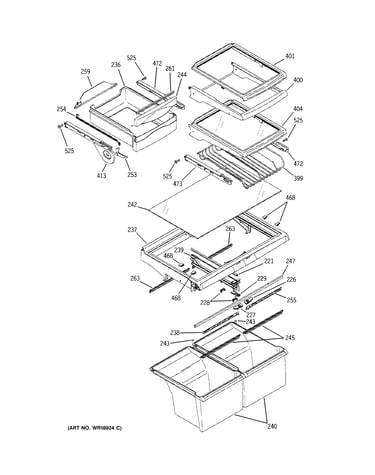

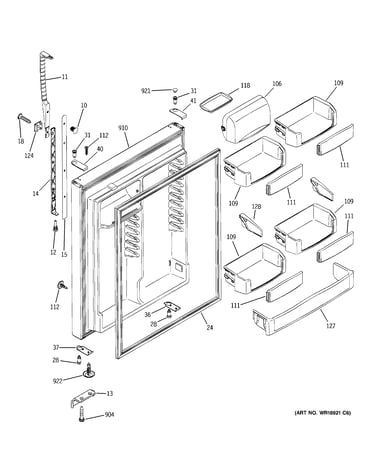

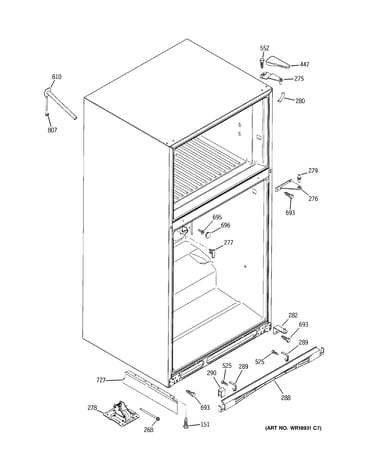

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.85
11% OFF Phone Price : $17.85
In Stock
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)
#820

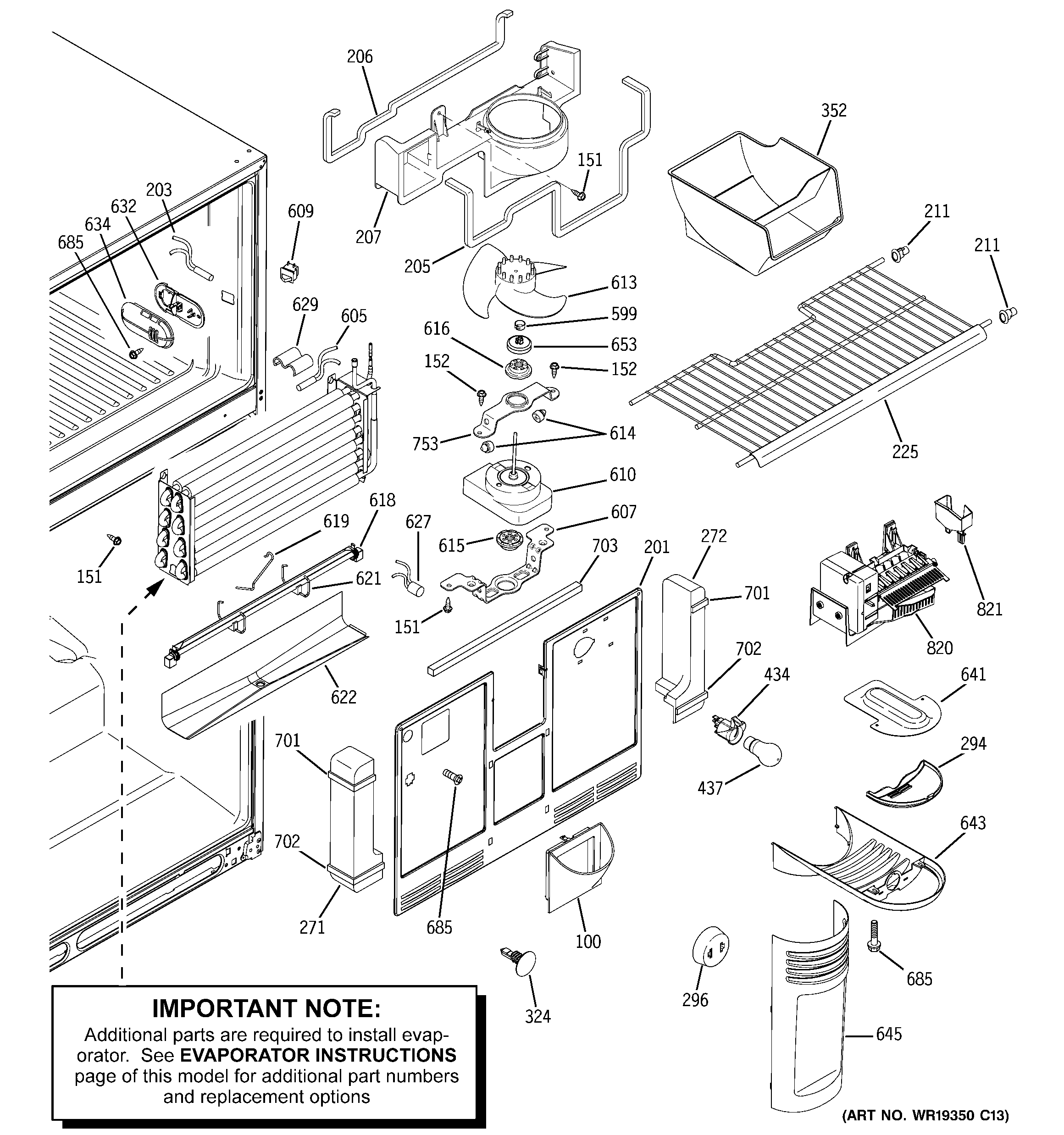

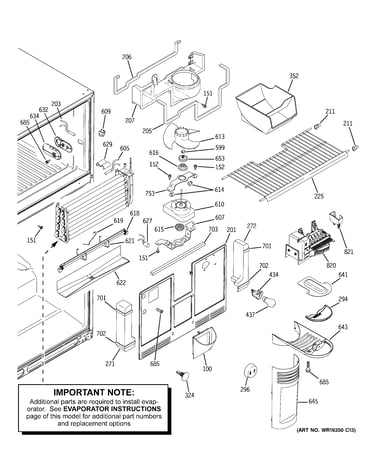

Freezer section diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$193.35
5% OFF Phone Price : $203.35
In Stock
GE SmartWater Refrigerator Water Filter (replaces WR17X11608)
#790

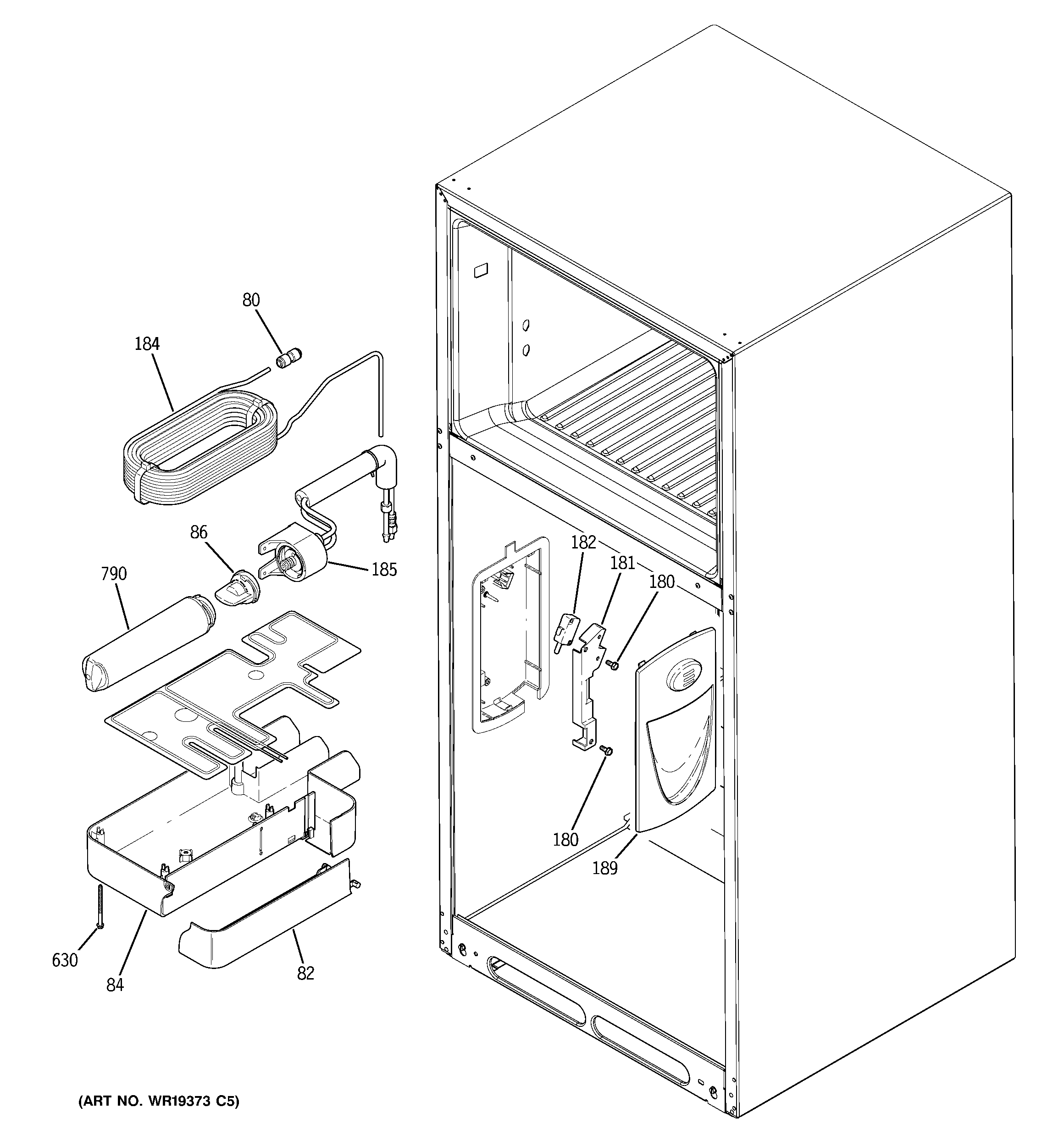

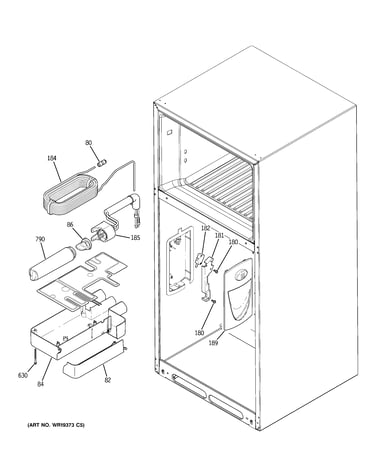

Water filtration & dispenser diagram

Ge smartwater refrigerator water filter (replaces wr17x11608)

Part #GSWF

BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Run Capacitor
#729

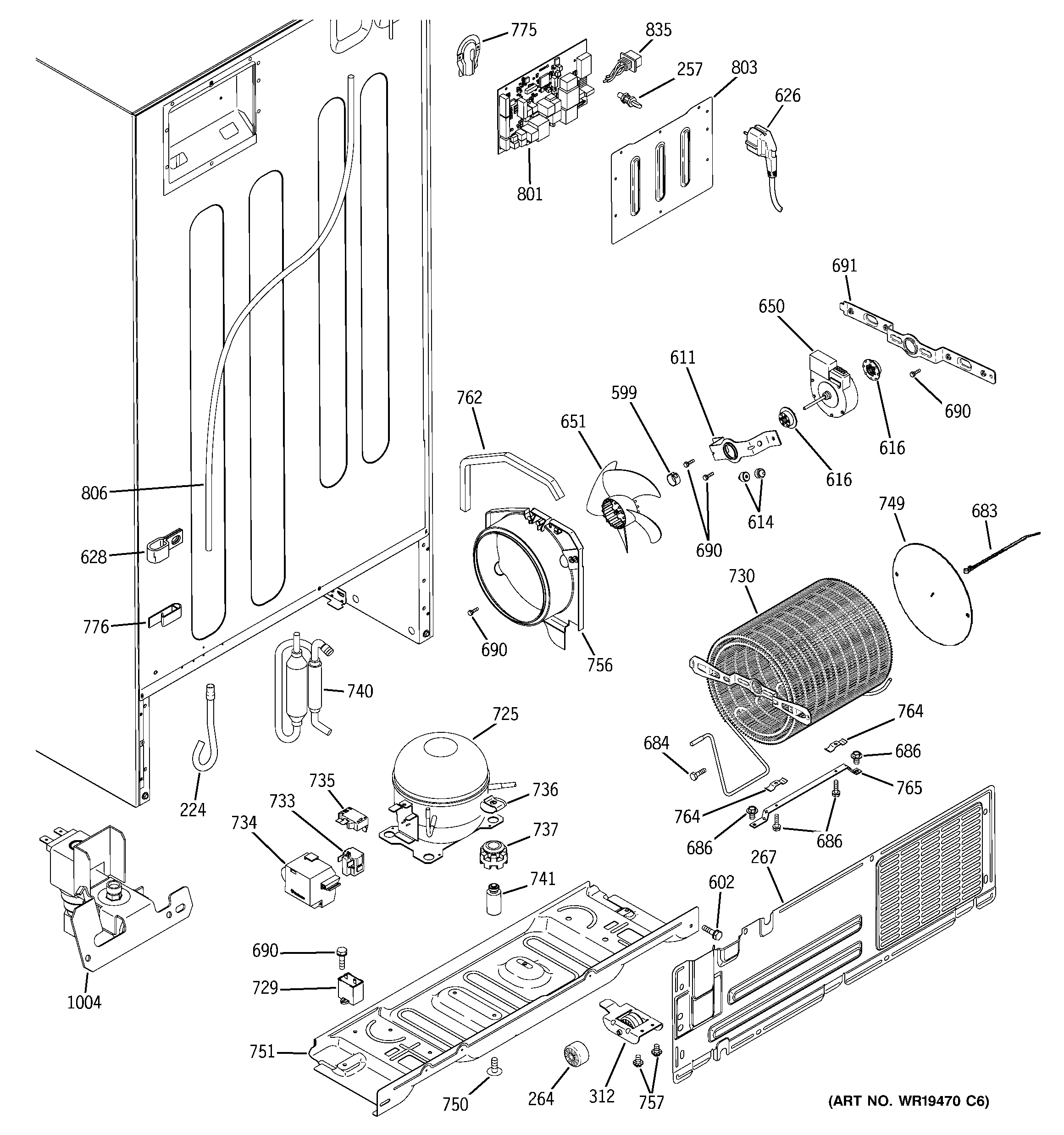

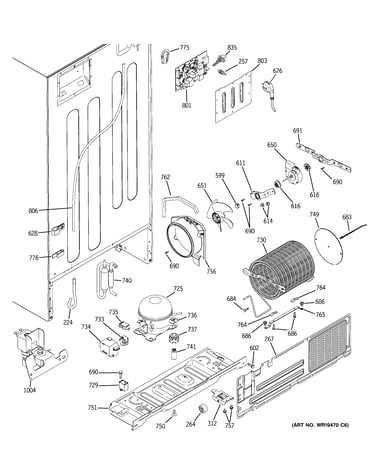

Sealed system & mother board diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$25.26
17% OFF Phone Price : $30.26
In Stock
Refrigerator Defrost Bi-Metal Thermostat (replaces WR50X10054, WR50X10074, WR50X10075, WR50X10079)
#627

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93
19% OFF Phone Price : $25.93
In Stock
Refrigerator Water Inlet Valve Assembly (replaces WR57X10032)
#1004

Sealed system & mother board diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$67.20
7% OFF Phone Price : $72.20
In Stock
Freezer Basket Bumper (replaces WR02X11329)
Freezer basket bumper (replaces wr02x11329)

Part #WR02X10540

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Refrigerator Light Socket (replaces SWR2X7270, WR02X11990, WR02X9391, WR2X7270, WR2X8265)
#433

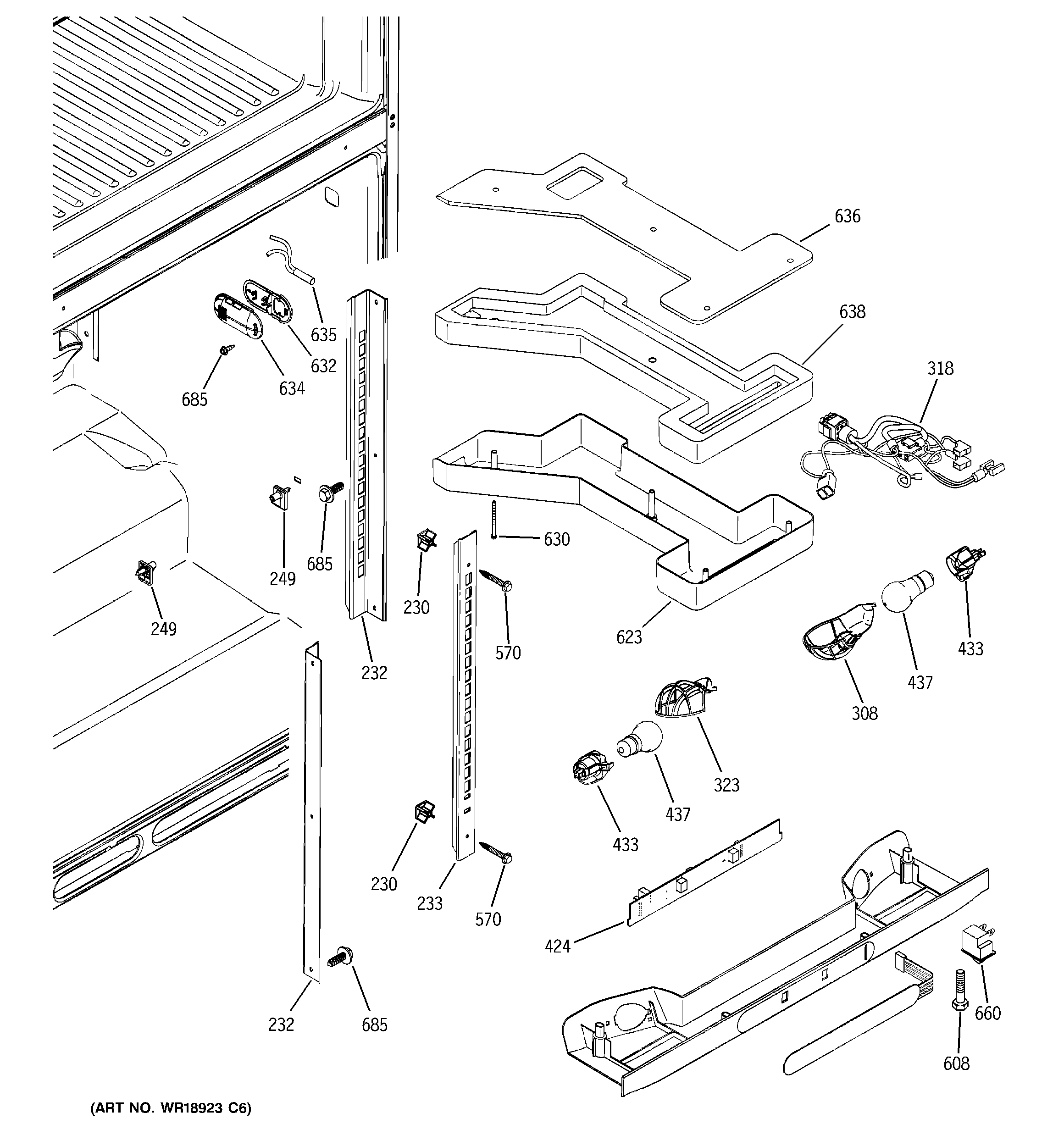

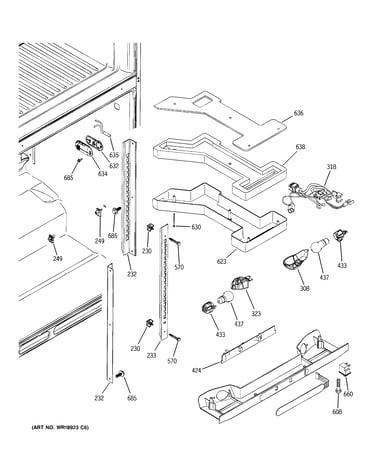

Fresh food section diagram

Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Refrigerator Ice Container
#352

Freezer section diagram

Refrigerator ice bucket

Part #WR30X0291

Replaced by #WR30X10154

?
Manufacturer substitution
This part replaces WR30X0291. Substitute parts can look different from the original.
This item is not returnable
$24.96
17% OFF Phone Price : $29.96
In Stock
Refrigerator Water Tubing
#806

Sealed system & mother board diagram

Refrigerator tube

Part #WR17X10920

Replaced by #WR17X11349

?
Manufacturer substitution
This part replaces WR17X10920. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
