Whirlpool GD27DIXHB02 side-by-side refrigerator Parts

The most common problem we see with Whirlpool refrigerators like model GD27DIXHB02 is cooling trouble (warm fridge or freezer, temperature swings, or frost buildup). The usual causes are airflow restrictions (dirty condenser coils, blocked vents), defrost system issues, or a temperature control failure such as a bad thermostat.

Most common symptoms and what they usually point to

• Fridge warm, freezer OK: restricted airflow, iced evaporator area, or control/thermostat issue
• Freezer warm, fridge warm: dirty condenser coils, condenser fan problem, sealed system/compressor concern
• Heavy frost on freezer back wall: defrost system problem (heater, control, or airflow)
• Water under the fridge or in the crisper area: clogged/iced defrost drain or water line leak

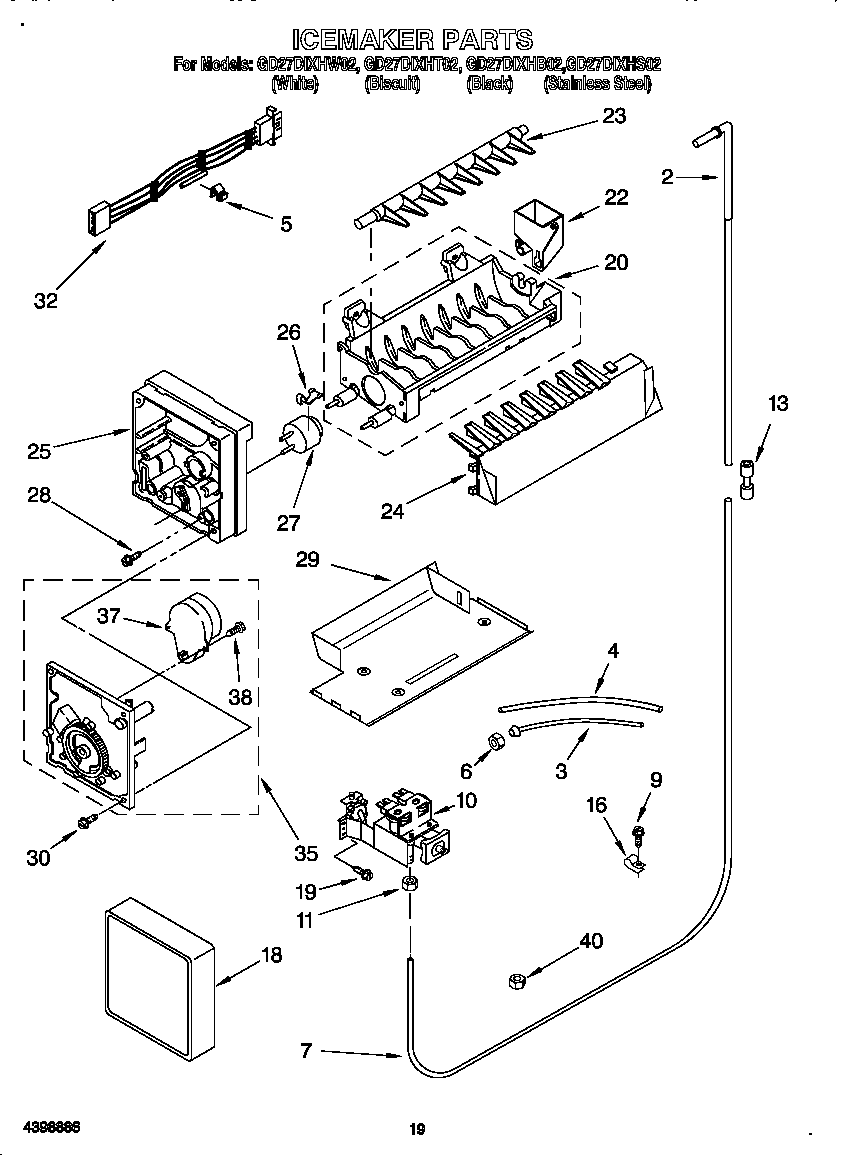

• Ice maker or dispenser not working: water supply issue, inlet valve issue, or frozen water line

Quick checks we recommend first (no parts needed)

1. Set temps to typical targets: 37°F fresh food, 0°F freezer.
2. Clean condenser coils and confirm the unit has good airflow around it.
3. Make sure vents inside both compartments are not blocked by food packages.
4. Listen for the evaporator fan in the freezer (you should hear it when the door switch is pressed).
5. If you have a dispenser, purge air and confirm household water supply is fully on.

Parts that commonly fix the “most common” issues on GD27DIXHB02

Problem area	What fails	Example part for this model
Water dispenser or ice maker not filling	Water inlet valve not opening	Refrigerator inlet valve W10408179

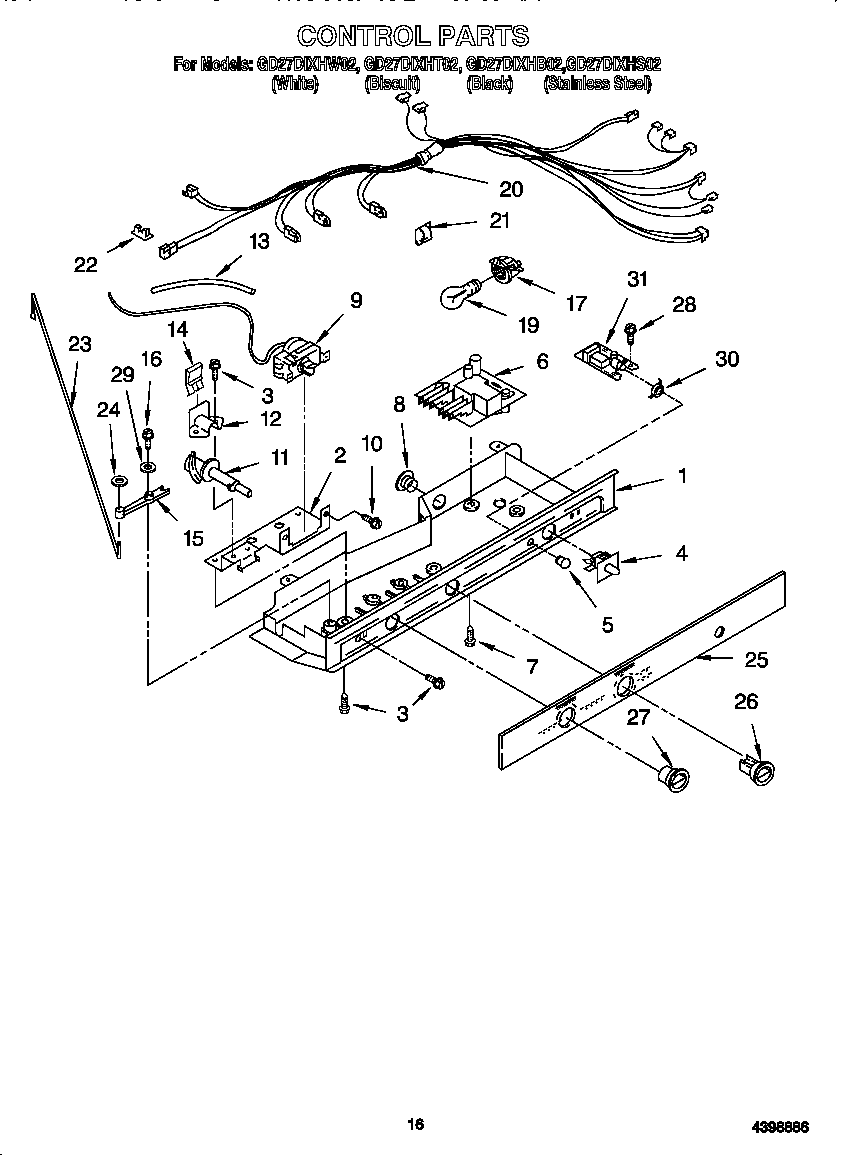

Temperature control not regulating well	Thermostat out of range	Refrigerator thermostat WP2198202
Frost buildup causing warm temps	Defrost heater not heating	Refrigerator heater WP2323198

Why it matters

Cooling problems can quickly lead to food spoilage and extra compressor run time. Catching airflow, defrost, or water-supply issues early helps your Whirlpool side-by-side refrigerator maintain stable temperatures and prevents repeat icing or leaking.

For model-specific troubleshooting steps and repair walkthroughs, we recommend starting with Whirlpool refrigerator error codes.

Last updated: February 2026

Your Whirlpool side-by-side refrigerator model number is printed on the appliance ID label; for this parts page, the model is GD27DIXHB02. On the refrigerator itself, you can confirm it by finding the label inside the fresh food compartment (most often on a side wall, ceiling, or near the crisper area).

Where to find the model number label

Check these common locations on Whirlpool side-by-side refrigerators:

• Inside the fresh food (refrigerator) compartment on the left or right wall
• On the ceiling of the fresh food compartment
• Around the crisper drawer frame or just above the crispers
• Along the door jamb area (near the hinge side)
• On a label that also lists the serial number

What to write down (and why)

Record these details exactly as shown on the label:

• Model number (example: GD27DIXHB02)
• Serial number (helps confirm production series for some parts)
• Brand (Whirlpool)
• Any suffixes or revision characters (if shown)

Why it matters

The model number is how we match the correct Whirlpool refrigerator parts and diagrams. Even small differences can change fit and compatibility for items like a water inlet valve, thermostat, door gasket, or defrost components.

Quick part-matching examples for GD27DIXHB02

If you are troubleshooting or ordering parts, these are common items customers look up by model:

Symptom or need	Common part area to check	Example part on this model page
No water to dispenser or ice maker	Water supply and valve	Refrigerator inlet valve W10408179
Temperature swings or warm fridge	Cold control/temperature control	Refrigerator thermostat WP2198202

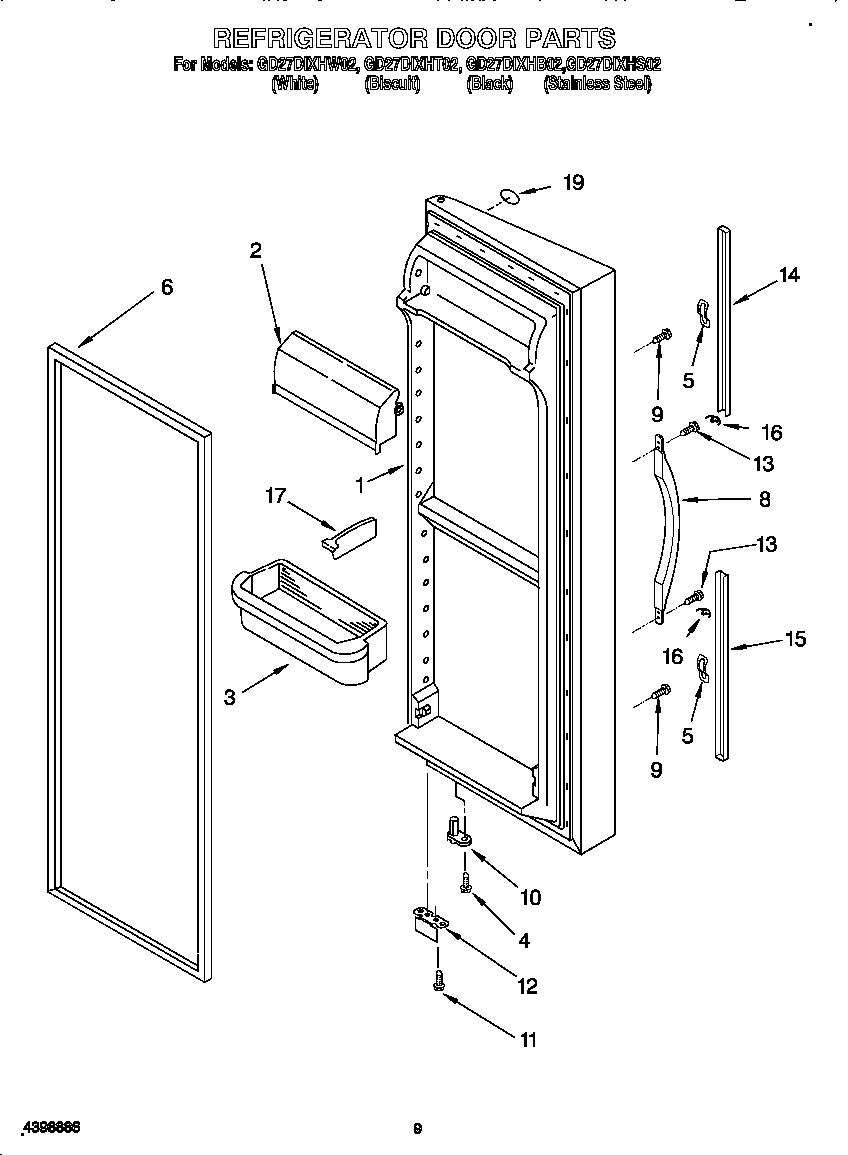

Door not closing smoothly	Hinge/cam/closer hardware	Refrigerator door closer cam WPW10329686

If you cannot find the label

Use these practical steps:

• Remove the top crisper drawer and look on the frame just above it
• Use a flashlight and check the side walls near the front edge
• Look for a white or silver sticker with a barcode and “Model” and “Serial” fields
• If the label is damaged, use the parts list for GD27DIXHB02 to compare visible components (like the door cam style or filter housing)

For help diagnosing display or cooling issues after you confirm the model, use our Whirlpool refrigerator error codes guide.

Last updated: February 2026

Most Whirlpool refrigerators, including side-by-side styles like model GD27DIXHB02, typically include adjustable temperature controls, multiple storage bins and drawers, and door shelving; many also include an ice maker and a filtered water system depending on the exact configuration.

Common standard features you’ll see on many Whirlpool refrigerators

• Adjustable refrigerator and freezer temperature controls
• Spill-resistant or easy-clean shelving (varies by series)
• Crisper drawers and deli or meat storage (common in side-by-side designs)
• Door bins for gallons and condiments
• Automatic defrost (common on most modern units)
• Interior lighting (often LED on newer designs)

Ice and water features (very common, but model-dependent)

Many Whirlpool side-by-side refrigerators are built around convenient ice and water access. If your unit has a dispenser, these are the features that usually go with it:

• Water filtration and a filter housing
• A water inlet valve that supplies the dispenser and ice maker
• Ice chute and door chute components

If you’re troubleshooting weak water flow, no ice, or leaking, the most commonly involved parts for GD27DIXHB02 include the refrigerator inlet valve W10408179 and the refrigerator water filter housing WP2186443.

Quick “feature to part” map for GD27DIXHB02

Feature area	What it does	Common related part on this model
Water dispenser / ice maker supply	Controls water flow into the refrigerator	Refrigerator inlet valve (W10408179)
Water filtration location	Holds and routes water through the filter	Refrigerator water filter housing (WP2186443)

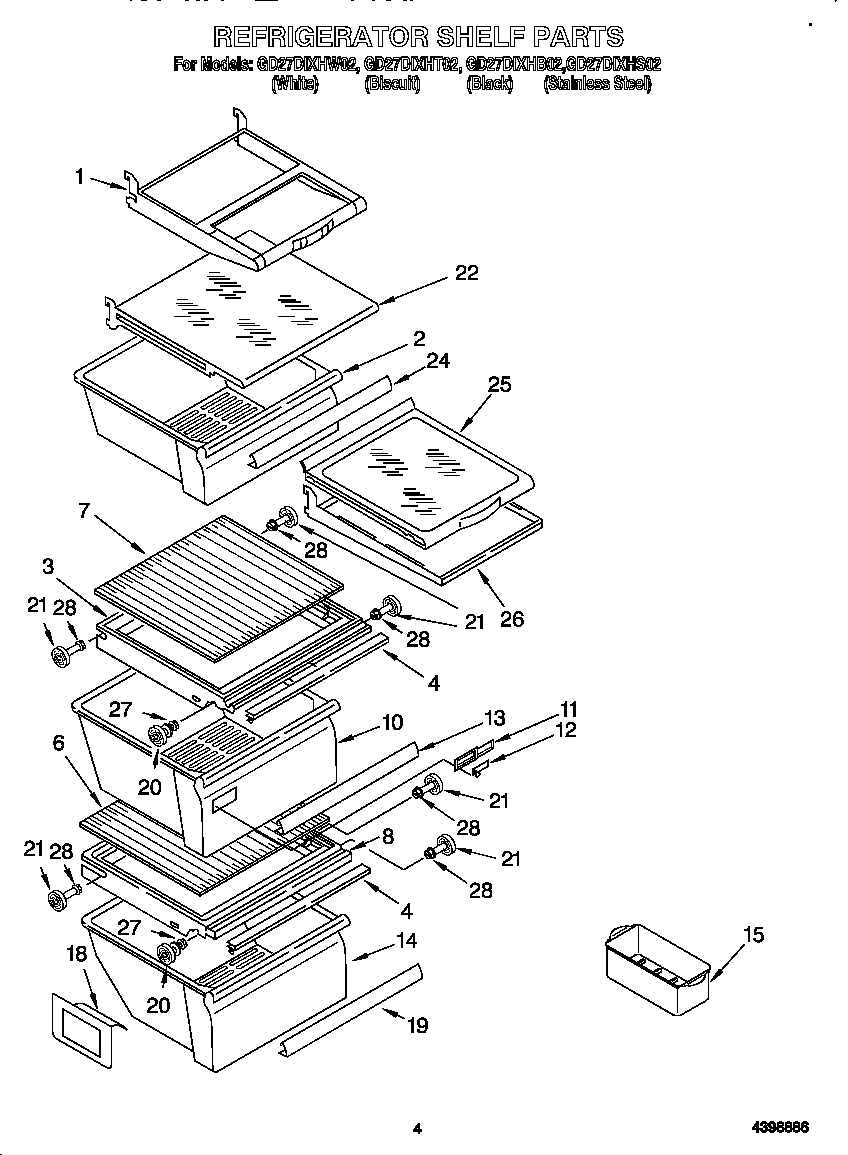

Fresh food storage	Keeps produce and deli items organized	Refrigerator crisper pan (WP2188656), refrigerator meat pan (WP2188664)

Why it matters

Knowing which features are “standard” versus “optional” helps you troubleshoot faster. For example, if your refrigerator has a dispenser but no water, the issue is usually in the water supply path (valve, tubing, filter housing) rather than the cooling system.

For step-by-step help on dispenser and filtration upkeep, we recommend how to replace the water filter in a Whirlpool refrigerator and how to prevent water dispenser and ice maker problems.
