Model #LGR331DS0 Frigidaire dryer

Here are the repair parts and diagrams for your Frigidaire LGR331DS0 dryer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 104 parts

Dryer Door Catch

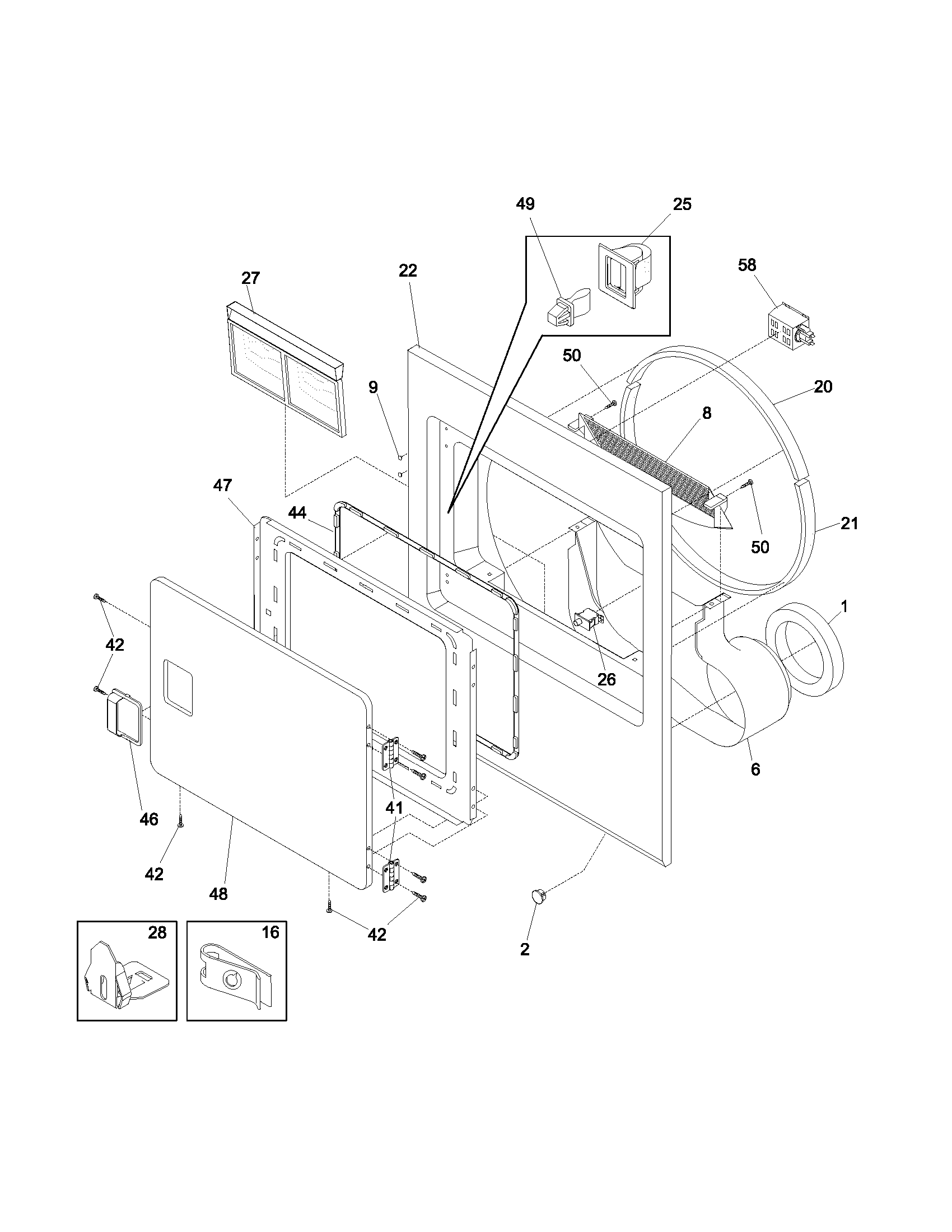

Front panel/lint filter Diagram

Dryer door catch

Part #131658800

In Stock

Dryer Drum Bearing Kit

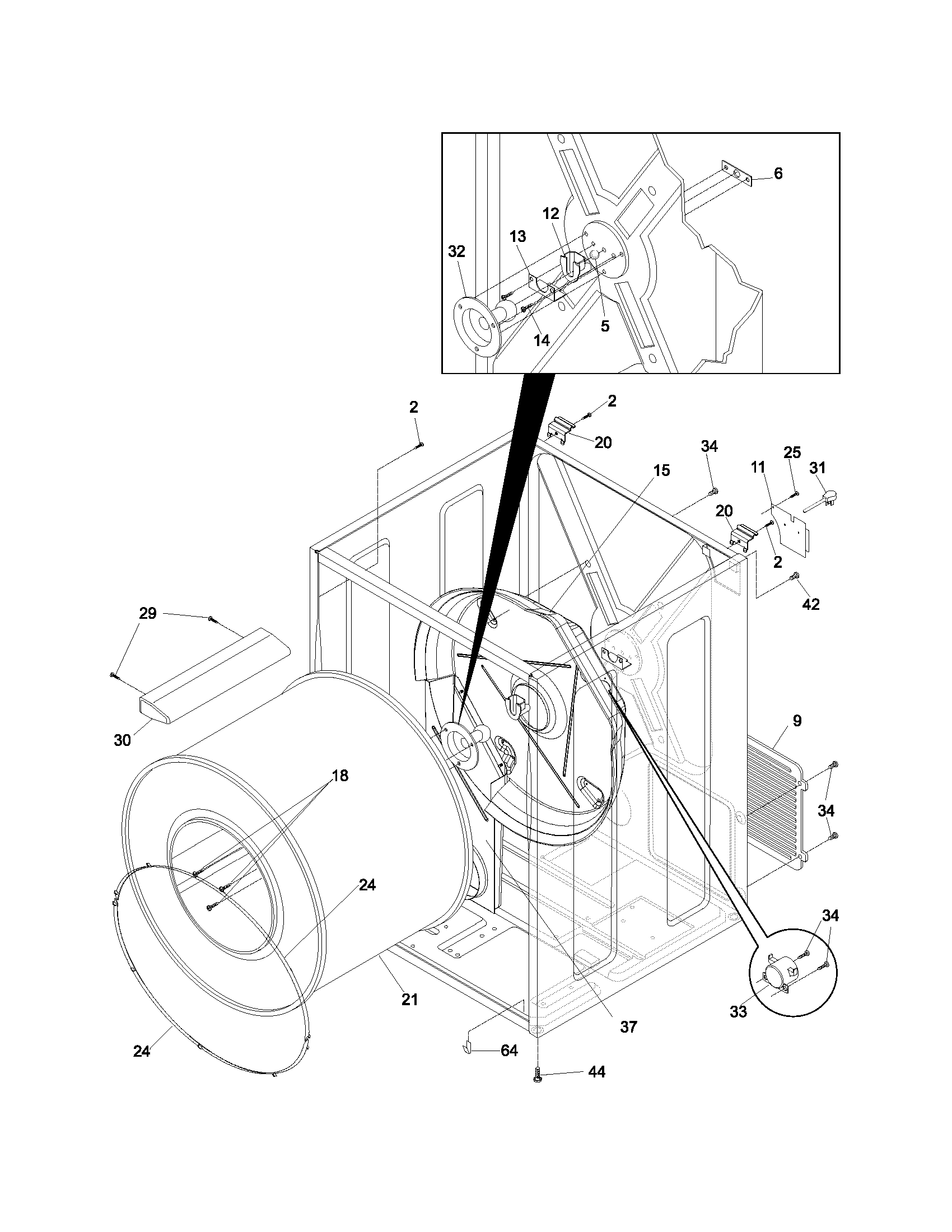

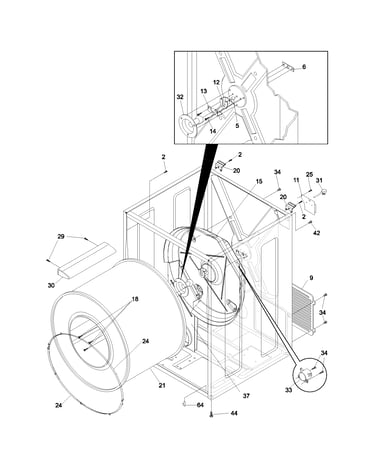

Cabinet/drum Diagram

Dryer drum bearing kit

Part #5303281153
31% OFFMSRP:$29.85

In Stock

Dryer Grounding Ball


Cabinet/drum Diagram

Dryer grounding ball

Part #5303281019

In Stock

Laundry Appliance Screw, #8-18 x 31/100-in

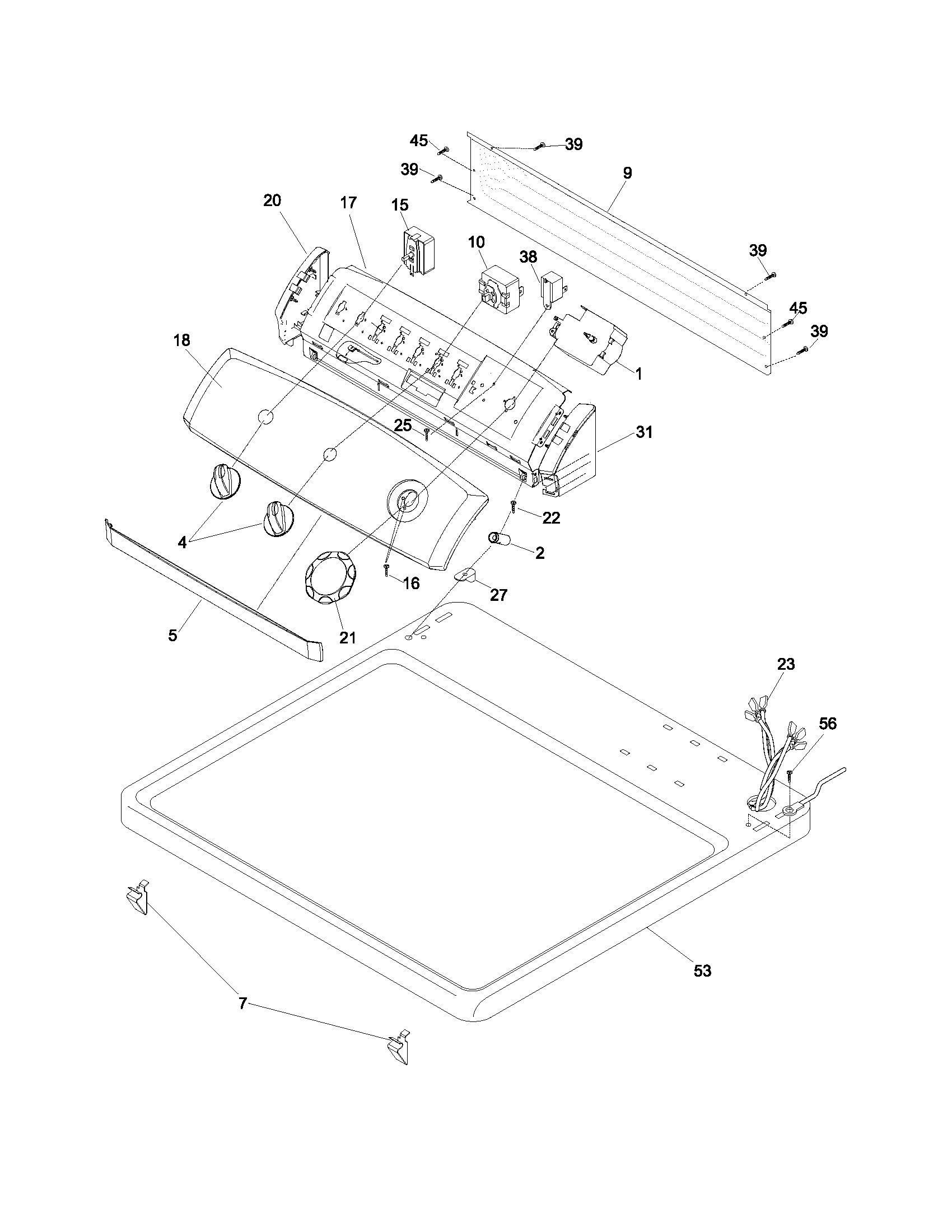

Controls/top panel Diagram

10% OFFMSRP:$9.20

In Stock

Dryer High-Temperature Lubricant


Cabinet/drum Diagram

14% OFFMSRP:$21.00

In Stock

Dryer Terminal Block


Controls/top panel Diagram

Dryer terminal block

Part #134101400
30% OFFMSRP:$38.00

In Stock

Dryer Door Seal


Front panel/lint filter Diagram

Dryer door seal

Part #131129900
33% OFFMSRP:$46.00

In Stock

Dryer Idler Spring

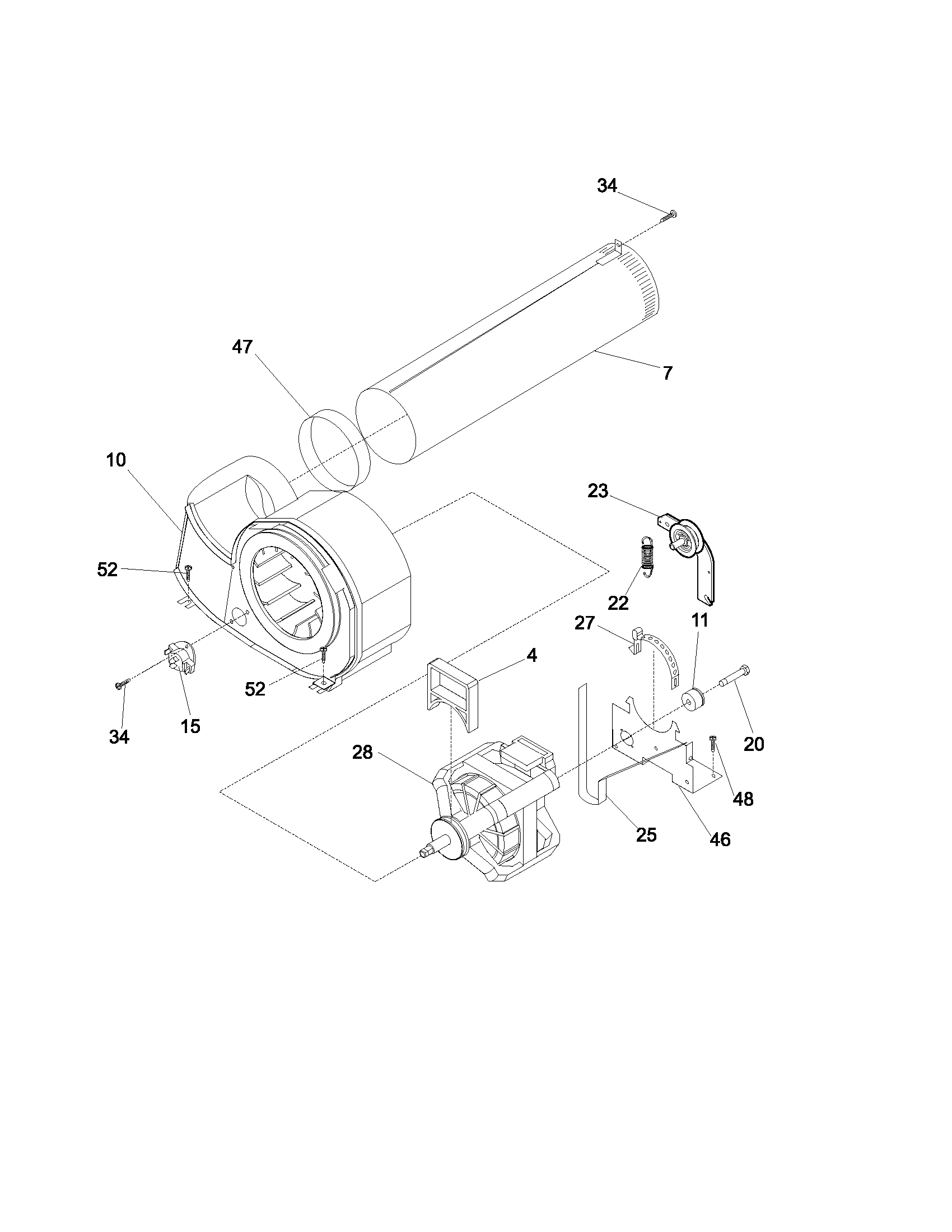

Motor Diagram

Dryer idler spring

Part #131601000
37% OFFMSRP:$32.00

In Stock

Dryer Gas Valve Assembly

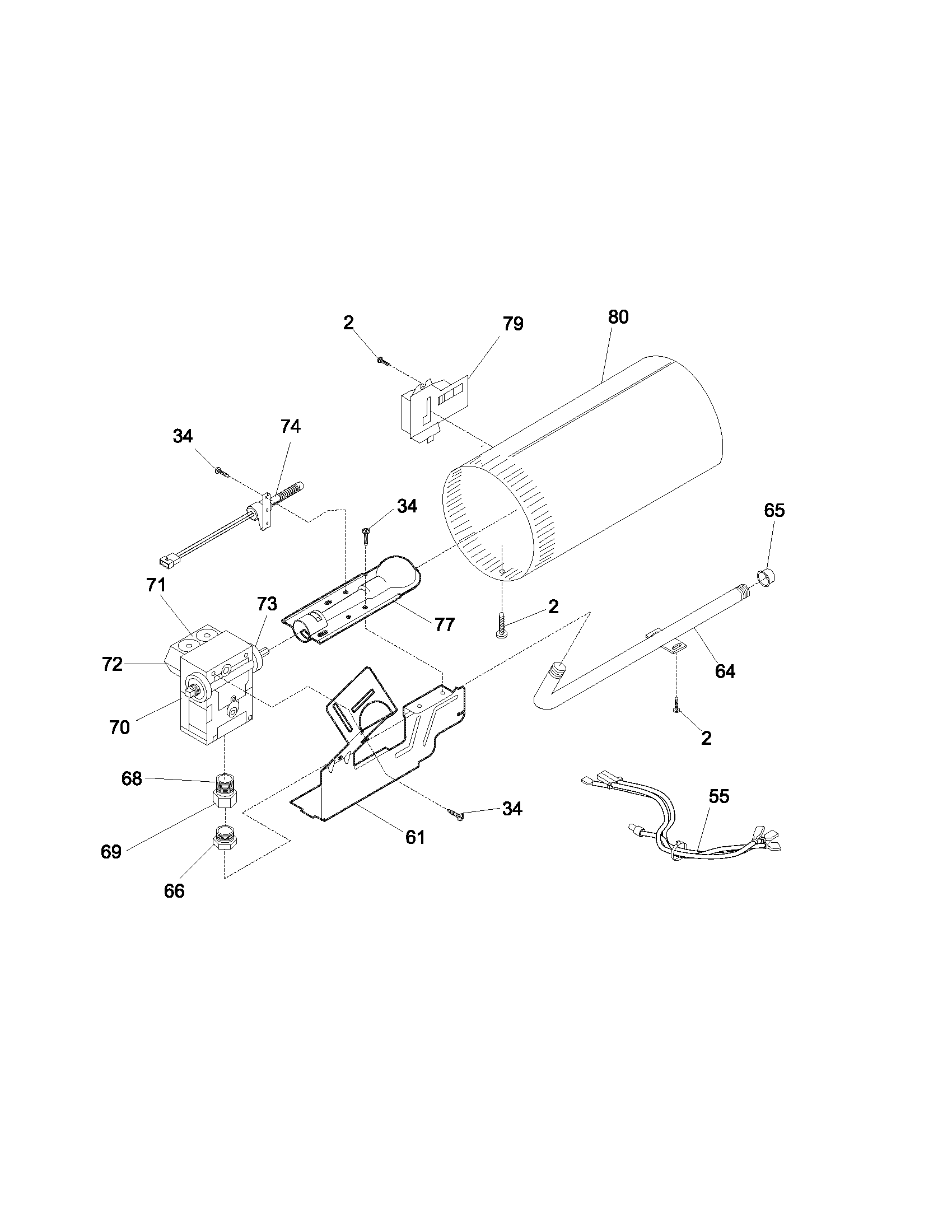

Burner Diagram

Dryer gas valve assembly

Part #5303207409
32% OFFMSRP:$370.00

In Stock

Dryer Exhaust Duct Seal


Motor Diagram

Dryer exhaust duct seal

Part #131633300
34% OFFMSRP:$47.00

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
