Whirlpool GI0FSAXVY08 refrigerator Parts

Yes. A bottom-mount refrigerator like the Whirlpool GI0FSAXVY08 is a great choice when you want everyday fresh-food items at eye level and a freezer you access less often. It typically improves convenience and reduces bending compared to top-freezer designs.

Why many people prefer bottom-mount refrigerators

• Fresh-food section is higher up, so you reach less for milk, produce, and leftovers
• Wider refrigerator shelves are easier to organize than many top-freezer layouts
• Freezer drawers can hold bulky items (pizza boxes, bags of frozen food)
• Better day-to-day ergonomics for most kitchens
• Often paired with features like ice makers and water filtration

Tradeoffs to consider

Bottom-mount designs are not “better” for every home. Here are the common pros and cons.

What you care about	Bottom-mount is usually a good fit when…	Consider another style when…
Convenience	You use the refrigerator section most	You use the freezer more than the fridge
Organization	You want wide shelves and door storage	You prefer simple, open freezer shelves
Budget	You are OK with mid to higher price points	You want the lowest upfront cost
Maintenance	You will keep door seals clean and tight	You want the simplest layout possible

Tips to keep performance strong (and avoid common complaints)

• Keep the doors sealing tightly; a worn gasket can cause warm temps and frost (see how to fix a fridge door seal).
• Replace the water filter on schedule to protect taste and flow; this model uses a compatible refrigerator water filter EDR4RXD1.
• If ice production is inconsistent, check for clogs and air in the water line (see how to prevent water dispenser and ice maker problems).
• Use the recommended temperature settings and airflow clearances listed in the owner's manual.

Why it matters

A bottom-mount refrigerator is “good” when it matches how you cook and shop. Since most households open the fresh-food doors far more than the freezer, putting the refrigerator section up top usually makes daily use easier and helps you stay organized.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (fridge too warm, freezer too warm, or temperature swings). On your Whirlpool GI0FSAXVY08 bottom-mount refrigerator, the most frequent root causes are restricted airflow from dirty condenser coils, a weak fan, or a defrost drain/defrost issue.

Most common symptoms and what they usually mean

• Fresh food section warm, freezer OK: airflow issue (blocked vents, evaporator fan problem, frost buildup)
• Both sections warm: condenser coils dirty, condenser fan issue, sealed-system/compressor problem
• Runs constantly or louder than normal: dirty coils, fan blade rubbing, door not sealing
• Ice maker slow or not making ice: water supply issue, filter restriction, ice maker fault
• Water under the fridge or in crisper drawers: defrost drain partially clogged

Quick checks we recommend first (fast, high-impact)

1. Set temps correctly and give the unit 24 hours to stabilize.
2. Clean the condenser area (unplug first); dust buildup is a top cause of poor cooling.
3. Check door sealing with the paper test; resistance should be consistent all around.
4. Listen for fans (evaporator and condenser) and watch for intermittent stopping.
5. If you have a dispenser, replace the water filter if flow is slow.

Problem area	What you notice	Common fix
Condenser coils/airflow	Warm temps, long run times	Clean coils, clear airflow at grille
Door gasket	Frost, moisture, warm spots	Reseat/replace gasket
Water filtration	Slow water, small ice cubes	Replace filter
Ice maker	No ice or irregular harvest	Troubleshoot/replace ice maker

Parts that commonly solve these issues

If troubleshooting points to a failed component, these model-matched parts are common fixes:

• Water flow and ice quality: refrigerator water filter EDR4RXD1

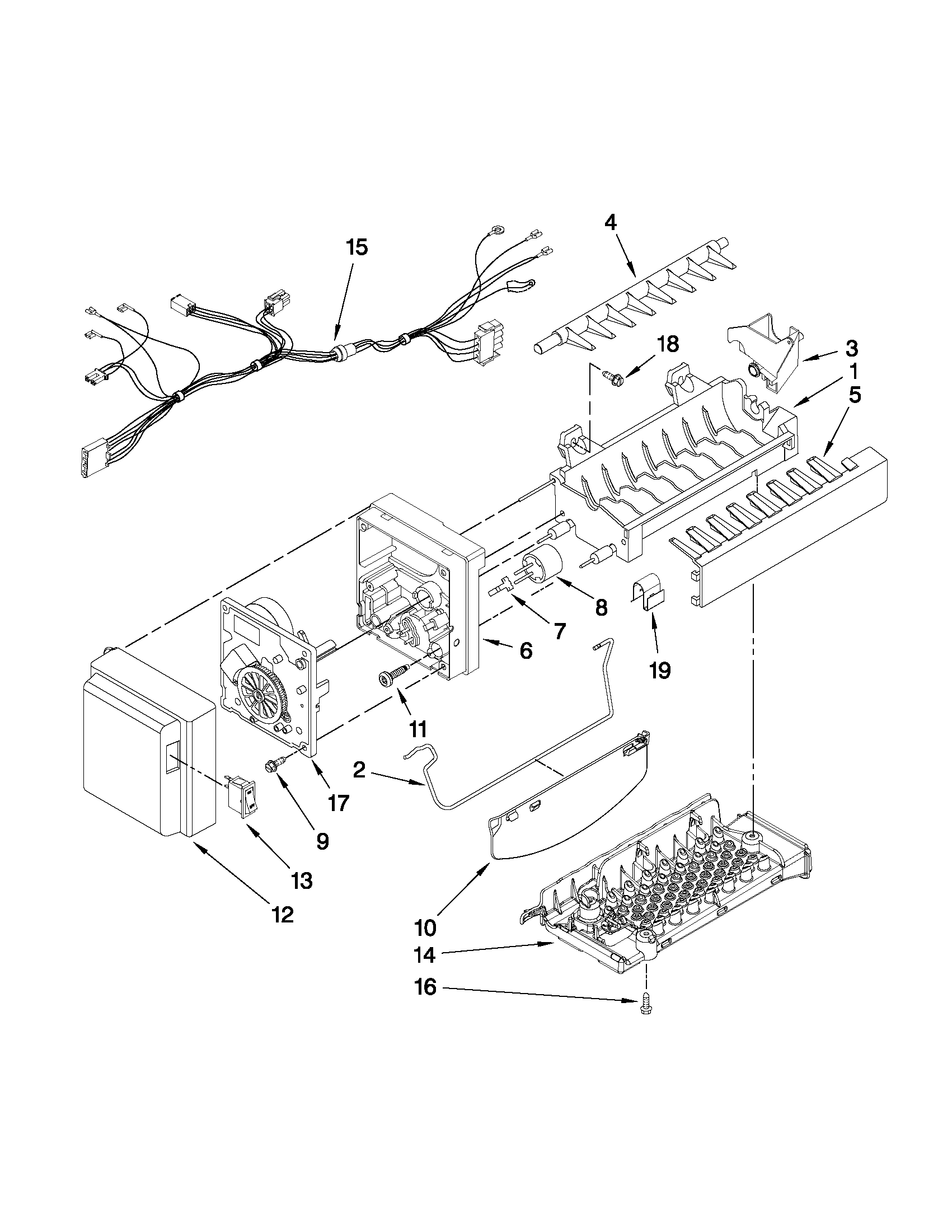

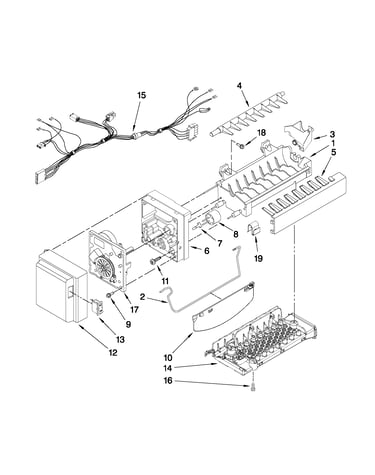

• Ice production failures: refrigerator ice maker assembly WPW10300024

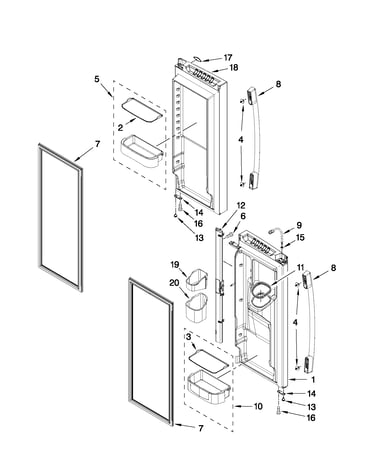

• Door sealing problems: refrigerator door gasket, left (gray) W10830055

Why it matters

Cooling and ice maker problems often start small (dusty coils, a weak seal, a restricted filter) but can lead to food spoilage, heavy frost, and extra wear on the compressor if ignored.

For model-specific operating tips and care intervals, follow the maintenance guidance in the owner's manual.

Last updated: February 2026

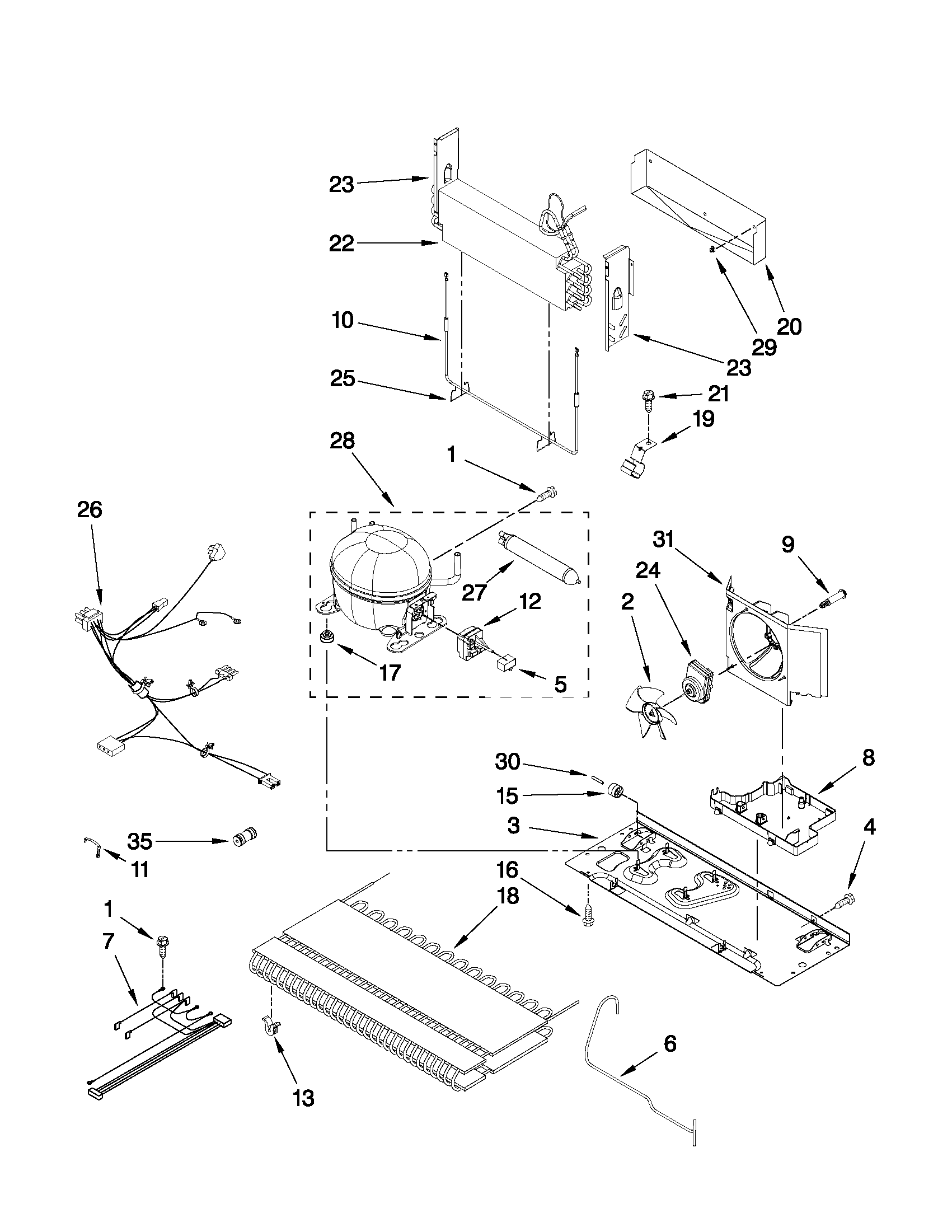

The “bottom part” of a refrigerator is most commonly the compressor compartment (the machinery area), which houses the compressor and other cooling-system components. On a Whirlpool GI0FSAXVY08 bottom-mount refrigerator, this area is typically at the lower rear of the cabinet.

What’s usually located in the bottom machinery area

In most bottom-mount refrigerators, the lower rear section can include:

• Compressor (pumps refrigerant through the sealed system)
• Condenser coil (releases heat)
• Condenser fan motor and blade (moves air across the condenser)
• Run capacitor (helps the compressor start and run)
• Filter drier (removes moisture/contaminants from the sealed system)

If you are looking for model-matched parts that commonly live in that bottom area, examples for GI0FSAXVY08 include the refrigerator compressor W10233960, refrigerator run capacitor WPW10662129, and drier tube WPW10143759.

Quick naming guide (common terms)

These terms get used interchangeably, depending on what you are pointing to:

What you see/mean	Common name	What it does
The “motor” that hums	Compressor	Drives the cooling cycle
The whole lower rear section	Compressor compartment	Houses cooling components
The hot tubing/coil	Condenser	Dumps heat to the room
The fan by the compressor	Condenser fan	Cools the condenser and compressor area

Why it matters

Knowing the correct name helps you troubleshoot symptoms and order the right part. For example, a warm fridge with a hot lower rear area can point toward airflow issues at the condenser, while clicking or hard-start symptoms can point toward the compressor start components.

Helpful next step

For component locations and access panels specific to your Whirlpool GI0FSAXVY08, we recommend checking the owner's manual.

Last updated: February 2026

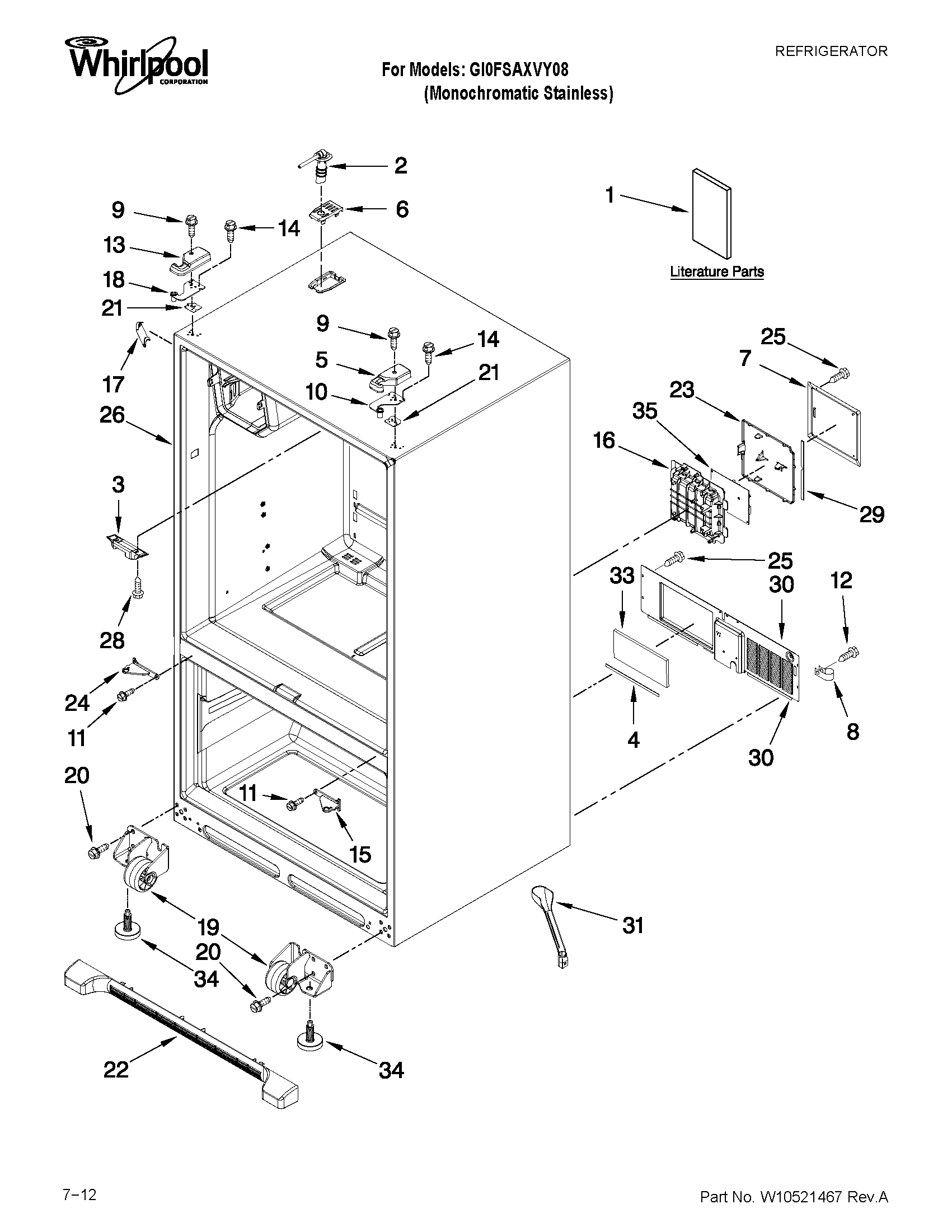

To remove the base grille on your Whirlpool GI0FSAXVY08 bottom-mount refrigerator, pull the grille straight forward from the bottom front of the cabinet. If your grille is secured with screws, remove the screws first, then pull forward until the grille releases.

Quick steps

• Unplug the refrigerator (or switch off power at the breaker) for safety.
• Open both fresh food doors for easier access.
• Look along the top edge of the base grille for retaining screws.
• If screws are present, remove them and set them aside.
• Grip the grille at both ends and pull straight out toward you.
• To reinstall, align the ends with the leveling leg/roller area and press until it snaps in.

What you should expect (snap-in vs. screw-mounted)

Grille style	What you’ll see	How it comes off	How it goes back on
Snap-in	No visible screws	Firm pull straight forward	Align and press until it snaps
Screw-mounted	Screws along the top edge	Remove screws, then pull forward	Align, snap/seat, reinstall screws

Tips if the grille feels stuck

• Pull from both ends evenly; twisting can bind the tabs.
• If it will not release, check again for hidden screws near the ends.
• Warm the grille slightly with room-temperature air (cold plastic can be less flexible).
• Clean dust buildup along the bottom edge before reinstalling so it seats fully.

Why it matters

We remove the base grille to access and clean the condenser area, check leveling legs, and inspect for debris that can restrict airflow and affect cooling performance.

For model-specific illustrations and fastener locations, use the owner's manual.

Last updated: February 2026

For a Whirlpool bottom-mount refrigerator like model GI0FSAXVY08, the most commonly replaced parts are the ones that wear out from daily use or affect cooling and water/ice performance: door gaskets, water filters, ice maker components, fan motors/blades, and defrost parts. Use the owner's manual to match symptoms to the right component.

Most common refrigerator parts people replace

• Door gaskets (air leaks cause warm temps, frost, and longer run times)
• Water filter (slow water flow, bad taste/odor, cloudy ice)
• Ice maker parts (no ice, small cubes, leaking or jammed ice)
• Fan-related parts (warm fridge/freezer, noise, uneven temps)
• Defrost components (frost buildup on the evaporator, poor airflow)
• Light and door switches (lights not working, dispenser not responding, door alarm issues)

Common replacements we see for GI0FSAXVY08

Here are examples of frequently purchased parts available for this model:

Symptom	Likely part category	Example part for this model
Water tastes off or flow is slow	Water filter	Refrigerator water filter EDR4RXD1
No ice or inconsistent ice	Ice maker	Refrigerator ice maker assembly WPW10300024
Door not sealing, moisture/frost	Door gasket	Refrigerator door gasket WPW10714545
Clicking/hard start, compressor struggles	Start components	Refrigerator run capacitor WPW10662129
Warm temps, noisy rear of unit	Condenser airflow	Refrigerator condenser fan motor W11613295

Quick checks before you buy a part

• Confirm the temperature settings and allow 24 hours after changes.
• Check for blocked vents and overpacked shelves that restrict airflow.
• Inspect door seals for gaps; try the paper-strip test around the perimeter.
• If water/ice is slow, replace the filter first and purge air from the dispenser.
• If you hear unusual fan noise, check for ice buildup or an obstructed fan blade.

Why it matters

Replacing the right wear item early (like a gasket or water filter) helps your Whirlpool refrigerator hold temperature, reduce frost and odors, and prevent extra strain on the compressor and fans.

Last updated: February 2026
