Frigidaire FFEW2415QBA wall oven Parts

Most Frigidaire wall ovens like model FFEW2415QBA typically last 10 to 15 years with normal household use; keeping the oven clean and replacing wear items (like heating elements or a temperature sensor) on time helps you reach the high end of that range.

A wall oven’s service life is usually determined by heat stress and how quickly small problems get corrected.

• Heavy use (daily baking, frequent broiling) shortens life compared to light use
• Self-clean cycles add extreme heat; use only as needed and follow the FFEW2415QBA owner's manual
• Power issues (loose connections, overheating at the terminal block) can damage wiring and controls
• Ignoring temperature problems can overwork the bake and broil elements
• Keeping spills from baking onto hot surfaces reduces corrosion and odor issues

When the oven stops heating evenly, runs too hot, or takes too long to preheat, these parts are common fixes for FFEW2415QBA:

These steps reduce strain on the heating system and interior surfaces.

• Wipe up heavy spillovers promptly; baked-on spills create smoke and extra heat load
• Do not line the oven bottom or walls with foil; it disrupts heat distribution and can damage the interior
• Use the correct rack position for airflow and even baking
• If you notice consistent overbaking or underbaking, use the temperature adjustment procedure in the manual
• Replace a weak element early; a partially working element can cause long preheat times and uneven results

A wall oven is built to be repairable; replacing a bake element, broil element, or temperature sensor is often far less disruptive than replacing the entire unit, and it helps keep cooking performance consistent over the oven’s full lifespan.

Last updated: February 2026

To reset your Frigidaire FFEW2415QBA wall oven, we recommend doing a power reset: turn the oven’s power OFF at the breaker for 1 to 5 minutes, then restore power and verify the electronic oven control operation using the owner's manual.

• Turn the oven OFF.
• Switch the wall oven circuit breaker OFF (preferred over unplugging for a built-in wall oven).
• Wait 1 to 5 minutes (this clears many control glitches).
• Turn the breaker back ON.
• Set the clock, then test Bake and Broil.
• If the oven was very hot, allow time for the cooling fan to finish running after shutdown.

A reset clears temporary faults; repeating error codes usually point to a component or wiring issue.

• If the oven heats erratically or shows a temperature-related code, the oven temperature sensor is a common cause; see range oven temperature sensor 5304504897.
• If the oven shuts down on high heat or seems to trip out during heavy use, a high-limit device can be involved; see Frigidaire range high-limit thermostat 318578506.
• If the display or keypad acts up (beeping, unresponsive keys), the control overlay or control panel assembly can be the issue.

Resetting restores normal operation after a power glitch, but it also helps us confirm whether the problem is a one-time control lockup or a repeatable failure in the sensor, high-limit thermostat, or control interface.

Last updated: February 2026

Yes. For your Frigidaire wall oven model FFEW2415QBA, looking up parts by the full model number is the most reliable way to match the correct replacement parts because it pulls the exact parts list and diagrams for that specific oven.

On FFEW2415QBA, the serial plate is located along the interior side trim and is visible when you open the oven door. We recommend copying the model number and serial number exactly as shown.

• Open the oven door and look along the side trim inside the frame
• Write down the full model number (FFEW2415QBA)
• Record the serial number as well (helpful for parts questions)
• Keep your purchase date information with your records

When you search by model number, we can show parts that are designed to fit your exact Frigidaire configuration (controls, wiring, heating system, and door components).

Common examples for FFEW2415QBA include:

• Range oven temperature sensor 5304504897
• Frigidaire wall oven bake element 139086600
• Wall oven broil element 139203500
• Terminal block 5304409888

Use this checklist before ordering to avoid returns and delays:

• Confirm the model number is FFEW2415QBA (not a similar-looking variant)
• Match the part by name and part ID (example: temperature sensor 5304504897)
• Compare your original part’s mounting style and wire connector type
• If the issue is heating or temperature accuracy, check the sensor and elements first

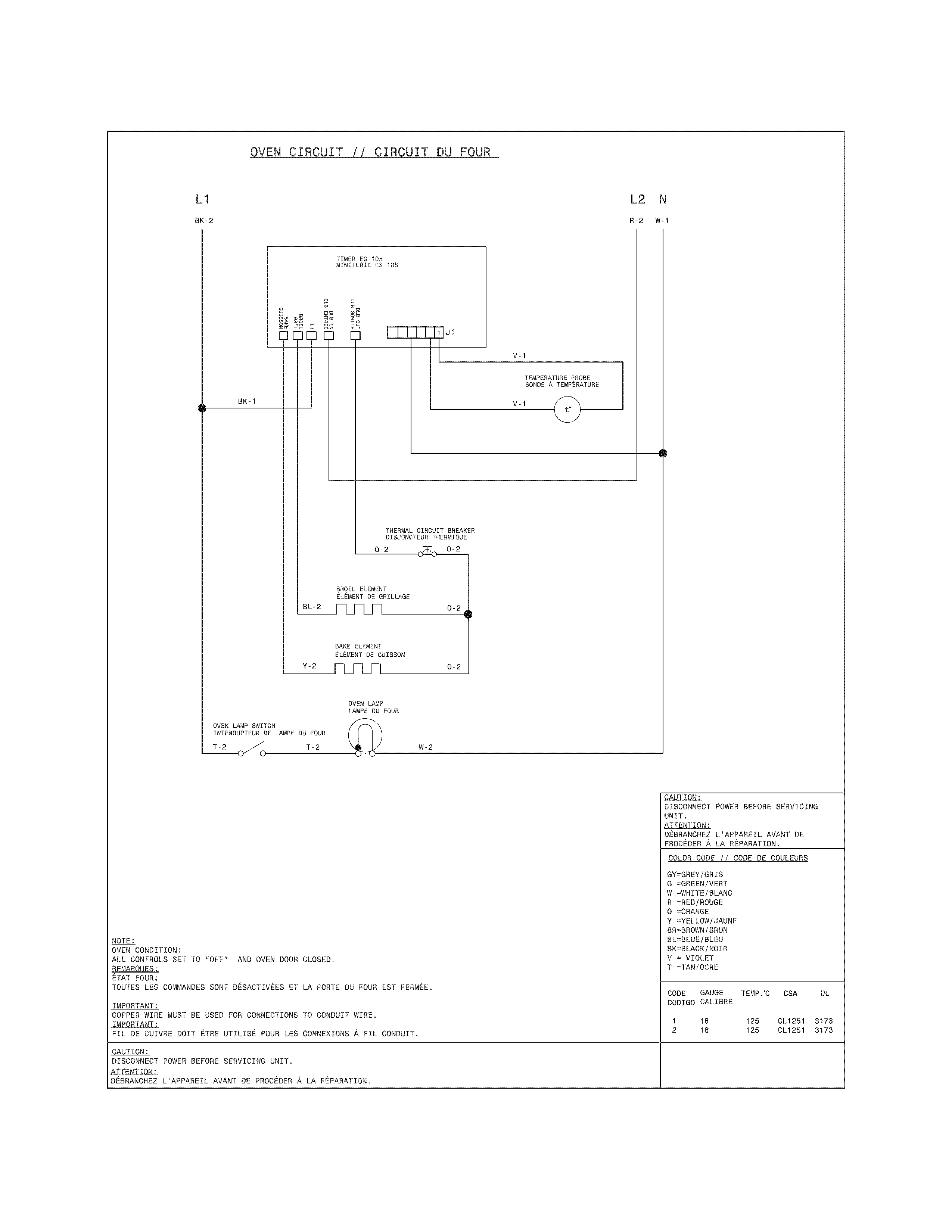

• Use the wiring diagram and component locations in the owner's manual

Wall ovens often have multiple revisions that look identical from the outside. Searching by model number helps ensure the replacement part fits your oven’s electrical connections, mounting points, and temperature control system.

Last updated: February 2026

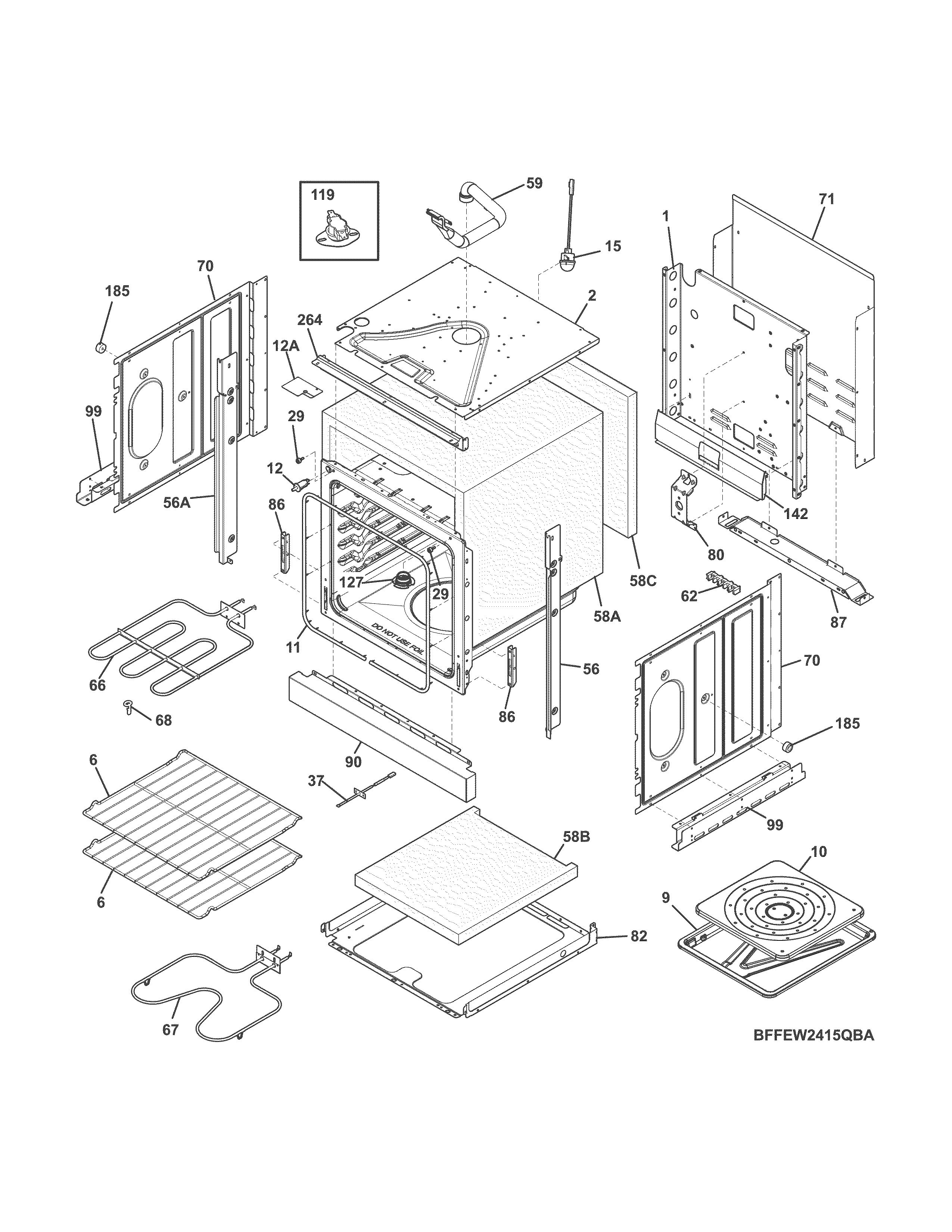

An electric oven like the Frigidaire FFEW2415QBA is built around heating, temperature sensing, and control components. The core parts you will see most often are the bake and broil elements, an oven temperature sensor, the electronic control and overlays, door hardware, and safety devices such as a high-limit thermostat (thermal cutout). For model-specific diagrams and component locations, use the FFEW2415QBA installation guide.

• Bake element: provides most of the heat for baking (bottom of the oven cavity on many models); see Frigidaire wall oven bake element 139086600.
• Broil element: provides high, top-down heat for broiling; see wall oven broil element 139203500.
• Oven temperature sensor: tells the control board the oven temperature so it can regulate heat; see range oven temperature sensor 5304504897.
• High-limit thermostat: safety device that opens if temperatures get unsafe; see Frigidaire range high-limit thermostat 318578506.

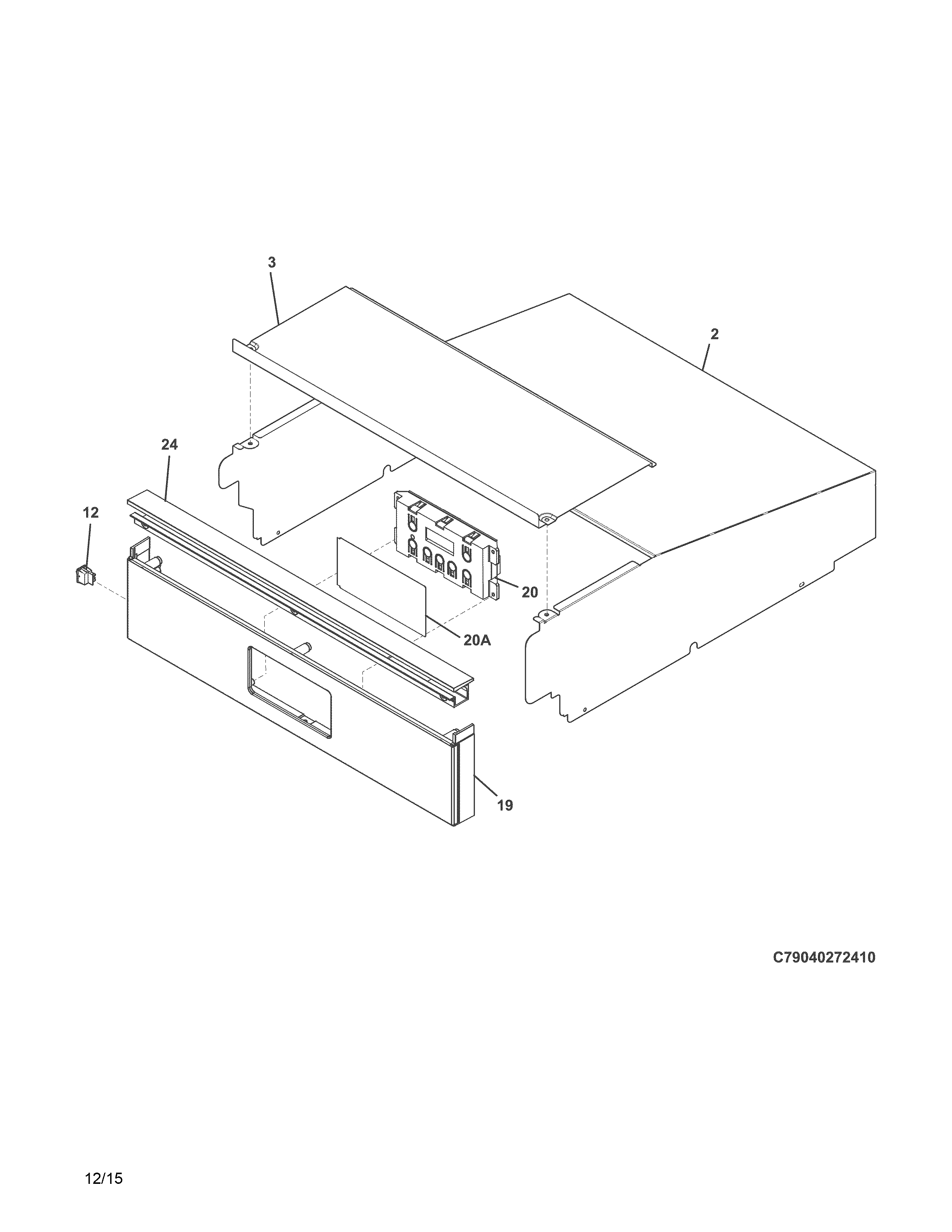

• Control panel and overlays: the user interface for selecting bake, broil, timer, and settings; see range control panel and overlay (black) 5304504306 and overlay 316220729.

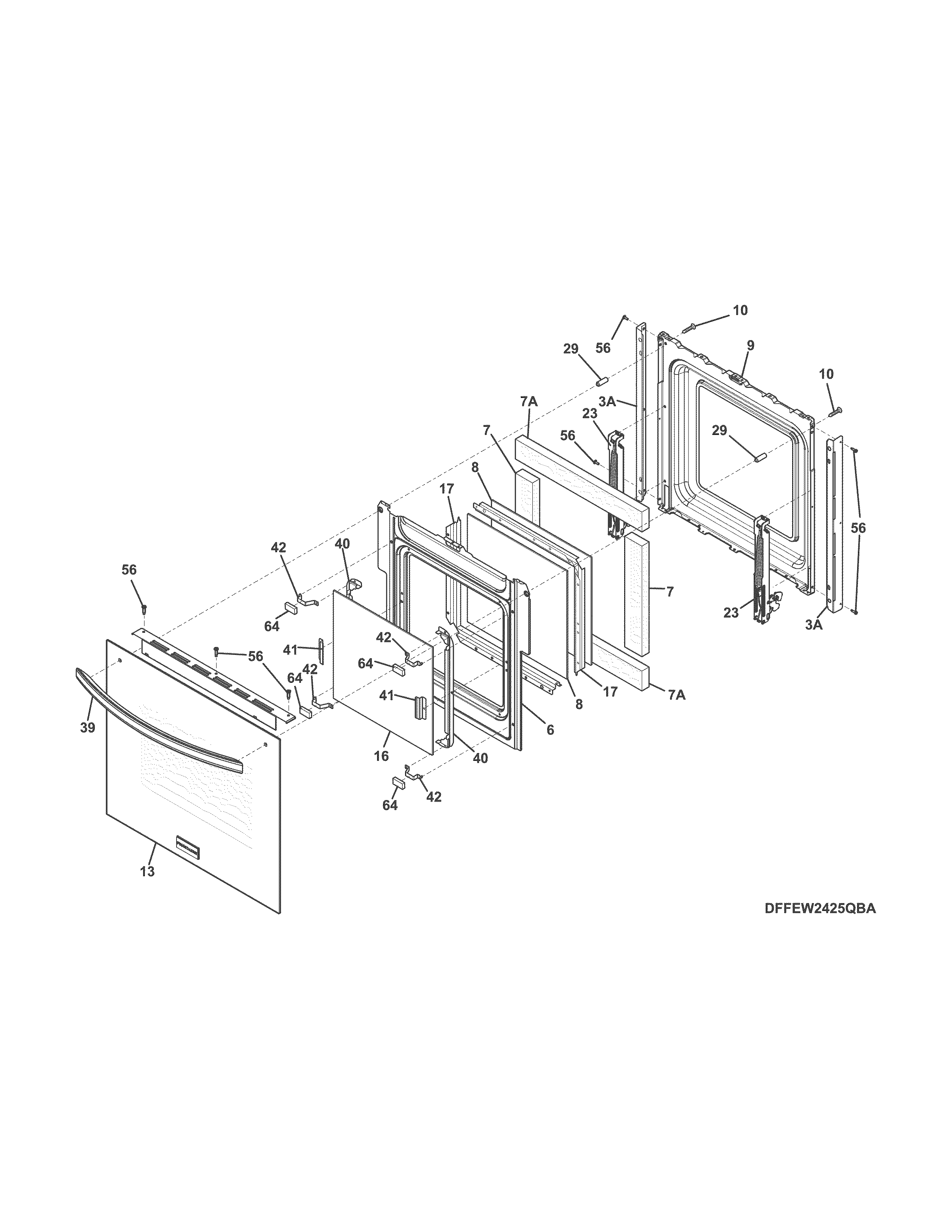

• Door components: door assembly, handle, hinges, and brackets that keep the door aligned and sealed; see door assembly 5304504223.

Knowing which part does what helps you troubleshoot faster and order the right replacement. For example, a “won’t heat” complaint can be a failed bake element, a tripped high-limit thermostat, or a sensor problem, and each fix uses a different part.

• Confirm your exact model number from the serial plate before ordering; the installation instructions note the serial plate is visible when the door is open.
• Match symptoms to the function: bake problems point to the bake circuit; broil-only problems point to the broil circuit.
• If the oven temperature seems off, test with an oven thermometer and then follow the calibration steps in your use and care information.
• If you see an error code, use Frigidaire self-cleaning wall oven error codes to narrow down the likely failed component.

Last updated: February 2026

Yes. Frigidaire wall ovens like the Frigidaire FFEW2415QBA are a good choice for everyday baking and broiling when they are installed to spec, leveled, and operating at the correct temperature. Use the FFEW2415QBA installation guide to confirm cutout fit, securing, and electrical requirements.

A wall oven performs well when it heats evenly, holds temperature, and the door and controls operate smoothly.

• Preheats normally and maintains set temperature
• Bakes evenly across the rack with proper air circulation
• Broils with strong top heat and consistent browning
• Door closes squarely and seals well
• Cooling fan may run after high-heat use (normal on some models)

The installation instructions emphasize measuring the cabinet cutout and leveling the oven; these two items drive most satisfaction.

Start with calibration and airflow basics; then move to parts.

• Verify the oven is level and not pinched in the cabinet
• Use the recommended rack position for the food
• Adjust temperature offset if your control allows it (see the FFEW2415QBA owner’s manual)
• If temps swing widely, replace the range oven temperature sensor 5304504897

Built-in ovens depend on correct cutout dimensions, leveling, and ventilation. When those are right, the FFEW2415QBA delivers the consistent results most owners expect from a Frigidaire electric wall oven.

Last updated: February 2026
