Whirlpool
Washer

Model # 7MGHW9150PW2 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool 7MGHW9150PW2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

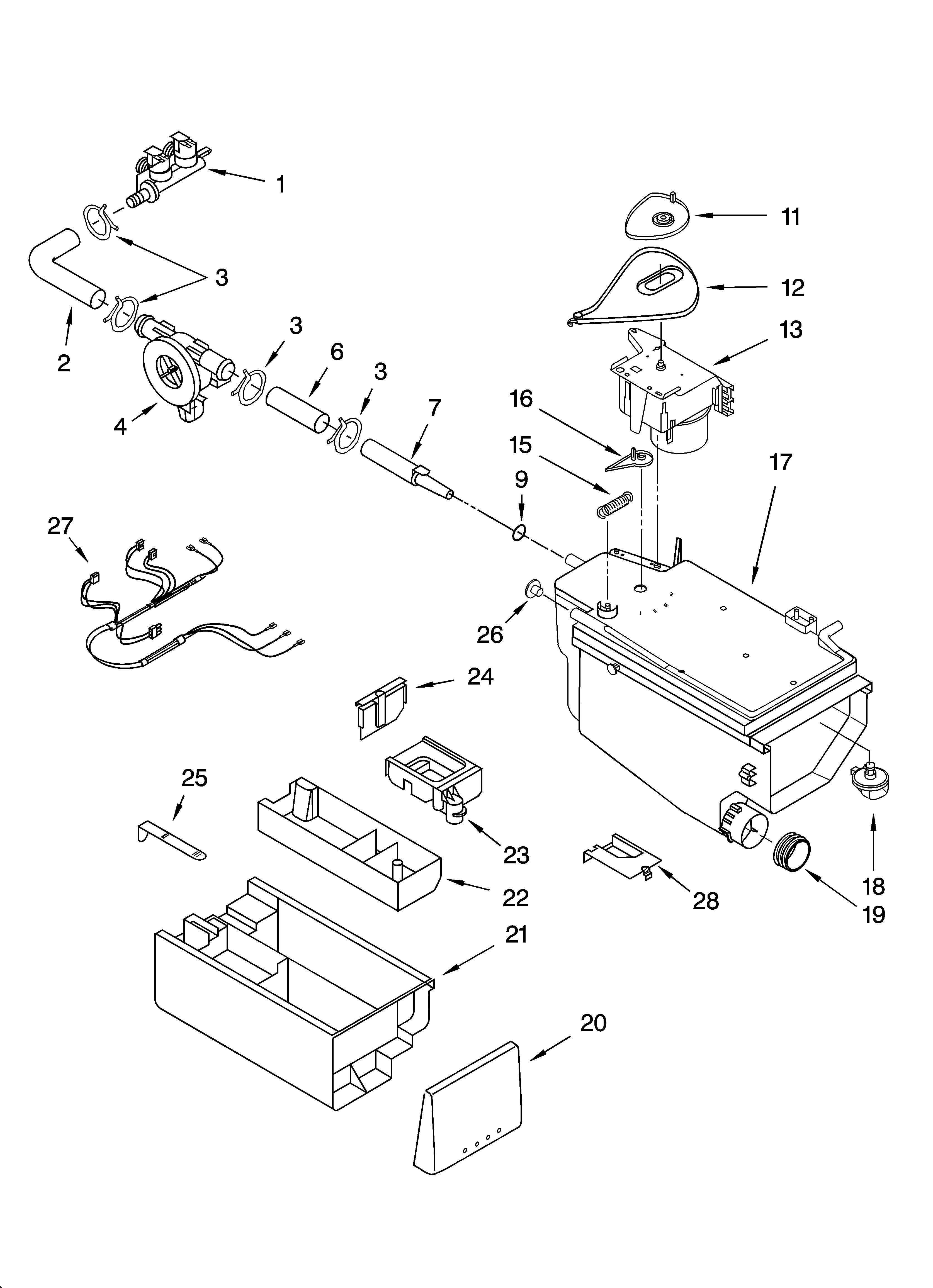

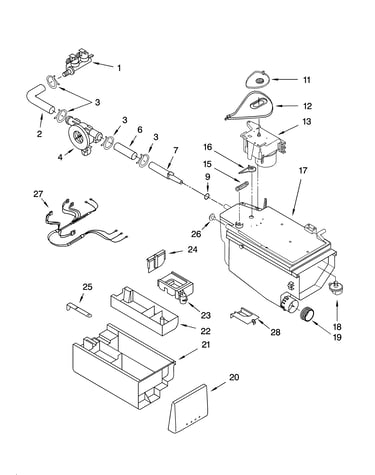

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |

Pump 8182821
#10

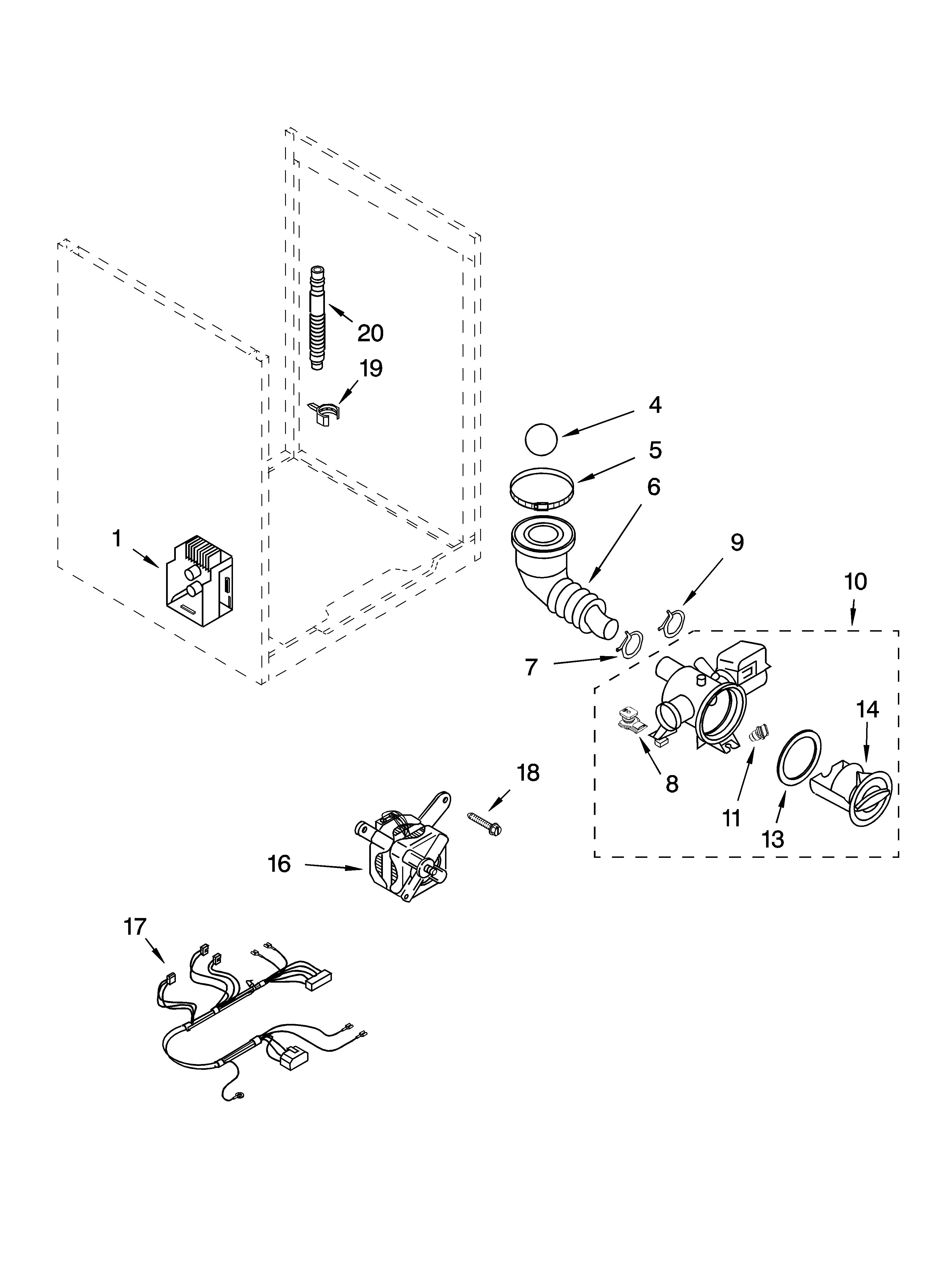

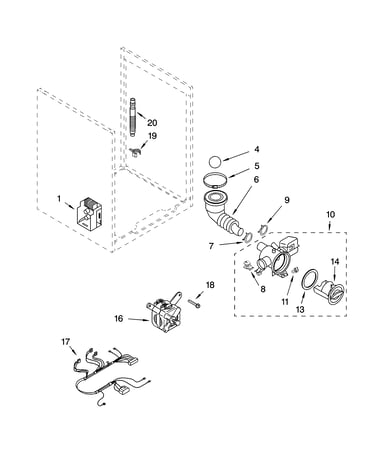

Pump and motor parts, optional parts (not included) diagram

Pump

Part #8182821

Replaced by #280187

?
Manufacturer substitution
This part replaces 8182821. Substitute parts can look different from the original.
BEST SELLER
$143.49
7% OFF Phone Price : $153.49
In Stock
Washer Door Boot 8182119
#5

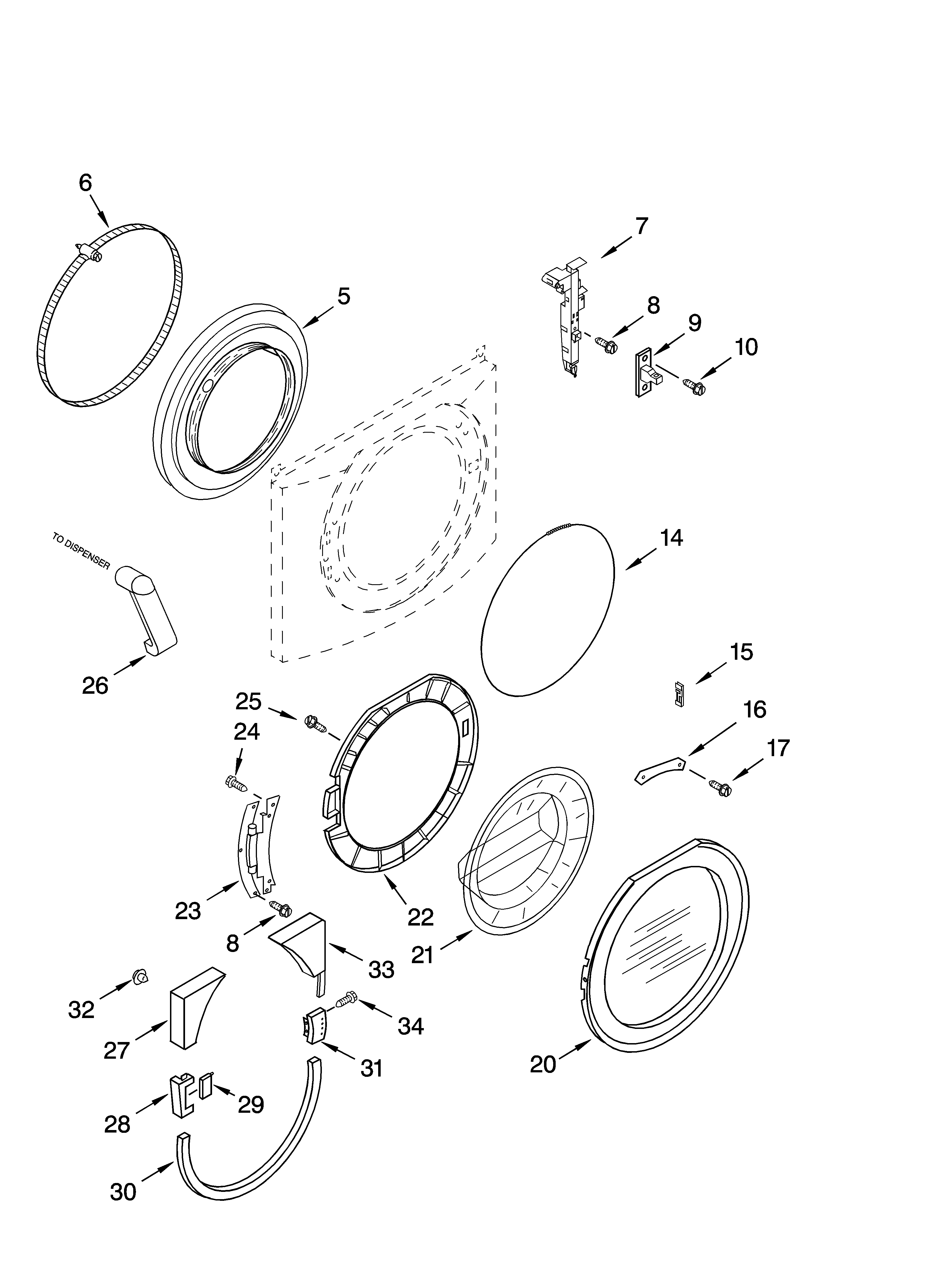

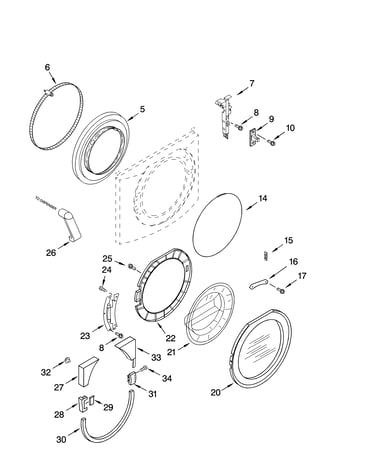

Door and latch parts diagram

Washer door boot

Part #8182119

Replaced by #WP8182119

?
Manufacturer substitution
This part replaces 8182119. Substitute parts can look different from the original.
BEST SELLER
$158.20
6% OFF Phone Price : $168.20
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Pump and motor parts, optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Washer Drive Belt 8182633
#3

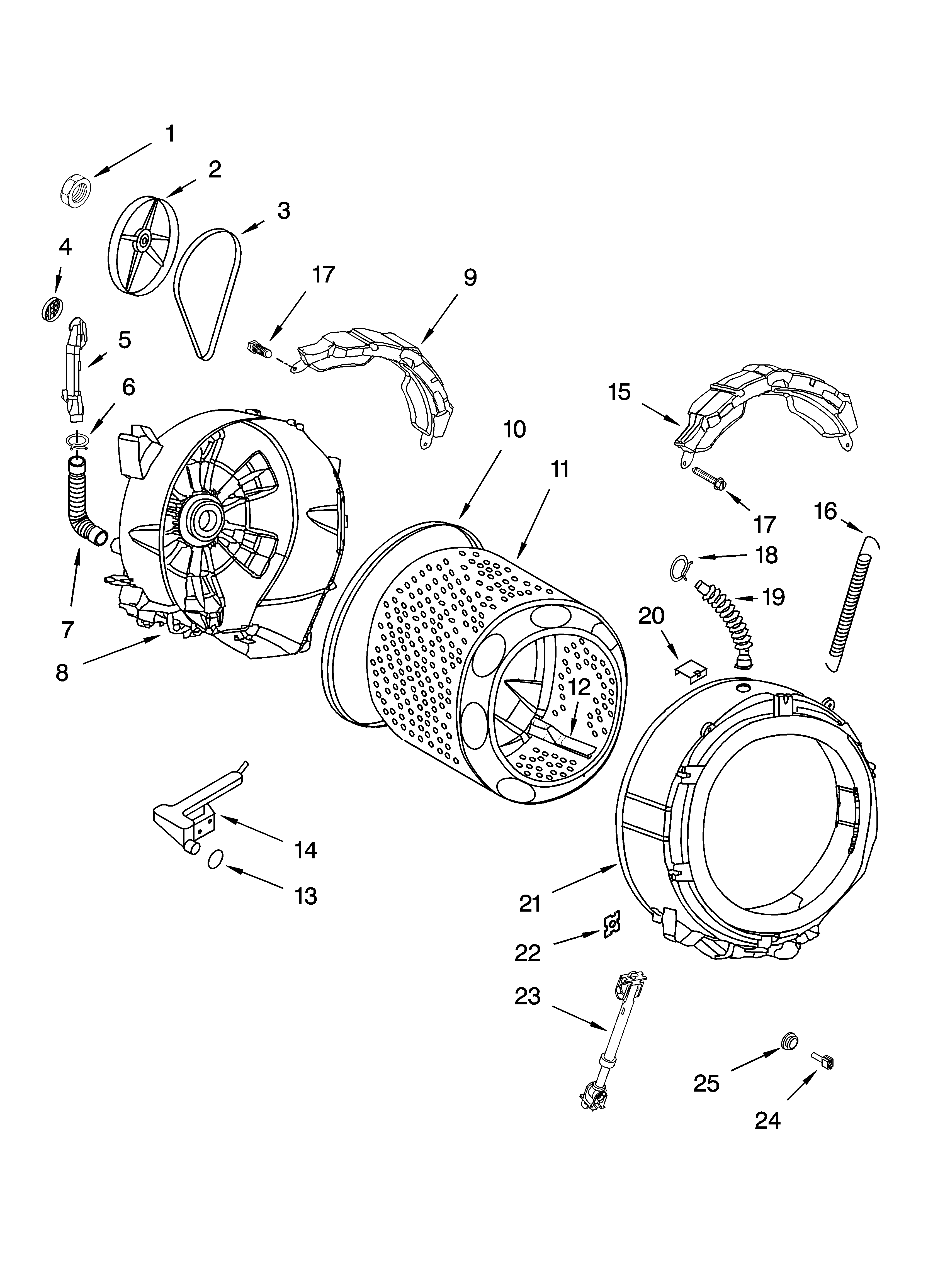

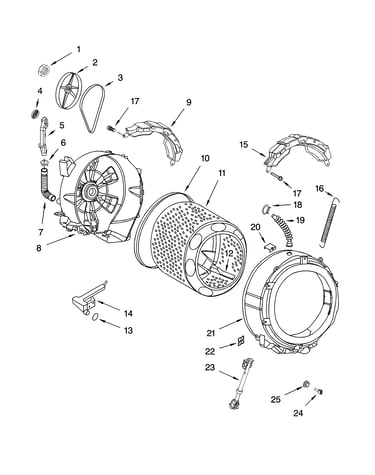

Tub and basket parts diagram

Washer drive belt

Part #8182633

Replaced by #WPW10388414

?
Manufacturer substitution
This part replaces 8182633. Substitute parts can look different from the original.
BEST SELLER
$36.08
39% OFF MSRP : $59.00
In Stock
Clamp 8181664
#14

Door and latch parts diagram

Clamp

Part #8181664

Replaced by #W10902779

?
Manufacturer substitution
This part replaces 8181664. Substitute parts can look different from the original.
BEST SELLER
$23.34
22% OFF MSRP : $30.00
In Stock
Washer Tub-to-pump Hose 8181732
#6

Pump and motor parts, optional parts (not included) diagram

Washer tub-to-pump hose

Part #8181732

Replaced by #WPW10467168

?
Manufacturer substitution
This part replaces 8181732. Substitute parts can look different from the original.
BEST SELLER
$27.22
18% OFF MSRP : $33.00
In Stock
Screw 8181756
#16

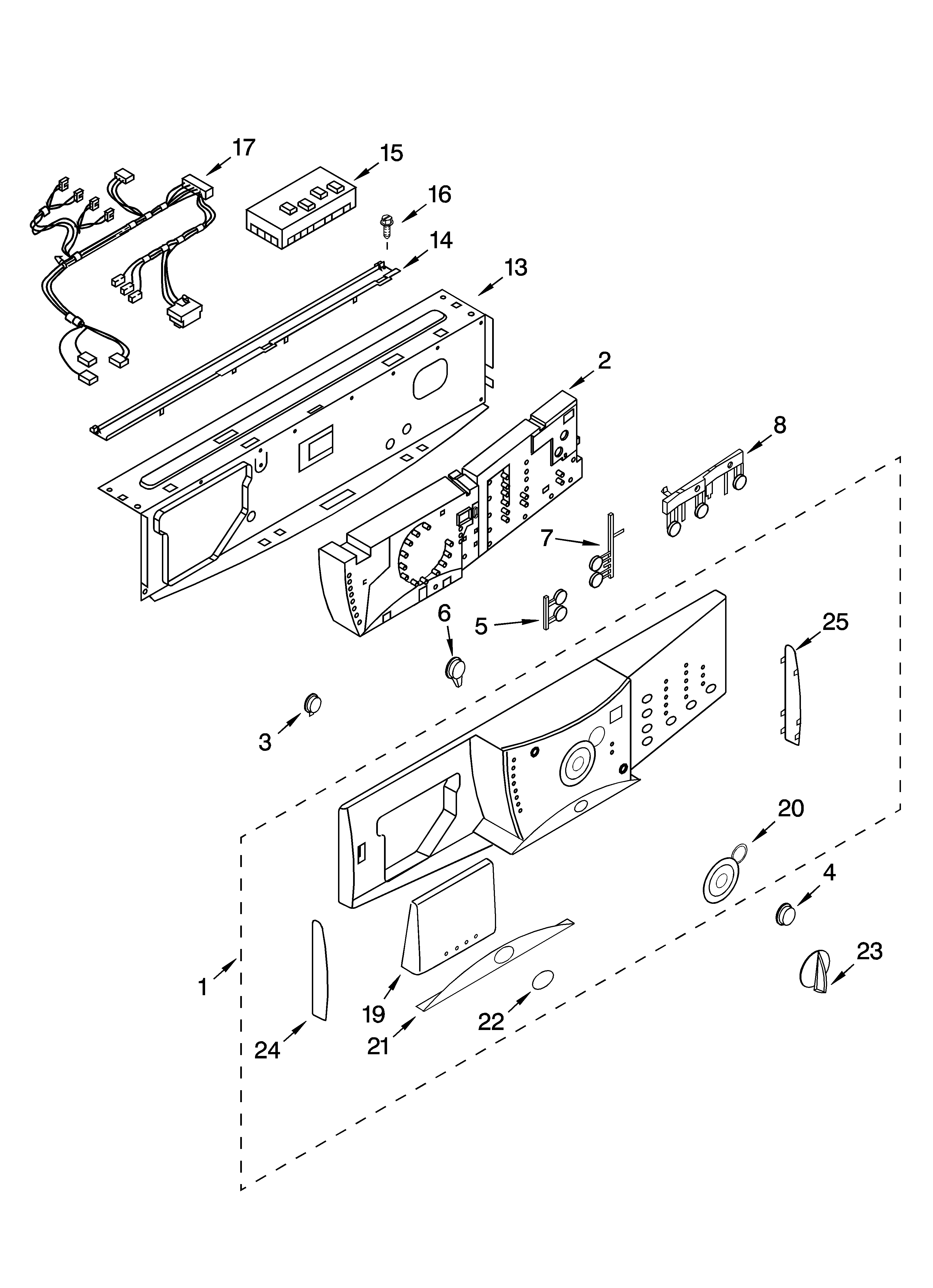

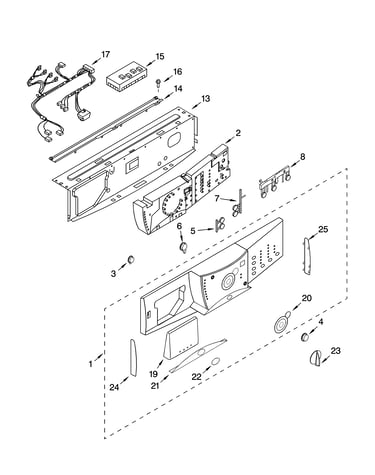

Control panel parts diagram

Screw

Part #8181756

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 8181756. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 8181828
#28

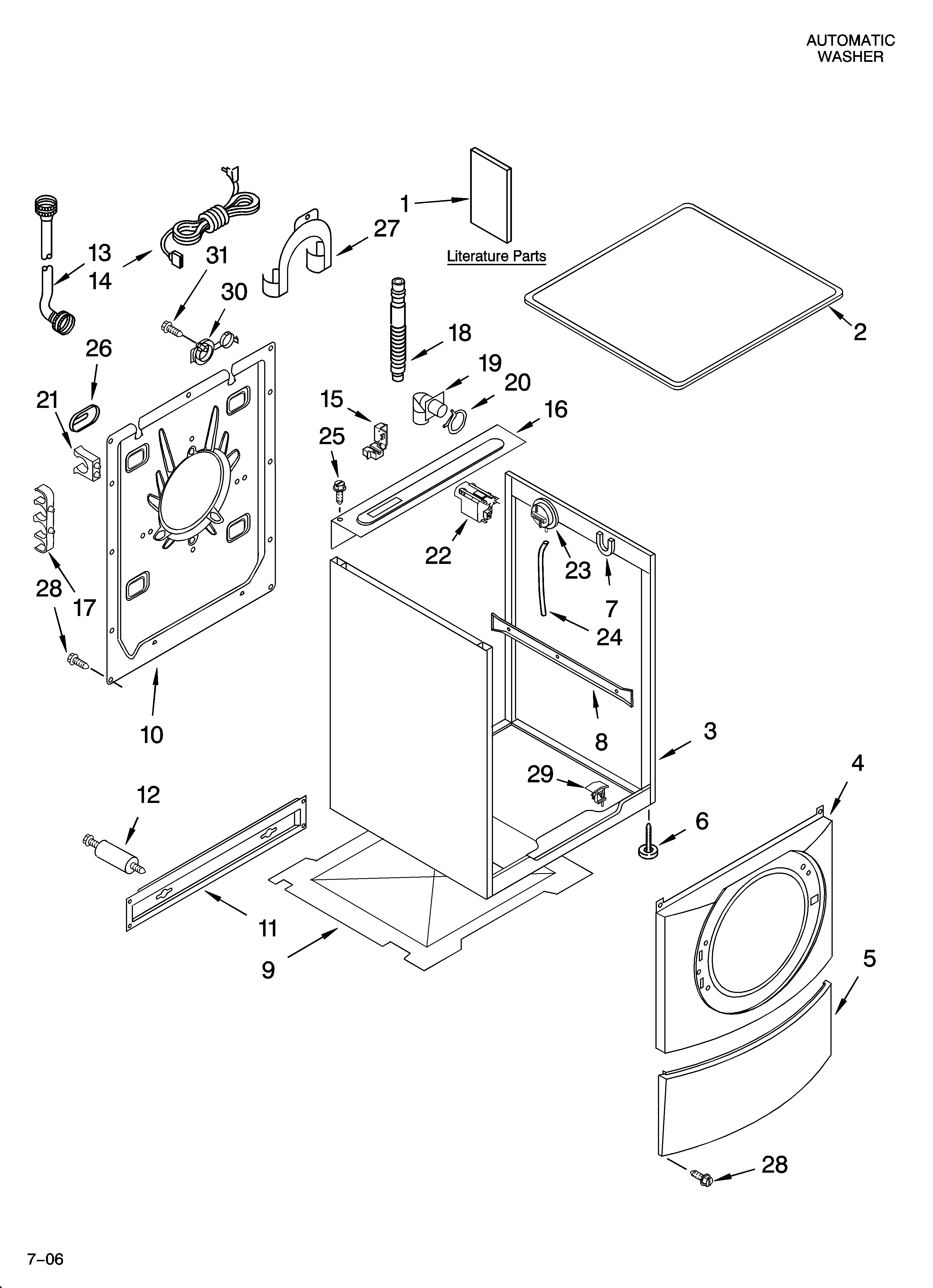

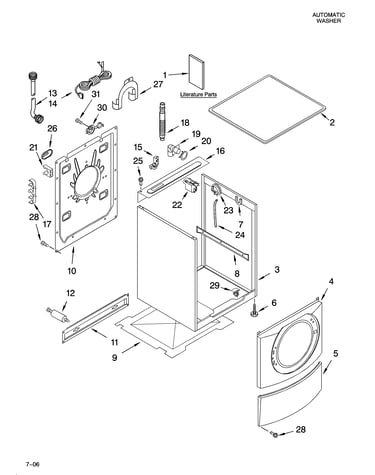

Top and cabinet parts diagram

Screw

Part #8181828

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 8181828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Hose 8181740
#20

Pump and motor parts, optional parts (not included) diagram

Hose

Part #8181740

Replaced by #WPW10003250

?
Manufacturer substitution
This part replaces 8181740. Substitute parts can look different from the original.
BEST SELLER
$29.66
14% OFF Phone Price : $34.66
In Stock
Fill Hose (blue) 8182795
#13

Top and cabinet parts diagram

Fill hose (blue)

Part #8182795

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8182795. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
