Kenmore 79094193311 electric range Parts

On Kenmore electric range model 79094193311, the model and serial information is on the serial plate located on the left side of the warmer drawer frame. Open the warmer drawer to clearly view the label; this is the fastest way to confirm the exact model number.

Where to look on model 79094193311

For this model, start with the warmer drawer area:

• Pull the warmer drawer fully open.
• Look at the left side of the warmer door frame for the serial plate.
• Use a flashlight if the kitchen lighting is dim.
• Write down the model number and serial number exactly as shown.
• Match that model number when ordering parts like a bake element or temperature sensor.

Reference: 79094193311 owner's manual

Quick location guide (common range label spots)

If the label is hard to read or missing, these are other common places ranges use for identification labels.

Location	What you will usually find	When to check it
Warmer drawer frame (left side)	Model and serial plate	First choice for 79094193311
Oven door jamb/frame	Model/serial sticker	If there is no warmer drawer
Back panel near the power cord/vent	Rating plate	If the range has been moved

Why it matters

We use the model number to match the correct Kenmore parts and wiring configuration for your exact range. Even small differences within the 790-series can change which surface element control switch, bake element, or oven temperature sensor fits.

Last updated: January 2026

On Kenmore electric range model 79094193311, an F1 code with repeated beeping points to a problem in the oven’s electronic control system (most often a stuck key on the touch panel or a failing control board). Reset power at the breaker for 1 minute; if F1 returns, the control needs service.

Quick reset and safety steps

• Turn the range breaker OFF for 60 seconds, then turn it back ON.
• If the oven is hot, let it cool completely; heat can trigger intermittent control faults.
• Press STOP/CLEAR once to silence alarms if the keypad still responds.
• If beeping continues, leave the breaker OFF until you can troubleshoot.

What usually causes F1 on this Kenmore range

F1 is commonly caused by one of these conditions:

• Stuck or shorted keypad (touch panel) sending a constant signal
• Electronic oven control (clock/control board) failure
• Moisture, cleaner residue, or heat damage affecting the control area
• Wiring connection issue between the keypad and control board

What to check next (most effective order)

1. Inspect the control panel area: make sure it is dry and free of cleaner residue.
2. Try a cool-down test: if F1 happens after broiling or long baking, run the oven later when fully cool.
3. Check oven temperature accuracy: overheating can contribute to control errors; a drifting sensor is a common root cause.
4. If F1 is frequent or immediate after reset, plan on diagnosing the control circuit and related components.

Symptom pattern	Most likely cause	Best next step
F1 appears immediately after power reset	Control board or keypad short	Keep power off; schedule repair
F1 appears after high-heat cooking	Heat-related control fault or temp regulation issue	Check sensor and airflow
Random beeping, some keys don’t respond	Keypad issue	Inspect/replace control interface

Parts that can be involved

If you suspect the oven is overheating or temperatures are unstable, the oven temperature sensor is a common, testable part to address first: frigidaire range oven temperature sensor 316490000.

Why it matters

When the control thinks a key is stuck or it detects an internal fault, it beeps to prevent unsafe operation and to stop unintended heating. Fixing the underlying control or temperature regulation issue restores normal baking and broiling performance.

For model-specific control features and alarm behavior, follow the troubleshooting and control instructions in the 79094193311 use & care guide.

Last updated: January 2026

To reset your Kenmore electric range model 79094193311, do a hard reset: turn OFF the range circuit breaker (or unplug the range) for 3 to 5 minutes, then restore power and reset the clock. This clears many control glitches after a power interruption. See the 79094193311 owner's manual.

Quick reset steps (recommended)

• Turn the oven and all surface elements OFF.
• Switch the range breaker OFF (or unplug the power cord).
• Wait 3 to 5 minutes.
• Restore power.
• Set the clock and try Bake or Broil again.
• If the control is locked, press and hold Control Lock for about 3 seconds (labeling varies by console).

If the oven is stuck after self-clean

A self-clean cycle can leave the door locked until the oven cools and the latch motor returns to home.

• Let the oven cool for 60 to 90 minutes.
• Try the hard reset again.
• If the door stays locked, the door latch system may need service; common suspects are the lock motor/switch assembly and related wiring.

Helpful part to check: Range oven door lock motor and switch assembly 5304528973

What to expect after a reset

What changes	What does not change
Clock time resets	Cooktop heating performance
Temporary error states may clear	A failed heating element or sensor
Some settings return to defaults	A door latch that is physically jammed

Why it matters

A hard reset restores normal operation after a power failure or control-board “freeze,” and it is the safest first step before replacing parts like the bake element, broil element, or oven temperature sensor.

Last updated: January 2026

Yes. You can still get replacement parts for Kenmore appliances, and for Kenmore electric ranges like model 79094193311, the key is matching parts by the full model number so you get the correct fit, wiring, and mounting style. Use the 79094193311 owner's manual to confirm features and part locations.

How to find the right Kenmore part fast

• Use the complete model number 79094193311 (not just “Kenmore 790”).
• Match the part by function and symptom (bake not heating, burner not regulating, door won’t unlock).
• Compare the part description to what you see on the range (connector type, mounting holes, length).
• If your range has multiple versions, match by the exact part ID listed for your model.
• For electrical parts, shut off power at the breaker before inspecting or replacing anything.

Common parts people replace on this model

These are examples of parts available for Kenmore 79094193311 that often solve everyday problems:

Symptom	Likely part	Example part for this model
Oven temperature is inaccurate or error related to temp sensing	Oven temperature sensor	Frigidaire range oven temperature sensor 316490000
Oven will not bake or bakes unevenly	Bake element	Frigidaire range bake element 316413800
Surface element won’t regulate heat or stays too hot	Surface element control switch	Frigidaire range surface element control switch 316238201
Oven light is out	Appliance light bulb	Appliance light bulb, 40-watt 316538904

Why model number matching matters

Kenmore ranges were produced in multiple design families over the years. Even when two ranges look similar, the correct bake element, sensor, or switch can differ by terminal style, wattage, or mounting pattern. Using 79094193311 ensures you’re selecting parts intended for your exact build.

Helpful troubleshooting before ordering

• If the oven is not heating, test bake and broil separately to narrow the failure.
• If a burner cycles incorrectly, try a different element on that switch (if interchangeable) to isolate the switch vs. element.
• If the oven runs hot or cold, verify with an oven thermometer before replacing parts.

For error displays and what they mean on Kenmore ranges, use our Kenmore 790 self-cleaning range error codes reference.

Last updated: January 2026

Kenmore is a brand name, so replacement parts for your Kenmore electric range model 79094193311 are typically manufactured by the original equipment manufacturer (OEM) that built the range, then sold as compatible Kenmore parts. For this model family, many components cross to Frigidaire-built designs, so you will often see Frigidaire-labeled parts that fit.

What you will see when shopping for parts

It’s normal for Kenmore parts listings to show another manufacturer name on the part description or packaging. What matters is the model match and the part identifier.

• Kenmore ranges are commonly built by major OEMs (often Frigidaire/Electrolux for many 790-prefix ranges)
• The same part may be listed under a Kenmore model but labeled “Frigidaire” on the part name
• Always match by model number 79094193311 and the exact part ID

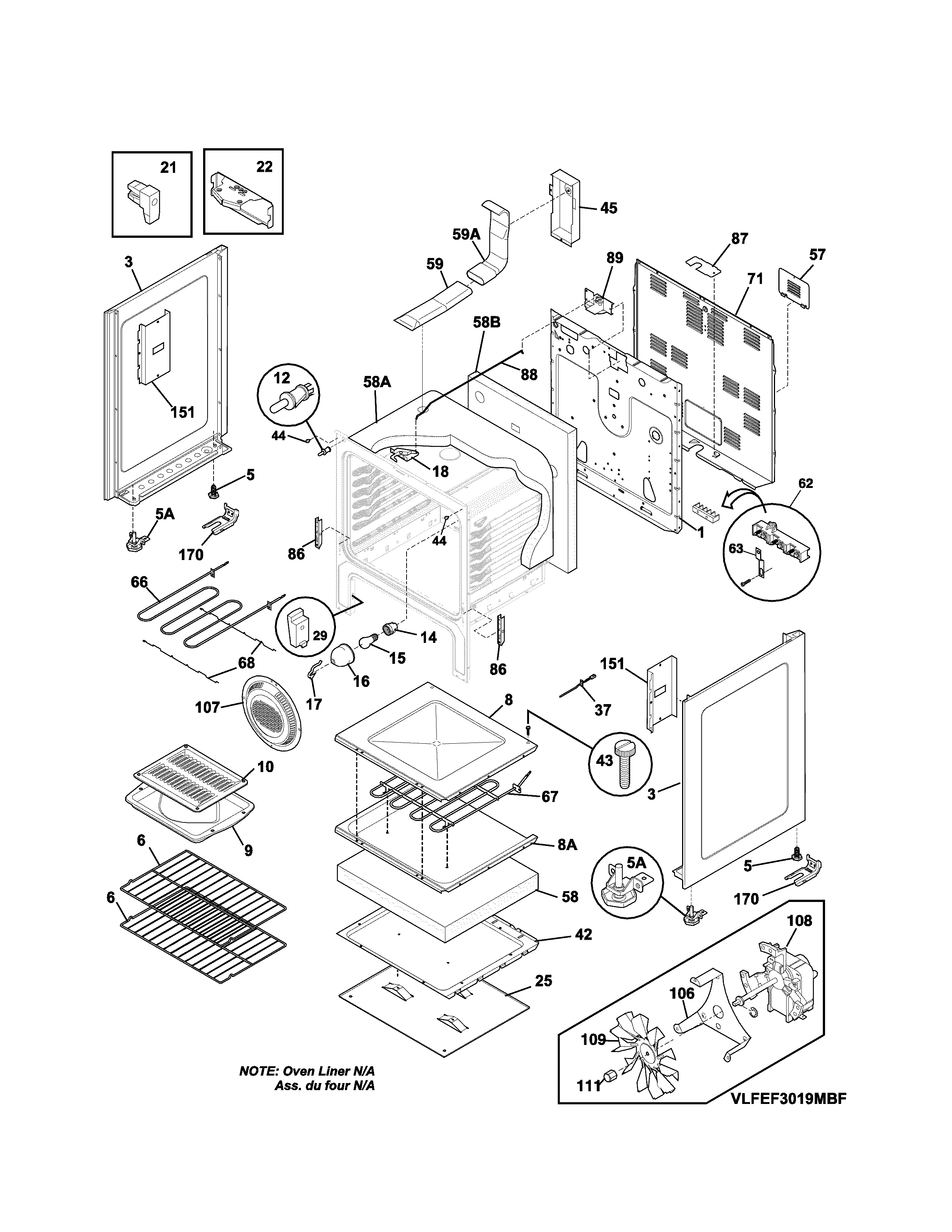

• Use the parts diagram and part description to confirm fit
• If a part is electrical (sensor, element, switch), match terminals and mounting style as well

Examples of OEM-style parts for this model

These are examples of parts commonly sourced from the OEM supply chain for this Kenmore model:

Part type	Example part listing for this model	What it does
Oven temperature sensor	Frigidaire range oven temperature sensor 316490000	Helps the control regulate oven temperature
Bake element	Frigidaire range bake element 316413800	Provides primary heat for baking
Surface element switch	Frigidaire range surface element control switch 316238201	Regulates power to a radiant surface element

How we recommend confirming the correct manufacturer and fit

Use the documentation and model-based lookup first, then confirm the part details.

• Check the parts list and diagrams in the 79094193311 owner's manual
• Compare the part ID and description to the failed component
• Verify electrical ratings and connector style before ordering (especially for elements and switches)
• If the symptom is an error code, use a Kenmore range error code reference to identify the failing circuit

Why it matters

Kenmore-branded appliances are built by different OEMs across model families. Knowing that OEM-labeled parts are normal helps you avoid ordering the wrong component and speeds up repairs on heating, temperature control, and cooktop performance.

Last updated: January 2026
