Yes. On the GE GDT695SBL3TS dishwasher, an FTD (fail to drain) error commonly happens when water cannot leave the tub because the drain path is restricted, such as a clogged air gap, blocked disposer connection, or a kinked drain hose. See the GDT695SBL3TS owner’s manual for drain checks.

What to check first (fast, common fixes)

• Cancel the cycle so the dishwasher starts draining; then confirm the tub actually empties.
• Check the sink and disposer: if the sink drains slowly, the dishwasher may not drain well either.
• If the dishwasher drains into a disposer, make sure the disposer inlet plug was removed.
• Inspect the drain hose routing for kinks or pinches behind or under the dishwasher.
• If you have an air gap, clean it (a clogged air gap can leave water standing in the tub).

Drain restriction checklist (where clogs usually hide)

Area to check	What you’re looking for	Typical symptom
Air gap (if installed)	Debris under the cap	Water standing in tub, slow drain
Disposer connection	Plug not removed or blockage	No drain or weak drain
Drain hose	Kink, pinch, or internal clog	Intermittent FTD, slow drain
Filter area	Food soil buildup	Poor cleaning plus drain issues

Parts that can be involved if clearing the drain path doesn’t help

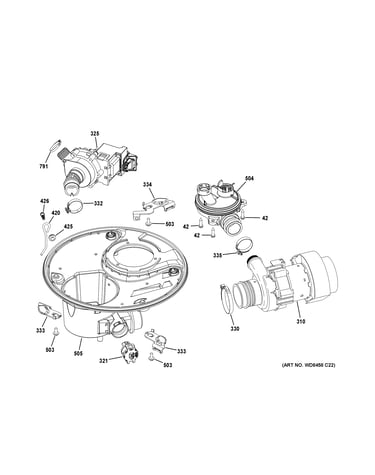

If the drain path is clear but the dishwasher still won’t pump out, a failed drain pump or a restricted hose can be the next place we look.

• Dishwasher drain hose WD24X10062 (check for kinks, soft spots, or internal blockage)
• Dishwasher drain pump WD19X25187 (can fail to move water even with a clear hose)

Why it matters

FTD is the dishwasher telling you it cannot remove water as expected. Clearing the drain path (air gap, disposer connection, hose routing) restores normal draining and helps prevent standing water, odors, and incomplete cycles.

Last updated: January 2026

A GE dishwasher typically lasts 10 to 12 years with normal household use and basic care. For your GE GDT695SBL3TS, following the cleaning and maintenance steps in the GDT695SBL3TS owner's manual helps you get the most life out of the wash system, heater, and controls.

Typical lifespan range (what to expect)

Most modern built-in dishwashers fall into a fairly consistent lifespan window.

• Average: 10 to 12 years
• Common real-world range: 8 to 15 years
• Shorter lifespan drivers: heavy daily loads, hard water scale, chronic clogs, frequent overheating
• Longer lifespan drivers: regular cleaning, correct detergent use, good water temperature, prompt leak/drain fixes

Usage pattern	Typical lifespan	What usually wears first
Light (few loads/week)	12 to 15 years	Racks, door seals, dispenser parts
Average (most homes)	10 to 12 years	Pump, heater, spray arms
Heavy (daily, large family)	8 to 10 years	Circulation pump, controls, door latch

Maintenance that extends life

These steps reduce strain on the circulation pump, spray arms, and heating system.

• Clean the filter area and remove debris that can restrict water flow
• Check spray arm holes for buildup; clear blocked jets
• Run a dishwasher cleaner periodically to reduce hard-water scale
• Use the right detergent amount (too much can cause residue; too little can reduce cleaning)
• Fix draining issues quickly so the pump is not fighting standing water

Parts that commonly affect performance as the unit ages

If cleaning and loading changes do not restore performance, these are common wear items on many GE dishwashers.

• Dishwasher heating element WD05X30818 (poor drying, cool water, long cycles)
• Dishwasher circulation pump assembly WD26X23258 (weak wash, unusual noise)
• Dishwasher spray arm, lower WD22X33499 (poor cleaning on lower rack)

Why it matters

Knowing the expected lifespan helps you decide whether to maintain, repair, or replace. A well-maintained dishwasher often avoids repeat issues like poor cleaning, poor drying, and drain problems that shorten service life.

Last updated: January 2026

The most common issues we see on the GE GDT695SBL3TS dishwasher are “won’t run” and “won’t drain” symptoms caused by power/Start-sequence problems, a door that is not fully latched, or drainage restrictions from food debris. Use the GDT695SBL3TS owner's manual troubleshooting steps first to narrow it down.

Most common symptoms and what usually causes them

• Dishwasher won’t run: tripped breaker, wall switch off, control panel locked, door not firmly closed
• Dishwasher won’t drain: clogged filter area, blocked drain path, drain hose restriction
• Poor cleaning: spray arm jets blocked, items blocking detergent cup, wrong detergent type
• Suds in the tub: using non-dishwasher detergent or rinse aid spill
• Hard water film/odor: mineral buildup, needs cleaning cycle with citric acid or dishwasher cleaner

Quick checks we recommend (in order)

1. Confirm the door closes firmly and latches; a loose latch can stop the cycle. If the latch feels weak or inconsistent, inspect the GE dishwasher door latch lock WD21X10490.
2. Check the home breaker and any nearby wall switch that supplies power to the dishwasher.
3. Make sure the control panel is not locked (lockout can look like a “dead” dishwasher).
4. If it fills but does not wash well, check for blocked spray jets or a damaged lower arm; inspect the dishwasher spray arm, lower WD22X33499.
5. If drying is poor, confirm heated dry options are selected and look for heating-related symptoms; the dishwasher heating element WD05X30818 is a common suspect when water does not heat.

Symptom-to-part guide (common matches)

Symptom	Most likely area	Example part for this model
Won’t start or stops early	Door latch, controls	WD21X10490, WD21X24901C
Not cleaning	Spray system, circulation	WD22X33499, WD26X23258
Not drying	Heating circuit	WD05X30818
Not draining	Drain path, pump, hose	WD19X25187, WD24X10062

Why it matters

Catching the “simple” causes first (door not latched, wrong detergent, blocked spray jets) prevents repeat cycles, sudsing, and poor wash results. It also helps you avoid replacing parts like the electronic control board when the real issue is a latch, clog, or loading problem.

For code-based troubleshooting, use GE electronic dishwasher error codes.

Last updated: January 2026

Yes, repairing a GE dishwasher like model GDT695SBL3TS is usually worth it when the problem is isolated (drain, heat, latch, spray) and the total repair cost stays well below the price of a comparable new dishwasher. It becomes less worthwhile when multiple major components fail close together.

Our repair-or-replace checklist

• Age: Dishwashers typically last 10 years.
• Repair cost rule: If the repair is under 50% of replacement cost, repair usually makes sense.
• Failure type: One failed part (latch, heater, pump) is a good repair candidate; repeated failures point toward replacement.
• Parts availability: If key parts are in stock, downtime is shorter.
• Installation condition: A dishwasher should be installed so it can be removed later for service (important for long-term repairability). See the installation guide.

Common repairs that are often worth it on GDT695SBL3TS

These are typical “single-failure” repairs that can restore normal operation:

• Door won’t latch or won’t start: check the GE dishwasher door latch lock WD21X10490.
• Not drying well: heating circuit issues can involve the dishwasher heating element WD05X30818.
• Poor cleaning: clogged or damaged spray arms, such as the dishwasher spray arm, lower WD22X33499.
• Not draining: drain path issues can include a kinked or leaking drain line like the dishwasher drain hose WD24X10062.

Quick decision table

Situation	Usually the best choice	Why
One clear symptom, one failed part	Repair	Lowest cost, fastest return to service
Multiple major symptoms (won’t run + won’t drain + leaks)	Replace	Stacked repairs add up quickly
Unit is near 10 years old and needs a control or pump	Replace (often)	Higher parts cost, more labor, more risk
Unit is under 10 years old and otherwise reliable	Repair	Better value from remaining service life

Why it matters

A dishwasher repair is most cost-effective when it restores reliability with one targeted part. Once you start replacing multiple high-cost items (control, circulation, user interface), the total cost can approach replacement while still leaving other wear items untouched.

For model-specific operating and care guidance that can prevent repeat problems (filters, cleaning, control lock), use the GDT695SBL3TS owners manual.

Last updated: January 2026
