Kenmore 66513073K216 dishwasher Parts

Most Kenmore built-in dishwashers like model 66513073K216 are designed for a standard 24-inch-wide cabinet opening, with an adjustable installation height. For the most accurate fit, we recommend measuring your cabinet opening and matching it to the dimensions shown in the 66513073K216 installation guide.

Typical opening and clearance requirements

Your dishwasher opening needs to allow the unit to slide in level and operate without the door hitting nearby cabinets or walls.

• Plan for a square, unobstructed opening (no protrusions that block installation).
• Allow 2 inches minimum clearance between the open door and an adjacent wall or cabinet in corner installs.
• The opening height is commonly around 34 1/2 inches when the leveling legs are set to the factory preset.
• If the opening is shorter, the rear leveling legs and spacers can be removed to fit an opening as low as 33 1/2 inches.
• Measure from the lowest point under the countertop (important if the counter sags or has a lip).

Quick size check: what to measure

Use a tape measure and record these before ordering parts or scheduling installation.

• Opening width (left to right)
• Opening height (floor to underside of countertop)
• Opening depth (front of cabinet to back wall)
• Corner clearance (door swing space)
• Utility locations (water, drain, electrical access)

Measurement	Where to measure	What you’re looking for
Width	Inside cabinet walls	Standard built-in opening (commonly 24 in.)
Height	Floor to underside of countertop	Adjustable; can fit down to about 33 1/2 in. with leg changes
Clearance	Door edge to wall/cabinet	2 in. minimum in corners

Why it matters

A dishwasher that is too tall, not level, or tight against a side wall can bind the door, leak at the tub seal, or vibrate during wash and drain. Confirming the cabinet opening dimensions first helps prevent installation problems and repeat service calls.

Last updated: January 2026

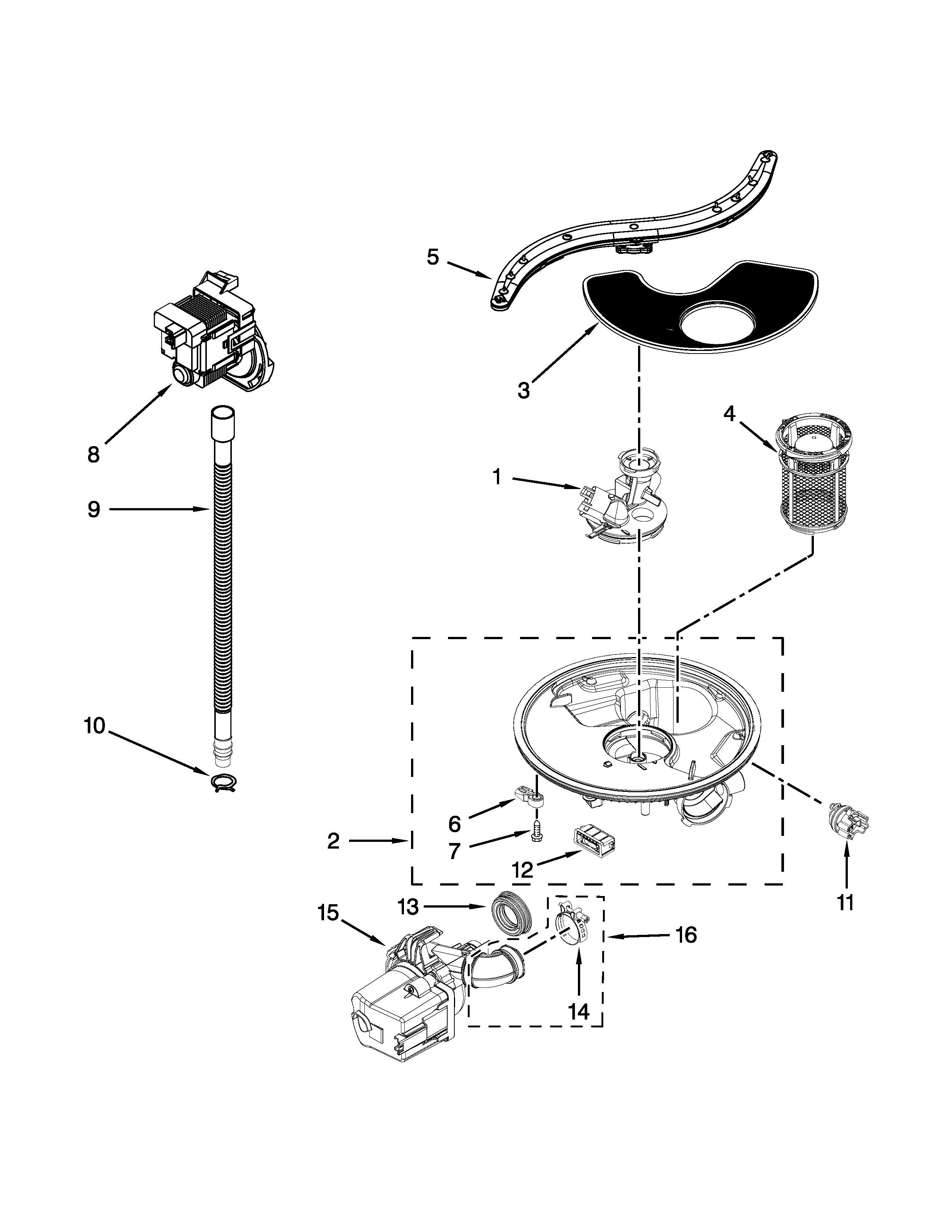

On Kenmore dishwasher model 66513073K216, the removable filters are located at the bottom center of the tub, under the lower rack. You access them from inside the dishwasher by pulling out the lower rack and lifting out the upper and lower filter pieces as described in the 66513073K216 owner's manual.

How to find and remove the filter

1. Pull the lower rack straight out.
2. Look at the bottom center of the dishwasher tub.
3. Remove the filters:
   • Turn the upper filter assembly about 1/4 turn counterclockwise, then lift it out.
   • Lift the lower filter slightly and pull it forward to remove.

Quick checklist before you start

• Turn the dishwasher off at the control panel.
• Let the unit cool if it just ran a Heated Dry cycle.
• Remove any large debris from the sump area by hand.
• Avoid wire brushes or scouring pads on the filter.

Cleaning and reinstalling the filter (what we recommend)

Cleaning the filters monthly helps maintain wash performance and keeps food soils from recirculating.

• Rinse both filters under running water until soils are removed.
• Use a soft brush for stuck-on soils or hard-water deposits.
• Reinstall the lower filter under the locating tabs so the round opening lines up.
• Insert the upper filter assembly, then rotate clockwise until it drops and locks.

Filter piece	Where it sits	What it does
Upper filter assembly	Locks into the circular opening	Keeps oversized items and fine particles out of the pump
Lower filter	Sits under locating tabs at tub bottom	Helps prevent food from being recirculated onto dishes

Why it matters

A filter that is dirty or not fully locked in place can lead to food soils left on dishes, reduced cleaning performance, and sometimes extra noise during operation.

Last updated: January 2026

On Kenmore dishwasher model 66513073K216, the most common problems are not draining, not starting, poor cleaning, not drying, and hard-water residue or spotting. Many of these issues trace back to loading/door-latch problems, a kinked drain hose, clogged filters, or a failed pump, valve, or heating circuit (see the 66513073K216 owner's manual).

Most common symptoms and what usually causes them

• Water remains in the tub / will not drain: kinked drain hose, disposer knockout plug not removed, food blockage in drain path, or a failing drain pump.
• Dishwasher does not run / blinking Start/Resume: door not fully closed and latched, cycle not selected, Sleep Mode active, or power supply issue.
• Poor cleaning: clogged filters, blocked spray arm, overloaded racks, or hard water.
• Not drying: rinse aid empty, heat option not selected, or a heating problem (often tied to the heater circuit).
• White residue, cloudy glasses, spotting, odors: hard water, low rinse aid, or infrequent filter cleaning.

Quick checks we recommend first (fast, no parts)

1. Close the door firmly; if Start/Resume is blinking, close the door and press START/RESUME.
2. Confirm the cycle and options are selected (some cycles pause repeatedly; that can be normal).
3. Check the drain hose for kinks and confirm the disposer inlet knockout plug is removed (if connected).
4. Clean the filters monthly and run a dishwasher cleaner monthly if you have hard water.
5. Verify incoming hot water is about 120°F (49°C) and keep rinse aid filled.

Parts that commonly fix these problems on this model

Symptom	Common part to inspect/replace	Example part for 66513073K216

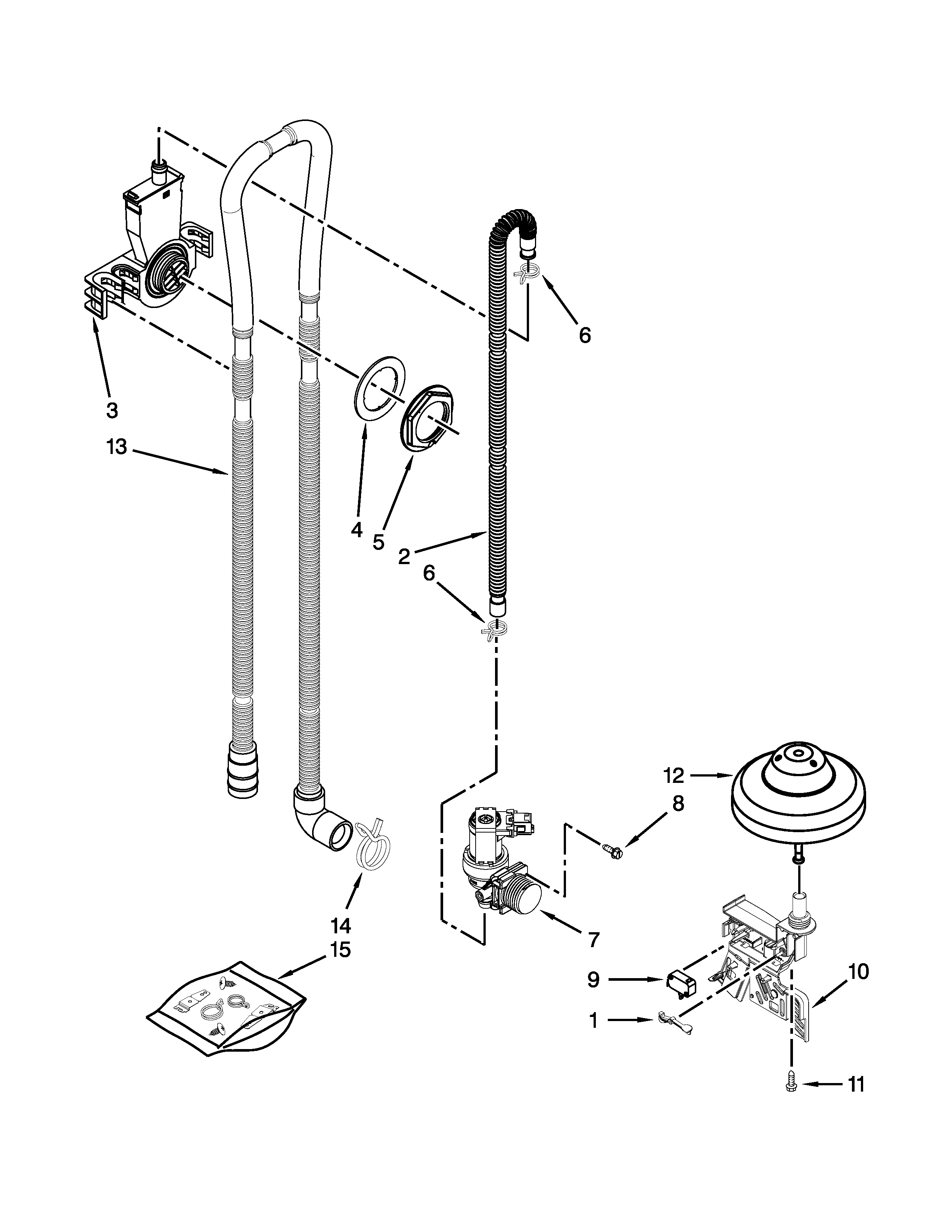

Won’t drain / water left in tub	Drain pump, drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Won’t fill	Water inlet valve	Dishwasher water inlet valve W11175771
Not drying / poor heat	Heating element	Element assembly W10518394

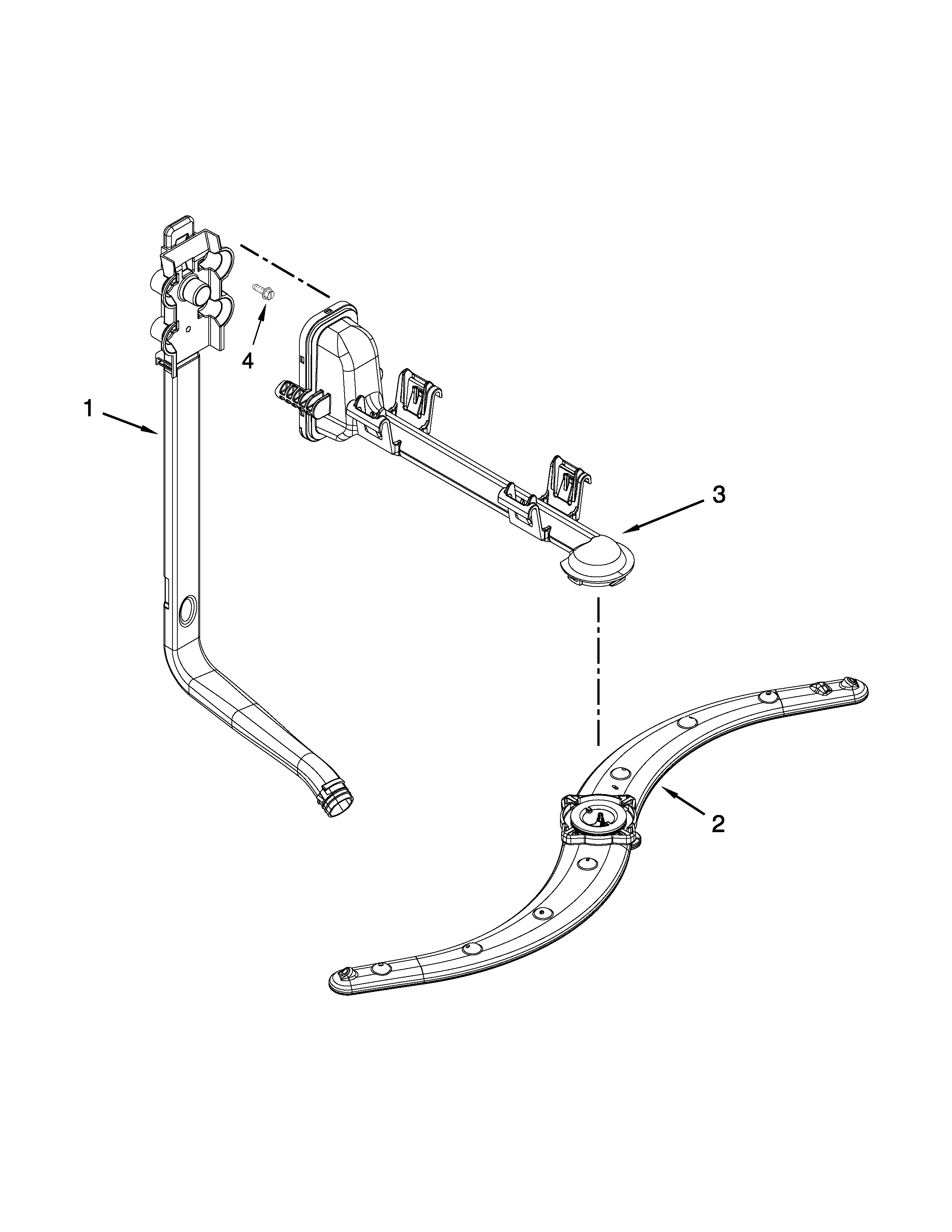

Poor cleaning	Spray arm, filters	Dishwasher spray arm WPW10491331, dishwasher filter WPW10463906

Why it matters

Catching a simple cause (like a kinked hose, hard-water buildup, or a door that is not fully latched) prevents repeat cycle failures and helps protect the pump, heater, and control from unnecessary strain.

For model-specific troubleshooting steps and care intervals, follow the 66513073K216 owner's manual and the how to clean and maintain your dishwasher guide.

Last updated: January 2026
