To take your Kenmore Elite dishwasher model 66513929K010 out of lock mode, press and hold CONTROL LOCK for 3 seconds until the LOCK ON light turns off. The dishwasher will not run while the control lock is on, even though the door can still open and close (see the 66513929K010 owner's manual).

Quick unlock steps

• Press CONTROL LOCK and hold for 3 seconds.
• Watch for the LOCK ON indicator to turn off.
• If you press other buttons while locked, expect the lock light to flash and you may hear a tone.
• Close the door fully.
• Press START/RESUME to begin the cycle.

If it still seems “stuck” in lock mode

Sometimes the lock is off, but the dishwasher still will not start because the cycle was interrupted.

• Open and close the door firmly (latch must engage).
• Press CANCEL/DRAIN once, then reselect your cycle.
• Press START/RESUME (required after opening the door during a delay or cycle).
• If the control panel is unresponsive, turn power off at the breaker for 1 minute, then restore power and try the unlock step again.

What the lock does (and does not) do

Feature	What to expect on 66513929K010
Buttons	Disabled when LOCK ON is lit
Door	Can still be opened/closed
Starting a cycle	Not possible until lock is turned off

Why it matters

Control lock prevents accidental button presses between cycles. If it is left on, the dishwasher can look like it has a power or control problem when it is simply locked.

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s higher-end line; for the Kenmore Elite undercounter dishwasher model 66513929K010, that typically means more premium styling, quieter operation, and upgraded wash and dry features compared with standard Kenmore models. For feature specifics, use the 66513929K010 use and care guide.

What “high end” usually means for Kenmore Elite dishwashers

Kenmore Elite models are positioned above base and mid-tier Kenmore dishwashers. In day-to-day use, “high end” commonly shows up as:

• Quieter sound ratings (better insulation and design)
• More wash options and sensor-based cycles
• Improved filtration and soil handling
• Better drying performance (often with a heater and venting)
• More adjustable racks and smoother rack movement

How to judge if your 66513929K010 is “high end” in practical terms

We recommend comparing your dishwasher’s real-world benefits, not just the badge.

What to check	What you want to see	Where to confirm
Noise	Low, steady sound with minimal vibration	66513929K010 use and care guide
Cleaning	Consistent results on normal loads	Cycle and option descriptions in the guide
Drying	Dishes dry without pooling water	Drying option details in the guide
Rack quality	Smooth rolling, stable racks	Inspect rollers, rails, and stops

Parts that support “premium” feel (when wear shows up)

If the dishwasher feels less “high end” over time, worn rack hardware is a common reason. These model-matched parts can restore smooth operation:

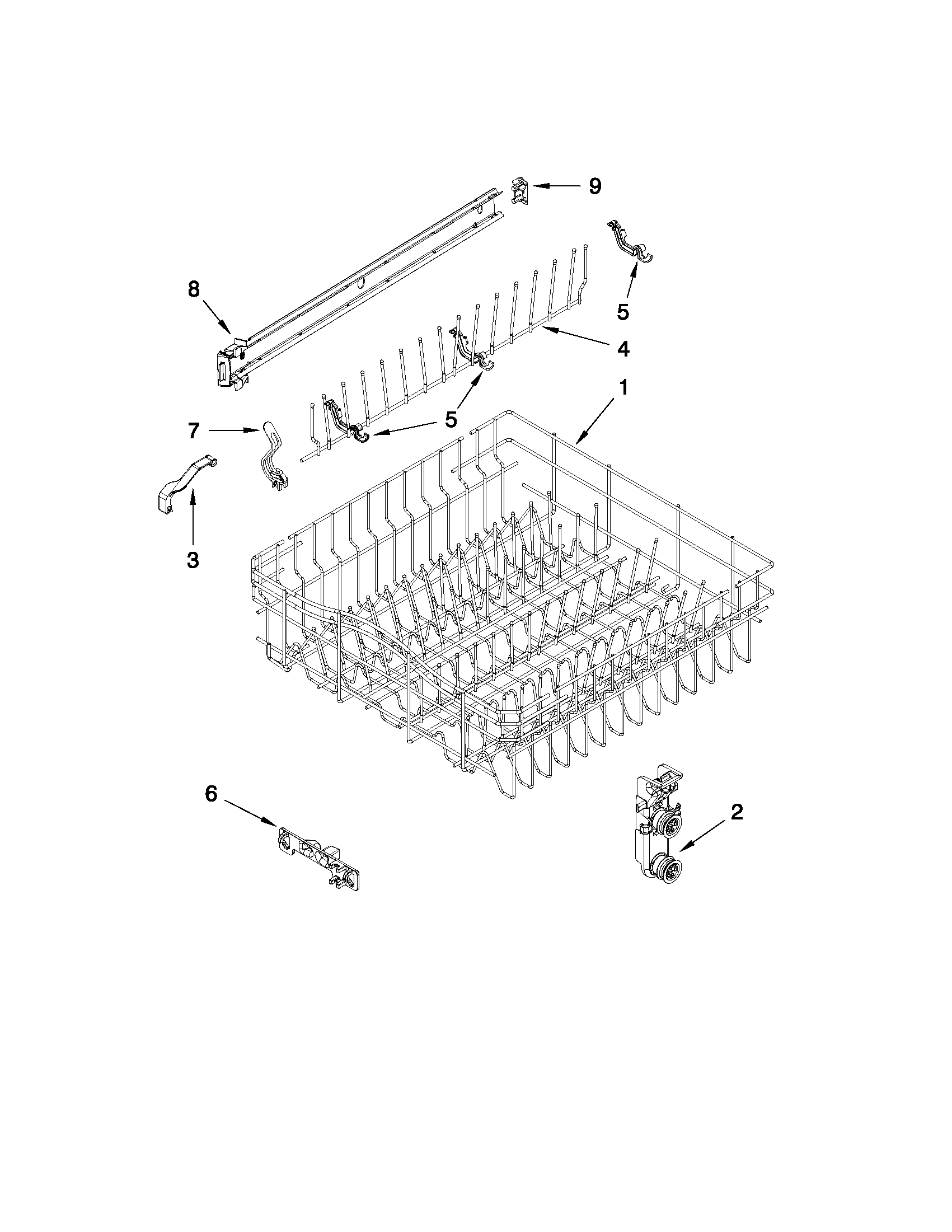

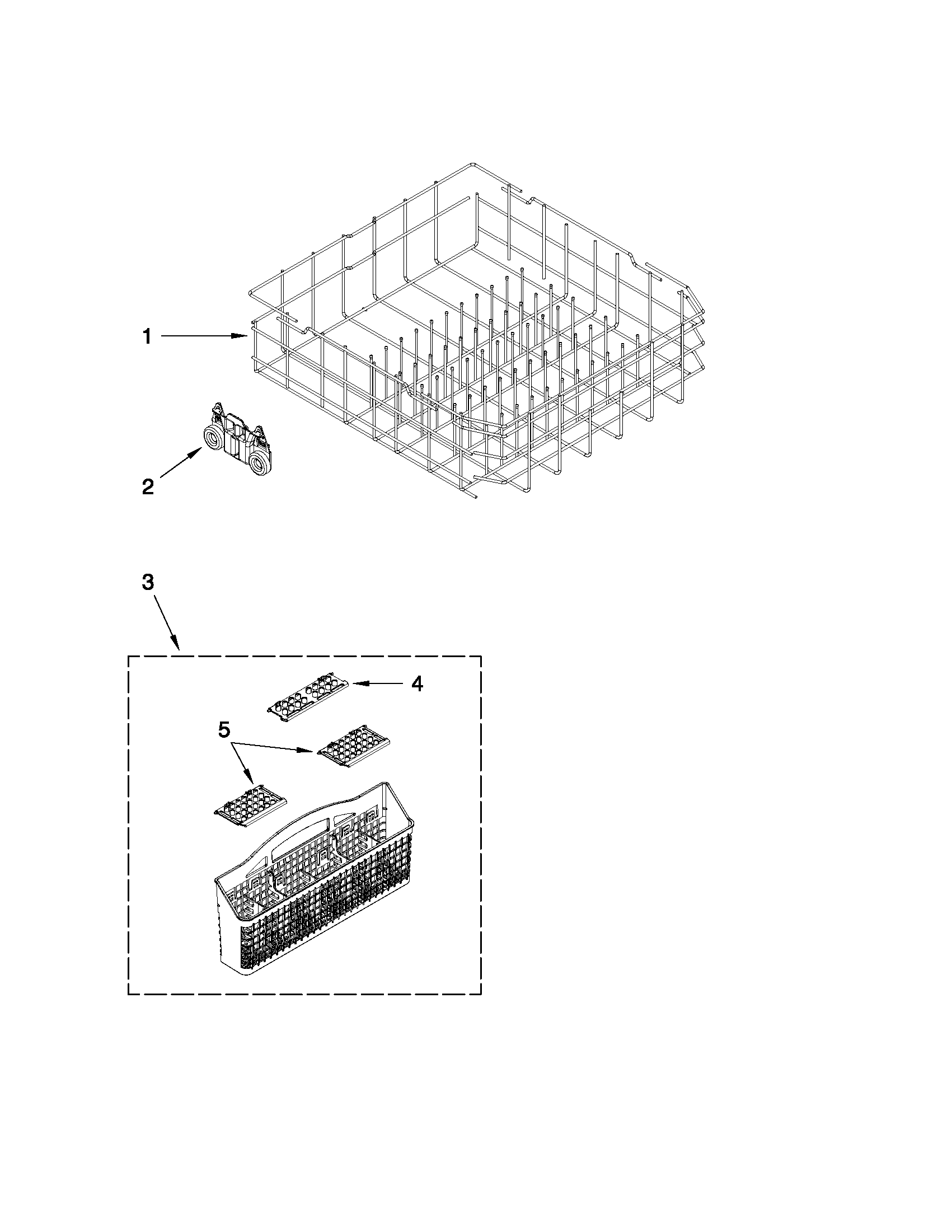

• Dishwasher dishrack roller assembly, lower WPW10195417 (helps the lower rack roll smoothly)
• Dishwasher dishrack slide rail stop, upper WPW10195622 (keeps the upper rack from sliding off)
• Dishwasher tine pivot clip WPW10082853 (restores folding tine stability)

Why it matters

“High end” should translate into quieter cycles, better cleaning, and more durable usability features. If performance is slipping, checking filtration, rack hardware, and wash system components is often more impactful than changing detergents alone.

Last updated: February 2026

For Kenmore Elite dishwasher model 66513929K010, the installation guide lists the dishwasher at about 24 1/2 inches deep and 33 7/8 inches tall (minimum), with a standard 24-inch cutout depth; height can be reduced to about 33 3/4 inches by removing the wheels and a perforated insulation section. See the 66513929K010 installation guide for the exact diagram.

Model 66513929K010 dimensions at a glance

Use these measurements when planning cabinet fit and leveling.

• Dishwasher depth (product): about 24 1/2 in. (62.2 cm)
• Minimum height (product): about 33 7/8 in. (86 cm)
• Cutout depth (opening): 24 in. (61 cm)
• Height adjustment option: can be reduced to about 33 3/4 in. (85.7 cm) by removing wheels and perforated insulation
• Cutout width guidance: plan for a standard 24-inch class opening; confirm your exact opening at the narrowest point

Product vs. cutout dimensions (what to measure)

What you are measuring	What it means	Typical value for 66513929K010
Product depth	Dishwasher cabinet front-to-back	~24 1/2 in.
Cutout depth	Cabinet opening depth available	24 in.
Product height (min.)	Lowest install height before adjustments	~33 7/8 in.
Adjusted height	Height after wheel/insulation change	~33 3/4 in.

How we recommend measuring before you buy parts or install

• Measure the opening width at the narrowest point (front and back).
• Measure the opening height from the lowest point under the countertop to the floor.
• Measure opening depth from the cabinet face to the back wall.
• Check for intrusions (pipes, wiring, shutoff valve) that reduce usable space.
• Confirm the dishwasher can be leveled without the motor contacting the floor.

Why it matters

Correct cutout and product dimensions prevent door rubbing, poor leveling, vibration, and leaks. A tight opening can also pinch the drain hose or water line, which can lead to draining or filling problems.

Last updated: February 2026

On our Kenmore Elite dishwasher model 66513929K010, a red lock (padlock) light means the Control Lock is turned on, so the buttons are disabled and the dishwasher will not start. Turn it off by pressing and holding CONTROL LOCK for 3 seconds (see the 66513929K010 owner's manual).

How to confirm it is the Control Lock

• Look for LOCK ON (or a padlock icon) lit on the control panel.
• Press any button; when locked, the lock light typically flashes and you may hear a tone.
• The door can still open and close normally, but the cycle will not run.
• If the dishwasher will not respond to START/RESUME, check the lock first.

How to turn the lock off (and back on)

1. Make sure the dishwasher is powered on.
2. Press and hold CONTROL LOCK for 3 seconds.
3. Verify the lock indicator turns off.

What you see	What it means	What to do
Red padlock or LOCK ON lit	Controls are locked	Hold CONTROL LOCK 3 seconds
Lock light flashes when you press buttons	Dishwasher is ignoring inputs	Unlock, then reselect cycle
Door opens but unit will not start	Lock can still be on	Unlock, then press START/RESUME

Why it matters

Control Lock prevents accidental button presses during cleaning or when kids bump the panel. If it is on, the dishwasher cannot run, even though power is available.

Last updated: February 2026

On a Kenmore Elite dishwasher, an F4E1 code points to a wash motor or wash pump problem (the dishwasher is not circulating water correctly). On model 66513929K010, we treat this as a circulation issue first, then clear the code after the repair using the keypad sequence shown in the 66513929K010 owner’s manual.

What to check first (fast, no parts)

• Turn off power at the breaker for 1 minute, then restore power and try a quick cycle.
• Confirm the water supply valve is fully open and the fill is normal.
• Make sure spray arms spin freely and are not blocked by tall dishes.
• Clean the filter area so the sump can feed the wash pump properly.
• Listen during wash: a steady hum with little water movement usually indicates a circulation problem.

How to clear the F4E1 code after a repair

Many Kenmore Elite models clear stored faults by entering a service-style key sequence. Use this common reset method:

• Press any 3 keys in a 1-2-3 pattern
• Repeat three times: 1-2-3, 1-2-3, 1-2-3

If your console layout differs, use the exact steps listed in the 66513929K010 owner’s manual.

Parts that commonly solve an F4E1 circulation problem

If the dishwasher fills but does not wash well, these parts are frequent suspects:

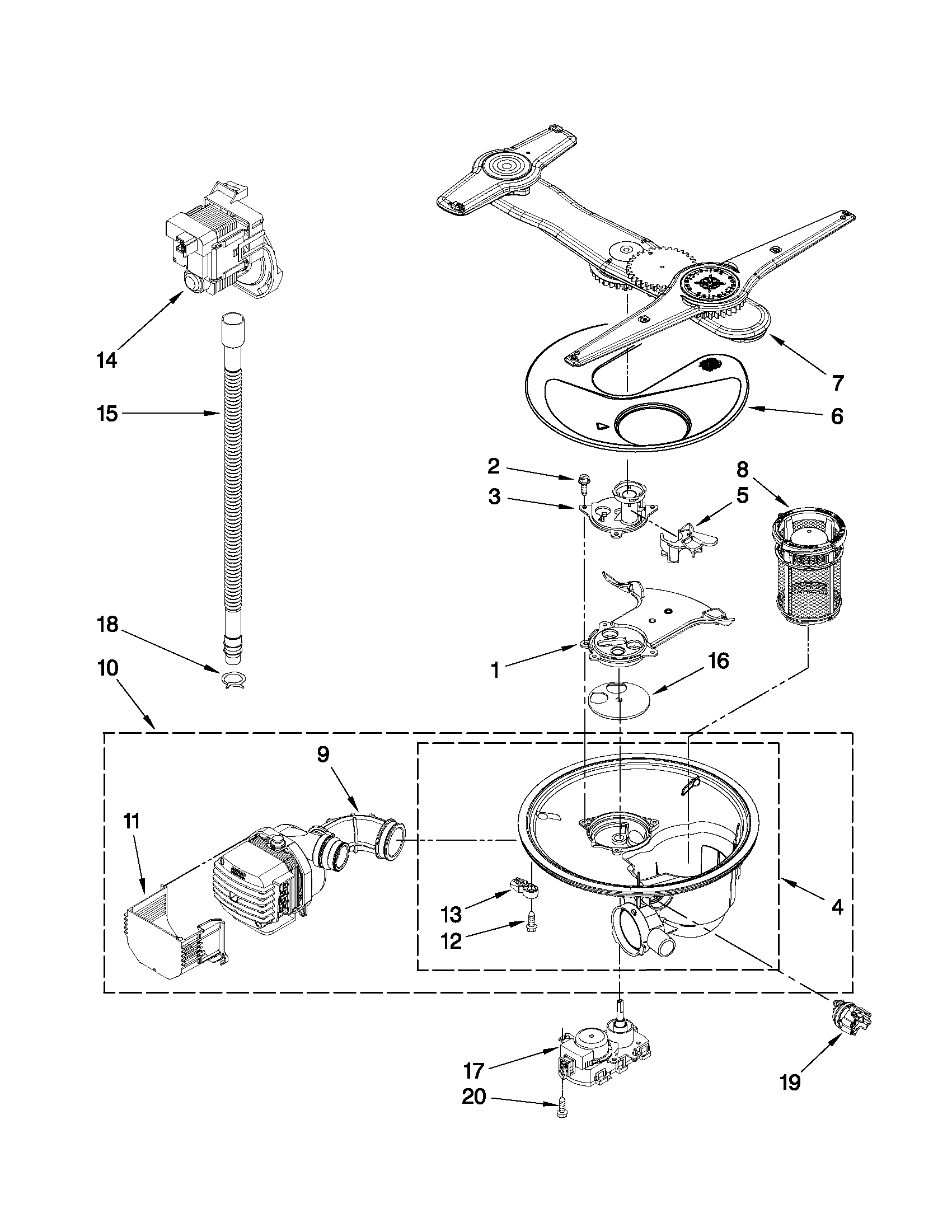

• Wash motor or pump assembly (circulation)
• Sump and filter components
• Diverter motor (if water is not routing to the correct spray arm)
• Turbidity sensor (can affect wash decisions on some cycles)

Quick part-to-symptom guide

Symptom during wash	Most likely area	Example model-listed part
Fills, then quiet, poor cleaning	Circulation/wash system	Sump sump W10168822
Intermittent wash pressure	Diverter routing	Dishwasher diverter motor W10155344
Drains fine but wash is weak	Filter/sump restriction	Dishwasher filter W10872845

Why it matters

When the wash pump cannot circulate water, dishes stay dirty and the unit can stop mid-cycle or repeat draining. Fixing the circulation cause first prevents repeat error codes and protects the heater from running with poor water movement.

Last updated: February 2026

A Kenmore Elite dishwasher typically lasts 10 years with normal household use. For your Kenmore Elite model 66513929K010, consistent cleaning, correct loading, and fixing small issues early (like poor draining or leaks) are the biggest factors that keep it running to that 10-year mark.

Typical lifespan and what affects it

Most dishwashers fall into a similar life range, but day-to-day conditions make a big difference.

• Water quality: hard water speeds up mineral buildup on the heater and internal parts
• Maintenance: cleaning filters and checking spray arms prevents wash problems
• Usage: multiple heavy loads daily shortens life compared to 3 to 5 loads per week
• Detergent and rinse aid: correct amounts reduce residue and pump strain
• Early repairs: replacing a worn seal or weak drain pump prevents bigger damage

Quick maintenance checklist (best ROI)

Use these habits to extend the service life of a Kenmore Elite undercounter dishwasher.

• Clean the filter area regularly; see the 66513929K010 owner's manual for the exact steps
• Rinse heavy food soil off dishes and avoid blocking the spray arm
• Run hot water at the sink before starting a cycle (improves wash performance)
• Check the door sealing surfaces for debris and wipe them clean
• If you notice slow draining, inspect the drain path and hose routing

Parts that commonly impact “end of life” decisions

When these parts fail, performance drops fast; replacing them often restores normal operation.

Symptom	Common cause	Example part for 66513929K010
Won’t drain or drains slowly	Drain pump worn or jammed	Dishwasher drain pump WPW10348269
Poor drying	Heater not heating	Dishwasher heater W10703867
Leaks at the bottom of the door	Lower door seal worn	Seal WPW10497235
Dishes gritty or dirty	Filter clogged or damaged	Dishwasher filter W10872845

Why it matters

A dishwasher near the end of its lifespan often shows up as longer cycle times, poor drying, or recurring drain issues. Staying ahead of filter cleaning and addressing leaks quickly helps protect the tub, wiring, and motor area (installation clearances and routing also matter; see the 66513929K010 installation guide).
