Craftsman 917276310 garden tractor Parts

For the Craftsman 917276310 garden tractor, we use a high-quality detergent 4-cycle engine oil that meets API service classification SG-SL, then choose the SAE viscosity based on outdoor temperature (multi-viscosity oils like 5W30 or 10W30 help cold starting). See the oil viscosity chart in the 917276310 owner's manual.

Recommended oil type and viscosity

Use these rules to pick the right oil for your mowing season:

• Use 4-cycle engine oil (never 2-cycle mix).
• Choose detergent oil rated API SG-SL.
• Match SAE viscosity to your expected temperature range.
• If you run 5W30 or 10W30 above 32°F, check the oil level more often because oil consumption increases.
• Check oil on level ground and fill only to the FULL mark on the dipstick.

Quick viscosity guide (common choices)

Typical conditions	Common SAE choice	What to expect
Cold-weather starting	5W30	Easier starting in cold temps
Mixed spring and fall temps	10W30	Good all-around option
Warm-weather mowing	SAE 30	Stable in heat, common “summer weight”

Oil level checks and change interval

Keeping the crankcase full is as important as picking the right oil.

• Check engine oil before starting.
• Recheck after each 8 hours of operation.
• Change oil every 50 hours or at least once per year.
• Drain oil when the engine is warm (it flows out more freely).

Why it matters

Correct oil viscosity and API rating protect internal engine parts, reduce wear, and help prevent hard starting and overheating. On a riding mower like the Craftsman 917276310, low oil level is a top cause of premature engine damage.

Last updated: February 2026

Replacing the engine on your Craftsman riding tractor model 917276310 is worth it when the tractor’s deck, steering, and transmission are solid and you want to extend the machine’s life for less than the cost of a comparable replacement mower. If the tractor has multiple major issues, replacement is the better value.

Quick decision checklist

• Replace the engine if the mower deck is straight, not rusted through, and cuts evenly after basic service.
• Replace the engine if the tractor stops properly and the brake can be adjusted to spec (a key safety and drivability check).
• Replace the engine if the wiring, safety switches, and PTO engagement are reliable.
• Replace the engine if you can do the labor yourself or the total installed cost stays well below a new tractor.
• Replace the tractor if it also needs a transmission, major steering rebuild, or extensive deck/mandrel work.

What to inspect before you spend money

Use the maintenance and troubleshooting guidance in the 917276310 owner’s manual to evaluate the rest of the tractor, not just the engine.

High-value checks (common deal-breakers):

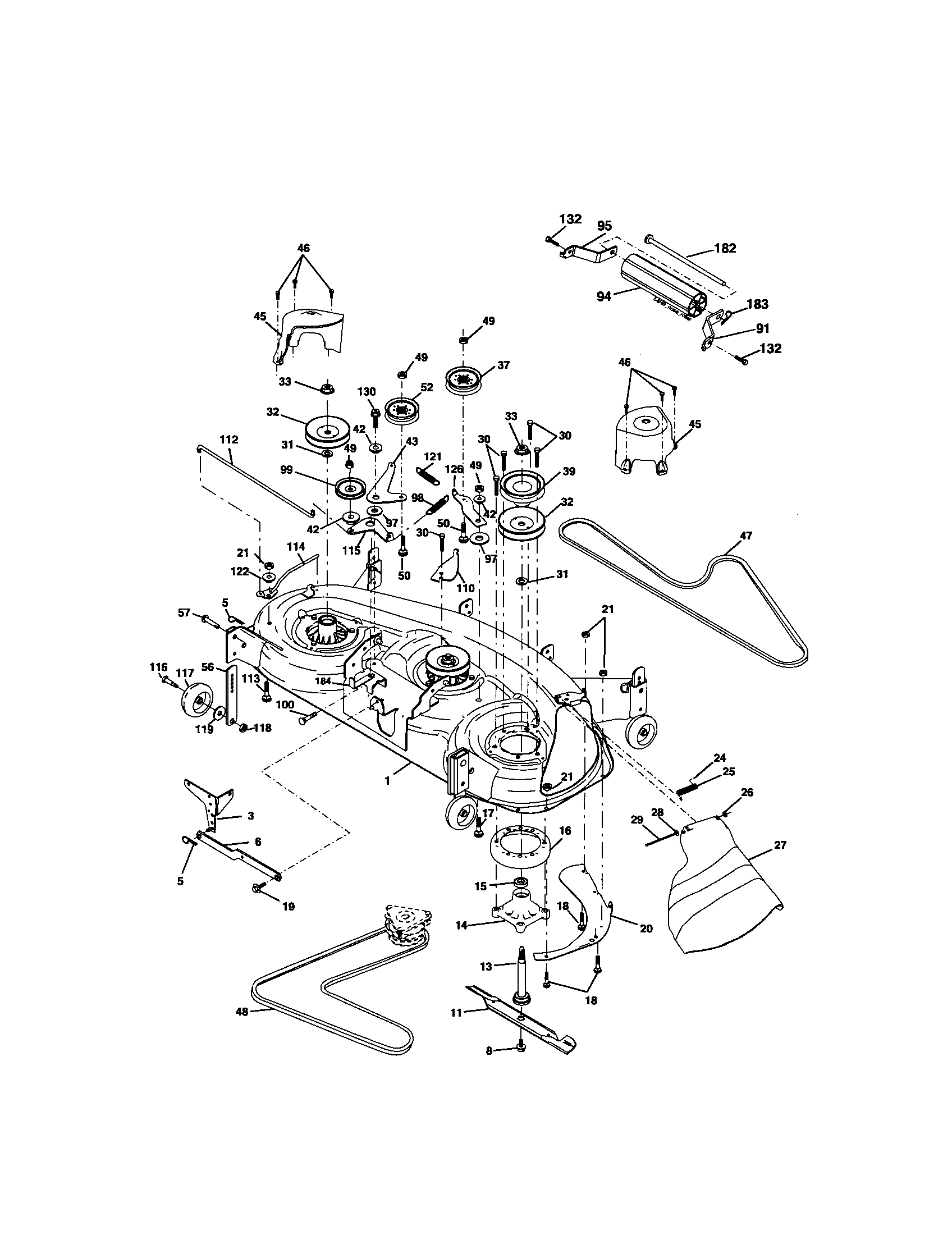

• Deck condition: excessive vibration, uneven cut, or recurring belt issues can point to bent mandrels or worn pulleys.
• Cooling and fire-safety condition: clogged cooling fins or debris buildup can cause overheating and shorten engine life.
• Fuel system health: stale fuel and a restricted fuel filter can mimic “bad engine” symptoms.
• Stopping performance: if stopping distance is still excessive after adjustment, brake service becomes part of the total cost.

Typical cost logic (simple rule)

Scenario	What it usually means	Best choice
Engine is the only major failure	Chassis is worth saving	Replace engine
Engine plus deck/drive/brake issues	Costs stack quickly	Replace tractor
You need faster turnaround	Less downtime matters	Replace tractor

Parts that often get addressed during engine-related repairs

Even when you replace an engine, we often see customers refresh wear items that affect mowing performance and safety.

• Switch.pto 582107601 (if the PTO engagement is intermittent)
• Lawn tractor electric clutch 532414737 (if the clutch slips, squeals, or will not engage)
• Lawn tractor lawn mower secondary v-belt 532137153 (if the drive belt is glazed, cracked, or stretched)

Why it matters

An engine swap only pays off when the rest of the tractor is dependable. A quick inspection of the deck, belts, PTO system, cooling cleanliness, and braking performance prevents spending engine money on a tractor that still will not mow safely or consistently.

Last updated: February 2026

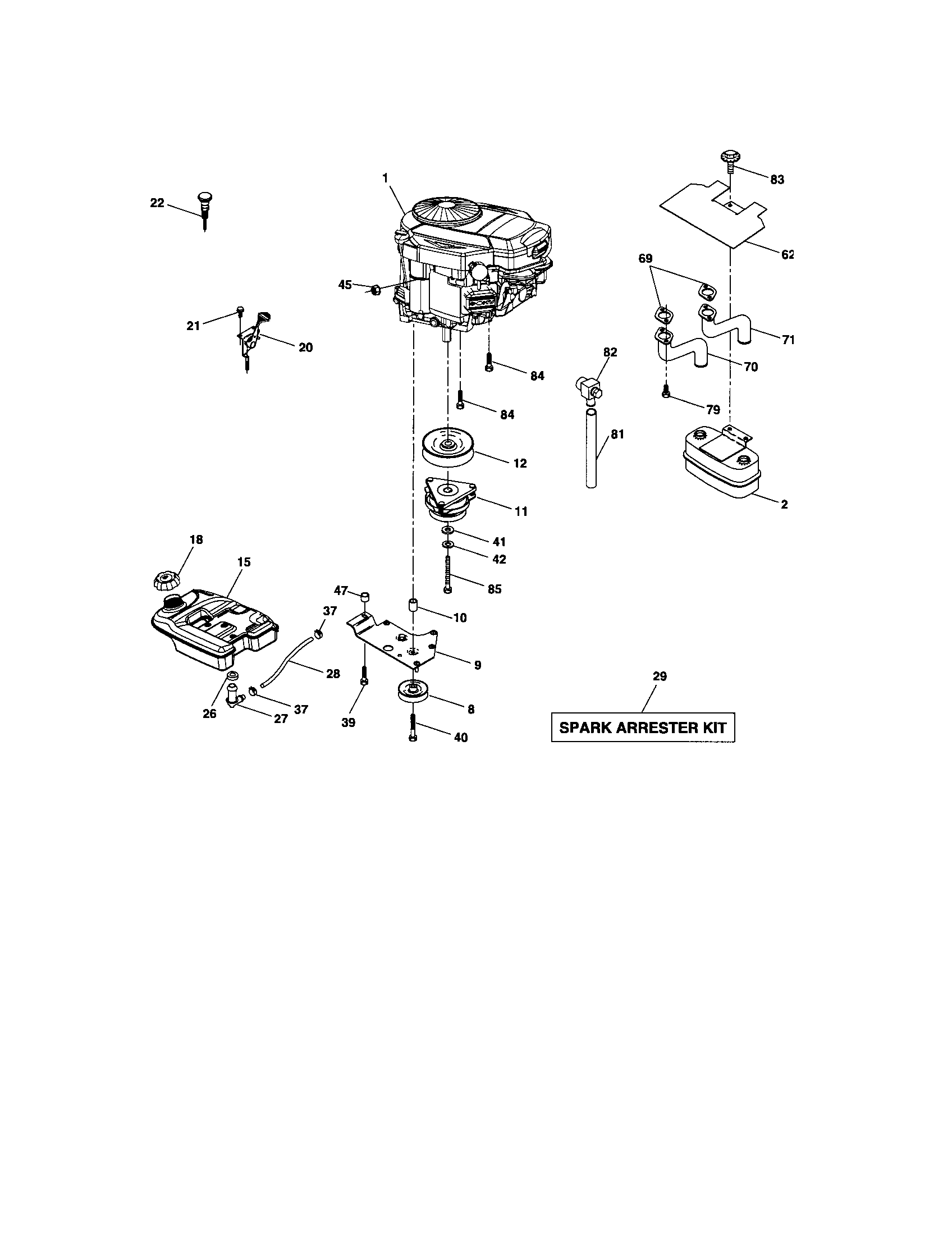

For Craftsman model 917276310, the owner’s manual identifies it as a 24.0 HP garden tractor with a low-emission engine and a 48-inch mower deck; the manual does not call out a specific engine brand on the pages shown. For the exact engine make and model, we use the engine ID label information referenced in the 917276310 owner's manual.

How to identify the exact engine on your 917276310

Use these quick checks to match the correct engine parts (air filter, spark plug, fuel parts) and service specs:

• Look for the engine ID label on the engine shroud, valve cover, or blower housing
• Write down the engine model, type, and code (or spec number)
• Compare that ID to the engine section and specifications in the manual
• If the label is dirty, wipe it clean; take a photo before ordering parts
• Use the tractor model number 917276310 plus the engine ID when searching parts

Common engine types used on Craftsman garden tractors

Many Craftsman front-engine garden tractors in this class use a single-cylinder or V-twin gasoline engine, depending on the production run and configuration. The engine ID label is the only reliable way to confirm what your specific unit has.

What you need	Where to find it	Why it matters
Tractor model number (917276310)	Model tag under seat or frame area	Ensures chassis and deck parts match
Engine model/type/code	Engine ID label on the engine	Ensures tune-up and fuel parts match
Deck size (48-inch)	Manual and deck tag	Ensures blades and belt routing match

Why it matters

Ordering the wrong engine parts is the most common reason for returns on riding mower repairs. Confirming the engine ID first helps you get the correct maintenance items and prevents issues like hard starting, poor power, or stalling.

Last updated: February 2026
