On Kenmore Elite refrigerator model 79572183314, dH (often shown as Er dH) points to a defrost heating problem: the refrigerator is not sensing the expected temperature rise during the defrost cycle, so frost can build up and airflow can drop. See the 79572183314 owner's manual for the exact display wording and reset steps.

What you’ll usually notice

• Refrigerator section warming up while the freezer stays closer to normal
• Frost or ice buildup on the freezer back wall
• Fan noise changes (fan hitting ice) or weak airflow from vents
• Water leaking or puddling after a defrost attempt
• Ice maker performance dropping because temperatures are unstable

Quick checks we recommend (safe, no tools first)

1. Power reset: unplug for 5 minutes, then restore power.
2. Confirm doors seal and close fully: a leaky gasket can overload the defrost system.
3. Check for blocked vents: avoid packing food tight against air returns.
4. Look for heavy frost on the freezer rear panel (a strong clue of defrost failure).

Parts commonly involved in a dH/Er dH condition

If the code returns after a reset, these are the most common suspects on bottom-mount designs:

What can fail	What it does	What happens when it fails
Defrost sensor/thermistor	Tells the control how warm the evaporator gets during defrost	Defrost ends too soon or never “proves” heat
Defrost heater circuit	Melts frost off the evaporator	Frost builds up, airflow drops
Control board	Powers and times the defrost cycle	Defrost never starts or runs incorrectly

For this model, a common related part is the refrigerator defrost sensor assembly 6615JB2005R.

Why it matters

A defrost heating error is not just a nuisance. If frost keeps building, the evaporator can’t move cold air properly, which leads to warm temperatures, spoiled food, and extra strain on the compressor.

Last updated: January 2026

On Kenmore Elite refrigerator model 79572183314, water leaking from the bottom is usually caused by a clogged defrost drain (water overflows into the cabinet), a leak in the dispenser water line, or a door seal issue that creates excess condensation. Start by checking the drain and water tubing using the 79572183314 owner's manual.

Quick checks (most common causes)

• Defrost drain clogged or frozen: Water from normal defrosting cannot reach the drain pan and spills inside.
• Cracked or loose water tubing: Often shows up as dripping near the lower hinge area or under the unit.
• Filter not seated or filter head leaking: A small leak can run down and pool at the bottom.
• Door gasket not sealing: Warm air enters, moisture condenses, then water collects and leaks.
• Ice maker fill or dispenser area leak: Slow leaks can track down the back wall and exit at the base.

Step-by-step troubleshooting

1. Unplug the refrigerator and pull it out enough to inspect safely.
2. Look for water source clues:
   • Water only after defrost cycles often points to the defrost drain.
   • Water only when dispensing points to the water line or filter area.

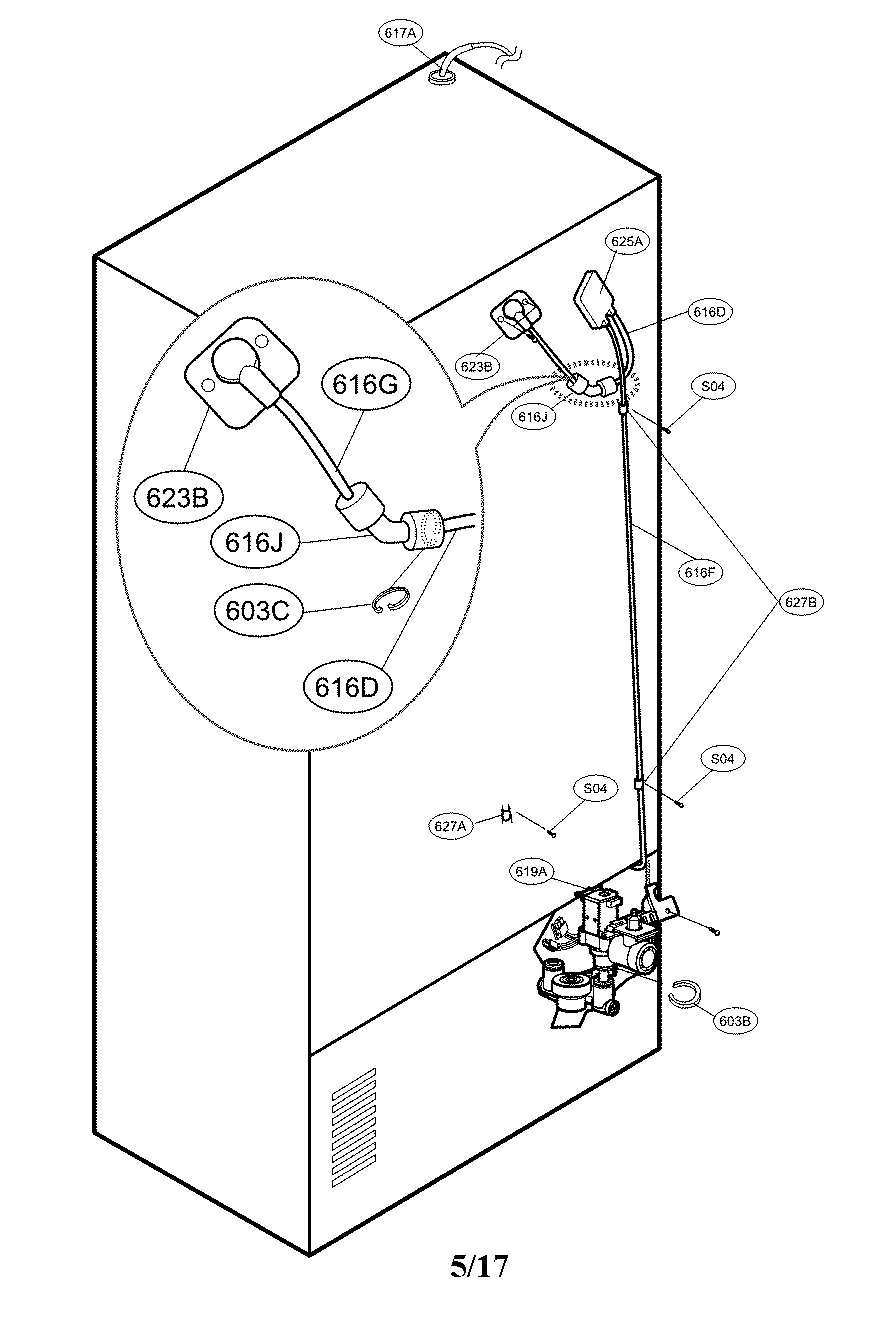

3. Inspect the water line path (rear, lower cabinet, and door hinge area). If tubing is brittle, kinked, or wet, replace it.
4. Check the filter seating and housing for drips; replace the filter if it is overdue.
5. Inspect the right door gasket for gaps, tears, or hardened sections; clean the sealing surface and confirm the door closes squarely.

Parts that commonly fix bottom leaks on this model

Symptom you see	Likely area	Part to consider
Water under crisper or inside fresh food section	Defrost drain system	Drain clearing (no part needed first)
Water near back/bottom or hinge area	Water supply tubing	Refrigerator water tubing MJU62070602
Drips at filter area, poor water flow	Water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801

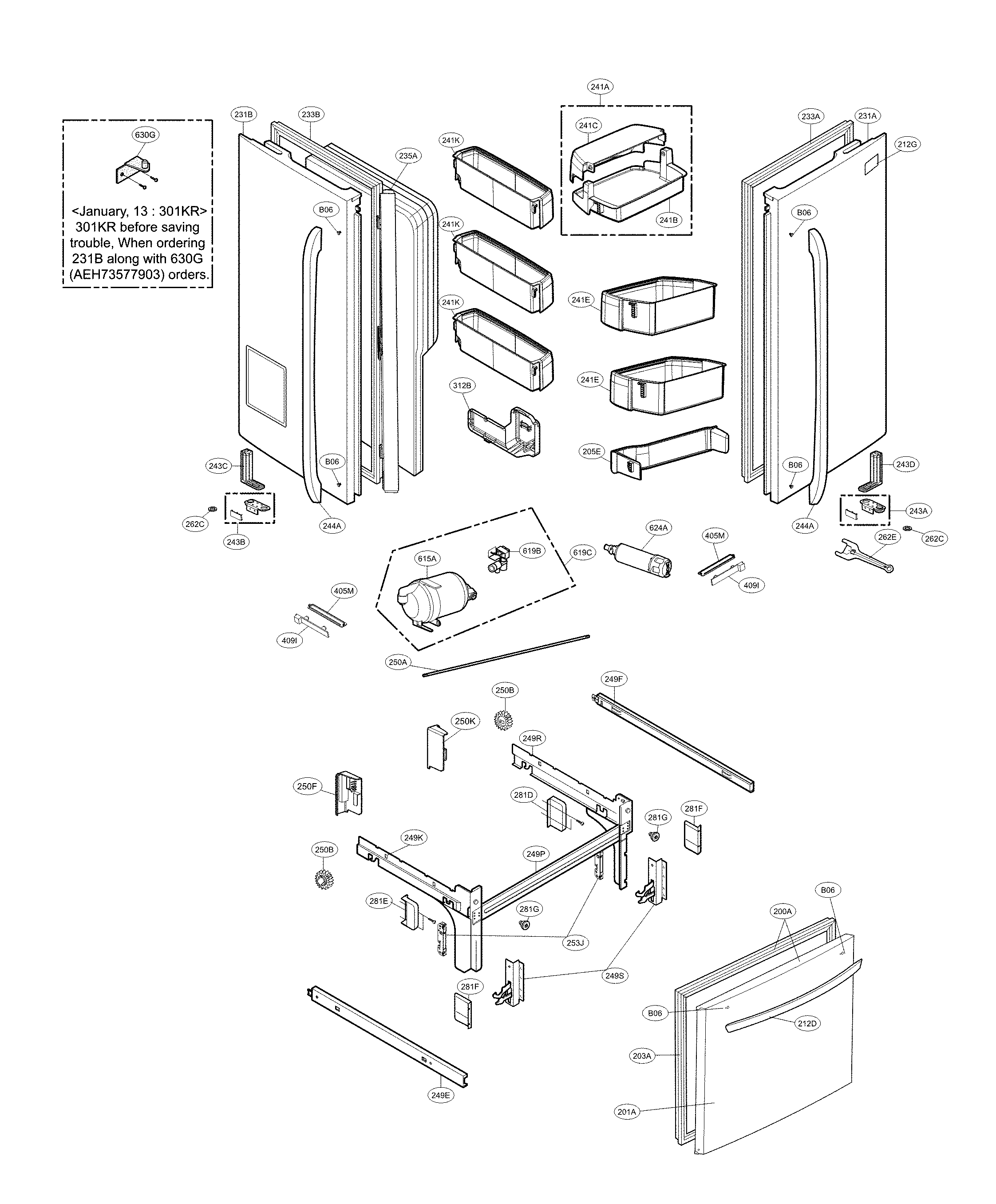

Moisture, sweating, or recurring puddles	Door seal	Refrigerator door gasket, right ADX72930461

Why it matters

A small leak can lead to ice buildup, odors, and floor damage. Fixing the source also helps your Kenmore Elite 79572183314 maintain stable temperatures and reduces compressor run time.

Related DIY help

• Use how to replace the water filter in a Kenmore refrigerator if the leak started after a filter change or you suspect the filter housing.

Last updated: January 2026

If your Kenmore Elite refrigerator model 79572183314 is warm at the bottom, the most common causes are restricted airflow (blocked vents, iced-up evaporator area) or poor heat release from dirty condenser coils. Start with cleaning and airflow checks, then move to fan, defrost, and damper diagnostics using the 79572183314 owner's manual.

Quick checks that fix many “warm bottom” complaints

• Make sure food packages are not blocking air vents in the fresh food section.
• Set temperatures to typical targets: 37°F for refrigerator, 0°F for freezer.
• Confirm the doors close fully and the gaskets seal all the way around.
• Clean dust and pet hair from the condenser area (bottom/back, depending on installation).
• Listen for the evaporator fan running when the compressor is on (often a steady whir).

Likely causes and what to look for

What you notice	Most likely cause	What to do next
Freezer is cold but refrigerator bottom is warm	Airflow problem (damper stuck, vents blocked, fan issue)	Check vent blockage; inspect damper operation; verify fans run
Frost or ice buildup on rear freezer panel	Defrost system problem	Inspect defrost sensor and airflow; defrost manually to confirm pattern
Whole unit struggles to cool, compressor runs a lot	Dirty condenser coils or condenser airflow issue	Clean coils; ensure clearance and airflow around the unit

Parts that commonly relate to this symptom (model 79572183314)

If cleaning and vent checks do not restore cooling, these model-matched parts are often involved:

• Refrigerator condenser coil ACG73645004 (heat rejection; dust buildup can reduce cooling)
• Refrigerator air damper ADJ73252235 (controls cold air flow into the refrigerator section)
• Refrigerator defrost sensor assembly 6615JB2005R (helps regulate defrost to prevent ice blockage)

Why it matters

Bottom-area warming usually means cold air is not circulating correctly. When airflow is restricted, temperatures become uneven, food spoils faster, and the compressor can run longer than normal, increasing energy use.

Helpful step-by-step guidance

For model-family troubleshooting and display diagnostics, use Kenmore 795 model bottom freezer refrigerator error codes. For filter-related flow issues that can sometimes coincide with dispenser performance, use how to replace the water filter in a Kenmore refrigerator.

Last updated: January 2026

For Kenmore Elite model 79572183314, the most common problems we see are cooling issues (warm fridge or freezer), ice maker or water dispenser failures, and temperature swings caused by airflow or control problems. Use the 79572183314 owner's manual to confirm normal settings and feature operation before replacing parts.

Most common symptoms and what they usually point to

• Not cooling or weak cooling: dirty condenser area, airflow restriction, evaporator fan or defrost system trouble
• Ice maker not making ice: water supply issue, frozen fill path, failed ice maker module
• Water dispenser slow or not dispensing: clogged filter, kinked tubing, inlet valve issue
• Frost buildup in freezer: defrost sensor/heater/control problem, door not sealing
• Temperature too warm or too cold: damper or control board issues, blocked vents

Quick checks we recommend first (no parts needed)

1. Verify temperature settings and that vents are not blocked by food packages.
2. Listen for the evaporator fan running when the doors are closed (you may need to press the door switch).
3. Check door closing and gasket contact all the way around.
4. Confirm the water supply valve is fully open and the line is not kinked.
5. Unplug the refrigerator for 5 minutes, then restore power to clear a minor control glitch.

Parts that commonly solve these problems on this model

Symptom	Common part to inspect/replace	Example part for 79572183314
Bad taste/slow water flow	Water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801
Odors in fresh food section	Air filter	Lg refrigerator air filter ADQ73214408
Frost buildup/defrost errors	Defrost sensor	Refrigerator defrost sensor assembly 6615JB2005R
Warm temps from poor airflow	Air damper	Refrigerator air damper ADJ73252235

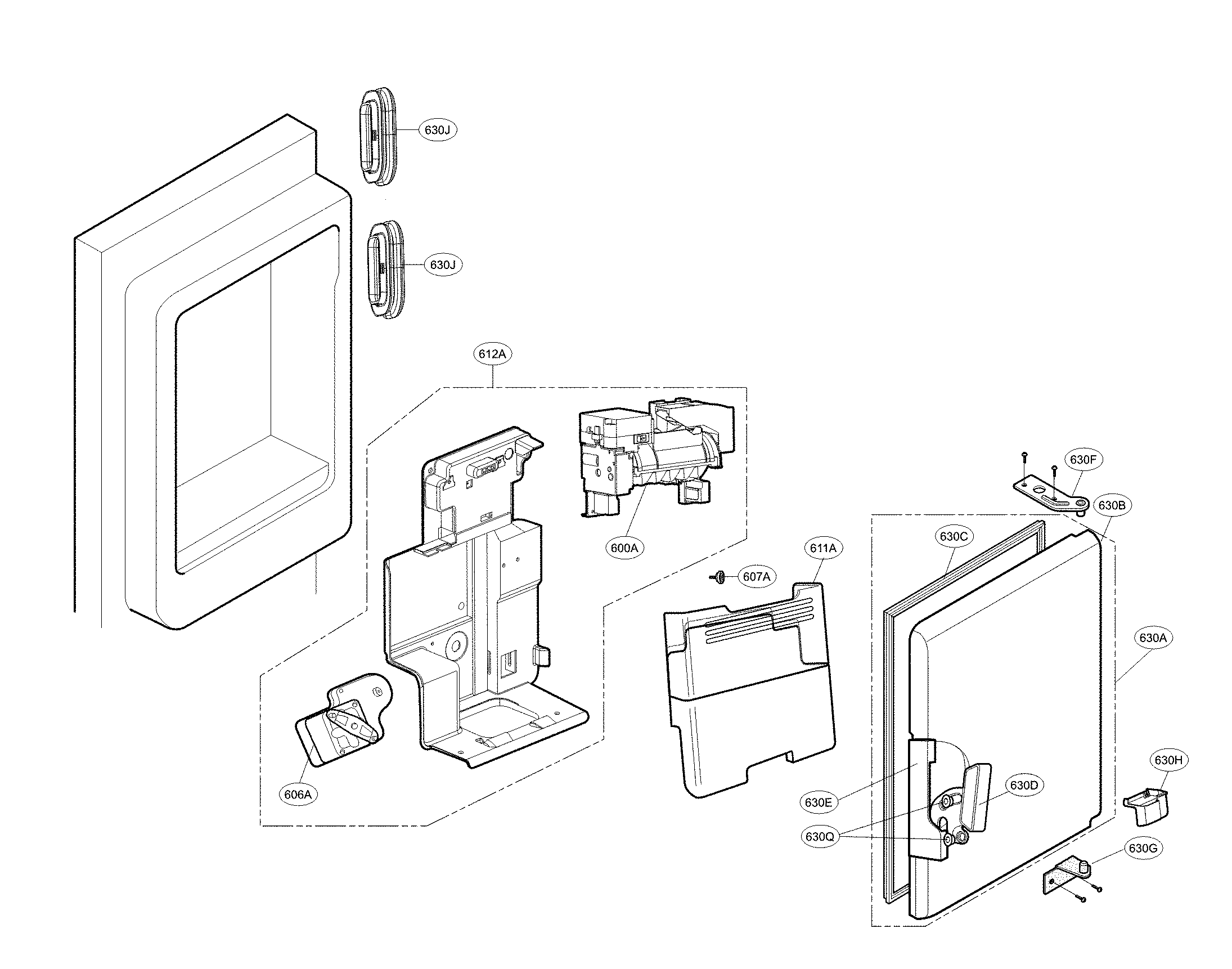

Ice production problems	Ice maker	Ice maker assembly (AEQ73110203) - refrigerator ice making component by lg AEQ73110203

Why it matters

Catching airflow, filtration, and defrost problems early helps prevent food spoilage, reduces compressor run time, and avoids secondary damage like ice buildup around the evaporator.

Related DIY help

• Kenmore 795 model bottom freezer refrigerator error codes
• How to replace the water filter in a Kenmore refrigerator

Last updated: January 2026
