How do I tell what model Craftsman mower I have?
On a Craftsman riding mower, the model number is printed on the product identification label. For Craftsman model 917271030, the model number also appears in the 917271030 owner's manual, and it is commonly found on a label under the seat area or on the frame near the operator position.
Where to look on the mower
Check these common ID-label locations first (clean the area if it is dusty or oily):
- Under the seat (flip or tilt the seat forward and look on the underside or the seat pan)
- On the frame rail below the seat
- Near the rear fender or footrest area
- Under the hood near the engine compartment
- Near the mower deck lift area on the chassis
What number you need (model vs. serial)
You will usually see multiple identifiers. Use the model number to match parts diagrams and the manual.
| Label item | What it’s used for | Example format |
|---|---|---|
| Model number | Correct parts lookup and diagrams | 917271030 |
| Serial number | Manufacturing run tracking | Varies |
| Engine model/type | Engine-specific tune-up parts | Varies |
Tips to confirm you have the right model
Use these quick cross-checks to avoid ordering the wrong parts:
- Match the model number exactly, including all digits
- Compare deck size and features listed in the manual (this model is a 42-inch mower deck)
- Verify key maintenance specs in the manual (fuel capacity, oil type, tire pressure)
- If you are replacing deck parts, confirm the deck section in the manual matches your setup
Why it matters
Craftsman tractors can look similar across years, but belts, blades, mandrel assemblies, and steering parts can differ by model. Using the exact model number (like 917271030) helps ensure the parts you choose fit your tractor and mower deck correctly.
Last updated: February 2026
How much does it cost to replace a riding lawn mower engine?
For a Craftsman riding lawn tractor like model 917271030, a full engine replacement (parts plus labor) typically runs $260 to $1,800 installed, with labor commonly around 6 hours depending on the shop and whether related items (belts, pulleys, wiring) also need service. See the 917271030 owner's manual for model-specific service and safety guidance.
What drives the total replacement cost
- Engine type and horsepower (OEM-equivalent engines cost more than universal replacements)
- Labor rate at the repair shop (often the biggest variable)
- Extra parts replaced “while we’re in there” (drive belt, blade drive belt, pulleys, hardware)
- Condition of mounting bolts and wiring (rust, damaged connectors, or safety switch issues add time)
- Pickup/delivery or on-site service fees (common for riding equipment)
Common add-on parts to budget for
Even when the engine is the main issue, we often see wear items replaced at the same time to prevent repeat breakdowns:

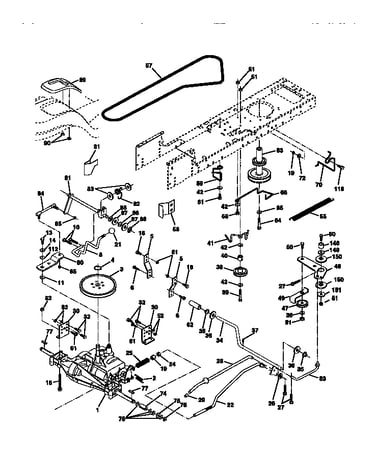

- V-belt 532138255 (ground drive belt)
- Lawn tractor drive belt 532144200 (blade drive belt)
- Engine pulley 532140186 (if worn or damaged)
- Exhaust muffler 532159420 (if corroded, it can become a safety and performance problem)
- Hex flange lock nut 532409149 (hardware that is stripped or seized)
Quick cost snapshot
| Scenario | What’s included | Typical total |
|---|---|---|
| Budget repair | Engine swap only, minimal extras | $260 to $700 |
| Most common | Engine swap plus a few wear parts | $700 to $1,300 |
| High end | Premium engine plus multiple related repairs | $1,300 to $1,800 |
Why it matters
A riding tractor engine replacement is a major repair. If belts, pulleys, or the mower deck drive system are worn, replacing them during the engine job helps protect the new engine and restores reliable cutting and drive performance.
Last updated: February 2026
What are the common problems with Craftsman lawn mowers?
Common problems on a Craftsman riding mower like model 917271030 are no-start or weak-start conditions, loss of power, excessive vibration, and poor cutting or discharge. Most fixes start with basic maintenance (fuel, air filter, spark plug, oil) and checking the mower deck for grass buildup and worn belts. See the 917271030 owner's manual for the troubleshooting chart and maintenance steps.
Most common symptoms and what usually causes them

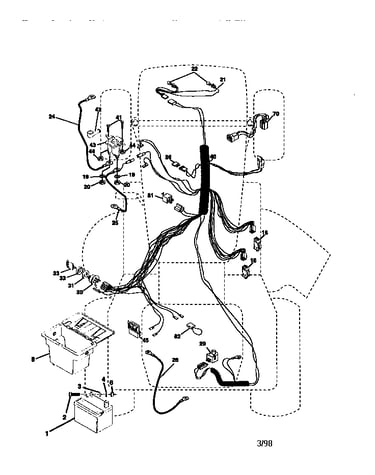

- Engine won’t start or cranks slowly: weak battery, dirty battery terminals, loose wiring, bad solenoid or starter
- Loss of power: dirty air filter, low or dirty oil, stale fuel, dirty fuel filter, grass buildup under the deck
- Excessive vibration: loose spark plug wire, damaged or loose blade, loose hardware
- Poor cut (uneven): worn or bent blade, deck not level, bent mandrel, debris under the deck
- Blades won’t rotate: worn or damaged mower drive belt, frozen idler pulley, frozen blade mandrel, obstruction in clutch mechanism
Quick checks we recommend first (fast, high-impact)
- Use fresh gasoline; drain old fuel if it smells sour or looks dark
- Clean or replace the air filter
- Check oil level and condition; change oil if dirty
- Inspect and regap or replace the spark plug; confirm the wire is tight
- Clean the underside of the mower deck and around mandrels (built-up grass causes poor discharge)
- Verify tire pressure is even side-to-side (uneven tires can mimic an unlevel deck)
Troubleshooting guide by symptom
| Symptom | Most likely area | Typical fix |
|---|---|---|
| Cranks but won’t start | Fuel delivery or ignition | Fresh fuel, clean filter, check spark plug |
| Starts then lacks power | Air, fuel, or deck load | Air filter, oil change, clean deck underside |
| Uneven cut | Deck setup or blades | Level deck, sharpen/replace blades |
| Blades don’t spin | Belt/mandrel/idler | Inspect belt, idler pulley, mandrel for binding |
Why it matters
These issues usually get worse quickly: a clogged deck reduces airflow and cut quality, a worn belt can slip and overheat, and stale fuel can gum up the carburetor. Staying on top of basic tune-up items prevents hard-starting and poor mowing performance.
Last updated: February 2026

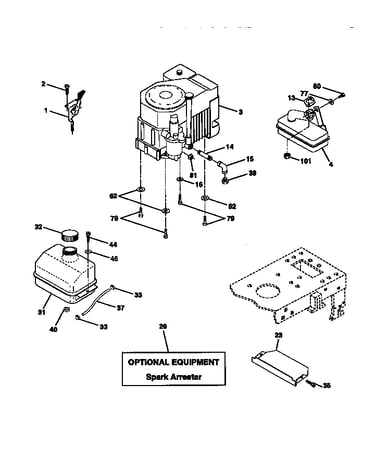

What engine does Craftsman riding mower use?
The Craftsman riding mower model 917271030 uses a single-cylinder gasoline engine (electric start) designed for lawn-tractor duty. For the exact engine manufacturer, model family, and tune-up specs for your tractor, we follow the identification and specifications section in the 917271030 owner's manual.
How to identify the exact engine on your 917271030
Most Craftsman tractors have an engine ID label on the engine shroud, valve cover area, or near the starter. Use these checks:
- Look for an engine model, type, and code stamped or printed on the engine label
- Record the spec number (often needed to match carburetor and ignition parts)
- Compare the label info to the engine section in the manual
- If the label is missing, use the tractor’s product specifications and parts diagrams to narrow it down
Model-specific specs we can confirm from the manual
Your 917271030 manual lists these tractor specifications (useful for matching engine service parts and settings):
| Spec item | 917271030 specification |
|---|---|
| Fuel capacity/type | 1.25 gallons, unleaded regular |
| Oil type (above 32°F) | SAE 10W-30 |
| Oil type (below 32°F) | SAE 5W-30 |
| Oil capacity | 4.0 pints |
| Spark plug | Champion RC12YC (gap 0.030 in) |
| Charging system | 15 amps @ 3600 RPM |
Why it matters
The engine brand and full engine model determine the correct air filter, spark plug cross-references, carburetor kit, and even the right governor and choke adjustments. Getting the engine ID right prevents ordering the wrong maintenance parts.
Related maintenance tip
If you are doing a seasonal tune-up, we recommend following the service intervals and fluid specs in the manual and using a step-by-step guide like how to tune up a riding lawn mower video for the common workflow.
Last updated: February 2026
What year did Craftsman make the 917271030?
Craftsman model 917271030 was made during the LT1000-era production run (most commonly late 1990s through mid-2000s); the exact build year is identified by the tractor’s product ID and date code on the model and serial tag, then confirmed against the parts listing in the 917271030 owner's manual.
How to find the exact year on your tractor
Look for the model and serial tag (often under the seat, on the rear fender pan, or near the frame rail). Then record the details exactly.
- Confirm the tag shows MODEL 917.271030 (format may include a dot)
- Write down the serial number and any date code on the tag
- Check for an engine model/spec code (Kohler or Briggs & Stratton) on the engine shroud
- Compare the tag information to the illustrated parts breakdown in the manual
- If the tag is missing, use major component IDs (deck, steering, engine family) to narrow the era
What we can confirm from the documentation
The manual excerpts for this tractor identify the model and key assemblies, which helps confirm you are working with the correct platform.
| Item in documentation | What it tells you | Why it helps date the tractor |
|---|---|---|
| Model shown as 917.271030 | Confirms the exact tractor model | Ensures you are matching the right parts diagrams |
| Engine listed as Kohler CV16-43514 | Identifies a common engine family used on this series | Engine spec codes often map to a production date |

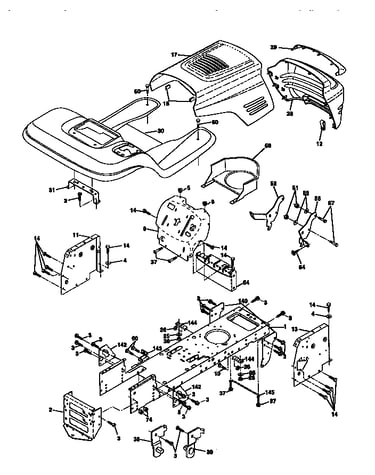

| Steering and chassis breakdowns | Confirms the LT1000-style layout | Helps distinguish from later chassis revisions |
Why it matters
Craftsman 917-series tractors often share similar looks across multiple years. Getting the exact build year (or at least the correct serial range) prevents ordering the wrong belt, blade, steering, or deck parts for your specific configuration.
Last updated: February 2026
