What engine does Craftsman riding mower use?

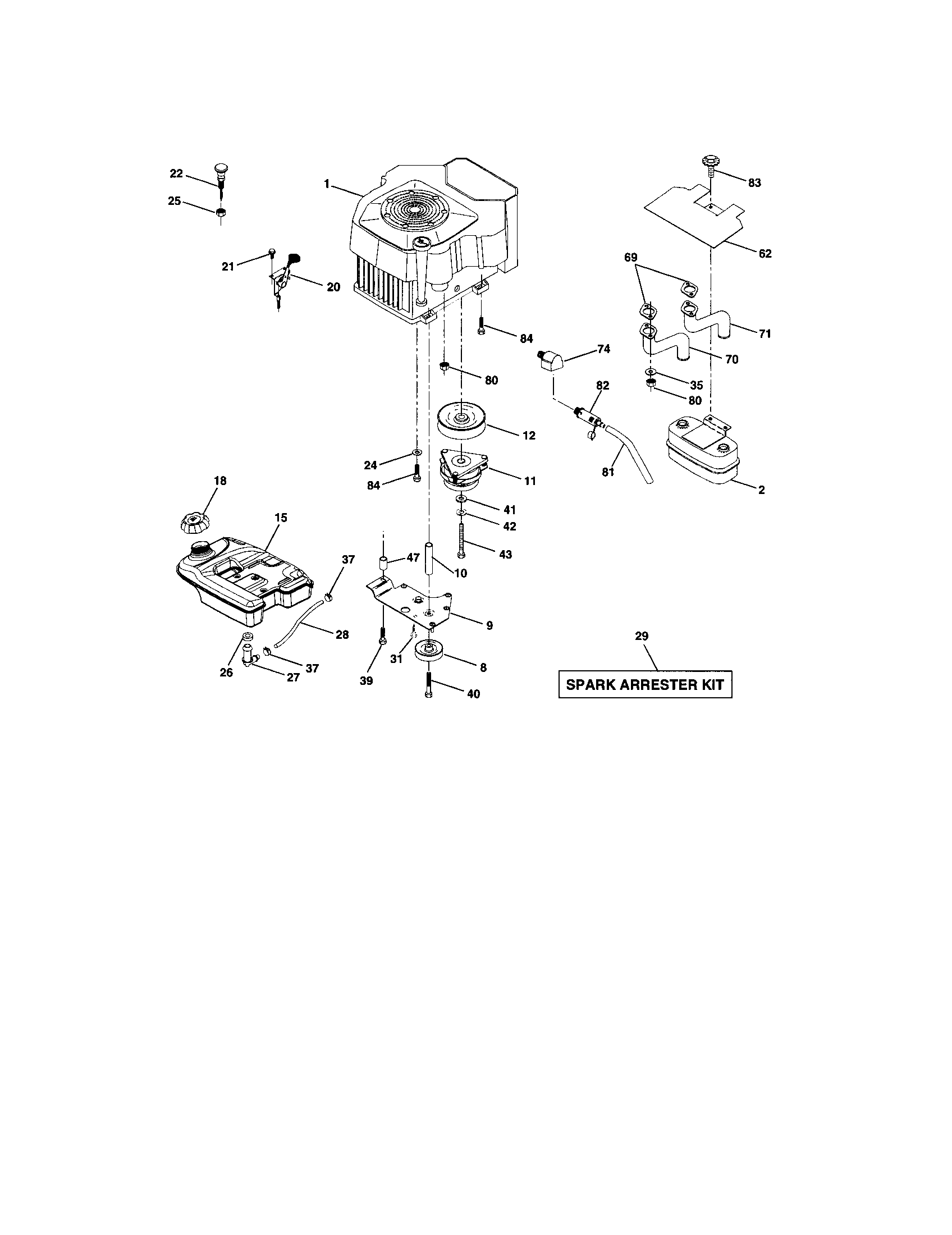

For Craftsman model 917276040 (front-engine lawn tractor), the engine is a single-cylinder gasoline engine; the exact engine brand and horsepower are listed on the engine ID label and in the 917276040 owner's manual. Use the engine model and type numbers from that label to match tune-up and fuel-system parts.
We recommend confirming the engine by reading the ID tag on the engine shroud or valve cover (not the tractor frame tag).
- Park on a flat surface, set the parking brake, and remove the key
- Let the engine cool completely before touching the muffler or shroud
- Look for an engine label that lists Model, Type, and Code (common on Briggs & Stratton)
- Write the numbers down exactly, then use them when ordering filters, plugs, and carburetor parts
- If the label is missing, check the engine stamping or the manual’s engine section
Engine-related complaints are often caused by safety interlocks or PTO issues, not the engine itself.
- Verify the battery connections are clean and tight
- Confirm the brake pedal is fully depressed (start interlock)
- Make sure the PTO is disengaged before starting
- If the blades will not engage, test the switch.pto 582107601 for proper operation

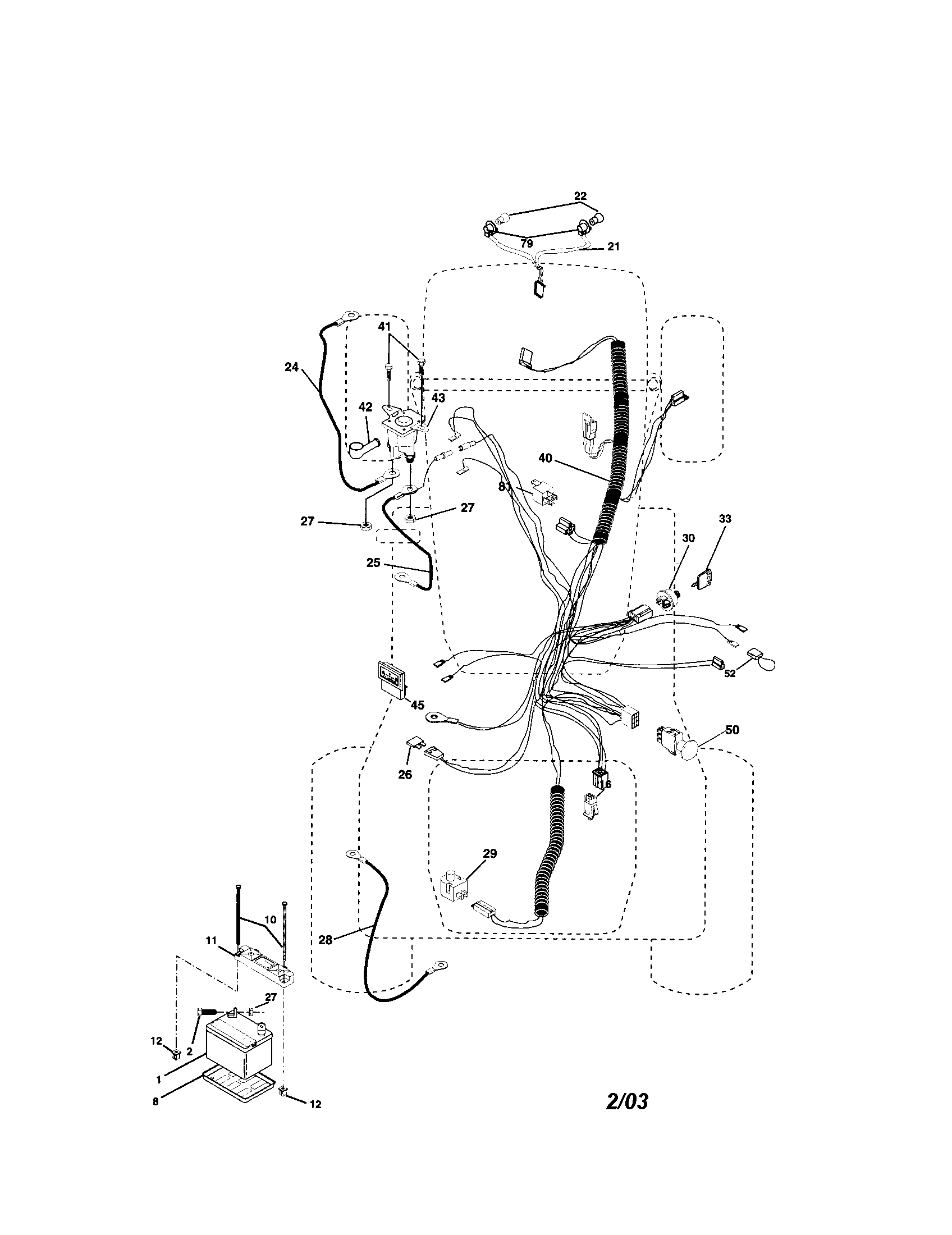

- Inspect wiring at the ignition switch area for loose or damaged connectors
| What you find | Where you find it | What it helps you order |
|---|---|---|
| Tractor model number 917276040 | Frame tag | Chassis and deck parts (belts, steering, spindles) |
| Engine model/type/code | Engine label | Engine parts (air filter, spark plug, carb parts) |
| Deck size (inches) | Deck decal or manual | Correct blade drive belt and deck components |
The tractor model number tells us the chassis family, but the engine label is what prevents ordering the wrong ignition, fuel, or maintenance parts. Confirming both numbers saves time and avoids repeat repairs.
Last updated: January 2026
Is it worth replacing a lawn mower engine?
Yes, it’s worth replacing the engine on your Craftsman garden tractor model 917276040 when the mower deck, frame, steering, and transmission are still solid and the total engine swap cost stays well below the cost of replacing the entire tractor. If the tractor has multiple worn systems, replacement usually makes more sense.
- The deck shell is not rusted through and the spindles turn smoothly

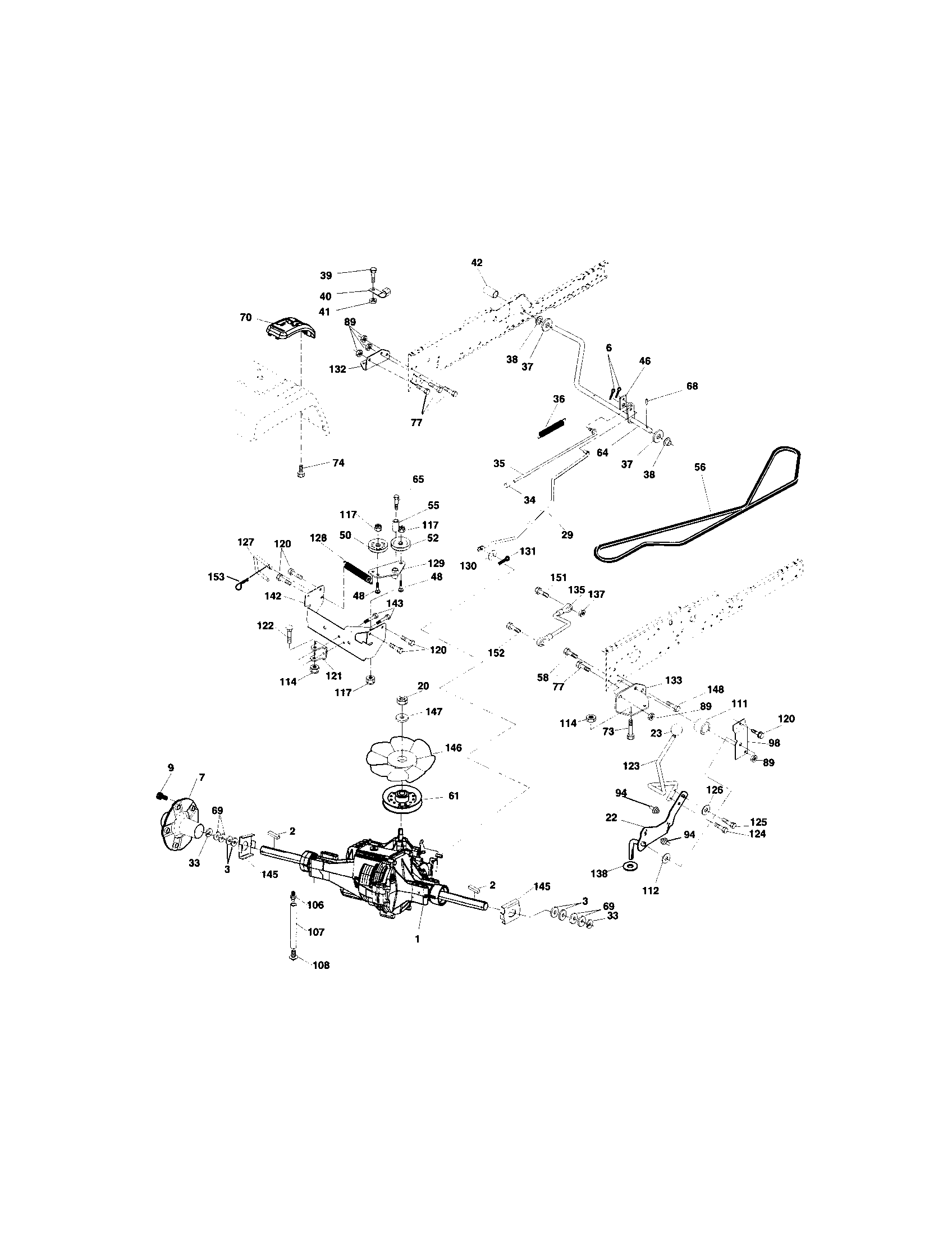

- The transaxle drives consistently (no slipping, whining, or loss of pull)
- Steering is tight enough to track straight (no severe play in the front end)
- You can source the correct engine or short block and any needed pulleys/brackets
- You are comfortable with a half-day to full-day project plus troubleshooting time
A practical guideline is to replace the engine when the all-in repair cost (engine, belts, hardware, fluids, and any shop labor) is under about 50% of what you would spend on a comparable replacement tractor.
| Option | Upfront cost | Time/effort | Best when |
|---|---|---|---|
| Replace engine (complete) | Higher | Medium | You want a fresh start and fewer internal unknowns |
| Replace short block | Medium | Medium to high | Top-end damage, but you can reuse external components |
| Buy replacement tractor | Highest | Low | Deck/transaxle/steering also need work |
Focus on the systems that are expensive to rebuild on a riding mower:

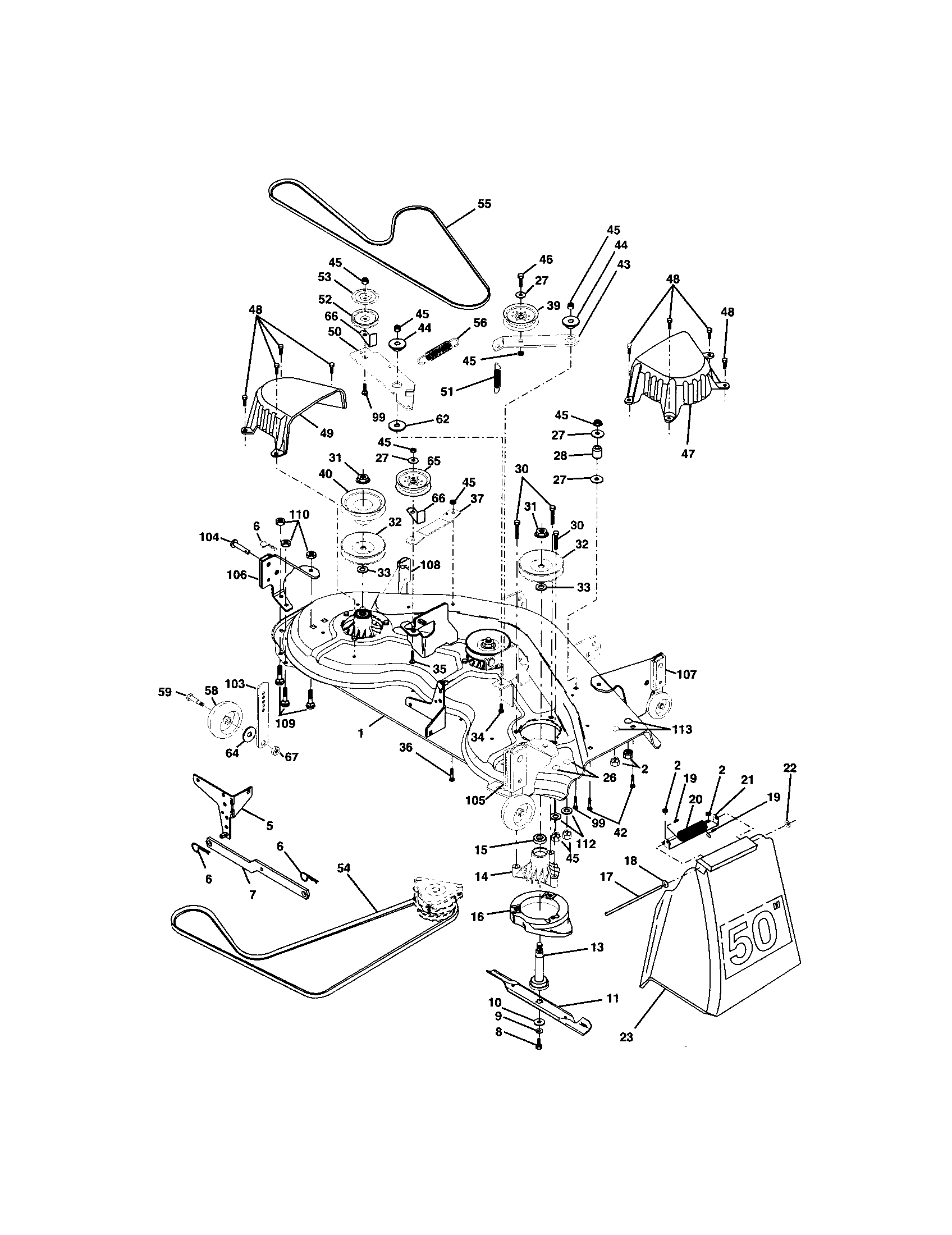

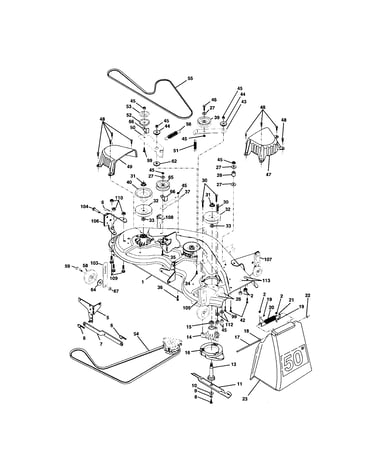

- Deck drive: check the blade drive belt condition and idler action; a worn belt like the riding lawn mower blade drive belt 532148763 can add cost fast
- PTO engagement: if the blades will not engage reliably, test the switch and clutch circuit; the switch.pto 582107601 is a common electrical failure point

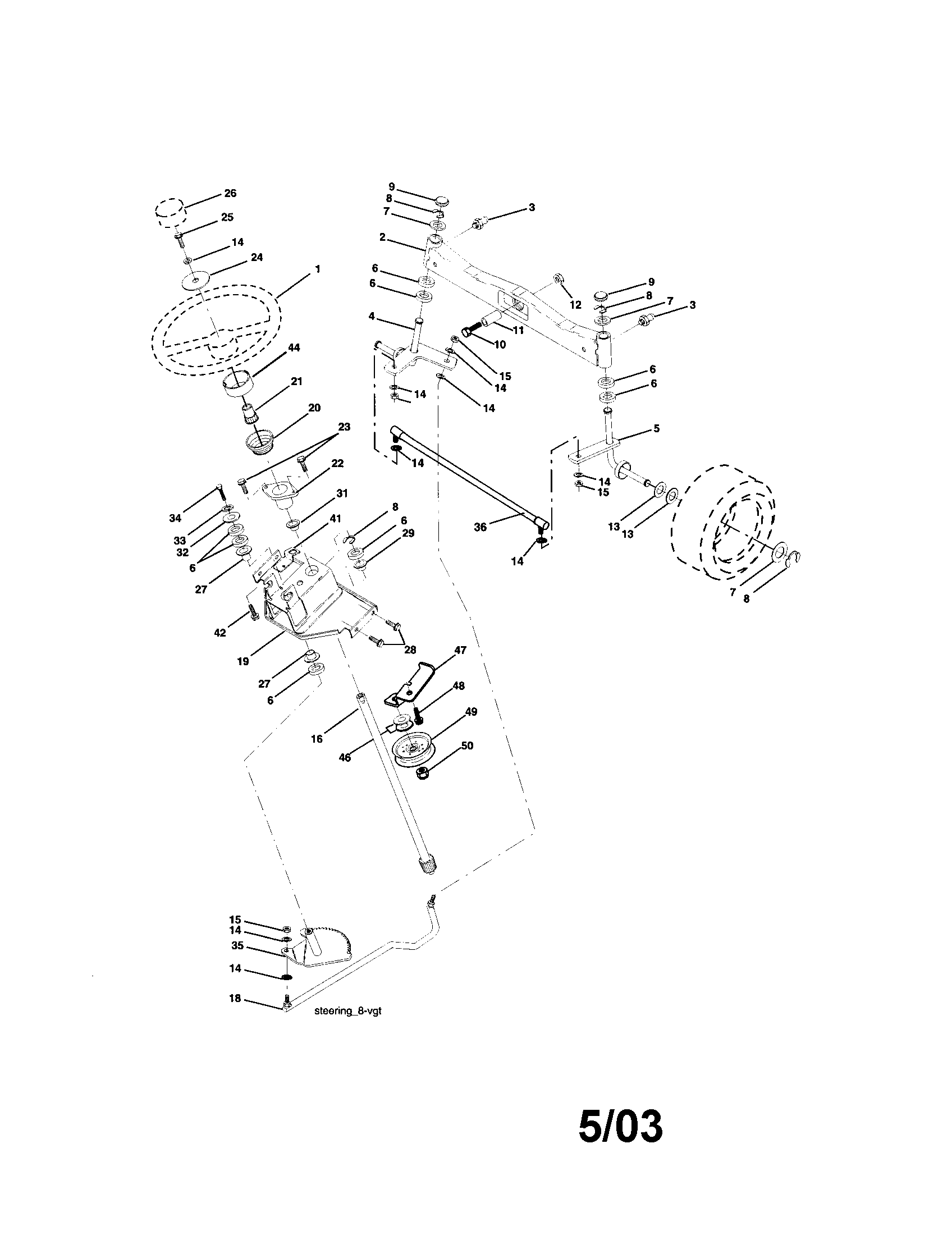

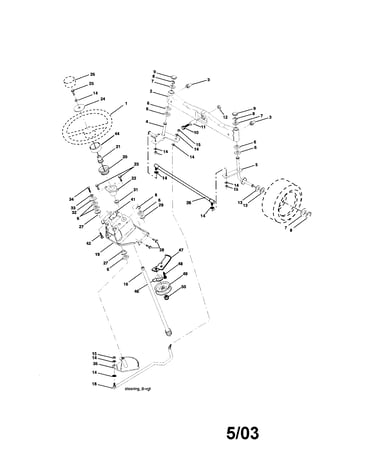

- Steering and front axle: look for wobble, loose hardware, and worn bearings
- Fuel system: cracked grommets/lines and tank fittings can cause hard starting and leaks
An engine swap only pays off when the tractor’s chassis and driveline are still worth investing in. On a solid 917276040, a new engine can restore reliability and extend service life without the learning curve and setup time of a new machine.
For model-specific routing, belt paths, and safety steps, follow the 917276040 owner’s manual.
Last updated: January 2026
How much does it cost to replace a riding lawn mower engine?
Replacing the engine on a Craftsman garden tractor like model 917276040 typically costs $260 to $1,800 installed, depending on whether you choose a new or rebuilt engine, local labor rates, and any related repairs needed during the swap. Use the 917276040 owner's manual to confirm the exact engine specifications and mounting details before ordering.
- Engine source: new, rebuilt, or used replacement
- Labor time: riding mower engine swaps commonly run about 5 to 8 hours
- Fit requirements: crankshaft size, bolt pattern, exhaust routing, and wiring
- Related wear items: belts, pulleys, fuel lines, battery, and hardware
- Shop rate: hourly labor rates vary by region and season
| Cost item | Typical range | What it covers |
|---|---|---|
| Engine (part only) | $200 to $1,400 | Replacement engine matched by shaft and mounting specs |
| Labor | $250 to $900 | Removal, install, setup, and test run |
| Fluids and supplies | $20 to $150 | Oil, filter, clamps, fuel line, fasteners |
| Optional related parts | $0 to $400 | Belts, electrical repairs, PTO-related parts |
These checks prevent pulley misalignment, PTO issues, and premature belt wear:
- Vertical-shaft configuration (common on front-engine lawn tractors)
- Crankshaft diameter and length (must match your pulley or clutch)
- Crankshaft keyway and threads (for proper pulley/clutch retention)
- Mounting bolt pattern and frame clearance
- Wiring connections (kill wire, charging lead, ignition harness)
If your tractor uses an electric PTO and it is slipping, noisy, or seized, include that in your budget; the lawn mower electric clutch 532174509 is a common add-on replacement during an engine job.
An engine replacement is a major repair on a riding mower. Matching the crankshaft and PTO setup to the original configuration protects the deck drive system and helps the tractor run and cut correctly after installation.
Last updated: January 2026
