Model # 1106208431 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 1106208431 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

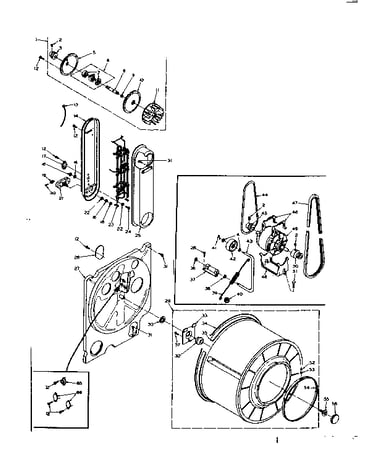

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#91

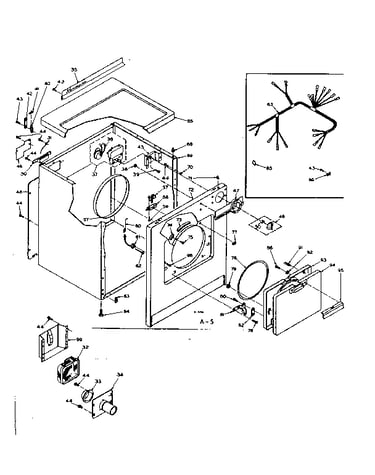

Machine sub-assembly diagram

Door strike

Part #236876

Replaced by #279570

?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86
70% OFF MSRP : $13.00
In Stock
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#77

Machine sub-assembly diagram

Catch

Part #236877

Replaced by #279570

?
Manufacturer substitution
This part replaces 236877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86
70% OFF MSRP : $13.00
In Stock
