Kenmore
Canister Vacuum

Model # 11627212791 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11627212791 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Vacuum Grip Handle 4155620
#44

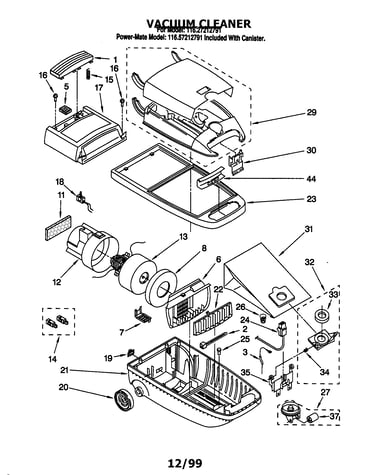

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 4370335
#18

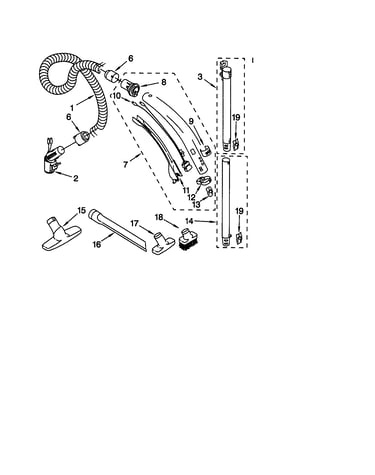

Hose and attachments diagram

Vacuum dust brush

Part #4370335

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 4370325
#6

Hose and attachments diagram

Vacuum hose adapter

Part #4370325

The manufacturer no longer makes this part, and there's no substitute part

Pin (white) 706884
#25

Vacuum cleaner diagram

Pin (white)

Part #706884

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 4370482
#11

Hose and attachments diagram

Vacuum housing

Part #4370482

The manufacturer no longer makes this part, and there's no substitute part

Spring 744258
#15

Vacuum cleaner diagram

Spring

Part #744258

The manufacturer no longer makes this part, and there's no substitute part

Upholstery Brush 4370334
#17

Hose and attachments diagram

Upholstery brush

Part #4370334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush Tool 4370140
#15

Hose and attachments diagram

Vacuum brush tool

Part #4370140

The manufacturer no longer makes this part, and there's no substitute part

Lawn Vacuum Hose Handle 4370501
#7

Hose and attachments diagram

Lawn vacuum hose handle

Part #4370501

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Owner's Manual LIT4370628

#NI

All parts diagram

Vacuum owner's manual

Part #LIT4370628

The manufacturer no longer makes this part, and there's no substitute part
