Model #11064602300 Official Kenmore electric dryer

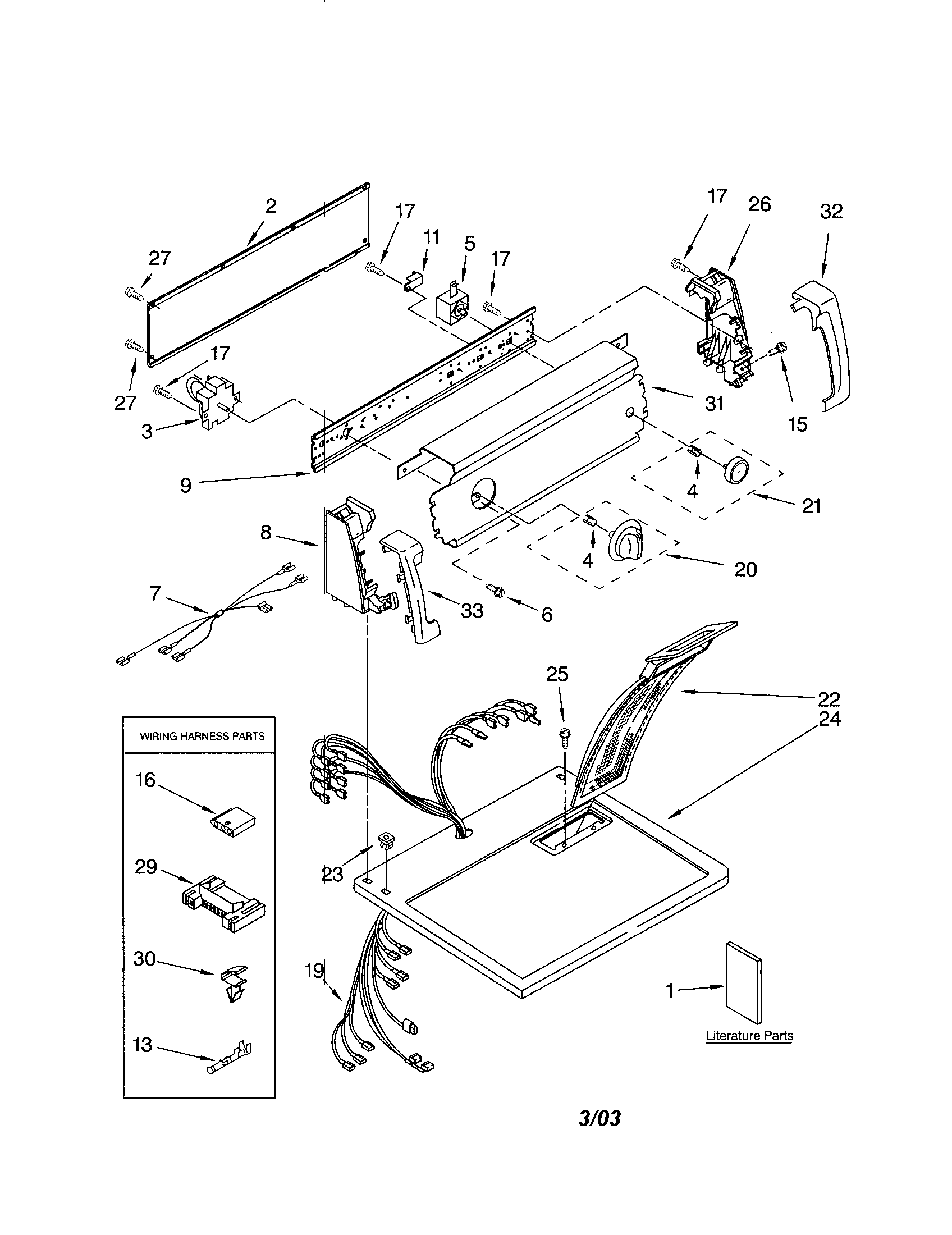

Here are the diagrams and repair parts for Kenmore 11064602300 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 122 parts

Dryer Drum Belt (replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364)#30

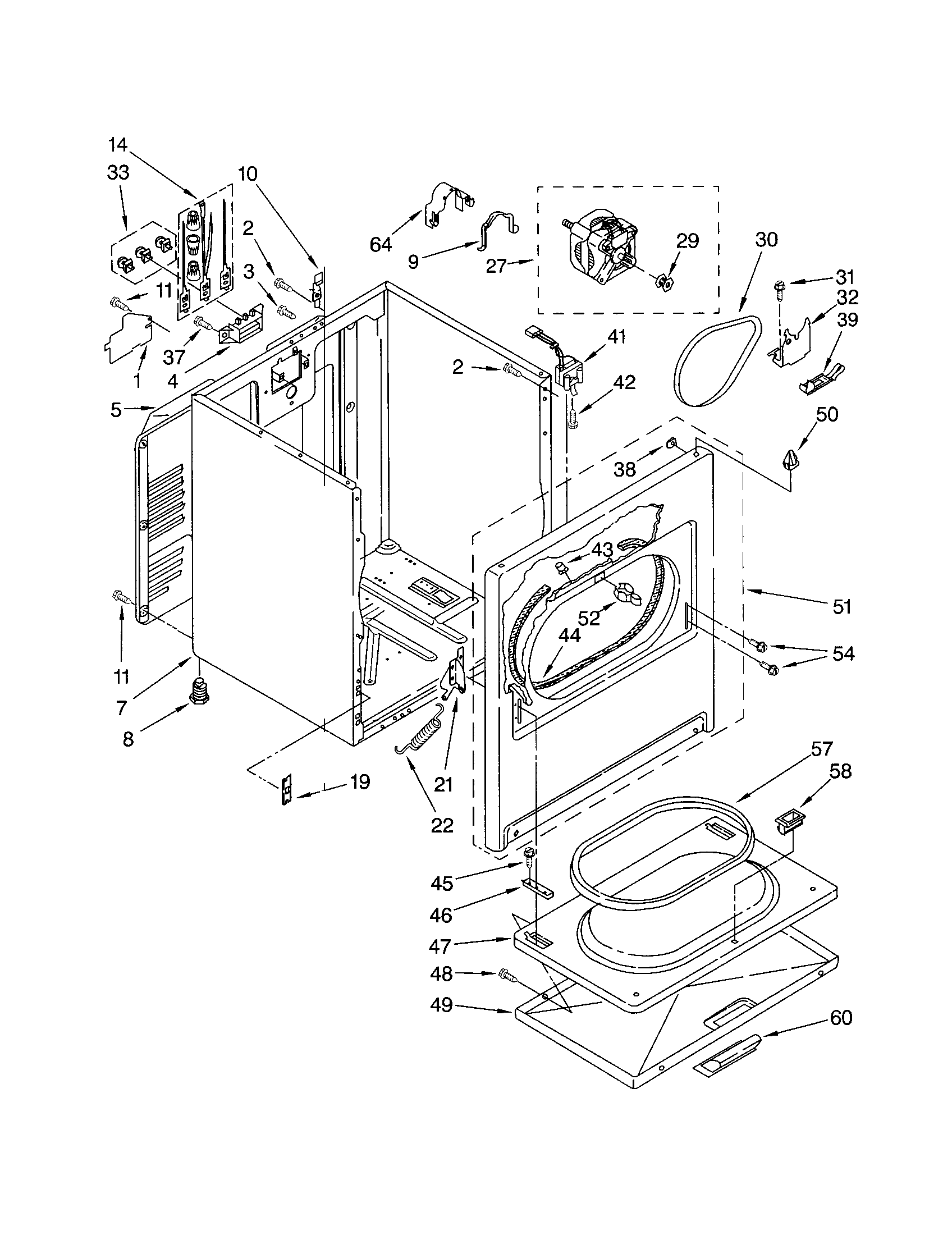

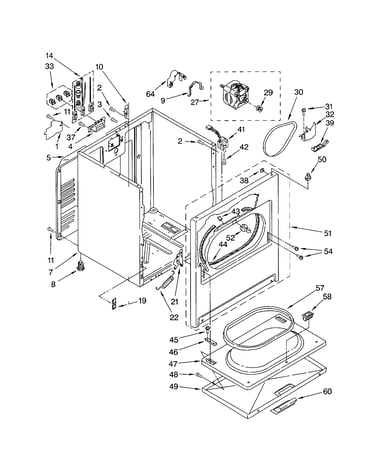

Cabinet Diagram

Dryer drum belt

Part #8066065
Replaced by #341241
Manufacturer substitution
This part replaces 8066065. Substitute parts can look different from the original.
In Stock
$16.59 |
11% OFF
Phone Price: $18.59
Dryer Thermal Fuse, 195-degree F (replaces 3392519)#59

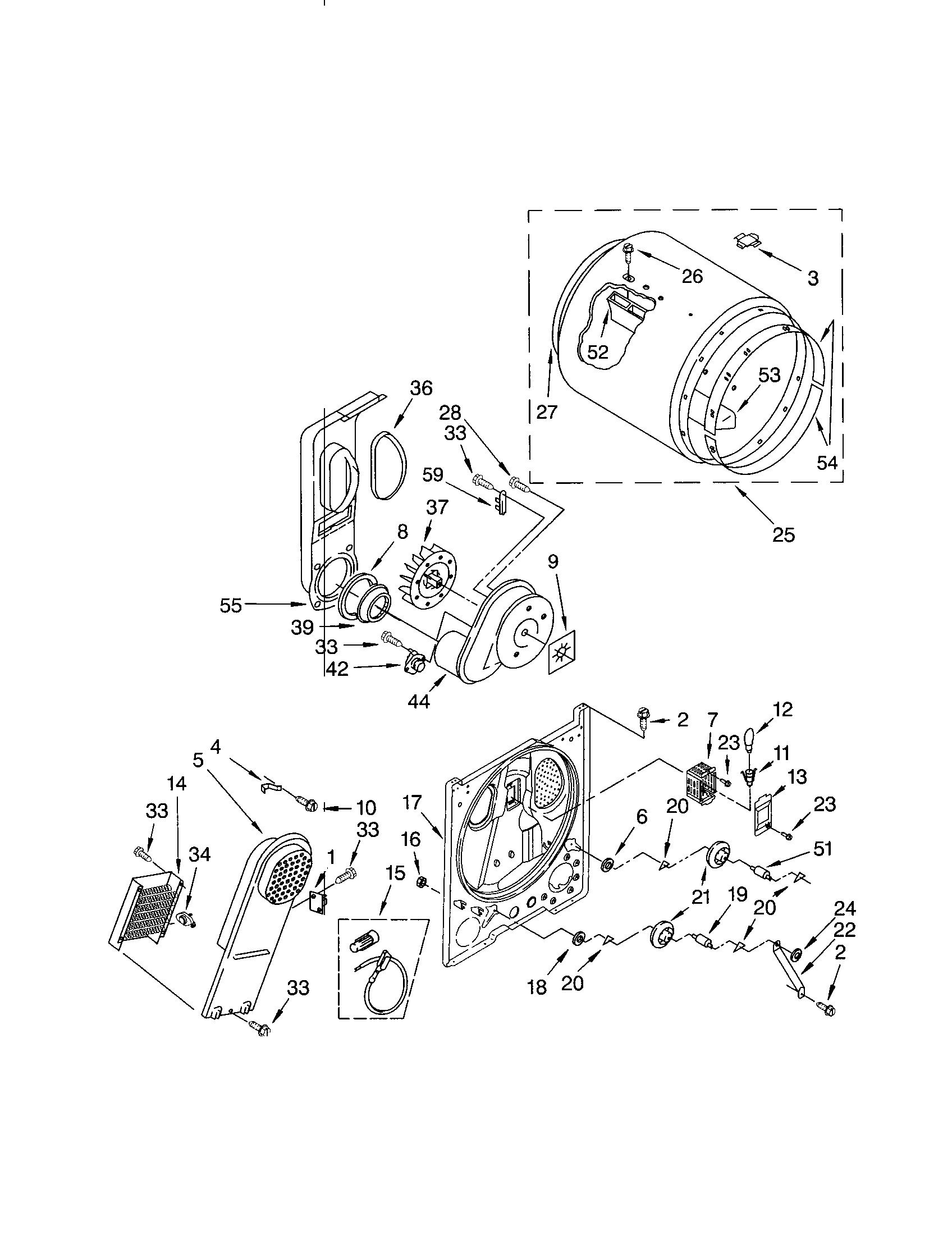

Bulkhead Diagram
