Frigidaire FBD2400KW9B dishwasher Parts

Yes, for the Frigidaire FBD2400KW9B dishwasher you can replace many common parts yourself if you can safely shut off power and water and follow the step-by-step procedures in the FBD2400KW9B installation guide. Simple mechanical items (like racks and seals) are usually DIY-friendly; wiring, heating, and leak-related repairs require extra care.

What you can usually replace yourself

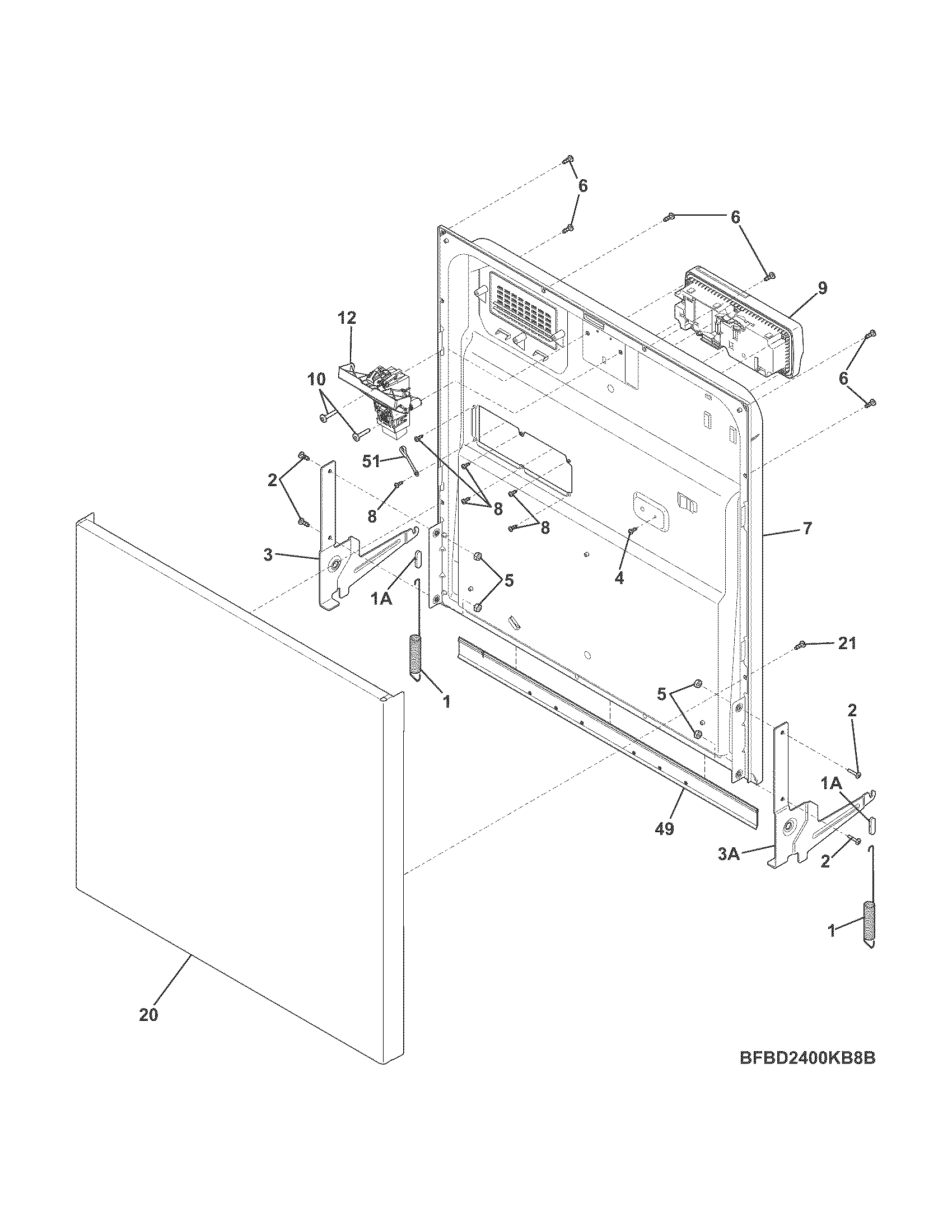

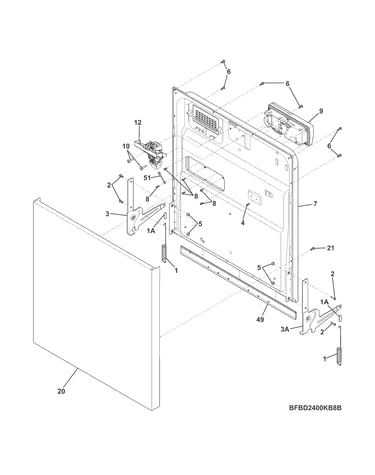

• Door seal and basic door hardware
• Spray arm and cleaning-related parts (after clearing clogs)

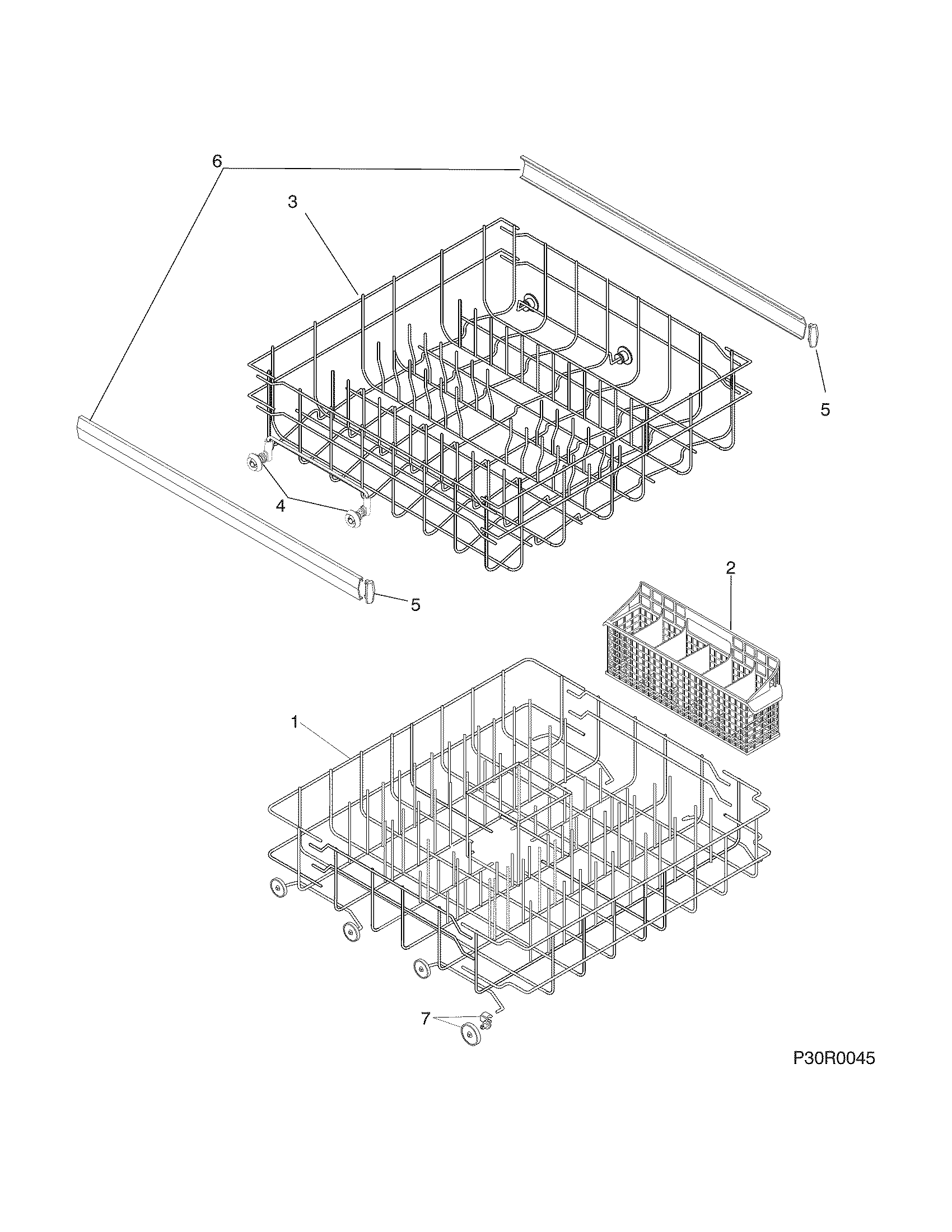

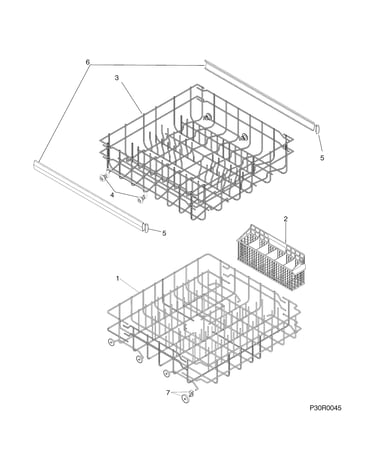

• Dishracks and rollers
• Drain hose (if you can access the connection points)
• Float/overfill protector cleaning and checks (not a part swap, but common maintenance)

Repairs that take more skill (but are still possible)

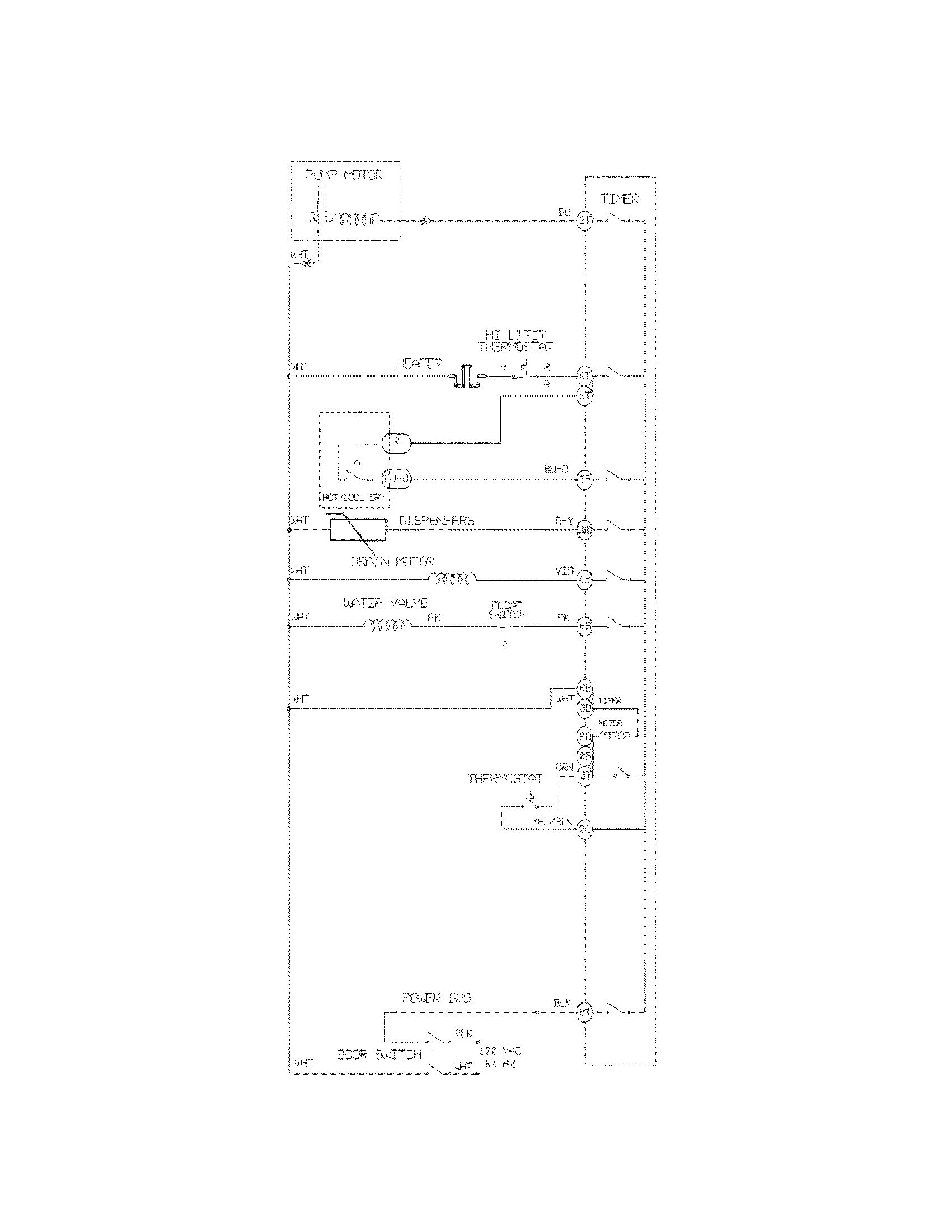

The manual and install instructions emphasize disconnecting electrical power before servicing and using safe wiring practices at the junction box.

• Electrical connections (junction box wiring, grounding)
• Water fill components and leak diagnosis
• Heating circuit work (element and wiring)

If you are troubleshooting a no-fill symptom, the dishwasher water inlet valve 807047901 is a common replacement part for this model.

Quick safety checklist before you start

• Turn off power at the breaker (not just the control panel)
• Shut off the dishwasher water supply valve
• Protect hands from sharp metal edges (door panels can be sharp)
• Avoid touching the heating element during or right after a cycle
• Confirm the dishwasher is secured so it cannot tip when the door is opened

DIY vs. technician: a simple comparison

Task type	Typical DIY difficulty	Why it matters
Rack/roller replacement	Low	Restores smooth loading and prevents rack damage
Drain hose replacement	Medium	Prevents leaks and improves draining
Inlet valve replacement	Medium	Fixes no-fill or slow-fill issues
Heating/electrical repairs	High	Reduces shock risk and prevents wiring damage

Why it matters

Doing the right repair the right way protects your kitchen from leaks and prevents electrical hazards. It also helps your dishwasher clean and dry properly by keeping water flow, draining, and heating functions working as designed.

Last updated: February 2026

Most Frigidaire dishwashers, including model FBD2400KW9B, typically last 9 to 12 years with normal household use. Consistent cleaning, correct detergent use, and fixing small leaks or draining issues early are what most often determine whether you reach the high end of that range.

Typical lifespan and what changes it

A dishwasher’s service life is mainly driven by how hard it works (loads per week), water quality, and whether key systems stay healthy (fill, heat, wash, drain).

• Light use (1 to 3 loads/week): often closer to 12 years
• Average use (4 to 7 loads/week): commonly 9 to 12 years
• Heavy use (8+ loads/week): often 7 to 10 years
• Hard water and frequent overheating shorten life; routine maintenance extends it

Maintenance that adds years (and prevents common failures)

These habits reduce wear on the pump, heater, and seals.

• Clean the filter area and sump regularly; remove glass, labels, and food debris
• Run hot water at the sink before starting so the first fill is hot
• Use the correct detergent amount; too much can cause residue and poor draining
• Use rinse aid when drying performance drops
• Inspect for slow drains and address them early (kinks, clogs, air gap/disposal blockage)
• Keep the door sealing surfaces clean to prevent leaks

Parts that most often end a dishwasher’s life

When these fail, repairs can be more frequent. If your FBD2400KW9B is not draining or is leaving water behind, the drain system is a common place to start.

System	What you notice	Example part for this model

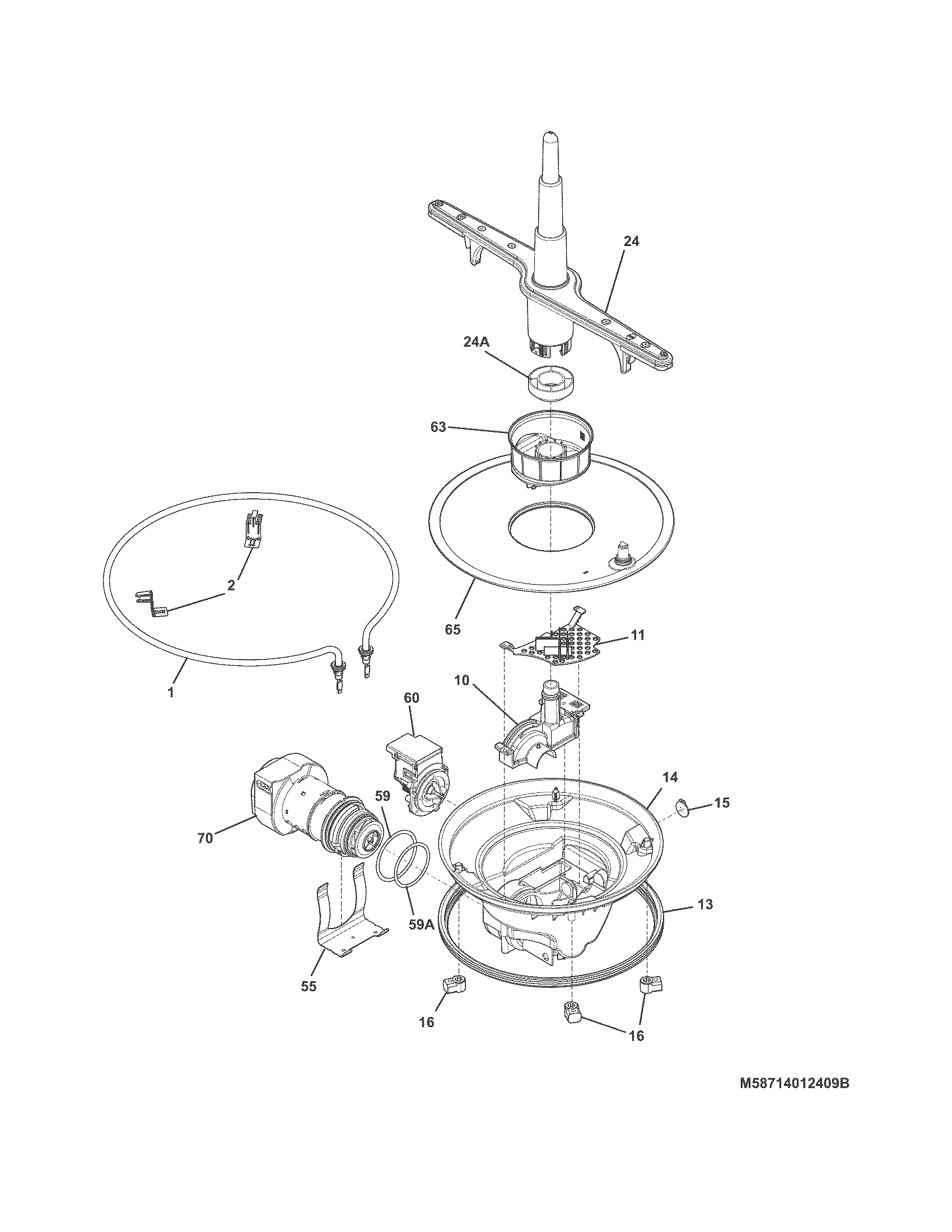

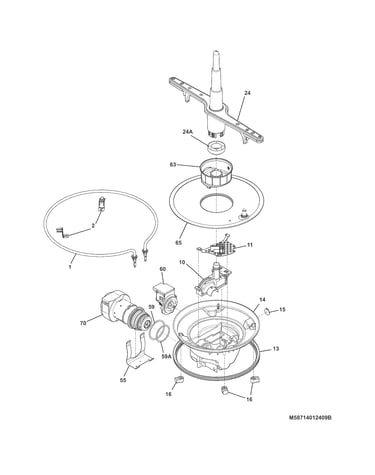

Drain	Water left in tub, humming	Drain pump a A00126401
Heating/drying	Poor drying, cool water	Frigidaire dishwasher heating element 154825001
Fill	Slow fill, no fill	Dishwasher water inlet valve 807047901
Leak protection	Overfilling, won’t fill, stops mid-cycle	Dishwasher float switch 154773201

Why it matters

Knowing the typical lifespan helps you decide whether to repair or replace. If your unit is near the 9 to 12 year mark and needs multiple major components (pump motor, timer, tub), replacement often makes more sense; if it needs one targeted part, repair is usually worthwhile.

For model-specific operating and care guidance, follow the maintenance and use recommendations in the FBD2400KW9B owner’s manual.

Last updated: February 2026

The most common problems we see on Frigidaire dishwashers like model FBD2400KW9B are poor cleaning and poor draining, usually caused by buildup that restricts water flow (spray arm, sump area) or a drain path restriction. Leaks and “won’t start” issues are also common.

Most common symptoms and what they usually point to

• Not cleaning well: spray arm holes clogged, loading blocking spray, low water temperature, detergent issues
• Not draining: drain hose kink/clog, drain pump problem, sink/disposer drain restriction
• Leaking: door seal wear, door not latching fully, tub or gasket seepage
• Won’t start or stops mid-cycle: door not latched, latch switch issue, timer/selector issue
• Not drying: heat dry not selected, heating circuit issue, rinse aid issues

Quick checks we recommend first (no parts needed)

1. Confirm the door closes and latches firmly; a loose latch can prevent the cycle from running.
2. Run hot water at the sink for 30 to 60 seconds before starting; hotter incoming water improves wash results.
3. Check the bottom of the tub after a cycle. Your manual notes that water left in the bottom is not normal and often indicates a draining problem.
4. Inspect the drain hose routing for kinks and make sure the high loop/air gap setup matches the installation guide.
5. Clean and maintain the tub and wash system regularly using the steps in the FBD2400KW9B owner’s manual.

Parts that commonly solve these problems on FBD2400KW9B

Symptom	Common part involved	What it does
Not draining	Drain pump a A00126401	Pumps water out during drain segments
Not filling or fills slowly	Dishwasher water inlet valve 807047901	Lets water into the dishwasher
Leaks at the door	Frigidaire dishwasher door seal 8581548276014	Seals the door to prevent water escaping
Not drying / poor heat	Frigidaire dishwasher heating element 154825001	Heats water and boosts drying

Why it matters

Poor cleaning and poor draining are often connected: if the dishwasher cannot circulate and drain correctly, soils redeposit, cycles run poorly, and standing water can lead to odors. Fixing the root restriction or failed component restores normal wash segments and draining.

Last updated: February 2026

For your Frigidaire dishwasher model FBD2400KW9B, the most reliable way to find the correct part number is to match the part to your model number and serial number, then confirm the part on the parts diagram/list in the FBD2400KW9B owner's manual. This prevents ordering a look-alike part that will not fit.

Step-by-step: how we find the right part number

• Locate the dishwasher model/serial tag (usually on the tub frame near the door opening).
• Write down MODEL: FBD2400KW9B and the serial number.
• Identify the failed part by function (drain, fill, heat, latch, rack, etc.).
• Use the parts list/diagram to match the part name to the correct manufacturer part number.
• If multiple versions appear, use the serial number break (if shown) to pick the correct one.

Common parts people search by symptom

If you start with a symptom, these are common matches for this model family:

Symptom	Part to check	Example from available parts
Not draining	Drain pump, drain hose	Drain pump a A00126401, dishwasher drain hose 807117001
Not heating or poor drying	Heating element, element hardware	Frigidaire dishwasher heating element 154825001, dishwasher heating element nut 154106202
Not filling	Water inlet valve, float switch	Dishwasher water inlet valve 807047901, dishwasher float switch 154773201

Why it matters

Dishwasher parts often change by production run. Using the exact model number (FBD2400KW9B) and confirming the part number in the manual/parts list helps ensure proper fit, correct electrical ratings, and leak-free connections.

Helpful tip if you are diagnosing first

If you are still narrowing down the failure, follow the troubleshooting flow in the dishwasher common questions guide to identify the most likely part before ordering.

Last updated: February 2026
