Model #58054701500 Kenmore dehumidifier

Here are the diagrams and repair parts for Kenmore 58054701500 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 40 parts

    Dehumidifier Caster#11-A

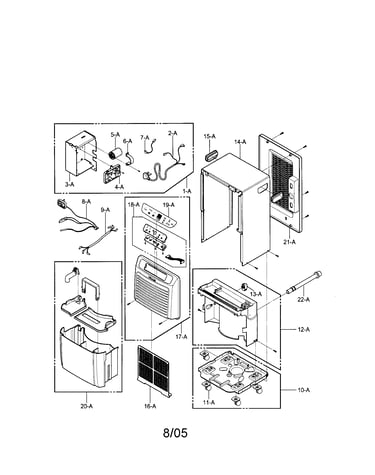

    Outer case and control Diagram

    Caster

    Part #4441A30001B
    Replaced by #MHA62753001
    ?
    Manufacturer substitution
    This part replaces 4441A30001B. Substitute parts can look different from the original.
    In Stock
    $12.34
    Dehumidifier Control Board Wire Harness#7-A

    Outer case and control Diagram

    Dehumidifier control board wire harness

    Part #6862A20013R
    This item is not returnable
    In Stock
    $5.97
    Clamp#6-A

    Outer case and control Diagram

    Clamp

    Part #4H00442J
    This item is not returnable
    In Stock
    $3.80
    Room Air Conditioner Compressor Overload Protector#3-C

    Compressor Diagram

    Room air conditioner compressor overload protector

    Part #6750U-L048A
    This item is not returnable
    In Stock
    $20.49
    Brkt,wshr#7-C

    Compressor Diagram

    Brkt,wshr

    Part #4810AR4155A
    This item is not returnable
    In Stock
    $3.80
    Dehumidifier Front Grille Assembly#17-A

    Outer case and control Diagram

    In Stock
    $66.68 |
    7% OFF
    Phone Price: $71.68
    Handle#15-A

    Outer case and control Diagram

    Handle

    Part #3650A20004A
    This item is not returnable
    In Stock
    $5.97
    Bushing#8-C

    Compressor Diagram

    Bushing

    Part #4830A30005A

    The manufacturer no longer makes this part, and there's no substitute part

    Dehumidifier Blower Wheel#5-B

    Cycle Diagram

    Fan

    Part #5900A20007A
    Replaced by #5900A20007B
    ?
    Manufacturer substitution
    This part replaces 5900A20007A. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.00
    Mount#2-B

    Cycle Diagram

    Mount

    Part #4960A20009B

    The manufacturer no longer makes this part, and there's no substitute part
