Whirlpool ET8CHEXSB02 top-mount refrigerator Parts

A top-mount refrigerator is a classic refrigerator layout where the freezer compartment is on top and the fresh-food (refrigerator) section is below. Your Whirlpool ET8CHEXSB02 uses this design, which keeps everyday refrigerated items at a comfortable reach while still providing a full-width freezer.

How a top-mount layout works

In a top-mount refrigerator, cold air is produced at the evaporator and circulated to keep both compartments at temperature. Because cold air naturally falls, this design can cool the fresh-food section efficiently when airflow paths are clear.

Key characteristics:

• Freezer on top, refrigerator section below
• Separate doors for freezer and fresh-food compartments
• Airflow between compartments helps balance temperatures
• Often includes adjustable shelves and crisper storage
• Commonly supports an optional ice maker setup

What to know for installation and clearance

For Whirlpool top-mount models like ET8CHEXSB02, proper airflow and door swing clearance matter for cooling performance and day-to-day use. We recommend following the spacing guidance in the ET8CHEXSB02 owner's manual.

Typical clearance guidance (from the manual):

Location around refrigerator	Recommended minimum space
Each side	1/2 in (1.25 cm)
Top	1/2 in (1.25 cm)
Hinge side next to a wall	2 in (5.08 cm)

Why it matters

Knowing you have a top-mount refrigerator helps you troubleshoot smarter. Many common issues (warm refrigerator, frost buildup, uneven temps) come down to airflow between the freezer and fresh-food sections, door sealing, and correct installation clearances.

Last updated: January 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the refrigerator is warm, the freezer is warm, or the unit runs a lot. On the Whirlpool ET8CHEXSB02, the first things we check are temperature controls, door sealing habits, and airflow, then we move to fans, defrost, and sealed-system components using the ET8CHEXSB02 owner's manual.

Most common symptoms and what they usually point to

• Not cooling enough (fresh food or freezer): dirty condenser area, airflow blocked, evaporator fan issue
• Runs constantly: doors opened often, warm room, dirty coils, control set too cold
• No ice or slow ice: water supply issue, inlet valve issue, ice maker issue
• Noisy operation: many sounds are normal during cooling and defrost cycles (buzzing, hissing, gurgling)
• Water under the refrigerator: defrost drain or drain pan issues

Quick checks we recommend first (no parts needed)

• Confirm the controls are turned on and set to a normal mid-range setting (the manual notes that setting to coldest does not cool faster).
• Allow 24 hours after a new install or major temperature change for the refrigerator to stabilize.
• Make sure vents inside both compartments are not blocked by food packages.

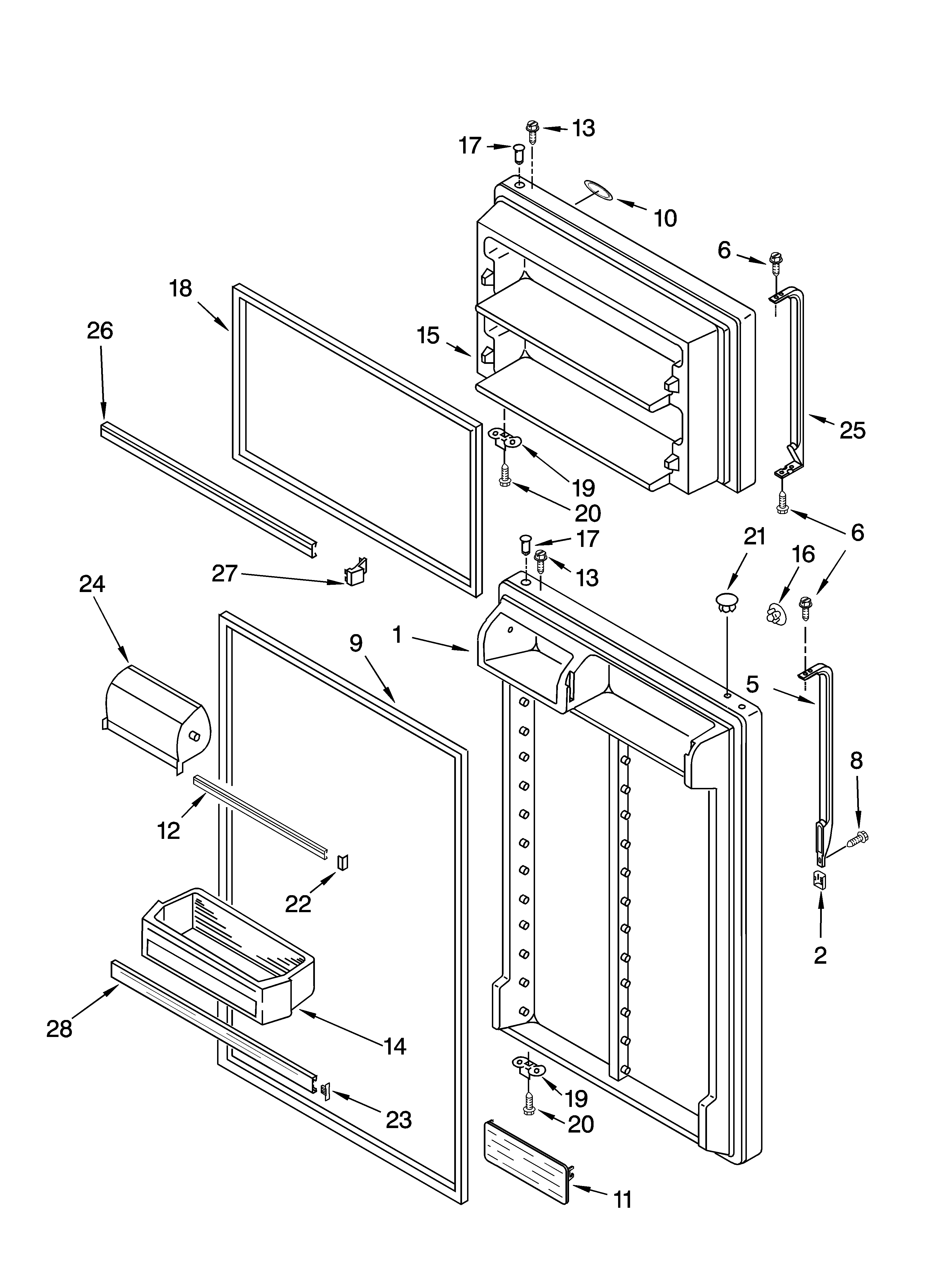

• Check door closure and gasket contact all the way around.
• Listen for the evaporator fan running when the compressor is on (often heard from the freezer area).

Common part-related fixes for this model

If the quick checks do not help, these are common repair directions on top-mount Whirlpool designs like ET8CHEXSB02:

Symptom	Common suspect	Example part for ET8CHEXSB02

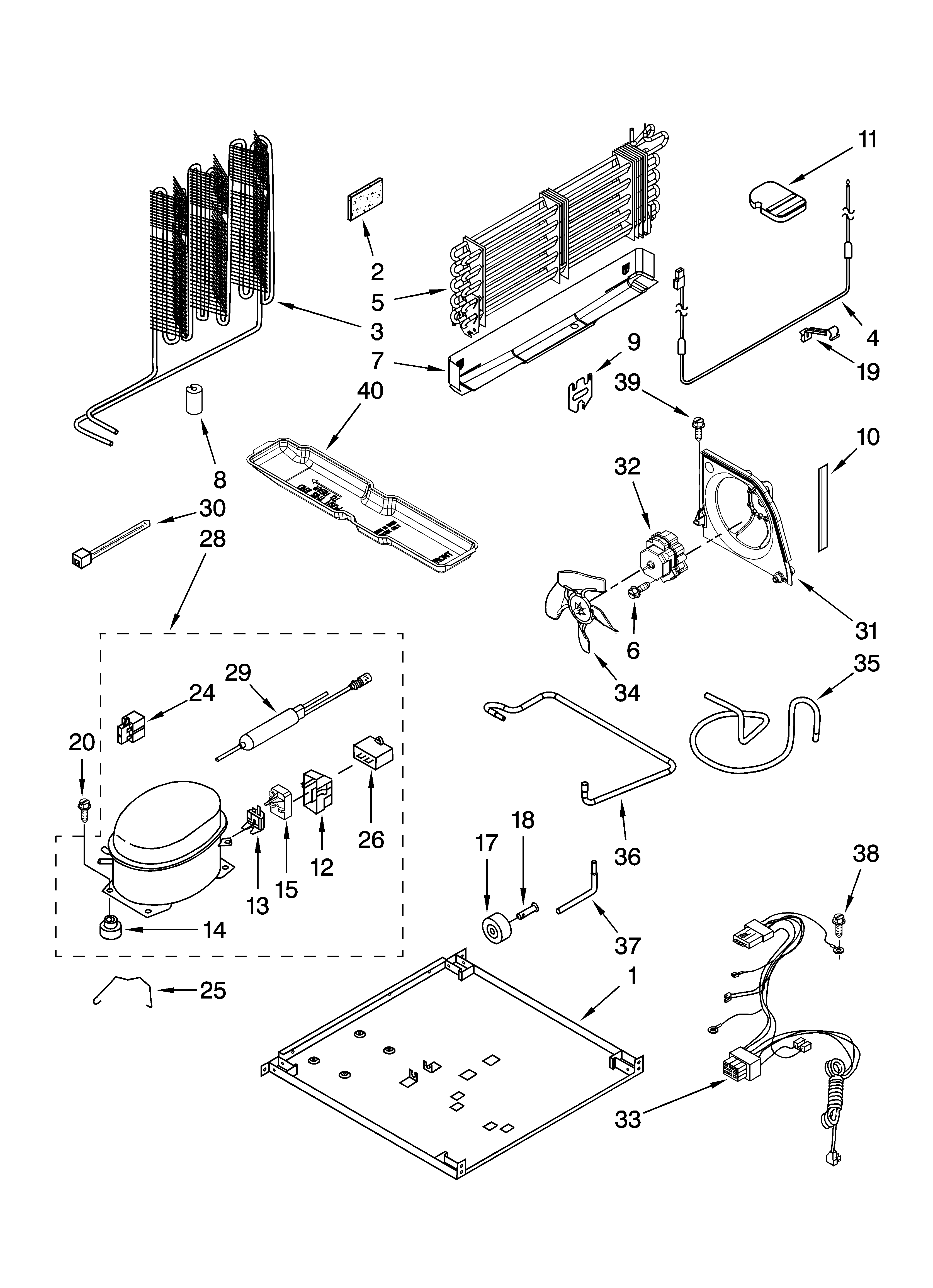

Warm temps, weak airflow	Evaporator fan motor/blade	Evaporator motor WPW10189703 or refrigerator evaporator fan blade WP2163777
No ice, no water fill sound	Water inlet valve	Refrigerator water inlet valve WP2315576
Intermittent cooling or won’t start	Start components or compressor circuit	Run capacitor WPW10662129

Why it matters

Cooling problems can look “minor” at first, but poor airflow or a failing fan can quickly lead to temperature swings, food spoilage, and heavy frost that reduces efficiency.

Related DIY help

• Use Whirlpool refrigerator error codes if your control shows an error or unusual indicator pattern.

Last updated: January 2026

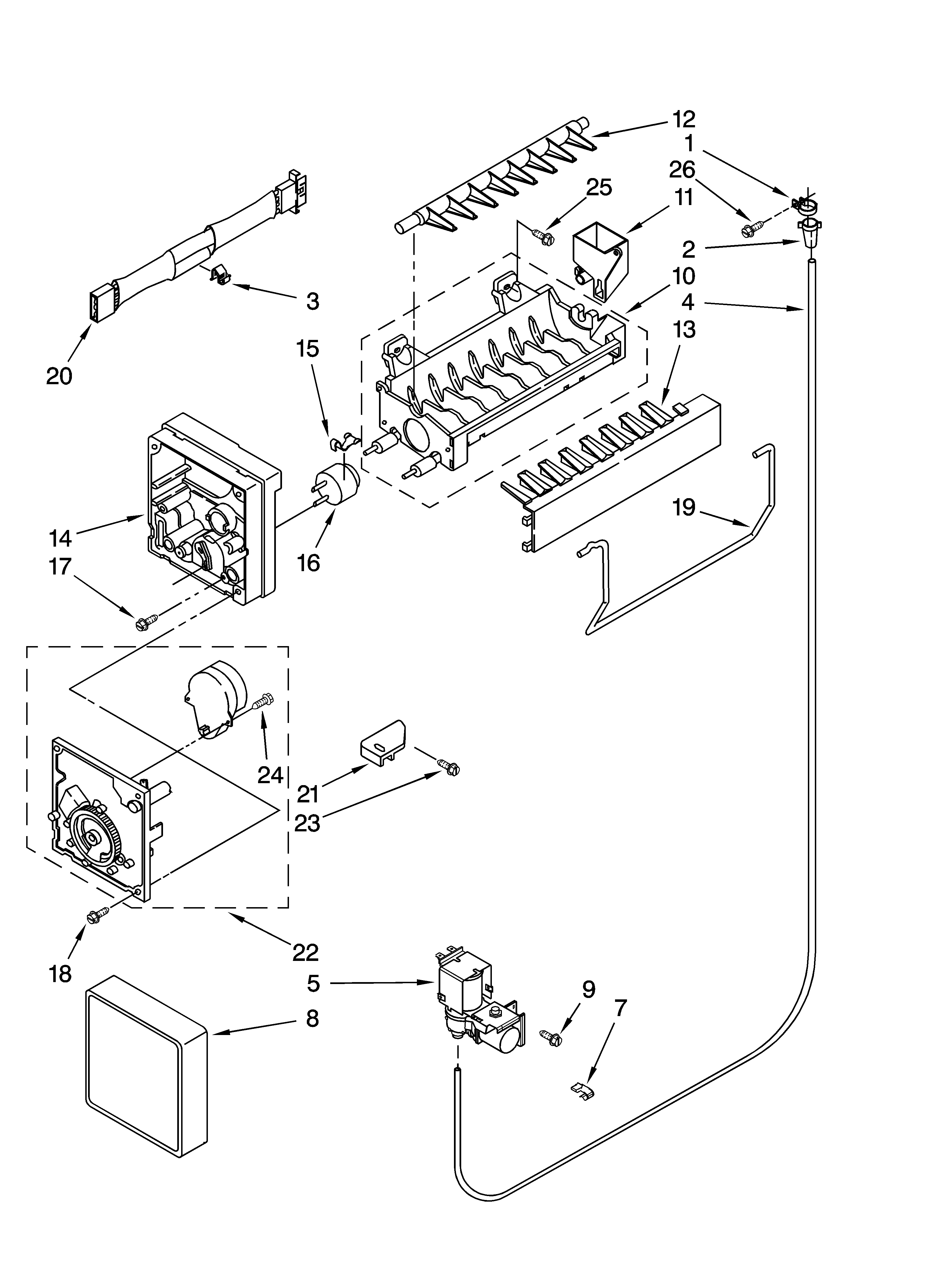

On the Whirlpool ET8CHEXSB02, the ice maker uses a wire shutoff (feeler) arm; “resetting” it usually means clearing any ice obstruction and returning the arm to the ON position (arm down) so the ice maker can cycle normally. Do not force the arm up or down; it should move freely.

Reset the wire shutoff arm (safe steps)

• Unplug the refrigerator or disconnect power.
• Pull out the ice bin and check for cubes jammed around the ejector area.
• If the arm is stuck, melt any ice buildup with a warm towel (avoid sharp tools).
• Lower the wire shutoff arm to turn the ice maker ON (arm down).
• Restore power and allow time for a harvest cycle.

What to expect after you reset it

The manual guidance for this style of Whirlpool ice maker is time-based, not button-based:

Situation	What’s normal	What to do
New install or power restored	First ice can take about 24 hours	Discard the first 3 batches
Full output after changes	Can take up to 72 hours	Keep temps steady
Low production	About 8 to 12 batches per 24 hours	Wait 24 hours between adjustments

If the arm keeps popping up or ice is still slow

These checks solve most “arm reset” complaints:

• Confirm the water shutoff valve is fully open.
• Straighten any kinked water supply line.
• Make sure the arm is actually in the ON position (down).
• If cubes are hollow or small, treat it as low water pressure.
• If you have reverse osmosis, it can reduce water pressure to the ice maker.

Why it matters

The wire shutoff arm is the ice maker’s automatic stop switch; if it is stuck up (OFF) or blocked by ice, the ice maker will not cycle and you will get little or no ice.

For model-specific operating notes and ice maker on/off details, use the ET8CHEXSB02 owner’s manual.

Last updated: January 2026

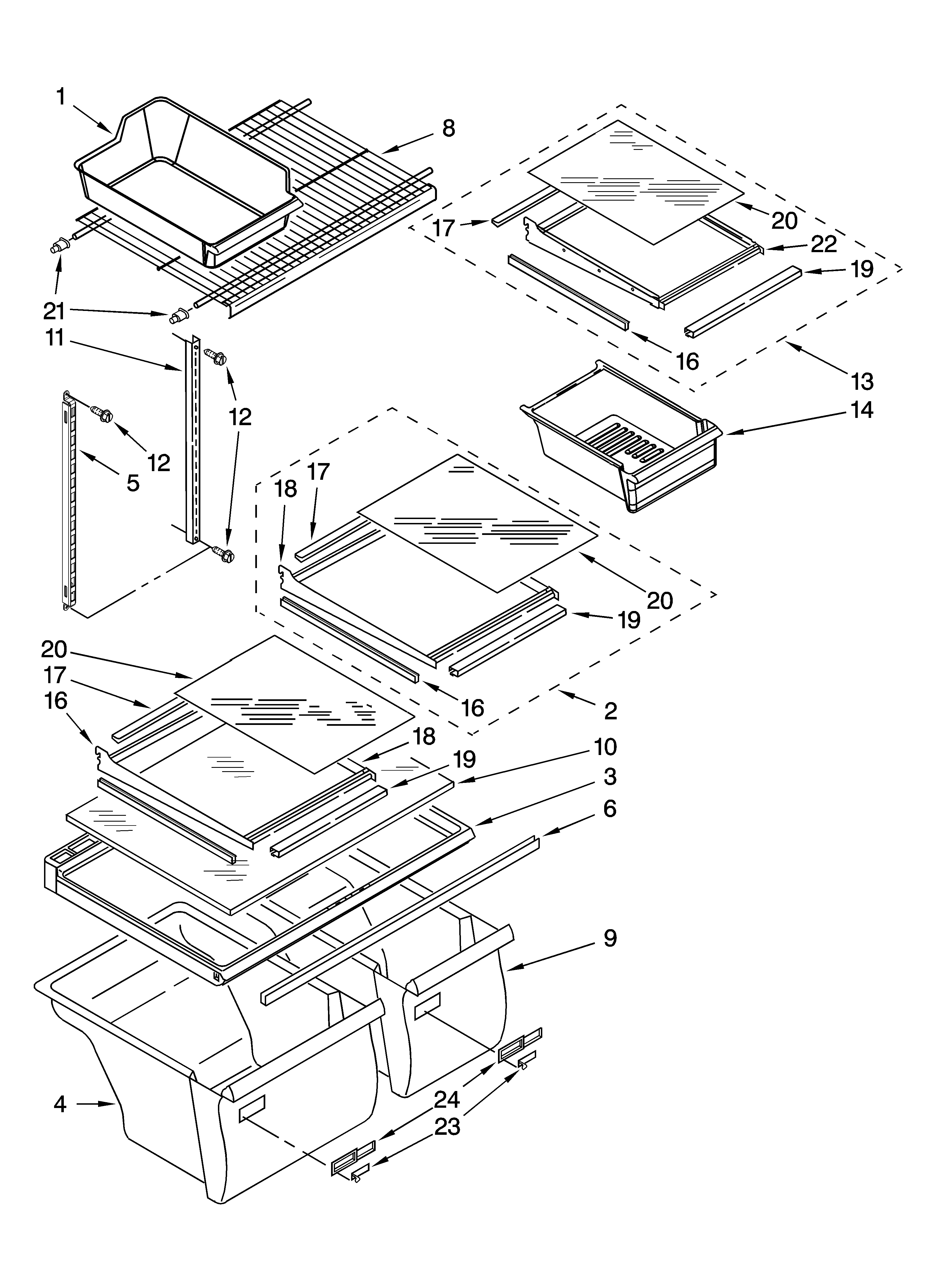

To reinstall shelves in your Whirlpool ET8CHEXSB02 top-mount refrigerator, line up the shelf supports with the wall slots, set the back edge in first, then lower the front until it sits flat and stable. Handle glass shelves carefully to avoid breakage.

Steps to install or reposition shelves

• Remove food and bins from the shelf so you can handle it safely.
• Hold the shelf level; insert the rear tabs or rear edge into the matching slots on the liner walls.
• Lower the front edge onto the supports, then slide the shelf until it is fully seated.
• For glass shelves, avoid bumping the edges and do not force the shelf into place.
• Reinstall drawers and bins only after the shelf feels secure.

Glass shelf safety (important)

The ET8CHEXSB02 uses heavy tempered glass shelving in many configurations. To reduce the chance of cracking:

• Do not wash a cold glass shelf with warm or hot water.
• Let the shelf reach room temperature before cleaning.
• Use two hands and keep the shelf level when removing or installing.

Quick checks after installation

What to check	What “good” looks like	What to do if it is not right
Shelf sits level	Front and back are even	Reseat the rear edge in the same-height slots
Shelf does not rock	No wobble when you press corners	Move to a different set of slots or check for a bent support
Airflow is open	Vents are not blocked by items	Rearrange items so cold air can circulate

Why it matters

Correctly seated shelves prevent rattles, reduce the risk of glass damage, and keep airflow paths open so the refrigerator cools evenly.

For shelf layout diagrams and model-specific placement notes, use the ET8CHEXSB02 owner's manual.

Last updated: January 2026
