Whirlpool
Microwave/Hood Combo

Model # YWMH31017HW0 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YWMH31017HW0 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

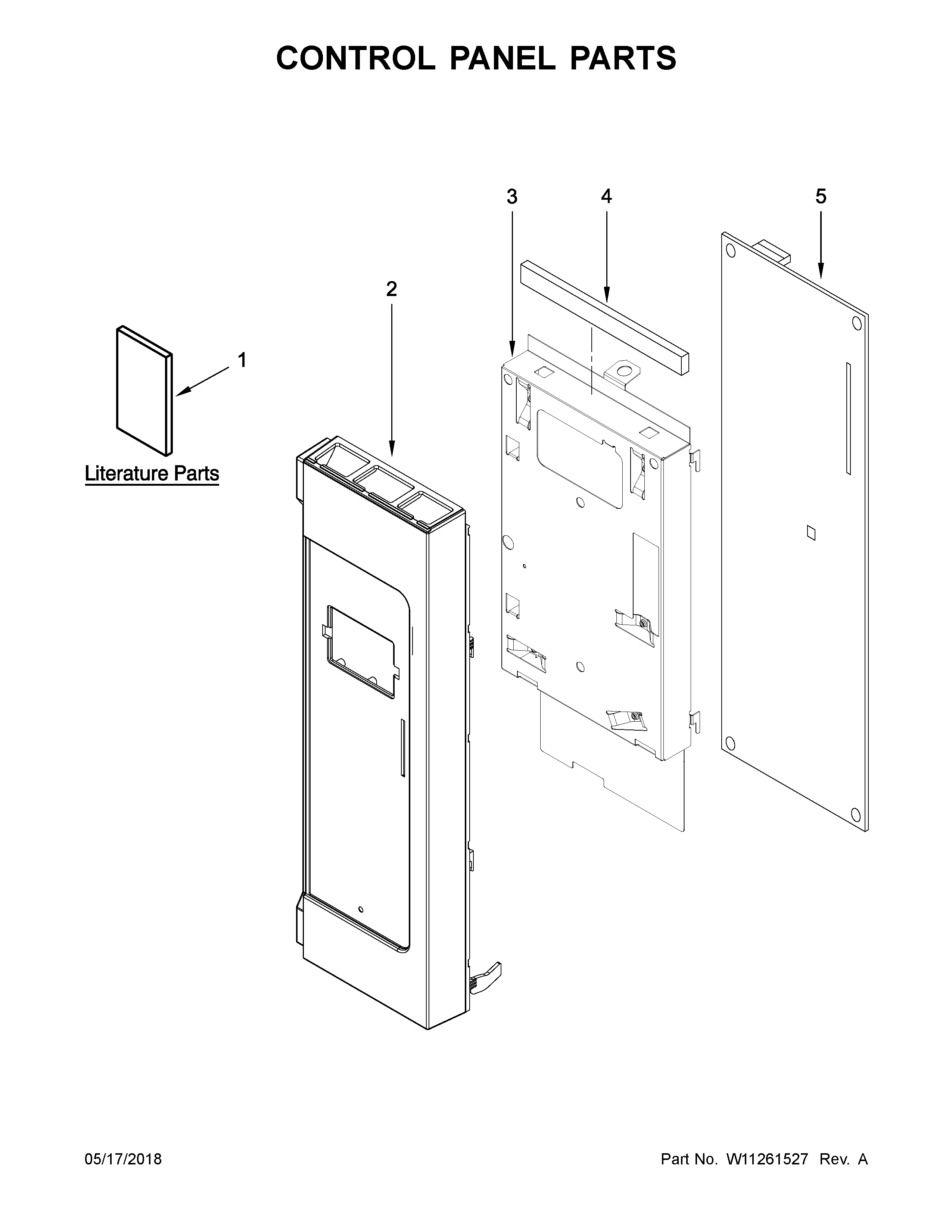

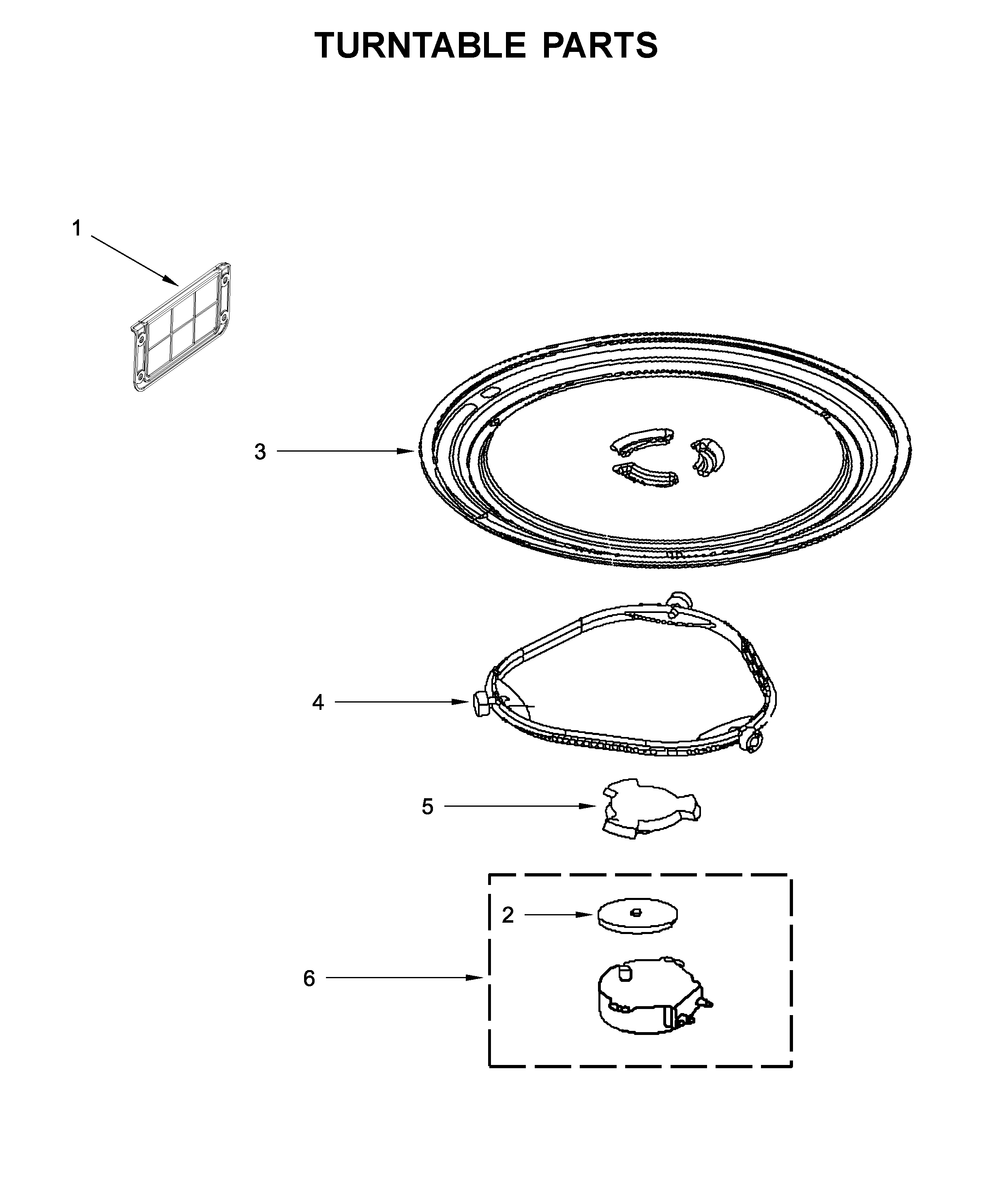

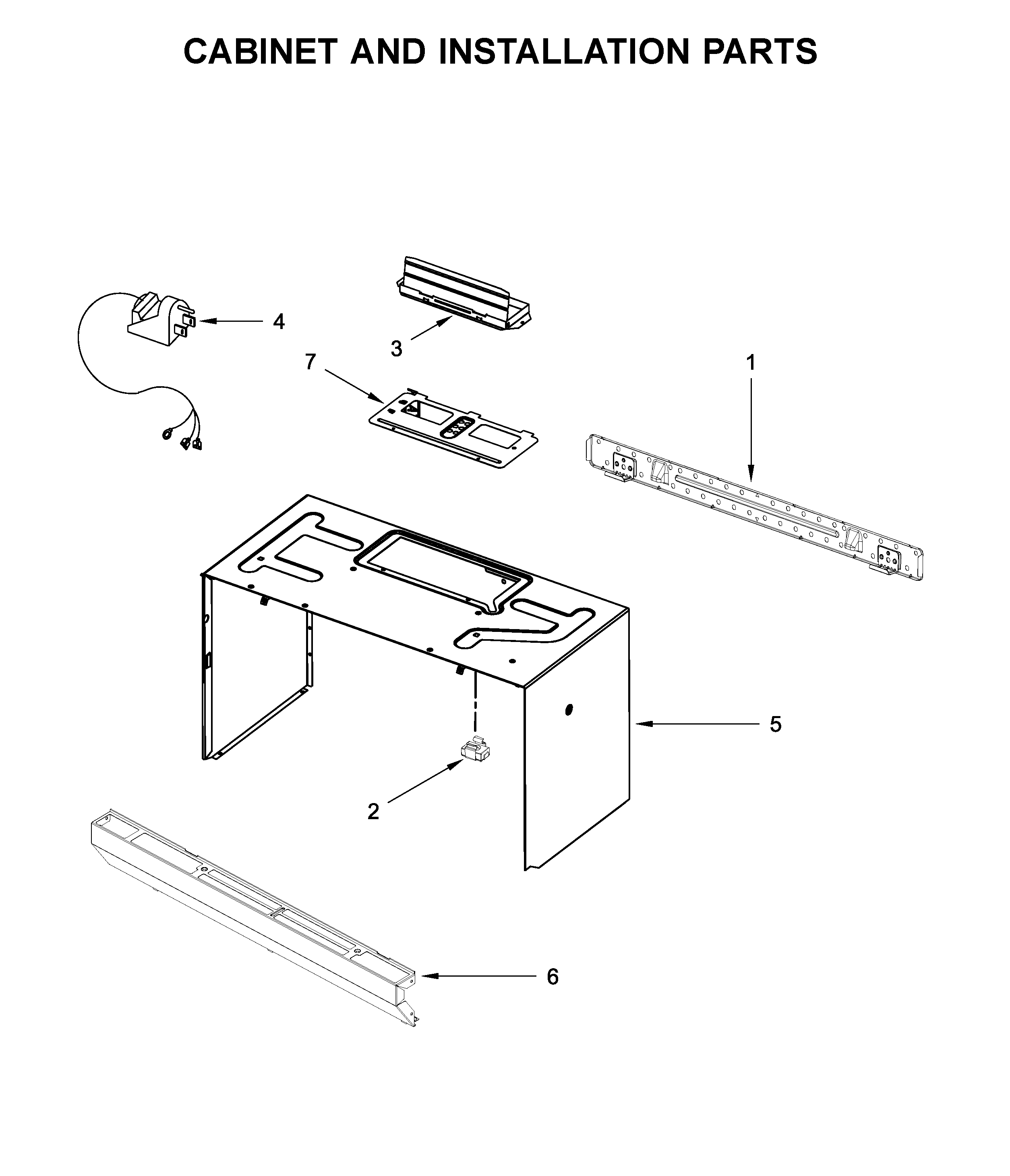

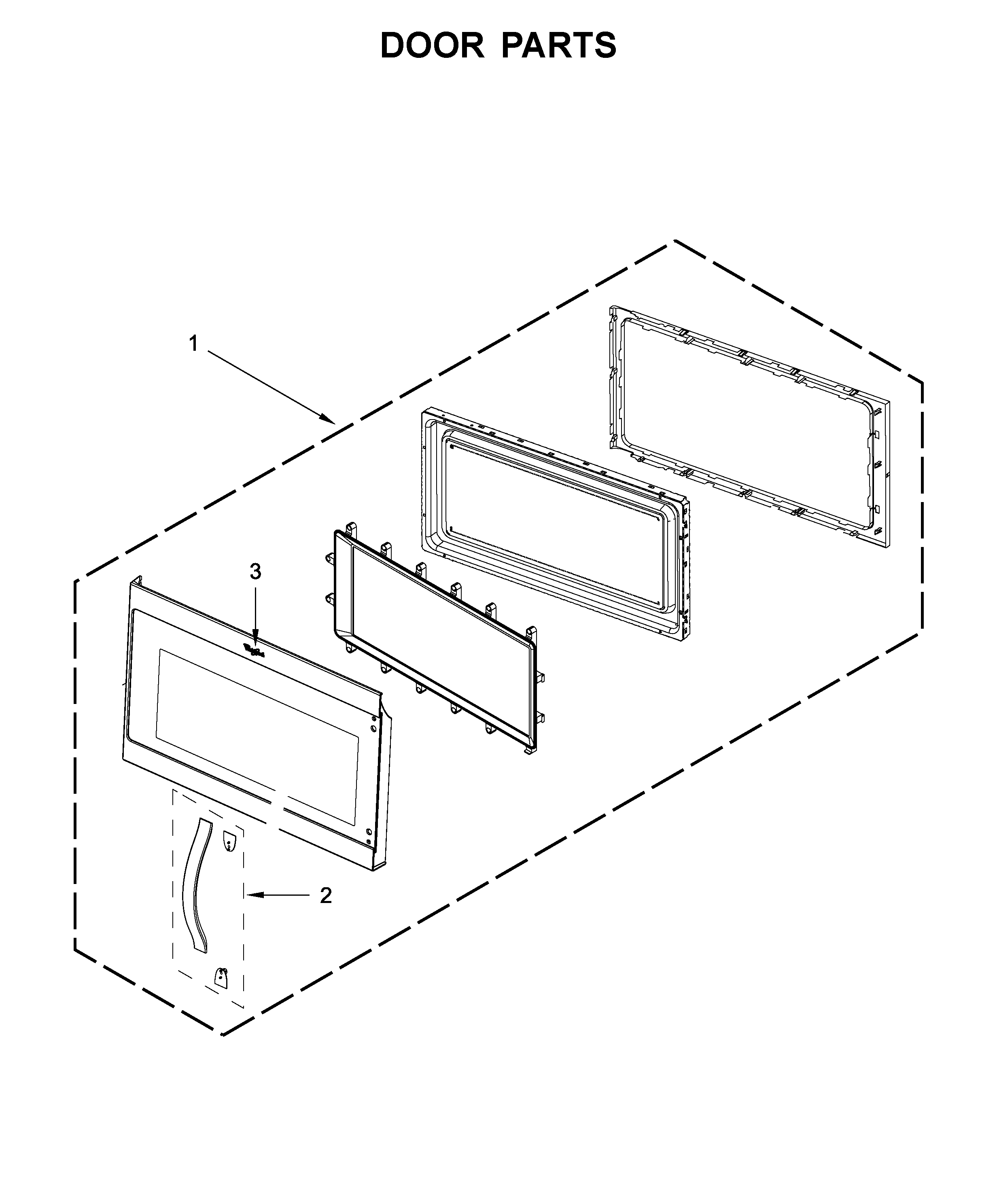

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Diode W10886077
#23

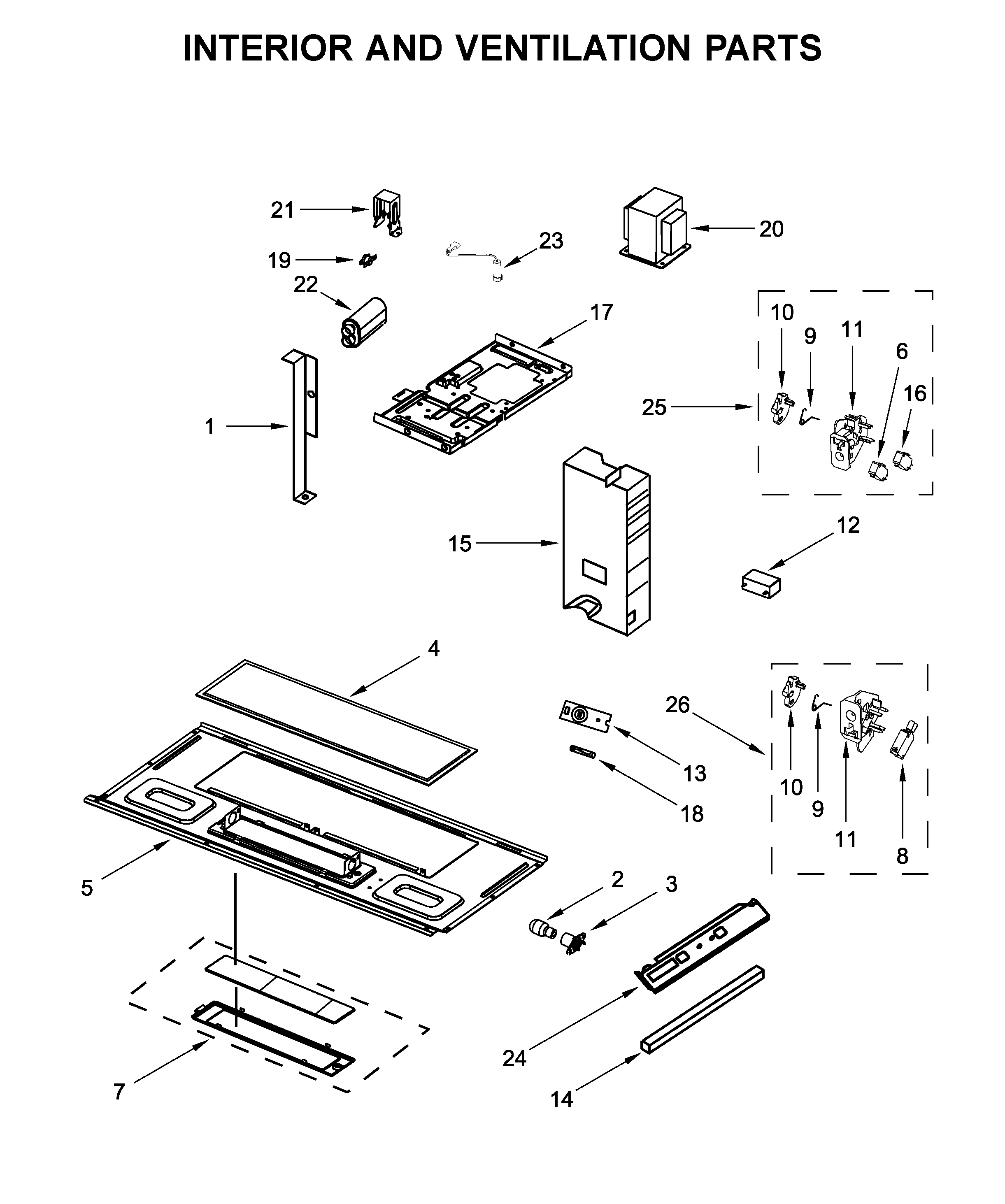

Interior and ventilation parts diagram

Diode

Part #W10886077

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10886077. Substitute parts can look different from the original.
BEST SELLER
$24.65
20% OFF Phone Price : $30.65
In Stock
Microwave Door Switch W10269457
#16

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.84
17% OFF Phone Price : $5.84
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#6

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$25.42
19% OFF Phone Price : $31.42
In Stock
Lamp Assembly 4393681
#3

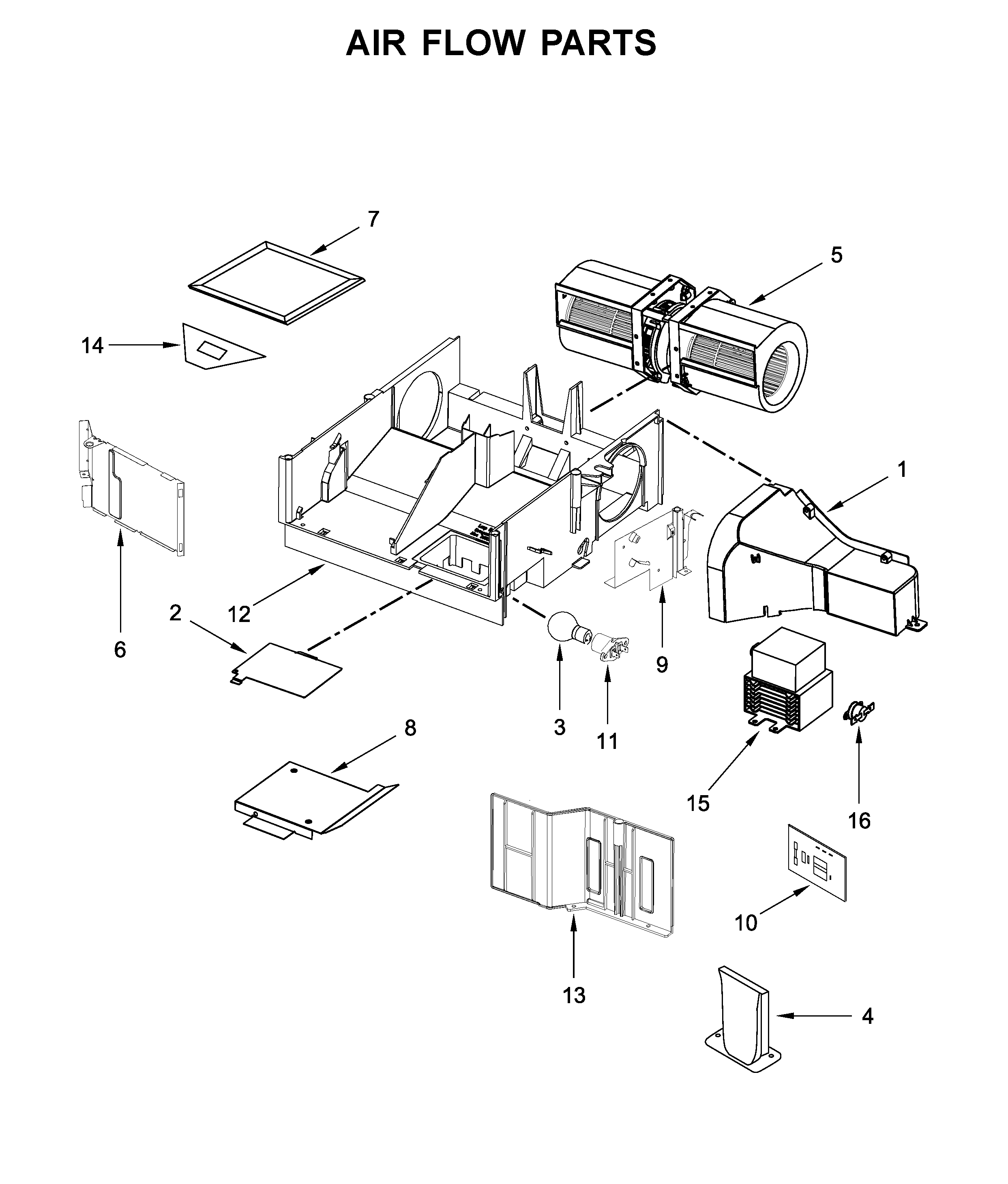

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.20
10% OFF Phone Price : $10.20
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.20
10% OFF Phone Price : $10.20
In Stock
Microwave Door Interlock Switch W10269460
#8

Interior and ventilation parts diagram

Microwave door interlock switch

Part #W10269460

BEST SELLER
$39.99
13% OFF Phone Price : $45.99
In Stock
Microwave Door Interlock Support, Upper 8206419
#11

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

Replaced by #WP8206419

?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
BEST SELLER
$12.11
14% OFF Phone Price : $14.11
In Stock
Interlock W10156813
#11A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56
12% OFF Phone Price : $8.56
In Stock
Microwave Vent Louver Motor Cam Plate (replaces W10508437) W10562613
#10

Interior and ventilation parts diagram

Microwave vent louver motor cam plate (replaces w10508437)

Part #W10562613

BEST SELLER
$11.59
15% OFF Phone Price : $13.59
In Stock
Magnetron W10693025
#15

Air flow parts diagram

Magnetron

Part #W10693025

Replaced by #WPW10693025

?
Manufacturer substitution
This part replaces W10693025. Substitute parts can look different from the original.
BEST SELLER
$105.87
10% OFF Phone Price : $117.87
In Stock
