Whirlpool WZF34X18DW03 upright freezer

Whirlpool WZF34X18DW03 upright freezer Parts

Here are the diagrams and repair parts for Whirlpool WZF34X18DW03 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WZF34X18DW03 Freestanding Freezers

  • Refrigerator Uv Filter Dryer for Whirlpool WZF34X18DW03 - Part WPW10143759

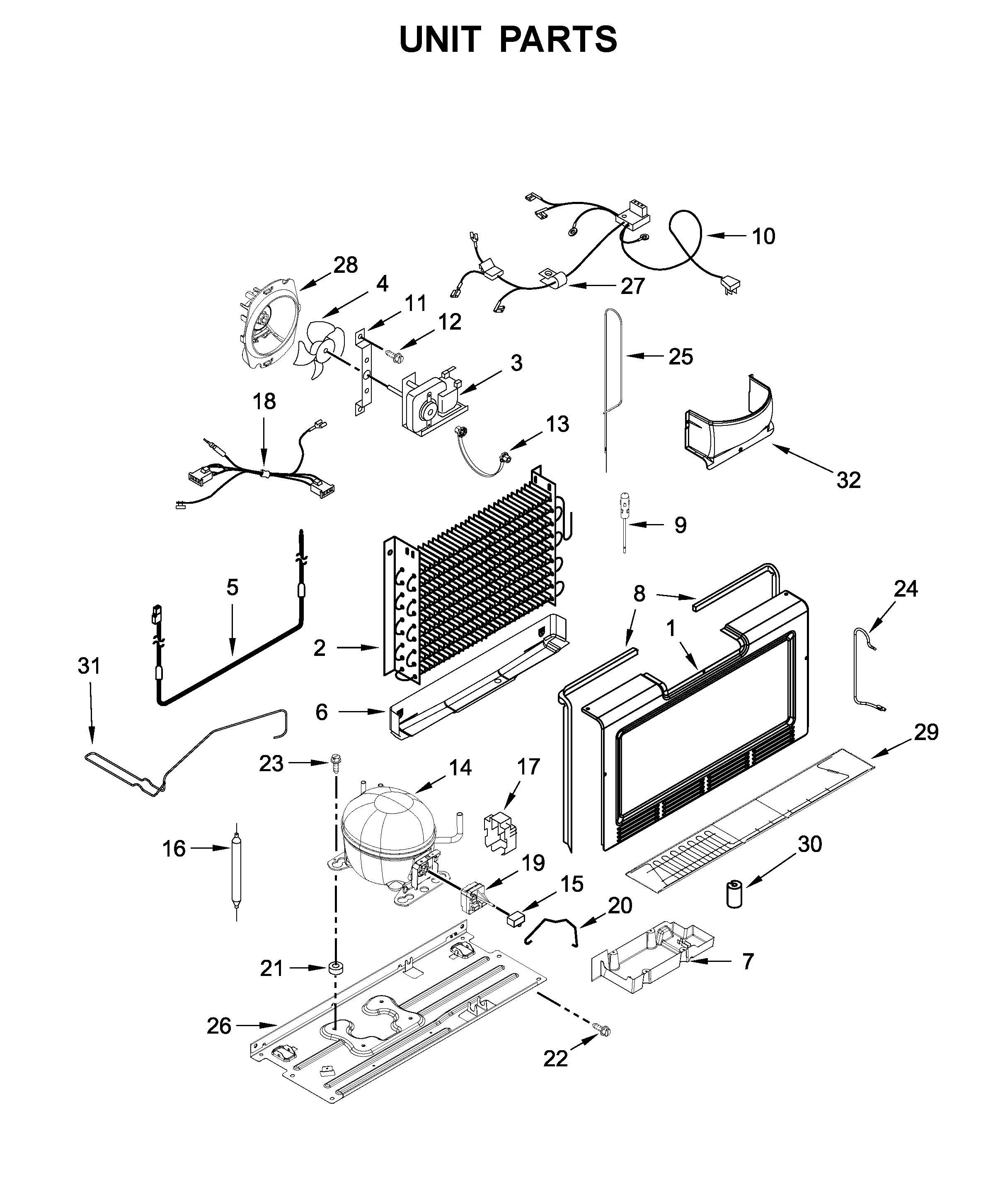

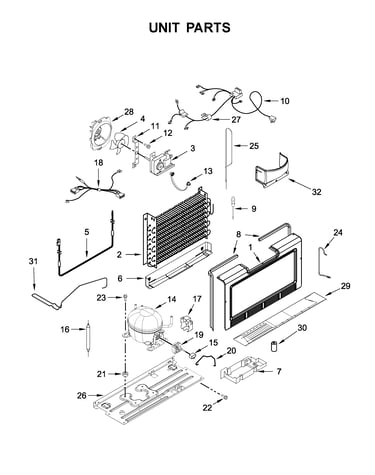

    Unit parts diagram

    Drier Assembly

    Part #W10709968

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10709968. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Whirlpool WZF34X18DW03 - Part WP2169142

    Unit parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $24.25
    20% OFF Phone Price : $30.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor for Whirlpool WZF34X18DW03 - Part WPW10383615

    Unit parts diagram

    Refrigerator Thermistor

    Part #W10383615

    Replaced by #WPW10383615

    Info Icon
    Manufacturer substitution
    This part replaces W10383615. Substitute parts can look different from the original.
    In Stock
    $35.06
    15% OFF Phone Price : $41.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Thermistor for Whirlpool WZF34X18DW03 - Part W10384183

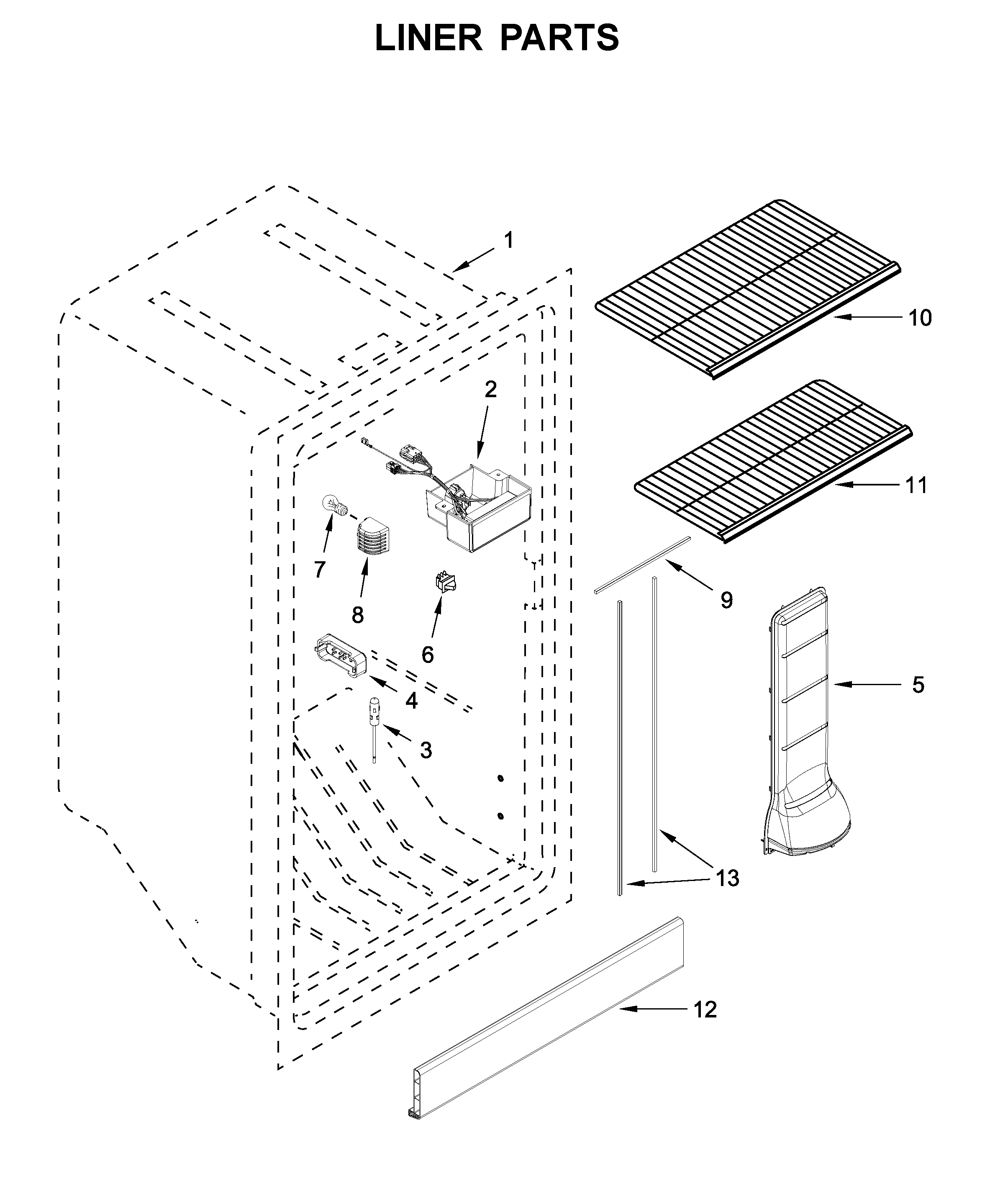

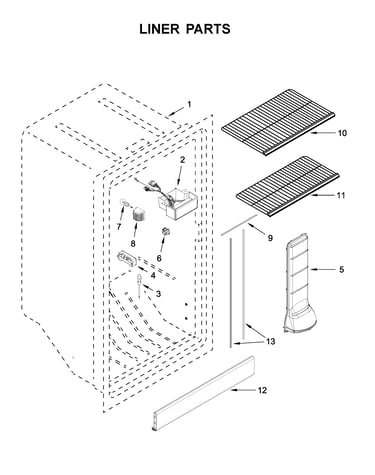

    Liner parts diagram

    Refrigerator Thermistor

    Part #W10384183

    The manufacturer no longer makes this part, and there's no substitute part

  • Whirlpool Refrigerator Run Capacitor for Whirlpool WZF34X18DW03 - Part WPW10350564

    Unit parts diagram

    Refrigerator Run Capacitor

    Part #W10350564

    Replaced by #WPW10350564

    Info Icon
    Manufacturer substitution
    This part replaces W10350564. Substitute parts can look different from the original.
    In Stock
    $59.30
    9% OFF Phone Price : $65.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Whirlpool WZF34X18DW03 - Part 350930

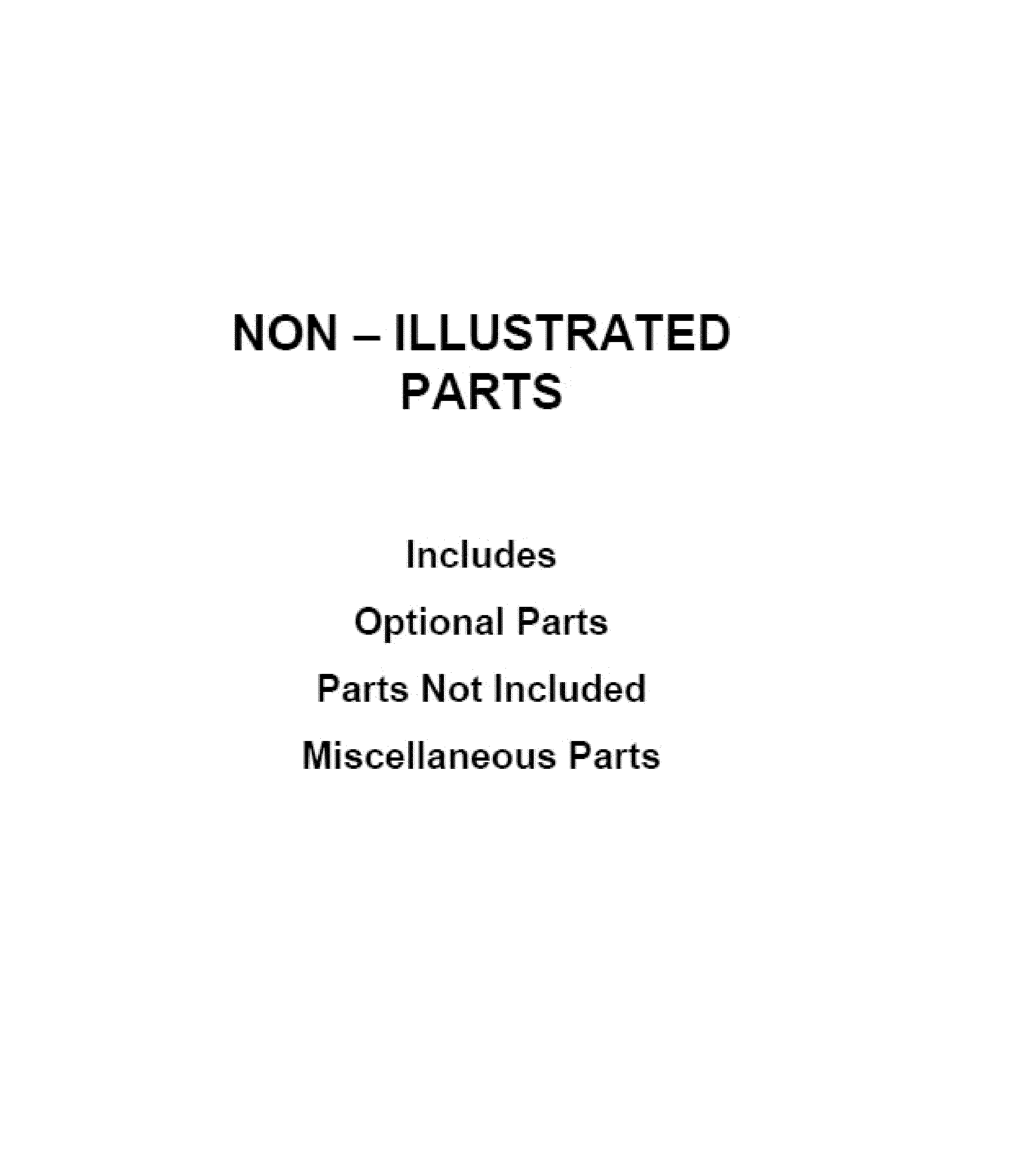

    Optional parts (not included) diagram

    Spray Paint (white)

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Evaporator for Whirlpool WZF34X18DW03 - Part W11507067

    Unit parts diagram

    Freezer Evaporator

    Part #W10574283

    Replaced by #W11507067

    Info Icon
    Manufacturer substitution
    This part replaces W10574283. Substitute parts can look different from the original.
    In Stock
    $125.79
    9% OFF Phone Price : $137.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Whirlpool WZF34X18DW03 - Part WP489497

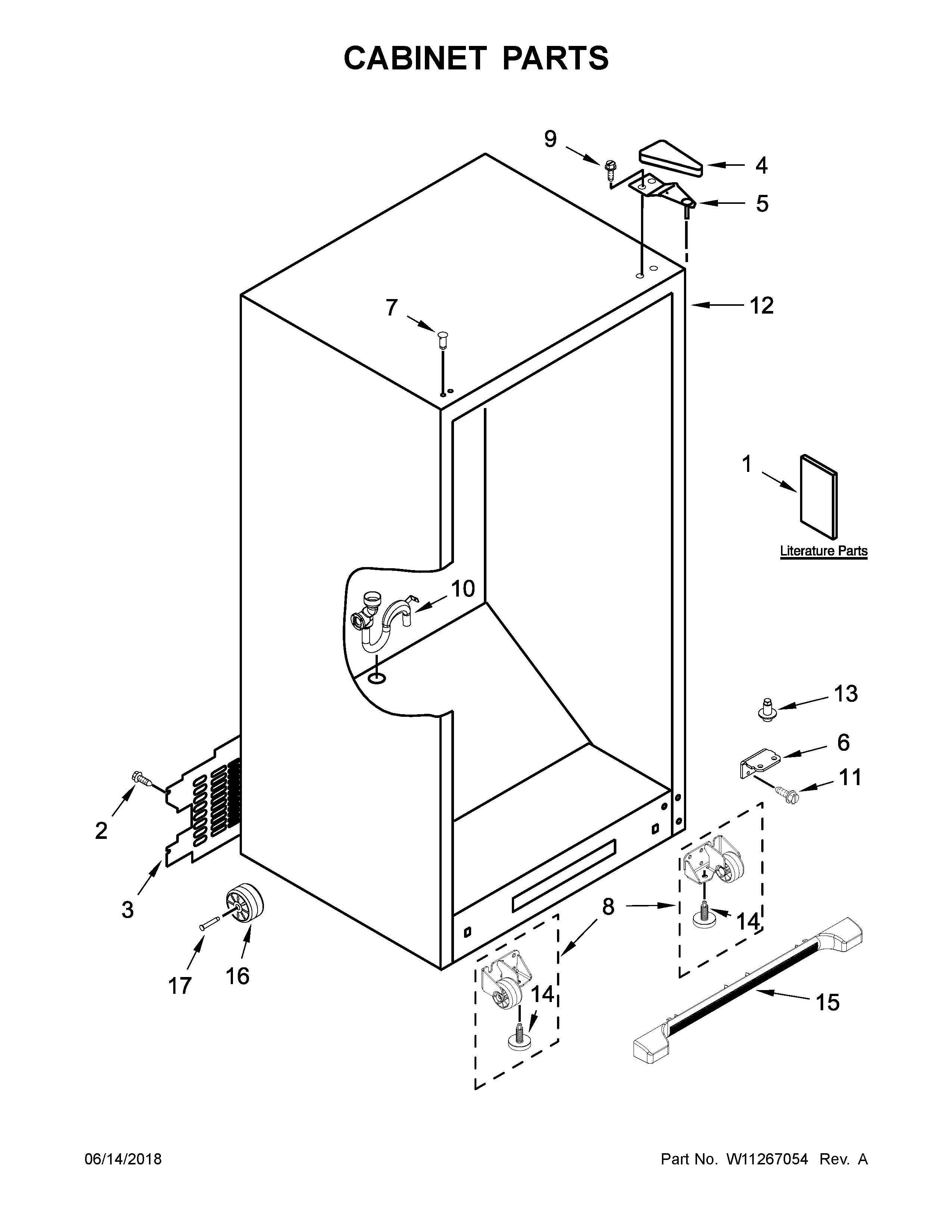

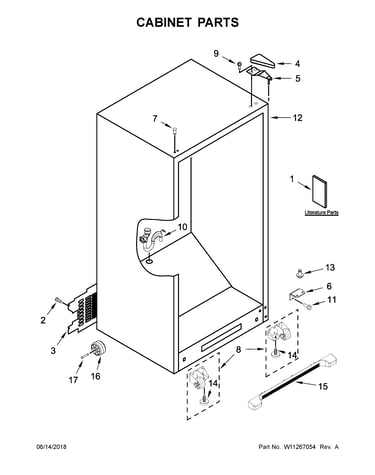

    Cabinet parts diagram

    Screw

    Part #3400113

    Replaced by #WP489497

    Info Icon
    Manufacturer substitution
    This part replaces 3400113. Substitute parts can look different from the original.
    In Stock
    $9.48
    10% OFF Phone Price : $10.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Roller for Whirlpool WZF34X18DW03 - Part WPW10515763

    Cabinet parts diagram

    Refrigerator Roller

    Part #W10515763

    Replaced by #WPW10515763

    Info Icon
    Manufacturer substitution
    This part replaces W10515763. Substitute parts can look different from the original.
    In Stock
    $49.24
    11% OFF Phone Price : $55.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Whirlpool WZF34X18DW03 - Part 72032

    Optional parts (not included) diagram

    Appliance Touch-up Paint, 0.6-oz (black)

    Part #72032
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool Upright Freezer WZF34X18DW03 FAQs

A Whirlpool upright freezer like model WZF34X18DW03 is a strong choice for reliable long-term freezing, easy organization, and everyday convenience. In our experience, owners value the upright design for quick access to food, steady temperatures, and practical features like interior lighting and adjustable storage.

What “good” means for an upright freezer

A good upright freezer consistently holds safe freezing temperatures, minimizes frost issues, and makes it easy to find and rotate food. For the Whirlpool WZF34X18DW03, the best model-specific guidance on setup, safety, and operation is in the WZF34X18DW03 user guide.

Common strengths customers look for

  • Upright layout makes items easier to see than in a chest freezer
  • Adjustable shelves and door bins help organize bulk and boxed foods
  • Bright interior lighting improves visibility
  • Quiet operation is common when the freezer is level and has proper airflow
  • Frost-free designs reduce manual defrosting compared with manual-defrost models

Quick comparison: upright vs chest freezer

Feature Upright freezer (like WZF34X18DW03) Chest freezer
Access/organization Easier to sort and reach items Harder to reach bottom items
Floor space Smaller footprint, taller Larger footprint
Frost management Often frost-free Often manual defrost
Efficiency (typical) Good Often slightly better

What affects performance day to day

Even a “good” freezer can struggle if installation and maintenance basics are missed.

  • Keep the freezer level so the door seals evenly
  • Avoid overpacking air vents so cold air can circulate
  • Let hot food cool before loading to reduce temperature swings
  • Keep the door closed as much as possible to prevent moisture buildup
  • Check the door seal if you see frost, sweating, or soft ice cream

Why it matters

A freezer that maintains stable temperatures protects food quality, reduces freezer burn, and helps prevent costly spoilage. Proper setup and airflow also reduce run time, noise, and wear on the sealed system.

Last updated: January 2026

Most upright freezers last 10 to 20 years, with 12 to 15 years being a common average for many households. For a Whirlpool WZF34X18DW03 upright freezer, lifespan depends most on installation conditions (temperature, airflow clearance) and routine care outlined in the WZF34X18DW03 owner’s manual.

What affects lifespan the most

A freezer usually reaches the high end of its lifespan when it runs in the right environment and does not have to work harder than necessary.

  • Keep the room temperature at or above 40°F (5°C) for efficient operation
  • Maintain clearance for airflow: 3 in. at the top and both sides, 1 in. behind
  • Avoid covering the cabinet (blankets, tablecloths, stored items) that restrict airflow
  • Keep the door sealing tightly to prevent warm air leaks and frost buildup
  • Clean the interior regularly and keep air passages inside the freezer unobstructed

Typical lifespan expectations (quick guide)

Usage and conditions Typical lifespan What you usually notice first
Ideal location, good airflow, door seals tight 15 to 20 years Minor noise increase, longer run times
Average household use, normal wear 12 to 15 years Temperature swings, more frequent cycling
Hot garage, poor clearance, frequent door openings 8 to 12 years Heavy frost, warm spots, constant running

Signs your freezer is nearing end of life

These symptoms often show up before a complete failure:

  • Runs almost constantly but temperatures rise
  • Excessive frost or ice buildup on the back wall or around the evaporator area
  • Louder fan or compressor noises than normal
  • Door does not close easily or the gasket no longer seals
  • Food softening or thawing during normal operation

Why it matters

A freezer that is forced to run in heat, with poor ventilation, or with a leaking door seal can shorten compressor life and increase energy use. Following the placement and airflow guidance in the manual helps the sealed system and controls maintain stable temperatures with less strain.

Last updated: January 2026

To reset your Whirlpool upright freezer model WZF34X18DW03, restore power and then reset the temperature control settings. A simple power reset (unplug, wait, plug back in) followed by a control reset clears many minor control glitches and gets cooling back on track.

Reset steps for WZF34X18DW03

  • Unplug the freezer (or switch off the circuit breaker).
  • Wait 5 minutes.
  • Plug the freezer back into a grounded 3-prong outlet.
  • Reset the control settings (the manual calls this out after restoring power). See the WZF34X18DW03 owner’s manual.
  • Allow 24 hours for temperatures to stabilize after any control change.

If it still is not cooling after the reset

These checks help separate a control issue from an airflow, defrost, or sealed-system problem:

  • Confirm the control is not set to an “off” or warmest setting.
  • Make sure the door closes fully and the gasket is sealing (no gaps).
  • Listen for the evaporator fan; no fan noise can point to an airflow problem.
  • Check for heavy frost on the back interior panel (often a defrost issue).
  • Verify the outlet has steady power (try a different small appliance in the same outlet).

What “reset” means on this freezer

On WZF34X18DW03, “reset” typically means a power cycle plus returning the temperature control to the desired setting. This model does not rely on a dedicated external reset button for normal operation.

Situation Best reset action What to expect
Control acting odd after a power flicker Unplug 5 minutes, then reset control Cooling restarts; temps stabilize within 24 hours
Freezer too warm after loading food Reset control to colder setting Gradual improvement over several hours
Door not closing well Level/tilt adjustment (not a control reset) Better seal; fewer temperature swings

Why it matters

A proper reset restores normal control operation and prevents unnecessary part replacement. If the freezer is still warm after a correct reset and 24 hours of run time, the issue is usually airflow, defrost, or a cooling-system component rather than the control setting.

Last updated: January 2026

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Repair guides for upright freezers

How to replace a freezer evaporator fan

How to replace a freezer evaporator fan

Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…

Repair time and Difficulty

 45 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Repair time and Difficulty

 15 minutes or less
How to replace a freezer LED light board

How to replace a freezer LED light board

The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…

Repair time and Difficulty

 15 minutes or less
