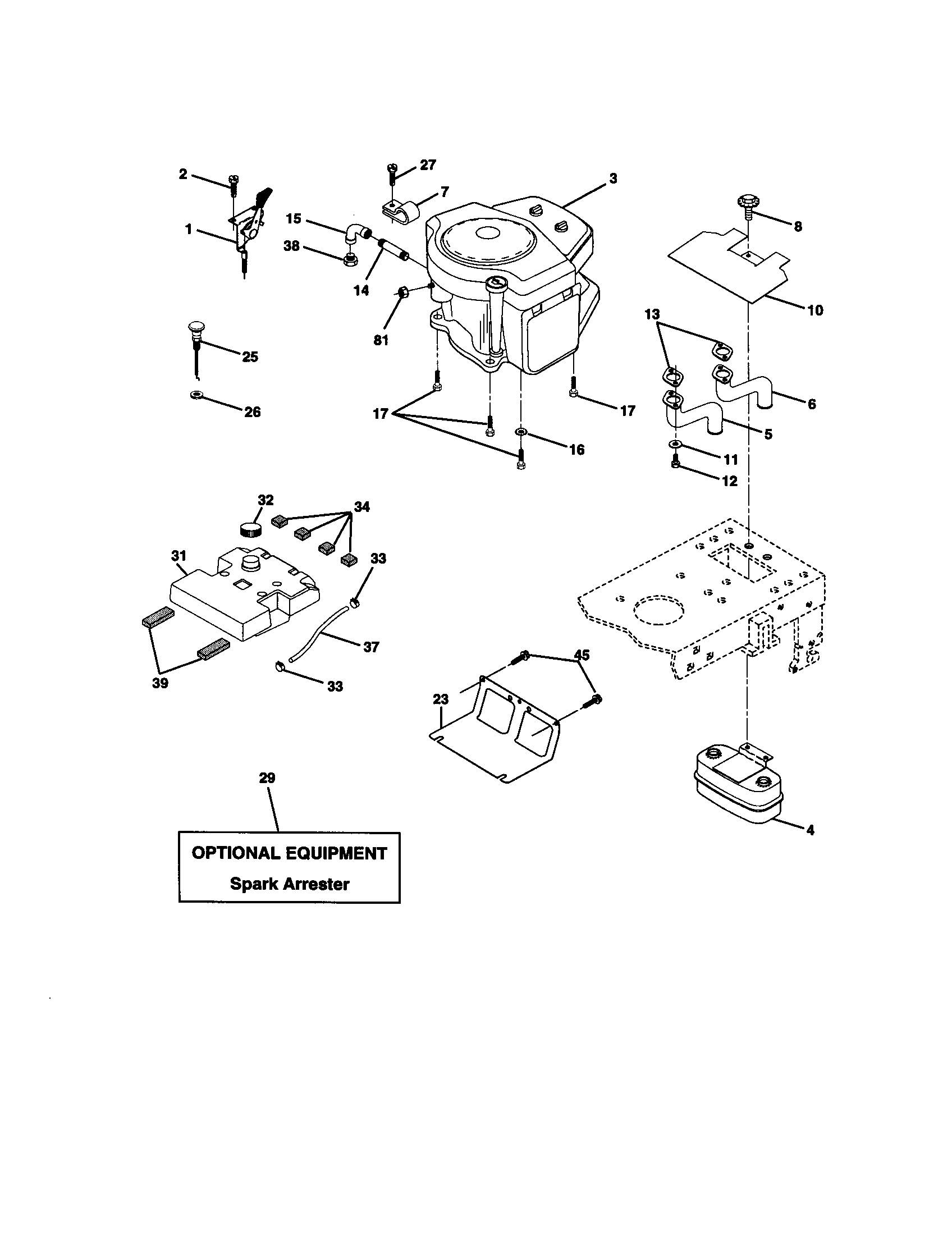

What are the parts of a lawn mower engine?
On the Craftsman lawn tractor model 917270912, the engine is a typical small gasoline engine made up of fuel, air-intake, ignition, and internal rotating components that work together to create power. For model-specific maintenance intervals and specs, use the 917270912 owner’s manual.
Most riding mower engines (including the one used on model 917270912) are built around these core groups:
- Fuel system: fuel tank, fuel line, fuel filter, carburetor
- Air intake: air filter (often foam pre-cleaner plus paper cartridge), air screen
- Ignition system: spark plug, ignition coil, flywheel magnets

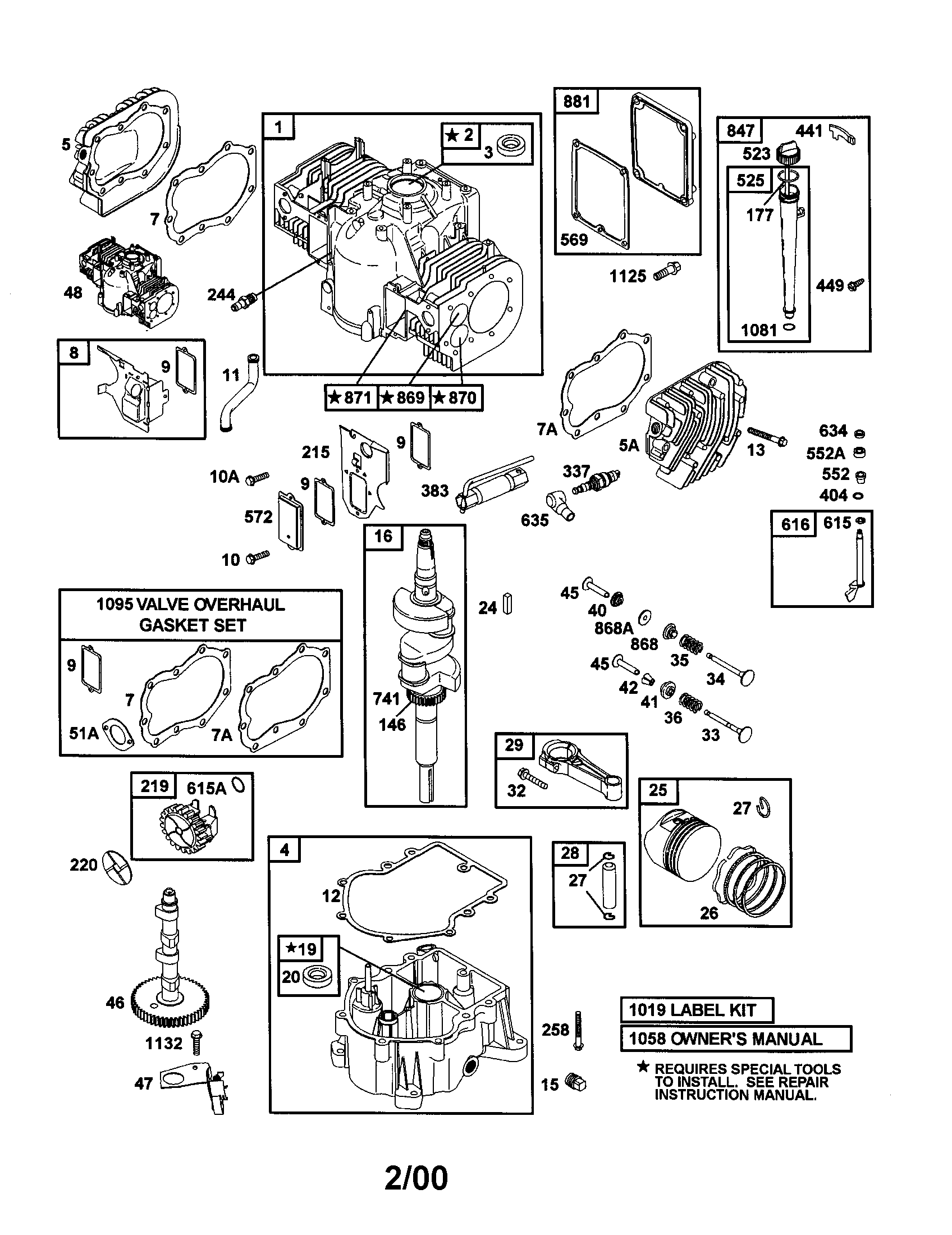

- Engine internals: crankcase, crankshaft, piston, connecting rod, valves

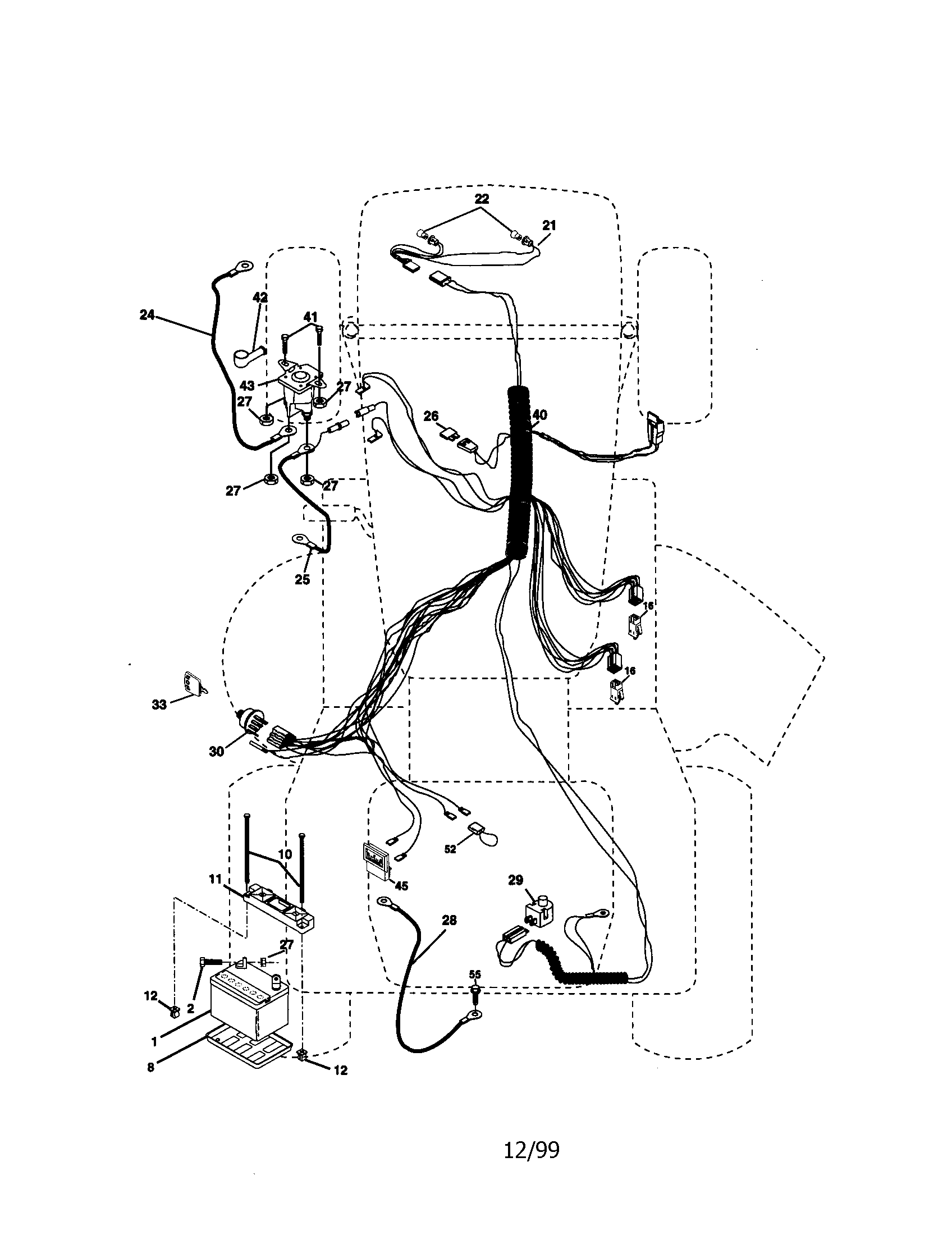

- Starting/charging: starter motor/solenoid, battery, charging system
- Exhaust: muffler and exhaust outlet
- Lubrication/cooling: oil fill/dipstick, oil drain, cooling fins
Our experience is that these items drive most “won’t start” and “runs rough” complaints:
- Spark plug (correct type and gap are listed in the manual)
- Air filter and pre-cleaner (dirty filters cause rich running and power loss)
- Fuel filter and fuel line (clogs restrict fuel flow)
- Engine oil (low or dirty oil accelerates wear)
- Muffler (damage or restriction affects performance)
If you’re replacing a fuel line component on this tractor, a compatible option is the fuel line 587044854.
| Engine area | What it does | Common symptom when faulty |
|---|---|---|
| Fuel delivery | Feeds gasoline to carburetor | Hard starting, surging |
| Air filtration | Keeps dirt out of engine | Black smoke, low power |
| Ignition | Creates spark at the plug | No-start, misfire |
| Lubrication/cooling | Reduces heat and friction | Overheating, knocking |
Knowing the engine parts helps you troubleshoot faster and avoid replacing the wrong component. It also helps you match the correct Craftsman parts to model 917270912, since similar tractors can use different engines and fuel/ignition setups.
Last updated: January 2026
What kind of engine does a Craftsman riding lawn mower have?
For Craftsman lawn tractor model 917270912, the exact engine brand and model family are not identified by the model number alone; however, it is a 19.5 HP gasoline, low-emission, single-cylinder riding-mower engine with electric start. For the most accurate engine details, use the specifications section in the 917270912 owner's manual.
We recommend confirming the engine by reading the engine ID label (not the tractor model tag). Common label locations include:
- On the blower housing (top or side of the engine)
- Near the spark plug wire area
- On the valve cover
- On the engine shroud near the starter
- On a sticker near the muffler heat shield
Once you have the engine numbers, match them to the manual and parts diagrams for the correct tune-up parts.
The owner’s manual for model 917270912 lists these model-specific specs and service references:
| Spec item | Model 917270912 value |
|---|---|
| Engine power class | 19.5 HP |
| Starting system | Electric start |
| Fuel type | Regular unleaded gasoline |
| Spark plug type | Champion RJ19LM (or J19LM) |
Craftsman tractors can share the same tractor model number while using different engine variants over production runs. Verifying the engine ID helps ensure you buy the correct spark plug, air filter, fuel filter, and oil type for reliable starting and smooth mowing.
Last updated: January 2026
How do I find the model number on my 917270912?
The model number for your Craftsman riding mower is printed on the tractor’s model and serial number label. On model 917270912, this label is typically on the frame under the seat or near the rear fender area; match the full model number exactly when ordering parts.
Check these common label locations (use a flashlight and wipe off grass or oil film):
- Under the seat on the seat pan or frame rail
- On the rear fender, near the seat base
- On the frame near the left rear wheel
- Under the hood near the engine compartment opening (less common)
- On the mower deck shell (usually a deck tag, not the tractor model tag)
We recommend copying the information exactly as shown on the tag.
| Label item | What it’s used for | Example format |
|---|---|---|
| Model number | Ensures correct diagrams and parts fit | 917.270912 or 917270912 |
| Serial number | Identifies production run details | Letters and numbers |
| Product number | Sometimes used for parts lookups | Varies by tractor |
Using the correct model number matters most for deck, belt, and steering parts.
- Enter the full model number, including any dots
- If the tag is worn, take a clear photo and zoom in

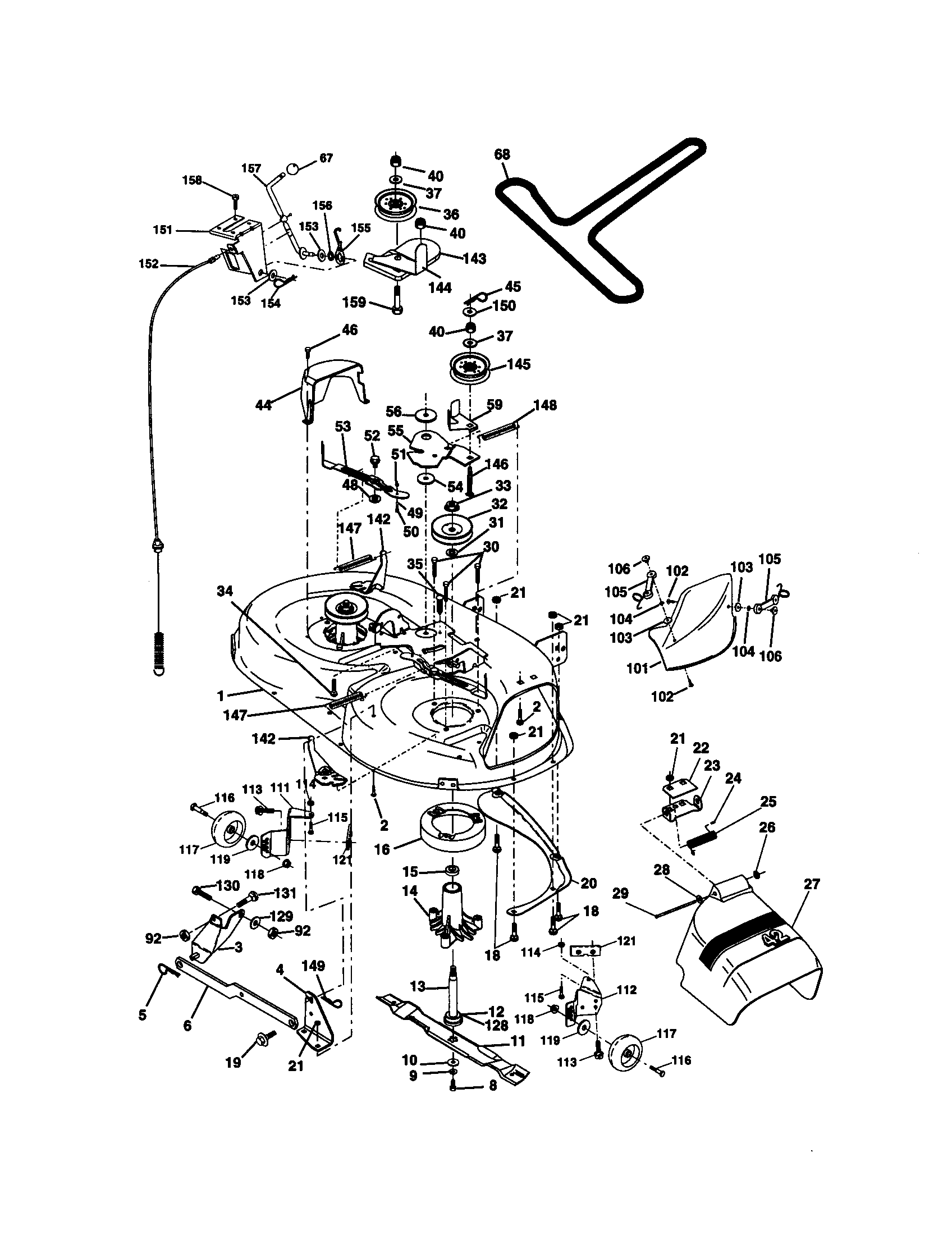

- Compare your deck size (42-inch) and configuration to the diagrams
- Use the manual’s identification section to confirm label location and format
Craftsman tractors often share similar frames across model families, but belts, mandrel assemblies, and steering components can differ by model and build series. Using the exact model number helps ensure the right part the first time.
For more details on identification and safe access around the seat and hood area, use the 917270912 owner's manual.
