Amana ABB1921DEW refrigerator

Amana ABB1921DEW refrigerator Parts

Here are the diagrams and repair parts for Amana ABB1921DEW refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ABB1921DEW Refrigerators

  • Whirlpool Refrigerator Ice Maker (d7824706q) for Amana ABB1921DEW - Part D7824706Q

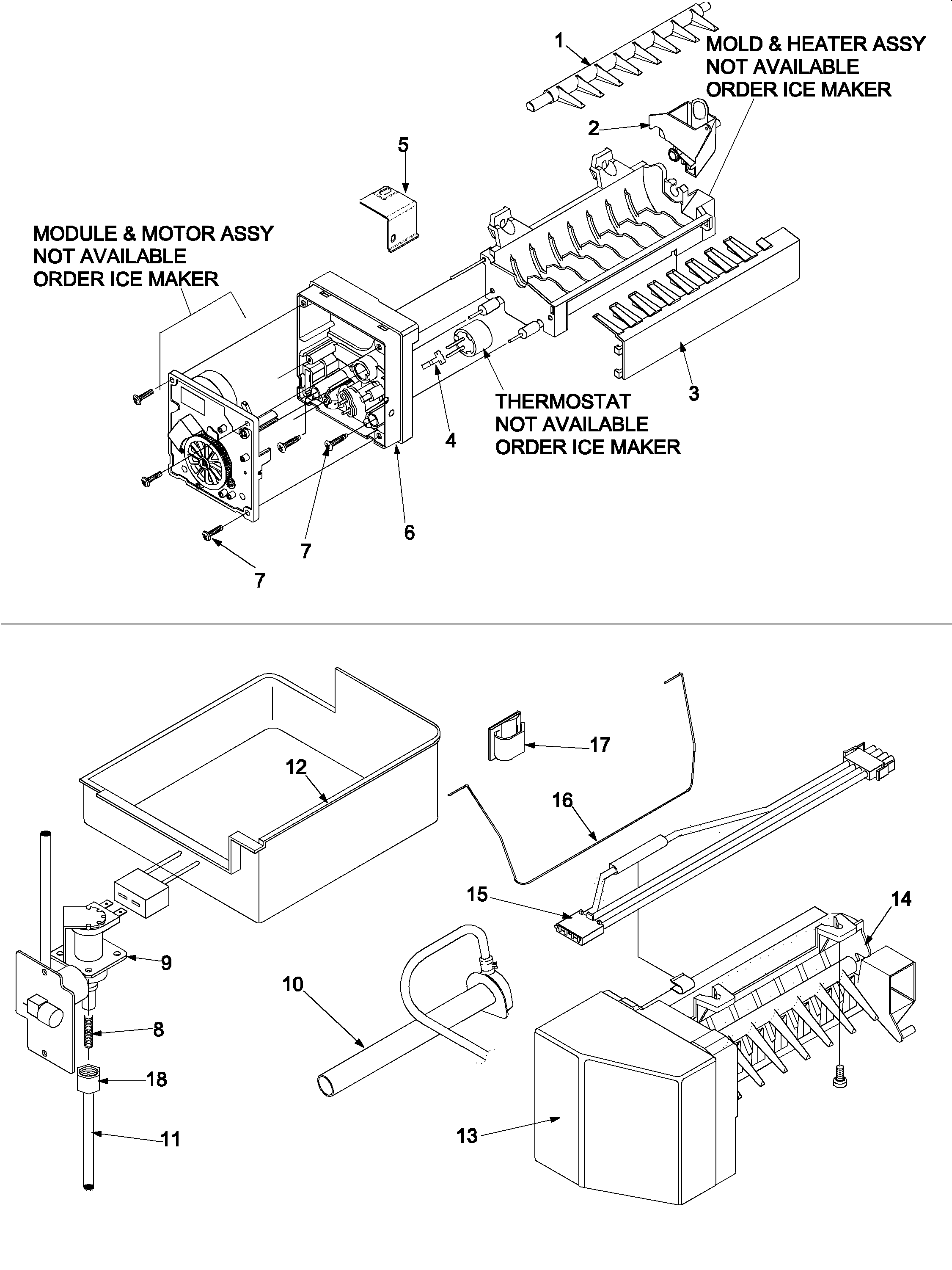

    Optional ice maker kit ic11b p1328003w diagram

    Refrigerator Ice Maker

    Part #D7824706

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces D7824706. Substitute parts can look different from the original.
    In Stock
    $101.86
    11% OFF Phone Price : $113.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Amana ABB1921DEW - Part W11396033

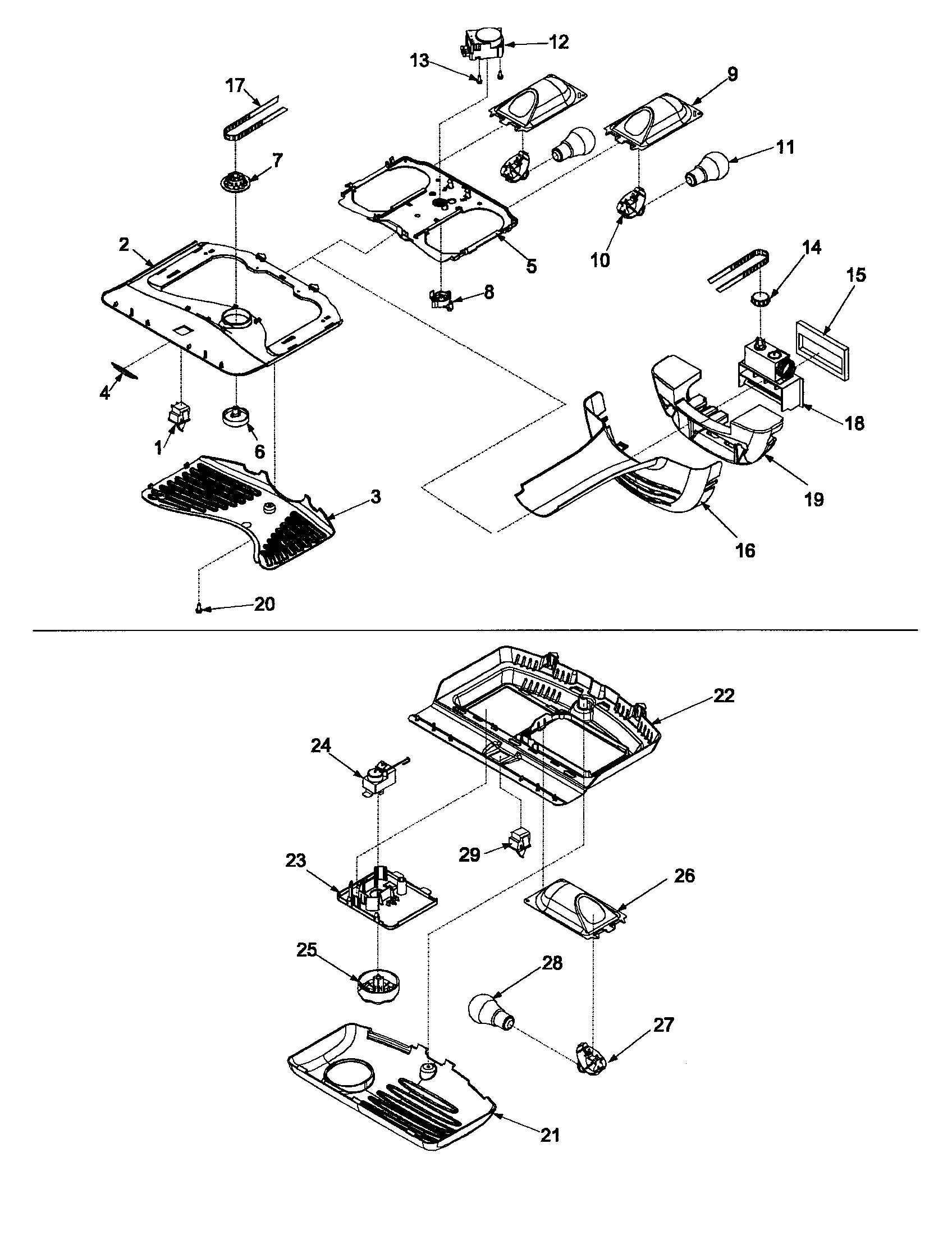

    Controls diagram

    Refrigerator Light Switch

    Part #67005653

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces 67005653. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Amana ABB1921DEW - Part W11396033

    Controls diagram

    Refrigerator Light Switch

    Part #12466101

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces 12466101. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Crisper Drawer Center Rail for Amana ABB1921DEW - Part WPW10671238

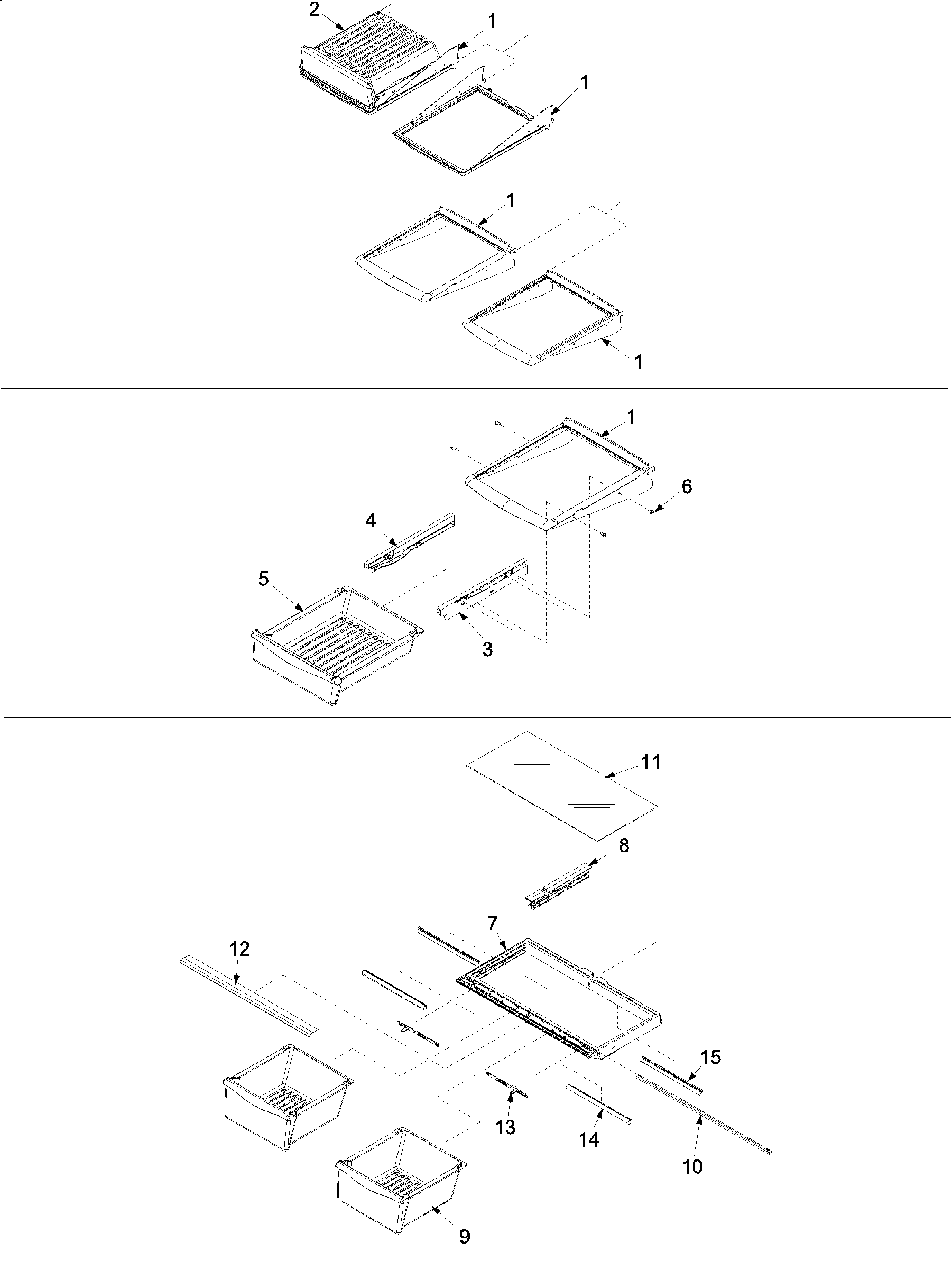

    Refrigerator shelving diagram

    Refrigerator Crisper Drawer Support Rail, Center

    Part #67001057

    Replaced by #WPW10671238

    Info Icon
    Manufacturer substitution
    This part replaces 67001057. Substitute parts can look different from the original.
    In Stock
    $48.55
    11% OFF Phone Price : $54.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Amana ABB1921DEW - Part W10823511

    Optional ice maker kit ic11b p1328003w diagram

    Refrigerator Tube

    Part #B5705323

    Replaced by #W10823511

    Info Icon
    Manufacturer substitution
    This part replaces B5705323. Substitute parts can look different from the original.
    In Stock
    $37.48
    14% OFF Phone Price : $43.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Motor for Amana ABB1921DEW - Part 833697

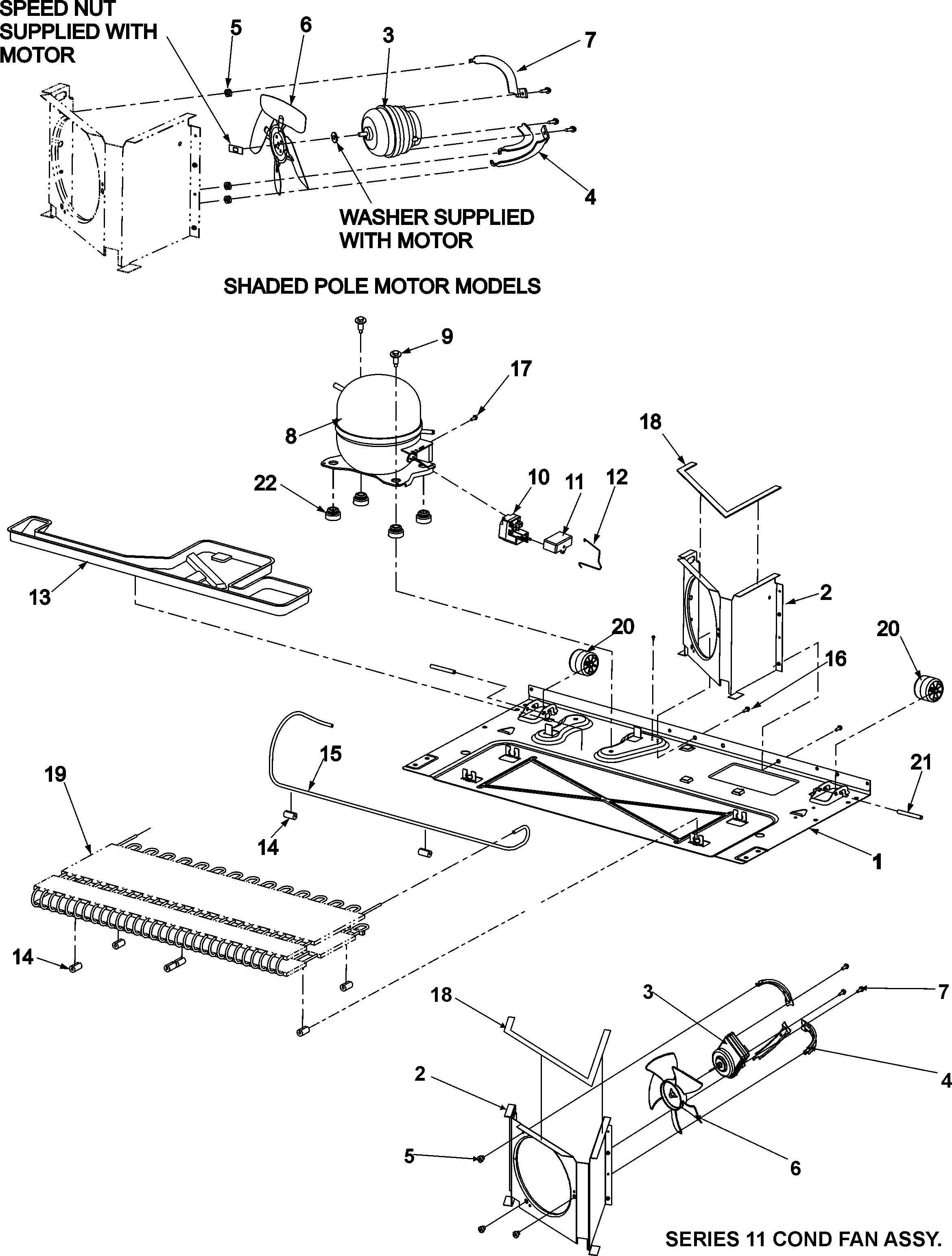

    Compressor diagram

    Refrigerator Condenser Fan Motor

    Part #10884507

    Replaced by #833697

    Info Icon
    Manufacturer substitution
    This part replaces 10884507. Substitute parts can look different from the original.
    In Stock
    $62.89
    9% OFF Phone Price : $68.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Amana ABB1921DEW - Part WP67003426

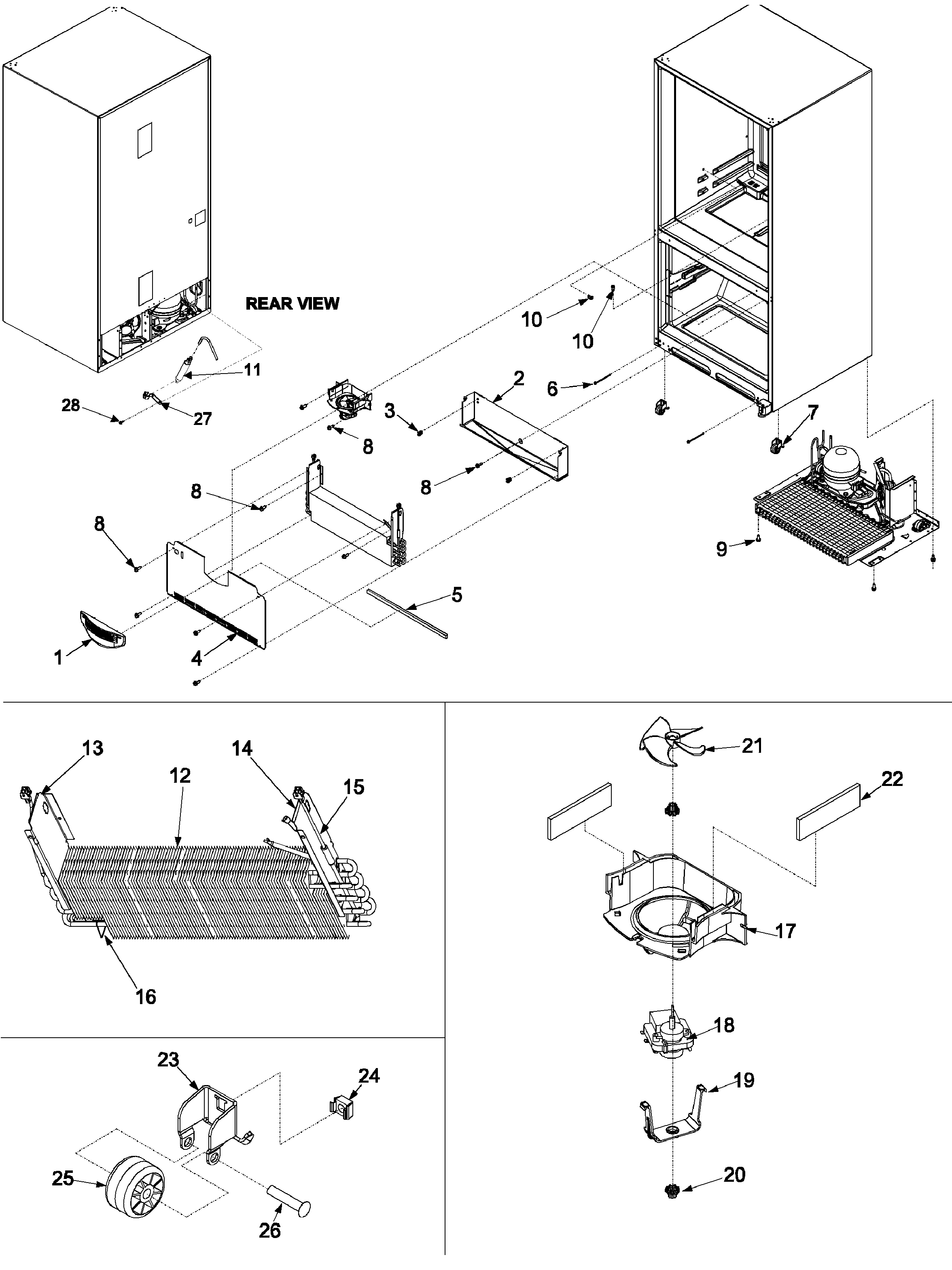

    Evaporator area & rollers diagram

    Refrigerator Defrost Bi-metal Thermostat

    Part #67003426

    Replaced by #WP67003426

    Info Icon
    Manufacturer substitution
    This part replaces 67003426. Substitute parts can look different from the original.
    In Stock
    $48.10
    11% OFF Phone Price : $54.10Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Assembly for Amana ABB1921DEW - Part WP67003753

    Optional ice maker kit ic11b p1328003w diagram

    Refrigerator Water Valve

    Part #67001241

    Replaced by #WP67003753

    Info Icon
    Manufacturer substitution
    This part replaces 67001241. Substitute parts can look different from the original.
    In Stock
    $75.15
    7% OFF Phone Price : $81.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Screw for Amana ABB1921DEW - Part WPW10348409

    Refrigerator Screw

    Part #M0211533

    Replaced by #WPW10348409

    Info Icon
    Manufacturer substitution
    This part replaces M0211533. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Amana ABB1921DEW - Part WPB2150504

    Evaporator area & rollers diagram

    Drier

    Part #B2150504

    Replaced by #WPB2150504

    Info Icon
    Manufacturer substitution
    This part replaces B2150504. Substitute parts can look different from the original.
    In Stock
    $96.97
    11% OFF Phone Price : $108.97Info Icon
    Minus Item
    Qty
    Plus Item

Amana Refrigerator ABB1921DEW FAQs

Most Amana refrigerators last about 13 years with normal household use. For your Amana ABB1921DEW bottom-mount refrigerator, good airflow, correct temperatures, and clean condenser coils are the biggest factors that help you reach (or beat) that average; see the ABB1921DEW owner's manual for care and operating guidance.

Typical lifespan and what affects it

A refrigerator’s life depends more on operating conditions than brand name alone.

  • Maintenance: keeping condenser coils clean reduces compressor strain
  • Ventilation: blocked vents and overcrowded shelves cause uneven cooling and longer run times
  • Temperature settings: steady temps reduce cycling and frost issues
  • Door seal condition: air leaks force longer run times and can cause moisture and frost
  • Usage patterns: frequent door openings and warm food loads increase workload

Quick targets that support longer life

The ABB1921DEW manual recommends keeping the fresh food section in a safe, efficient range.

Area Recommended target Why it helps lifespan
Fresh food compartment 34°F to 40°F (optimum 37°F) Reduces excessive run time while keeping food safe
Air circulation Don’t overcrowd shelves Prevents hot spots and long compressor cycles

Parts that commonly impact cooling performance

If you’re troubleshooting warm temps, noise, or heavy frost, these are common wear items that can shorten lifespan if they fail.

Why it matters

A refrigerator that runs longer than it should (from dirty coils, poor airflow, or a weak fan) puts extra stress on the sealed system and compressor. Keeping temperatures stable and airflow clear is the simplest way to protect performance and extend service life.

Last updated: February 2026

For the Amana ABB1921DEW, we set both the refrigerator and freezer temperature controls to 4 as the recommended starting point (the control range is 1 through 7, with 7 being coldest). Let temperatures stabilize before making small, one-step adjustments.

Use these as your baseline right after plugging in the refrigerator:

  • Refrigerator control: 4
  • Freezer control: 4
  • Wait time before adding food: 8 to 12 hours
  • Wait time after changing a setting: 24 hours for temperatures to stabilize
  • Adjustment rule: change only one number at a time

For the exact control style and location on your unit, follow the steps in the ABB1921DEW owner's manual.

How to adjust if temperatures are off

After the refrigerator has been running with food for at least 24 hours, adjust based on what you notice:

What you notice What to do What to expect
Refrigerator too warm Turn refrigerator control to the next higher number Colder fresh food section (also affects freezer slightly)
Refrigerator too cold Turn refrigerator control to the next lower number Warmer fresh food section
Freezer too warm Turn freezer control to the next higher number Colder freezer (also affects refrigerator slightly)
Freezer too cold Turn freezer control to the next lower number Warmer freezer

Quick checks before you change the dial

These common issues can make temperatures seem “wrong” even when the settings are correct:

  • Doors not closing fully (packages or bins blocking the seal)
  • Frequent or long door openings
  • Warm food just loaded into the refrigerator
  • Air vents blocked by containers (reduces airflow)
  • Unit just started up (needs time to reach normal temps)

Why it matters

Starting at 4 and adjusting slowly prevents over-cooling, freezing produce, and temperature swings that can lead to poor food storage. It also helps you avoid chasing the temperature by making multiple changes too quickly.

Last updated: February 2026

For the Amana ABB1921DEW refrigerator, we expect it to start cooling right away, reach safe “everyday cold” temperatures in about 8 to 12 hours, and fully stabilize in about 24 hours after you set the controls and close the doors. Use the ABB1921DEW owner's manual for the exact control guidance.

What to do right after installation

  • Plug the refrigerator in and confirm the interior light turns on.
  • Set freezer control to 4 and refrigerator control to 4 (the normal starting point).
  • Keep doors closed as much as possible for the first day.
  • Wait 8 to 12 hours before loading a full amount of food.
  • Allow 24 hours after adding food for temperatures to stabilize before making more adjustments.

Temperature targets and timing (quick guide)

Time since plugging in What you should expect What to do
0 to 2 hours Cooling begins; cabinet front may feel warm Leave controls at 4 and keep doors closed
8 to 12 hours Compartments should be noticeably cold Add food gradually if temps feel stable
24 hours Temperatures stabilize Adjust controls by 1 number if needed

If it is not getting cold fast enough

  • Make sure the freezer control is not set to OFF (OFF stops cooling in both sections).
  • Confirm the doors seal and close fully; long door openings slow cooling.
  • Do not overpack; airflow is needed around vents.
  • Set controls one step colder (for example, from 4 to 5), then wait 24 hours.
  • If you hear a fan noise issue or weak airflow, follow how to fix your evaporator cooling fan.

Why it matters

Cooling time affects food safety and performance. The ABB1921DEW is designed to stabilize gradually; changing settings too quickly or opening doors often can add many hours to the cool-down.

Last updated: February 2026

If your Amana ABB1921DEW refrigerator is not getting cold, the usual causes are control settings, dirty condenser coils, blocked airflow, or a door that is not sealing or closing fully. Set both controls to 4 and allow 24 hours for temperatures to stabilize.

Quick checks (fastest wins)

  • Make sure the freezer control is not set to OFF; on ABB1921DEW, OFF stops cooling in both compartments.
  • Set freezer control to 4 and refrigerator control to 4 (range 1 to 7; 7 is coldest).
  • Wait 8 to 12 hours after a change to see improvement; allow 24 hours for full stabilization.
  • Clean the condenser coil area; dirty coils commonly cause warm temperatures.
  • Confirm the rear air grille and interior vents are not blocked by food packages.
  • Check doors close completely; fix anything preventing full closure.

Step-by-step troubleshooting

  1. Reset controls using the guidance in the ABB1921DEW owner's manual.
  2. Restore airflow: rearrange items so air can circulate in both sections.
  3. Clean the condenser: vacuum and brush the coil area so the system can release heat.
  4. Inspect door sealing: look for gaps, torn gasket sections, or drawers/containers holding the door open.

What the symptom usually points to

Symptom Most likely cause Next step
Both sections warm Controls set wrong, dirty condenser, door not closing Set to 4, clean coils, verify closure
Freezer OK, fridge warm Airflow issue (fan or blocked vents) Clear vents; check fan operation
Temps swing a lot Frequent openings, warm food load Reduce openings; wait 24 hours

Parts that commonly relate to weak cooling

Why it matters

Warm temperatures spoil food and force longer run times. Correct settings, clean condenser coils, and good airflow restore efficient cooling and help prevent frost-related airflow restrictions.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Air Compressor
Bottom-Mount Refrigerator
Coffee Grinder
Front-Engine Lawn Tractor
Furnace
Gas Chainsaw
Gas Range
Generator
Lawn & Garden Engine
Line Trimmer
Microwave
Power Sander
Range Hood
Side-By-Side Refrigerator
Television
