A GE dishwasher typically lasts 10 to 12 years with normal household use and basic maintenance. For your GE GDF610PGJ2WW, keeping wash performance strong (good water temperature, clean spray paths, and solid door sealing) helps you reach that expected lifespan; see the GDF610PGJ2WW owner’s manual for model-specific care guidance.

Typical lifespan and what changes it

Most dishwashers fall into a predictable range, and GE units are right in the middle.

• Typical range: 10 to 12 years
• Shorter life (often 8 to 10 years): heavy daily loads, hard water scale, poor draining
• Longer life (often 12 to 15 years): lighter use, consistent cleaning, prompt leak fixes
• Biggest wear items: pumps, heater circuit, door latch, seals

Maintenance that extends life (and prevents common failures)

These steps reduce strain on the circulation system, heater, and seals.

• Run hot water at the sink before starting a cycle so the dishwasher fills with hot water
• Keep the tub seal area clean; wipe the door edge and gasket regularly
• Check spray arms for clogs and free spinning; replace if cracked or warped
• Use the right detergent amount; too much can cause residue and poor rinsing
• Fix leaks quickly to prevent damage to wiring and controls

Quick “symptom to likely cause” guide

What you notice	Common cause	Parts often involved
Not cleaning well	Clogged spray holes, weak circulation	Dishwasher spray arm, lower WD22X33499, circulation pump
Not drying	Heater issue, low incoming water temp	heating element
Won’t start or stops	Door not latching, control issue	door latch lock
Water on floor	Door seal or tub gasket leak	tub gasket

Why it matters

Knowing the average lifespan helps you decide whether to maintain, repair, or replace. If your GDF610PGJ2WW is near the 10 to 12 year mark, addressing cleaning, draining, and sealing issues early often prevents bigger failures like pump or control problems.

For model-specific operating tips and installation requirements that affect long-term reliability, use the GDF610PGJ2WW installation guide.

Last updated: February 2026

The most common problems we see on GE dishwashers like model GDF610PGJ2WW are draining issues (water left in the tub), door-related start failures (the unit will not run if it does not sense a fully latched door), and leaks around the door area. Many cases are fixed with cleaning, correcting installation alignment, or replacing a worn part.

Most common symptoms and what they usually mean

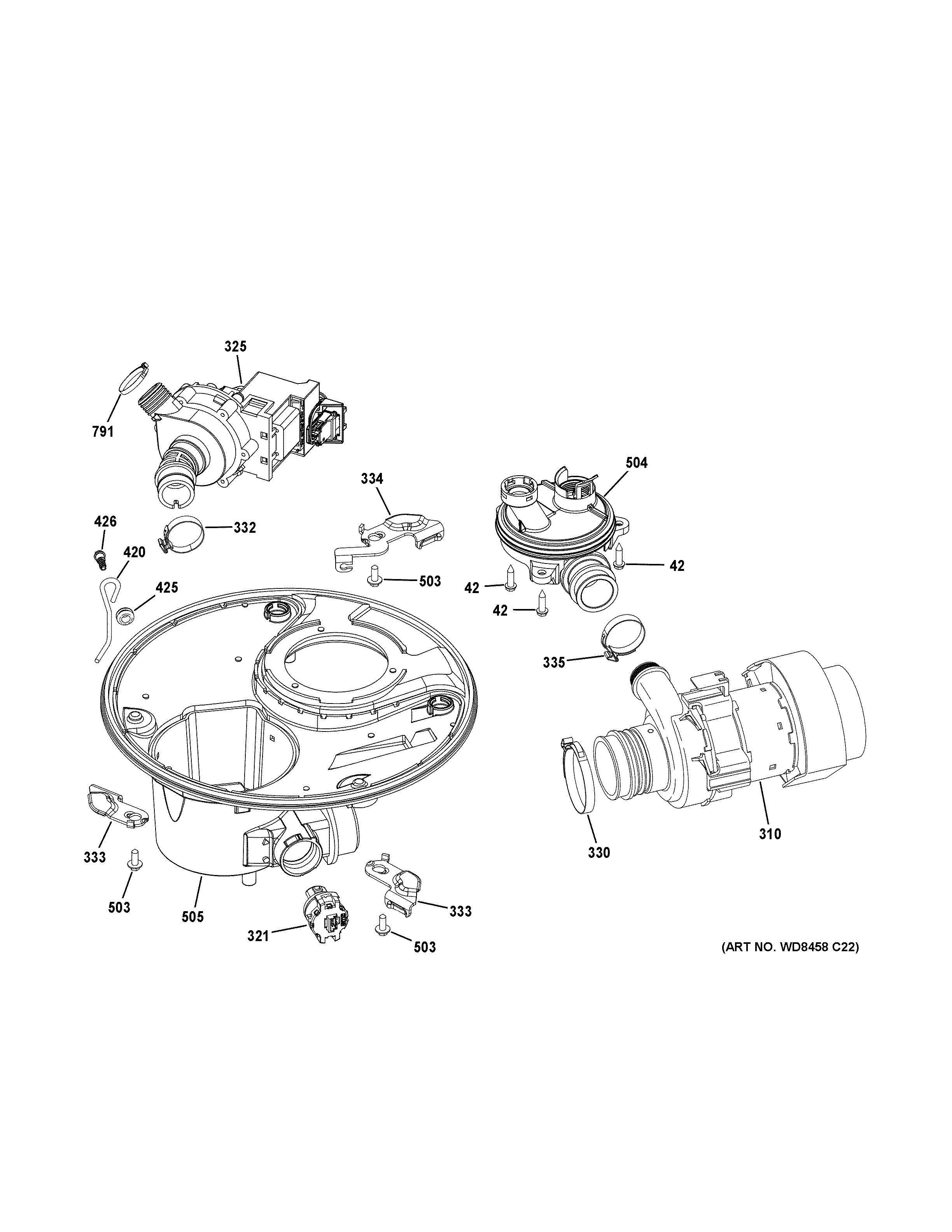

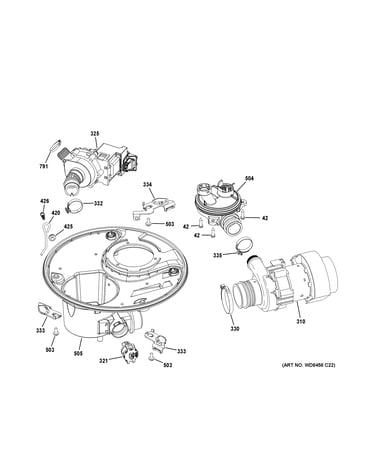

• Not draining: food debris in the sump area, a restriction in the drain path, or a failing drain pump.
• Will not start or stops mid-cycle: door not closing cleanly, a failing door latch, or a control issue.
• Not cleaning well: clogged spray arm holes, low water flow, or a circulation problem.

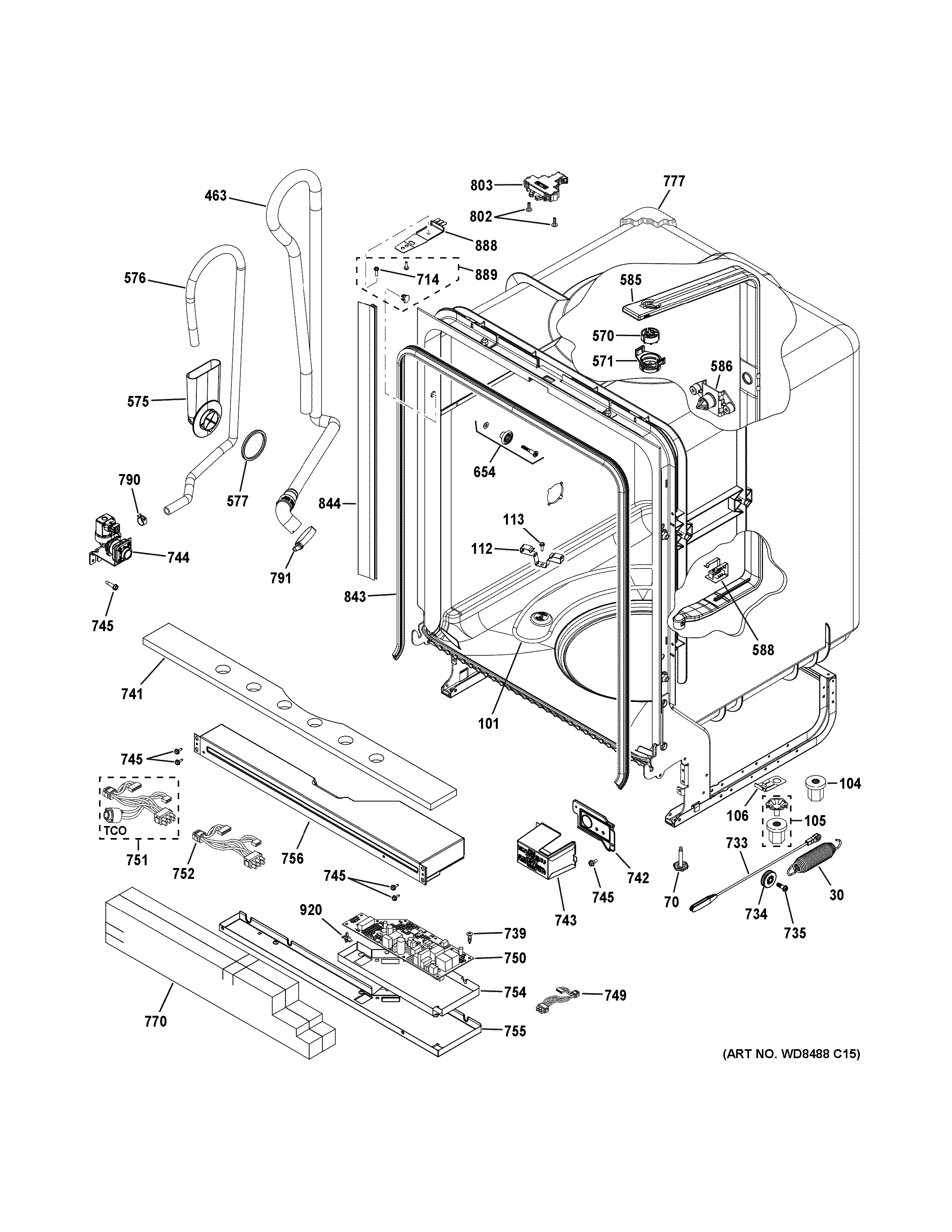

• Leaks at the front: tub gasket wear, door alignment issues, or tub trim interfering with the door.
• Poor drying: heater circuit issue, rinse aid problems, or cycle selection.

Quick checks we recommend first (before buying parts)

1. Confirm the door closes smoothly and does not rub the cabinet; misalignment can cause damage and poor operation (installation alignment guidance is in the installation guide).
2. Check the drain hose routing under/behind the dishwasher; kinks and crushed lines restrict flow.
3. Clean spray arms by rinsing and clearing blocked jet holes.
4. Run hot water at the sink before starting a cycle to improve wash performance.
5. Look for an error code on the display and match it to the GE electronic dishwasher error codes guide.

Parts that commonly solve these problems on GDF610PGJ2WW

Symptom	Common fix	Example part for this model
Won’t start, door feels loose	Replace door latch/lock	GE dishwasher door latch lock WD21X10490
Water left in bottom	Clear restriction; replace drain pump if weak	Dishwasher drain pump WD19X25187
Not cleaning, weak spray	Clean or replace spray arm	Dishwasher spray arm, lower WD22X33499
Leaking at door	Replace tub gasket; verify door alignment	Dishwasher tub gasket WD08X23476

Why it matters

Drain restrictions and door-latch sensing problems can look like “the dishwasher is dead,” but they often come down to airflow, water flow, or a simple safety interlock. Fixing the root cause prevents repeat clogs, leaks, and cycle interruptions.

Last updated: February 2026

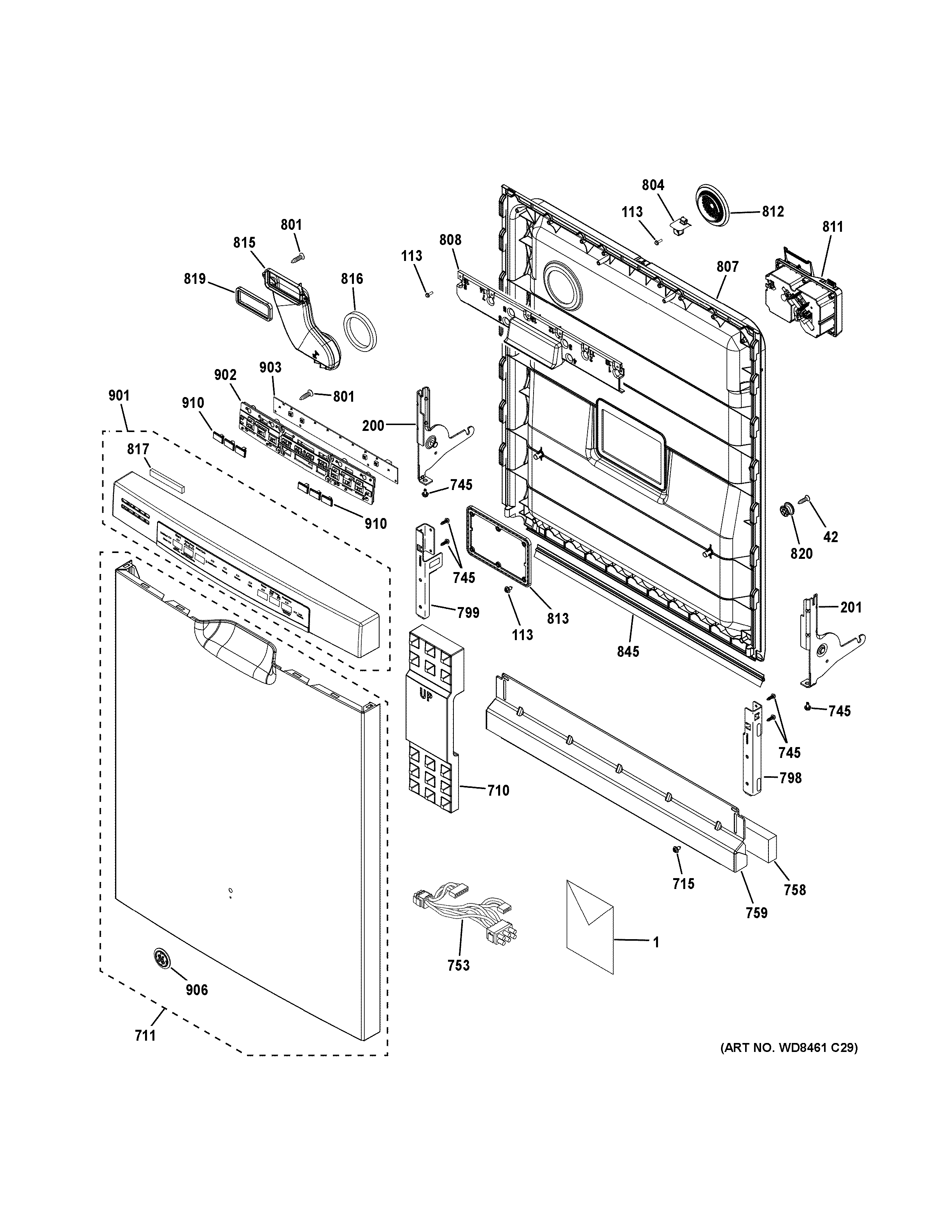

To remove the control panel on a GE dishwasher like model GDF610PGJ2WW, we shut off power first, open the door, remove the inner-door screws that secure the control panel, then lift and release the panel from its retaining tabs. Use the GDF610PGJ2WW installation guide for safe handling and panel-damage precautions.

Before you start (important safety)

• Turn off the dishwasher circuit breaker (control wiring is directly behind the panel).
• Open the door fully and support it; do not lean on the door.
• Use a towel or cardboard to protect the outer door finish.
• Keep screws organized by location and length.
• Avoid pulling on wires; disconnect harness plugs by the connector body.

Control panel removal steps (typical for this GE design)

1. Open the door and locate the screws around the inner door liner (usually Torx or Phillips).
2. Remove the screws along the top and sides that secure the control panel to the door (leave the hinge-area screws in place unless your manual specifies otherwise).
3. Separate the inner door liner slightly from the outer door so the control panel can lift free.
4. Lift the control panel up and out to release it from the retaining tabs.
5. Disconnect the wire connectors (take a quick photo first so each plug goes back to the same spot).

Reinstall tips (to prevent damage)

The installation instructions emphasize preventing door and control panel damage by keeping the dishwasher centered and avoiding contact with adjacent cabinets or the countertop. Use these same ideas when reassembling so the panel does not bind or rub.

• Make sure the panel sits flat before tightening screws.
• Tighten screws straight and snug; do not overtighten.
• Confirm the door opens and closes smoothly with no scraping.

Quick troubleshooting if the panel will not come off

What you see	Most likely cause	What we do next
Panel lifts but will not release	Tabs still engaged	Lift slightly higher, then pull forward evenly
Panel comes loose but wiring is tight	Harness not freed	Unclip harness routing points before unplugging
Door will not close after reassembly	Panel misaligned	Loosen screws, reseat panel, retighten evenly

Why it matters

The control panel area houses the user interface and wiring; forcing it can crack the panel, strip screw holes, or damage connectors. A careful removal protects the UI components and helps ensure reliable button response afterward.

Last updated: February 2026

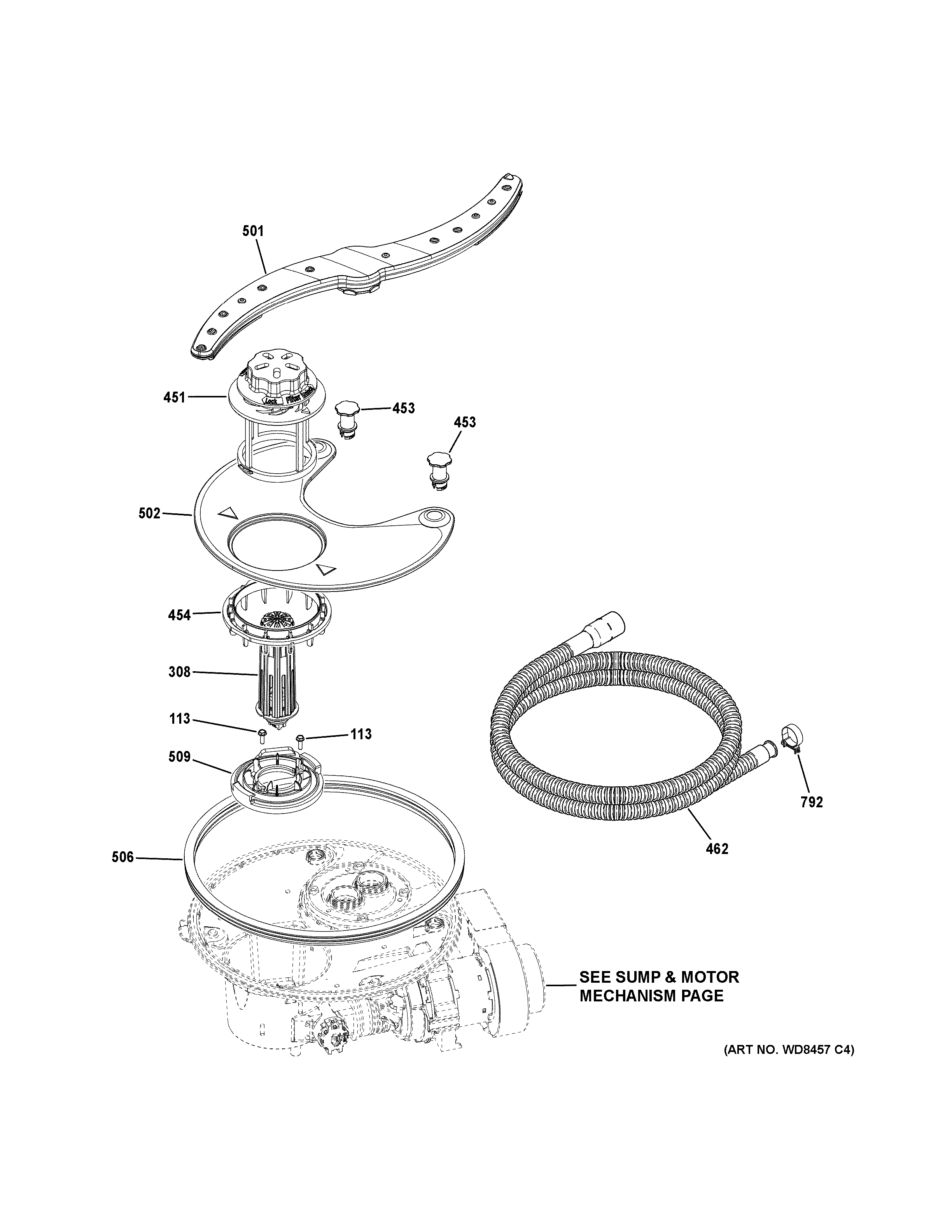

On GE model GDF610PGJ2WW, a “dishwasher arm” problem is usually caused by a clogged, cracked, or loose spray arm. We fix it by cleaning the spray arm jets and hub, then replacing the arm if it is damaged so it spins freely and restores proper wash coverage.

Quick checks before replacing the arm

• Turn off power at the breaker and shut off the water supply.
• Pull out the racks and confirm nothing is blocking the arm’s rotation.
• Remove the arm and rinse debris from the spray holes (toothpick works well).
• Check the hub for cracks, warping, or a stripped mounting area.
• Confirm the arm spins smoothly by hand after reinstalling.

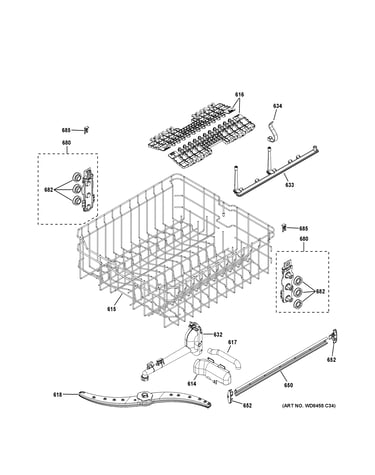

Which spray arm you likely need (GDF610PGJ2WW)

Use this table to match the symptom to the most common arm location.

Symptom	Most likely area	What to inspect first
Bottom rack not getting clean	Lower spray arm	Clogged jets, cracked arm, food in hub
Top rack weak spray	Middle spray arm	Blocked holes, loose fit on feed tube
Intermittent wash pressure	Spray arms and water path	Arm blockage plus sump and diverter issues

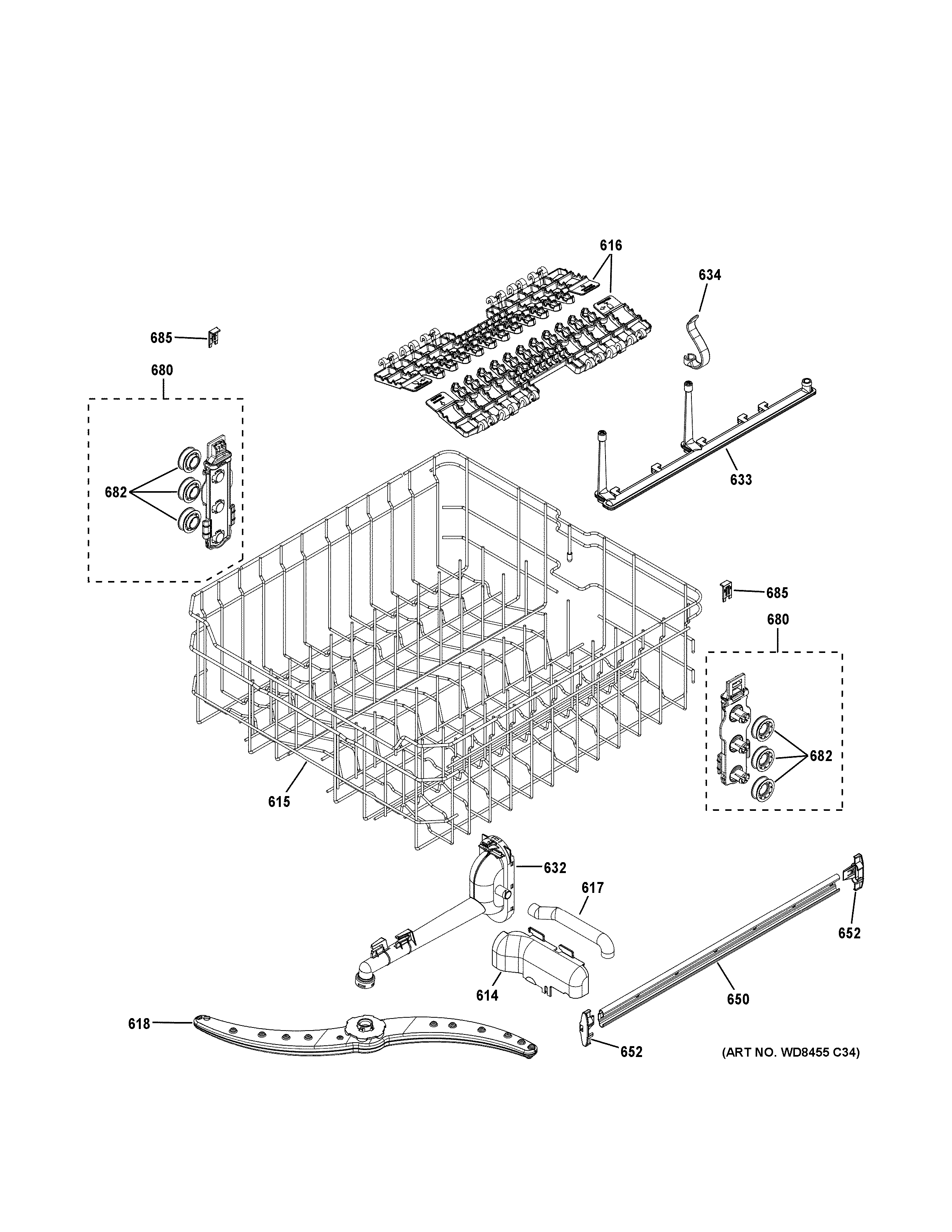

If the lower arm is damaged or won’t spin correctly, replace the dishwasher spray arm, lower WD22X33499. If the issue is mainly on the upper rack, the dishwasher spray arm, middle WD22X33498 is the better match.

Replacement tips that prevent repeat problems

• Seat the spray arm fully on its mount; it should not wobble.
• Hand-tighten only; overtightening can crack plastic hubs.
• After reassembly, run a short cycle and listen for a steady “swish” (arm rotation).
• If wash pressure still seems low, check for circulation issues (pump, diverter, sump).

Why it matters

A spray arm that is clogged or not spinning reduces water pressure at the dishes, which leads to poor cleaning, leftover detergent, and longer cycle times because the dishwasher struggles to reach proper wash performance.

For diagrams and model-specific part placement, use the GDF610PGJ2WW installation guide.

Last updated: February 2026
