Jenn-Air JGS8850CDS02 30" gas slide-in range

Jenn-Air JGS8850CDS02 30" gas slide-in range Parts

Here are the diagrams and repair parts for Jenn-Air JGS8850CDS02 30" gas slide-in range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JGS8850CDS02 Ranges

  • Appliance Spray Paint (white) for Jenn-Air JGS8850CDS02 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Spark Module for Jenn-Air JGS8850CDS02 - Part WPW10475147

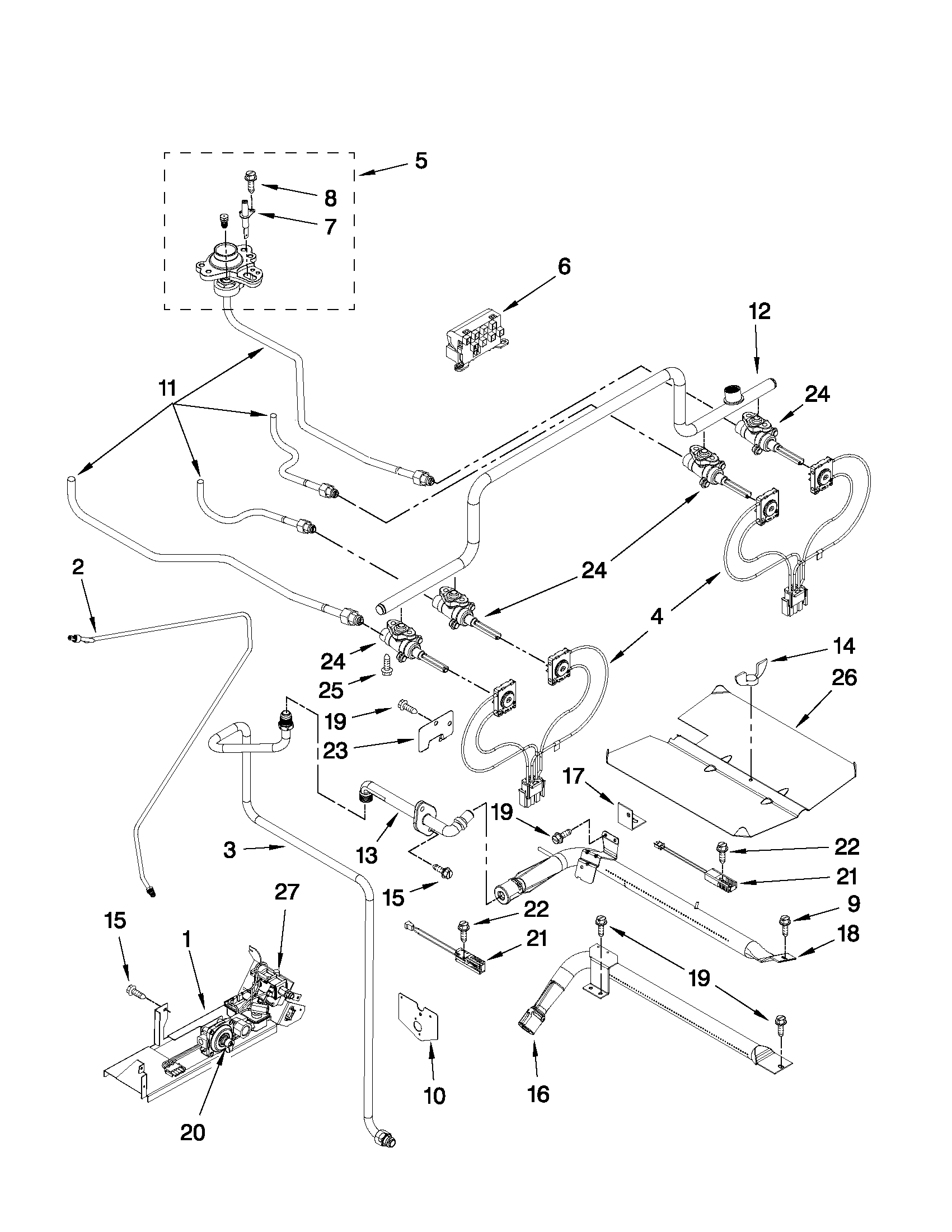

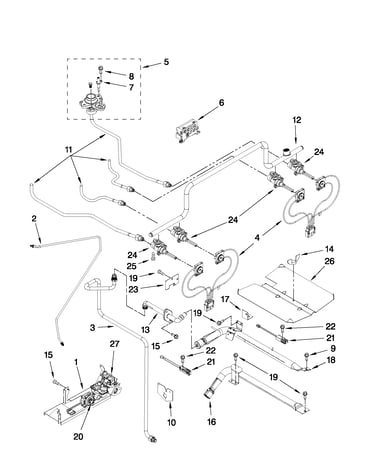

    Manifold parts diagram

    Module- Sp

    Part #7431P038-60

    Replaced by #WPW10475147

    Info Icon
    Manufacturer substitution
    This part replaces 7431P038-60. Substitute parts can look different from the original.
    In Stock
    $199.83
    6% OFF Phone Price : $211.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Jenn-Air JGS8850CDS02 - Part 72032

    Optional parts (not included) diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air JGS8850CDS02 - Part WP98008545

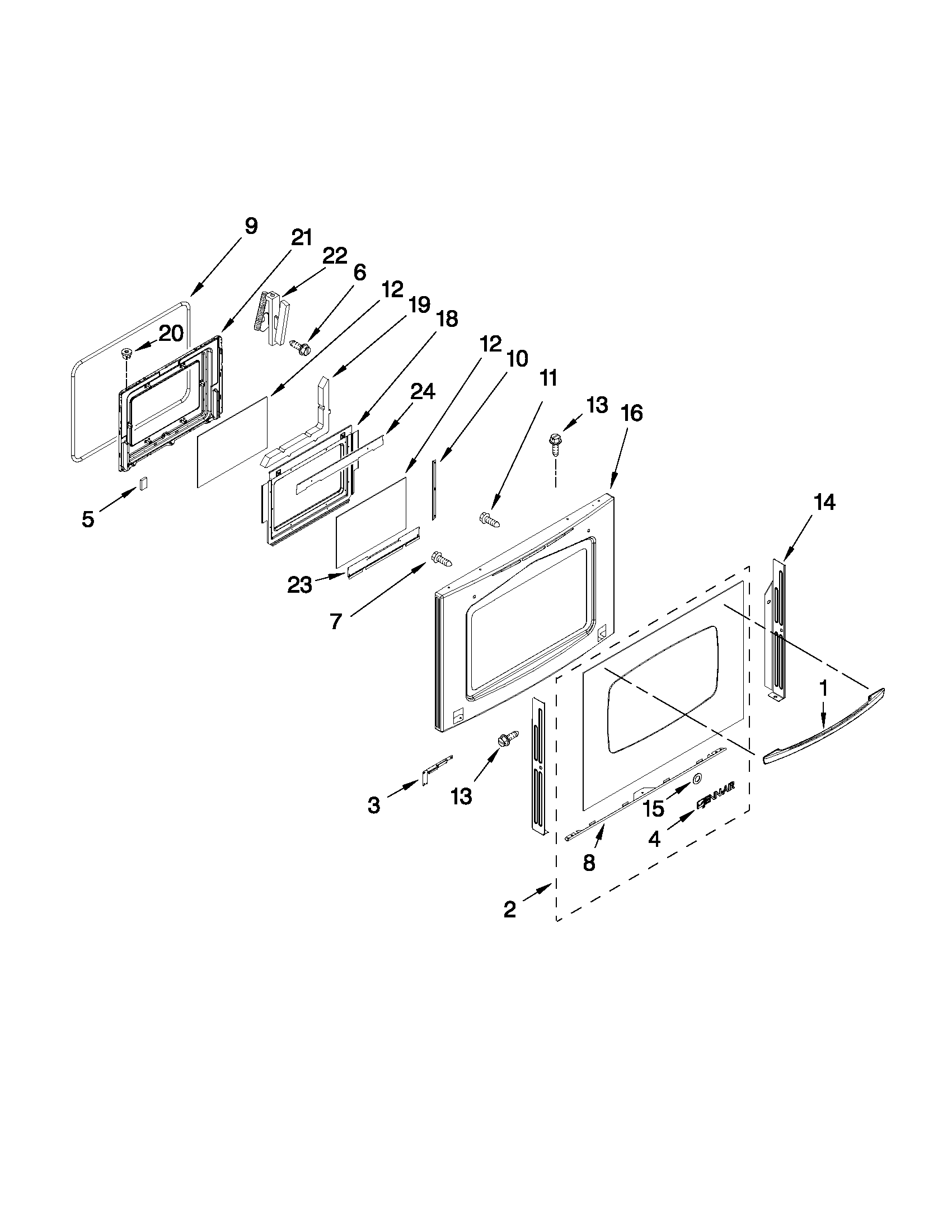

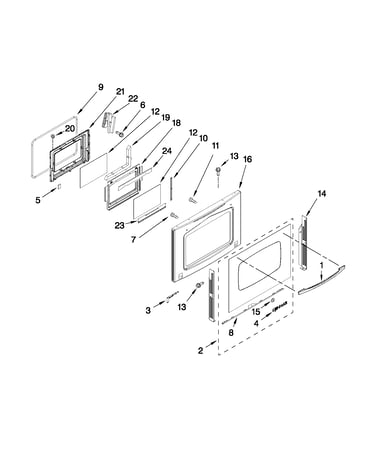

    Door parts diagram

    Range Screw

    Part #WP98008545
    This item is not returnable
    In Stock
    $5.47
    15% OFF Phone Price : $6.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Inner Glass for Jenn-Air JGS8850CDS02 - Part 74003645

    Door parts diagram

    Door Glass

    Part #7902P436-60

    Replaced by #74003645

    Info Icon
    Manufacturer substitution
    This part replaces 7902P436-60. Substitute parts can look different from the original.
    In Stock
    $126.69
    9% OFF Phone Price : $138.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Insulation for Jenn-Air JGS8850CDS02 - Part WPW10208653

    Optional parts (not included) diagram

    Insulation

    Part #240132

    Replaced by #WPW10208653

    Info Icon
    Manufacturer substitution
    This part replaces 240132. Substitute parts can look different from the original.
    In Stock
    $47.42
    11% OFF Phone Price : $53.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw for Jenn-Air JGS8850CDS02 - Part WP59002061

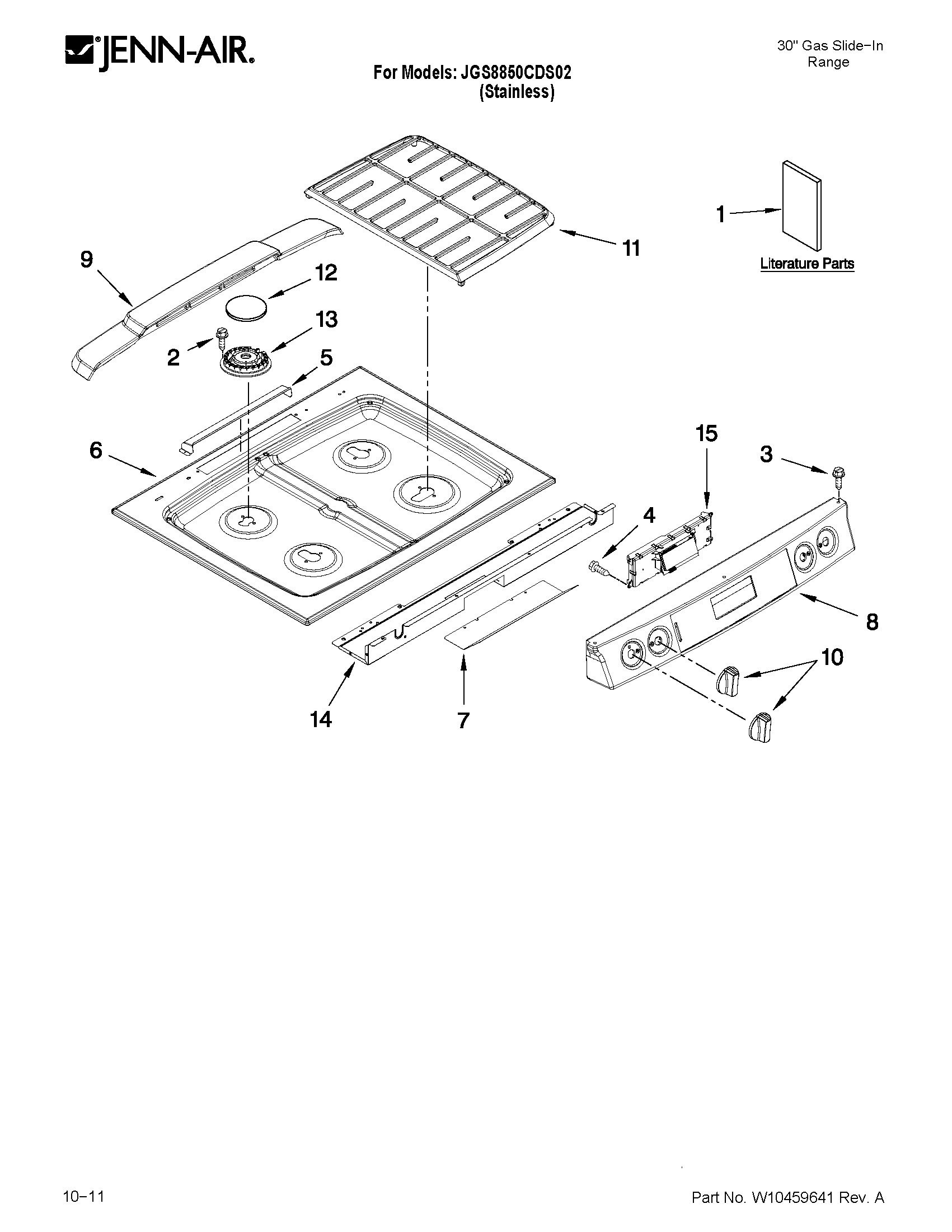

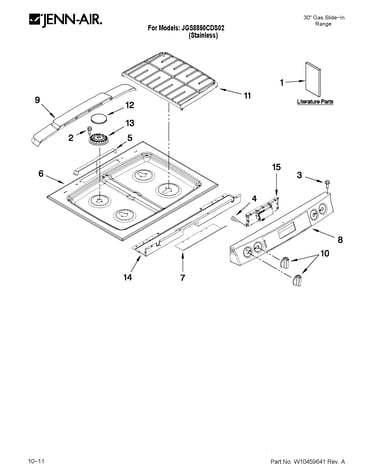

    Cooktop parts diagram

    Screw

    Part #7101P077-60

    Replaced by #WP59002061

    Info Icon
    Manufacturer substitution
    This part replaces 7101P077-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Insulation for Jenn-Air JGS8850CDS02 - Part WPW10208653

    Optional parts (not included) diagram

    Insulation

    Part #261514

    Replaced by #WPW10208653

    Info Icon
    Manufacturer substitution
    This part replaces 261514. Substitute parts can look different from the original.
    In Stock
    $47.42
    11% OFF Phone Price : $53.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint for Jenn-Air JGS8850CDS02 - Part 72017

    Optional parts (not included) diagram

    Appliance Touch-up Paint

    Part #72017
    This item is not returnable
    In Stock
    $31.61
    Minus Item
    Qty
    Plus Item
  • Light Bulb, A-15, 40-watt for Jenn-Air JGS8850CDS02 - Part STD398091

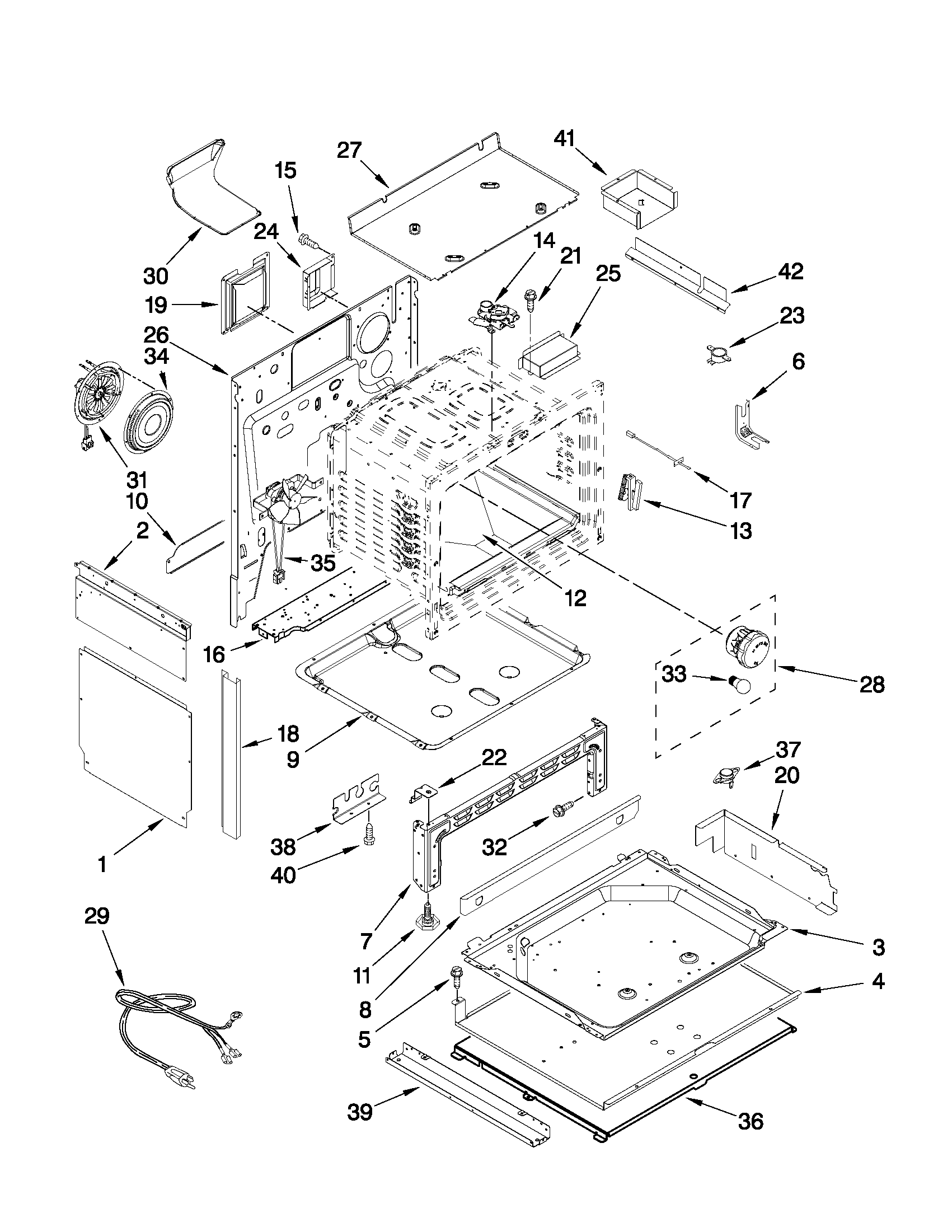

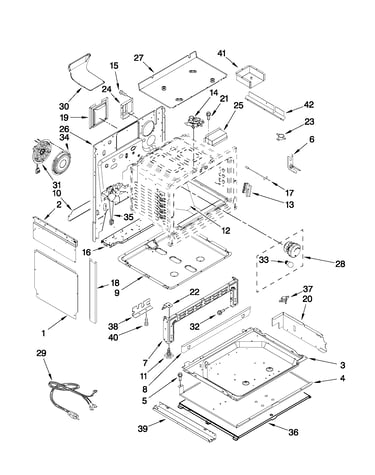

    Chassis parts diagram

    Light Bulb, A-15, 40-watt

    Part #STD398091

    The manufacturer no longer makes this part, and there's no substitute part

Jenn-Air 30" Gas Slide-In Range JGS8850CDS02 FAQs

A Jenn-Air gas range like model JGS8850CDS02 typically lasts 15 to 20 years with normal household use and basic maintenance. Keeping burners clean, ensuring proper flame, and addressing ignition or gas-supply issues early helps you get the full expected lifespan.

Typical lifespan and what affects it

Most 30-inch gas slide-in ranges reach the 15 to 20 year range when these factors stay in good shape:

  • Ignition system health (spark igniters for cooktop, glow-bar igniter for oven)
  • Gas supply stability (shutoff valve fully open, correct pressure regulation)
  • Ventilation and heat management (avoids overheating controls and wiring)
  • Cleaning habits (burner caps seated correctly, ports kept clear)
  • Timely part replacement (knobs, switches, harnesses, door parts)

For model-specific care and operating guidance, follow the JGS8850CDS02 owner's manual.

Quick checks that help your range last longer

The installation and use guidance for this range highlights a few practical items that prevent common wear issues:

  • If a burner does not light, turn the knob OFF, then confirm the range has power (breaker/fuse) and gas is on.
  • Make sure burner caps are properly positioned on the burner bases.
  • Expect first-time lighting to take longer if there is air in the gas line.
  • A proper low flame is typically a steady blue flame (the guide notes about 1/4 inch on low).

See the JGS8850CDS02 installation guide for lighting and flame-adjustment details.

Common “end-of-life” symptoms and likely areas
Symptom Often points to Example part on this model page
Clicking but no ignition on one or more burners Igniter switch/harness, wiring Range igniter switch and harness assembly W10160396
Weak, uneven, or hard-to-adjust flames Gas regulation or burner setup Valve/regulator WP74006035
Control issues, intermittent operation Control module or harness connections Module- sp WPW10475147
Why it matters

A range that is lighting correctly and burning with a stable blue flame runs more efficiently, bakes more consistently, and puts less stress on electrical parts like switches, harnesses, and control modules. That directly supports the 15 to 20 year lifespan most Jenn-Air gas ranges achieve.

Last updated: February 2026

Yes. Jenn-Air is widely considered a high-end (luxury) kitchen appliance brand; it is positioned above mainstream lines and is known for premium styling, strong cooking performance, and higher-end features. For your Jenn-Air JGS8850CDS02 30-inch gas slide-in range, the same premium positioning applies.

What “high end” means in practical terms

High-end ranges like the Jenn-Air JGS8850CDS02 typically stand out in a few consistent ways:

  • More premium design and finishes (built to be a focal point in the kitchen)
  • More precise burner control and oven performance expectations
  • More feature-rich control systems and electronics
  • Higher parts and repair costs compared with entry-level ranges
  • More emphasis on correct installation and safety setup
How this affects parts and repairs

Because Jenn-Air is a premium line, using the correct, model-matched parts matters for fit, appearance, and performance. We recommend confirming part numbers and procedures in the owner's manual before ordering or disassembling anything.

Common examples of higher-value components you may replace over time include:

Component type What it does Example part for this model
Ignition system Sparks to light surface burners Range igniter switch and harness assembly W10160396
Gas regulation Helps control incoming gas pressure Valve/regulator WP74006035
Controls/electronics Manages oven functions and timing Oven control board (model-matched)
Why it matters

Knowing Jenn-Air is high end helps set expectations: parts like a control module, door glass, or igniter harness can cost more, but correct parts selection helps keep your range operating safely and looking right after a repair.

Last updated: February 2026

Common problems on Jenn-Air stoves like model JGS8850CDS02 include gas burners that click but do not light, weak or uneven flames from clogged burner ports, oven temperature issues, and control or ignition failures. Many issues are resolved with cleaning, drying moisture, or replacing a failed ignition or control part.

Most common symptoms (and what usually causes them)
  • Surface burner will not light or keeps clicking: dirty burner ports, wet igniter area, misaligned cap, or a failed igniter switch
  • Uneven flame or low flame: clogged ports, incorrect burner cap placement, or gas supply/regulator issues
  • Oven not heating or heats inconsistently: ignition or gas delivery problem, airflow/venting issues, or an electronic control problem
  • Control panel problems (no response, erratic operation): control board or wiring connection issue
  • Door will not lock or self-clean problems: latch mechanism issue
Quick checks we recommend before replacing parts
  1. Confirm the burner cap is seated correctly and the burner head ports are clear.
  2. Clean burner ports with a soft brush or pin (do not enlarge ports).
  3. Dry the cooktop area if there was recent cleaning or boil-over; moisture can prevent ignition.
  4. Check for a steady gas supply (other gas appliances working, shutoff valve fully open).
  5. Reset power (turn off the range breaker for 1 minute, then restore) to clear a control glitch.
Parts that commonly fix these problems
Symptom Part that often helps Example from our parts list
Burners won’t spark or spark is inconsistent Igniter switch and harness Range igniter switch and harness assembly W10160396
Weak/unstable flames Gas pressure regulation Valve/regulator WP74006035
Knob is cracked, loose, or won’t turn smoothly Burner knob Range surface burner knob W10255425
Why it matters

Ignition and flame problems can lead to slow cooking, uneven baking, and repeated clicking that wears components faster. Addressing simple causes first (cap alignment, cleaning, moisture) often restores normal burner and oven performance without unnecessary part replacement.

Where to find model-specific guidance

For cleaning steps, operating tips, and troubleshooting guidance specific to your Jenn-Air JGS8850CDS02, use the owner's manual.

Last updated: February 2026
