Kenmore
Dryer

Model #41782142101 Official Kenmore dryer

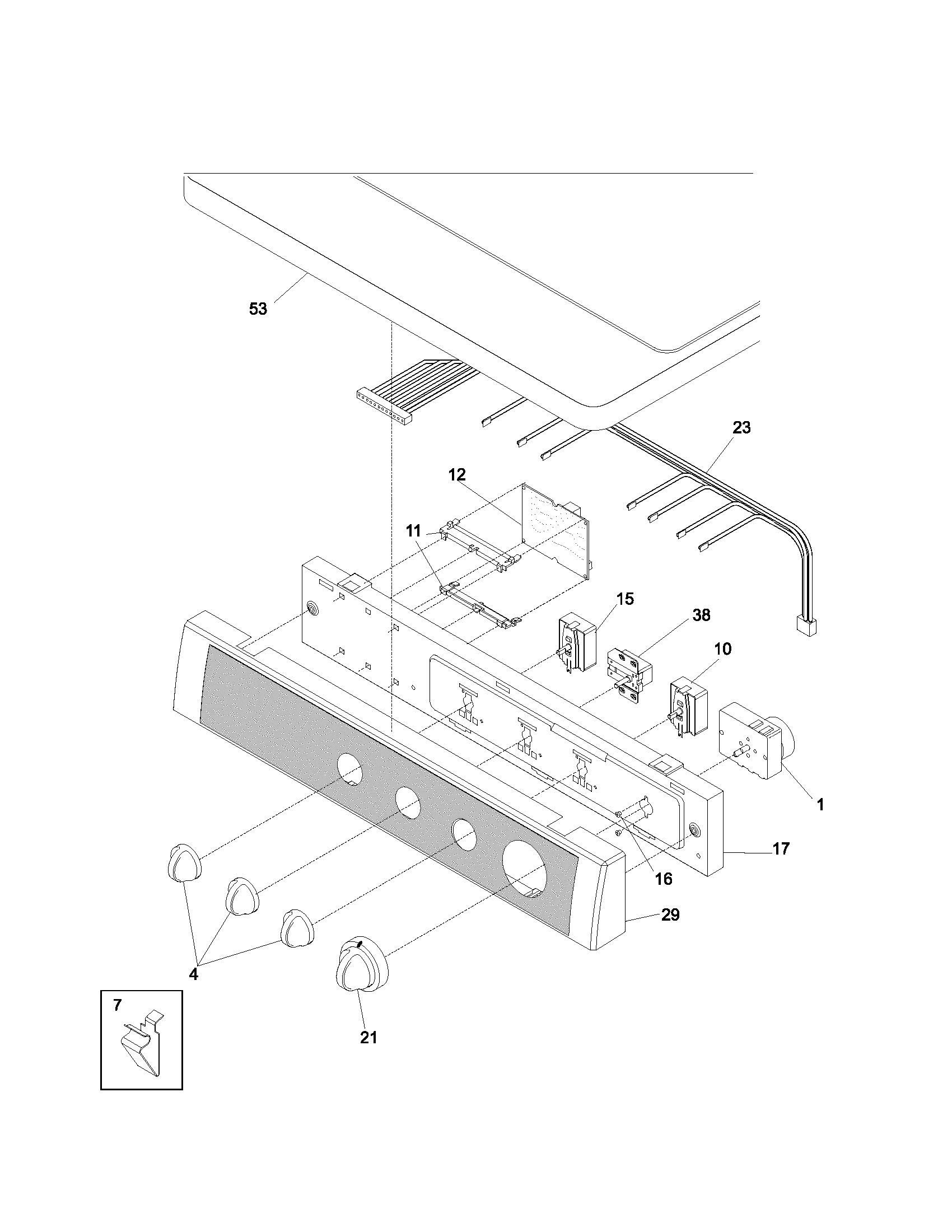

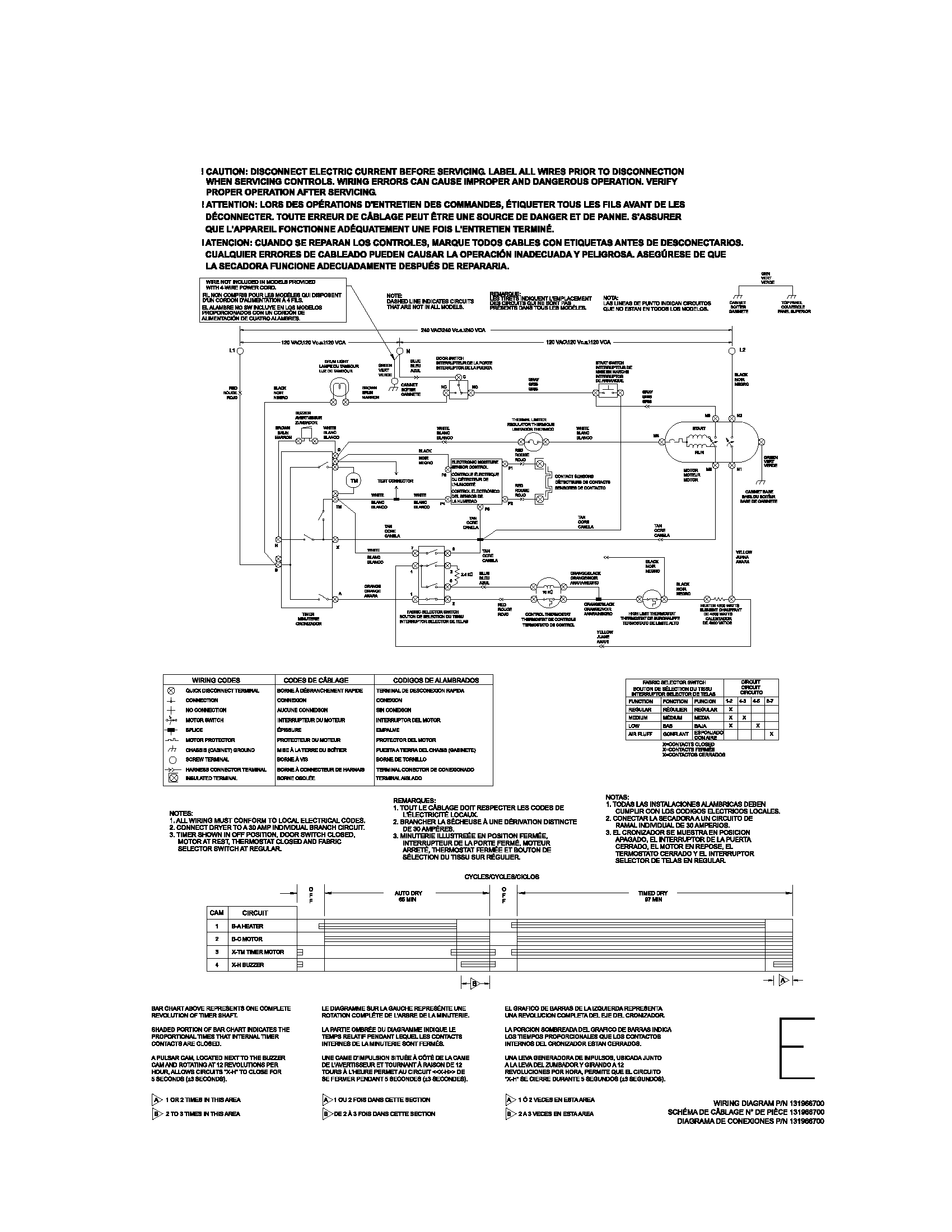

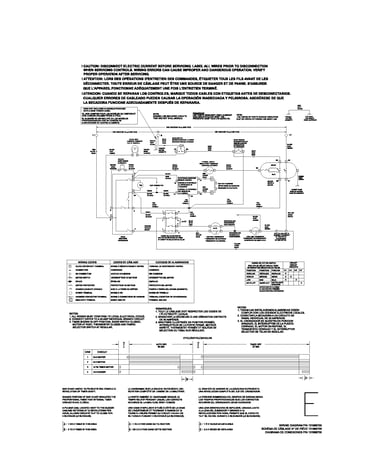

Here are the diagrams and repair parts for Kenmore 41782142101 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 94 parts

Dryer Drum Belt (replaces 134163400, 134503900)#25

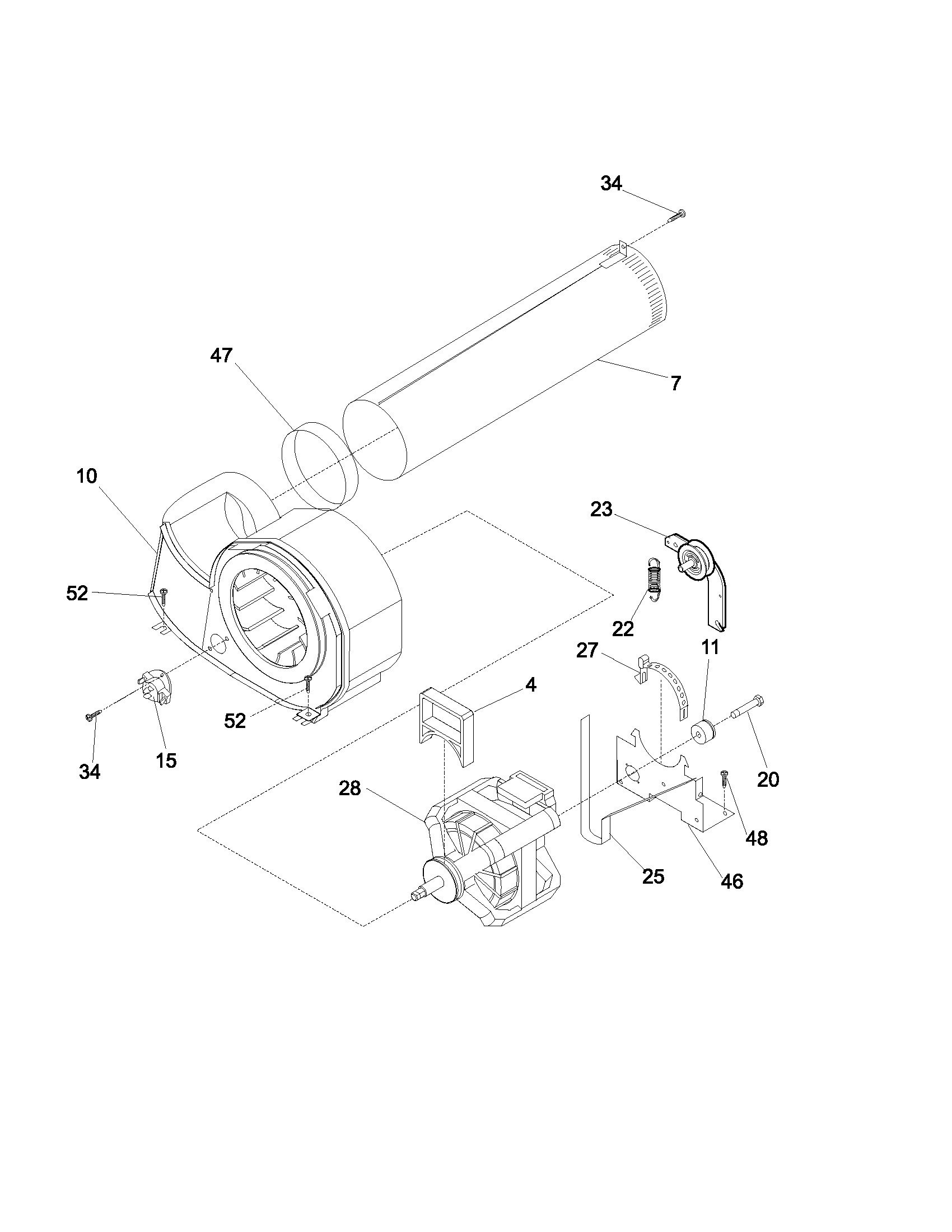

Motor,blower Diagram

Belt

Part #5303283471
Replaced by #134503600
?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
BEST SELLER
In Stock
$12.72 |
29% OFF
MSRP: $18.00
Dryer Drum Bearing (replaces 5303281008, Q000143951, WQ143951)#12

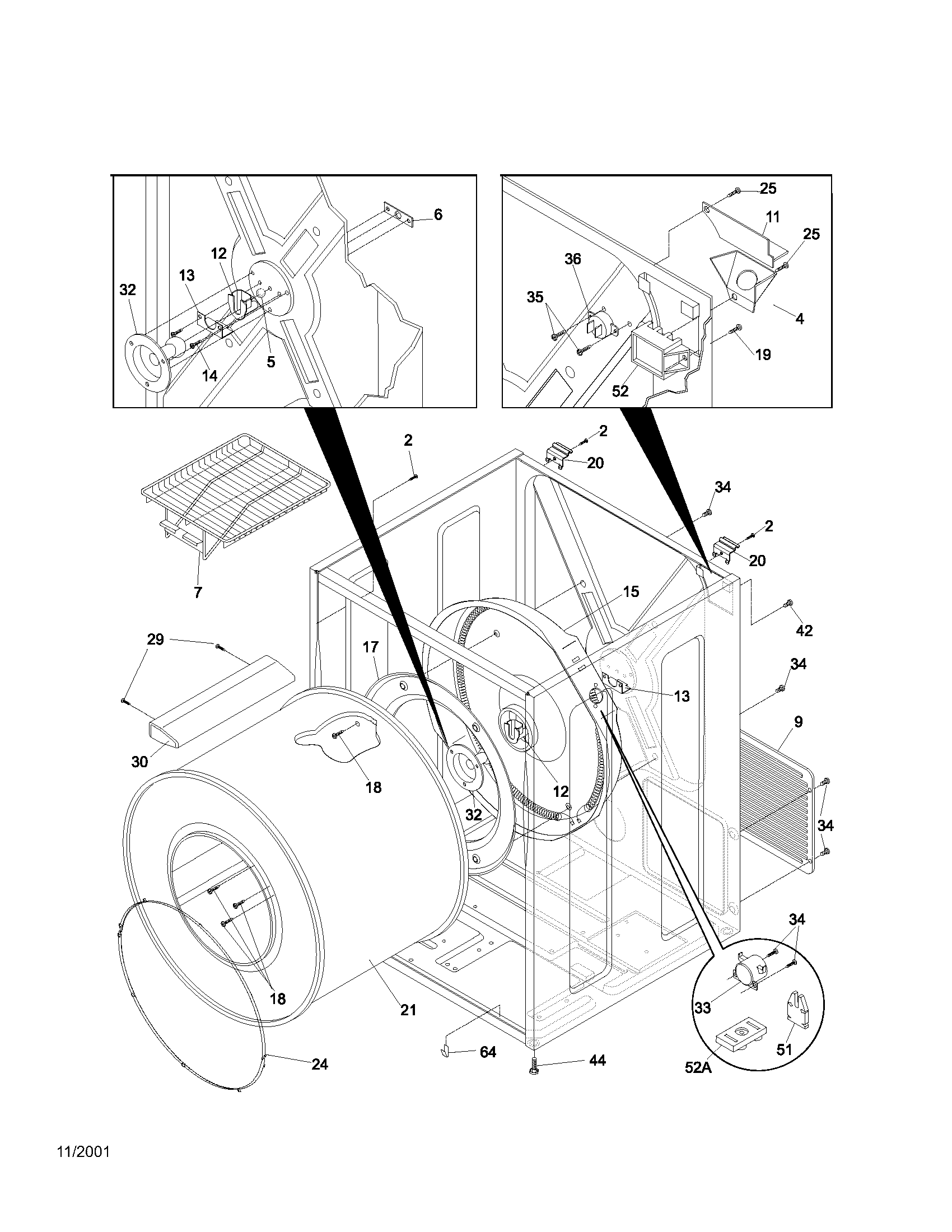

Dry cab,heater Diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900
BEST SELLER
This item is not returnable
In Stock
$5.59 |
15% OFF
Phone Price: $6.59
Dryer Heating Element Assembly (replaces 131505700)#15

Dry cab,heater Diagram

In Stock
$79.16 |
6% OFF
Phone Price: $84.16
Dryer High-Limit Thermostat (replaces 73204267)#33

Dry cab,heater Diagram

In Stock
$80.11 |
6% OFF
Phone Price: $85.11
Dryer Drive Motor (replaces 134156500, S131560100)#28

Motor,blower Diagram

In Stock
$141.52 |
7% OFF
Was: $152.98
Dryer Drum Felt Seal, Lower#21

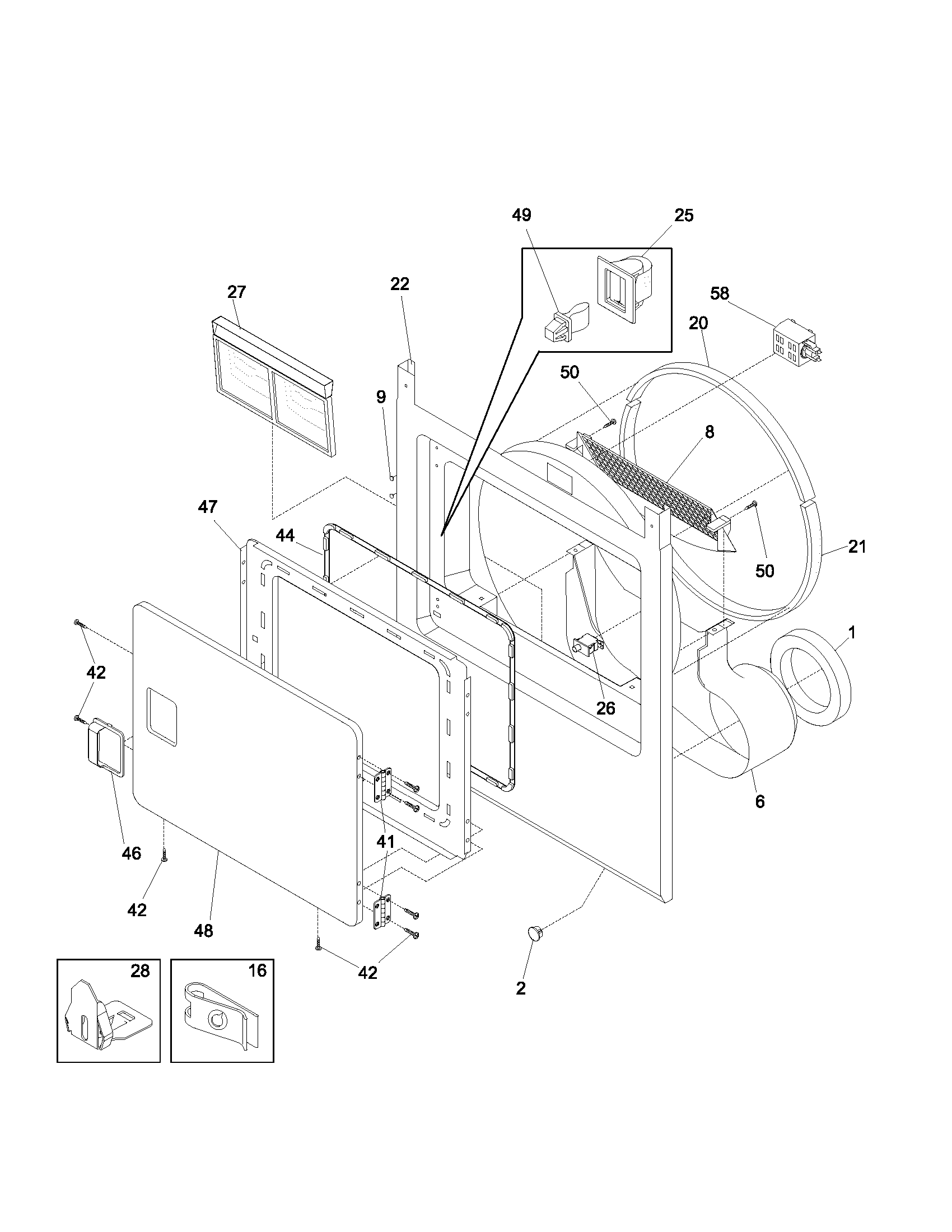

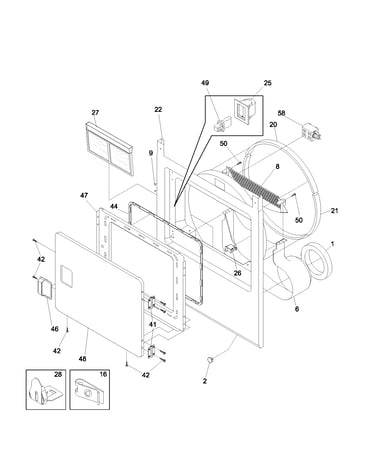

Frnt pnl,door Diagram

Dryer drum felt seal, lower

Part #5303283286
BEST SELLER
In Stock
$38.19 |
12% OFF
Phone Price: $43.19
Dryer Blower Wheel and Housing Assembly (replaces 131775610)#10

Motor,blower Diagram

In Stock
$83.28 |
6% OFF
Phone Price: $88.28
Dryer Thermal Limiter (replaces 146062-000, 5303209192)#36

Dry cab,heater Diagram

Thermostat

Part #5303209192
Replaced by #134120900
?
Manufacturer substitution
This part replaces 5303209192. Substitute parts can look different from the original.
BEST SELLER
In Stock
$18.33 |
10% OFF
Phone Price: $20.33
Dryer Drum Felt Seal, Upper (replaces 134036400)#20

Frnt pnl,door Diagram

Felt

Part #134036400
Replaced by #5303937182
?
Manufacturer substitution
This part replaces 134036400. Substitute parts can look different from the original.
BEST SELLER
In Stock
$17.01 |
19% OFF
Was: $21.09

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure

Repair guides common to all dryers

These step-by-step repair guides will help you safely fix what’s broken on your dryer.
