Frigidaire FFHT1715LWZ refrigerator Parts

On a Frigidaire FFHT1715LWZ top-mount refrigerator, the upper compartment is the freezer. It is designed to keep foods frozen and, on models equipped for it, supports ice maker operation when the refrigerator is installed and supplied with water per the FFHT1715LWZ owner's manual.

What you will typically find in the upper (freezer) section

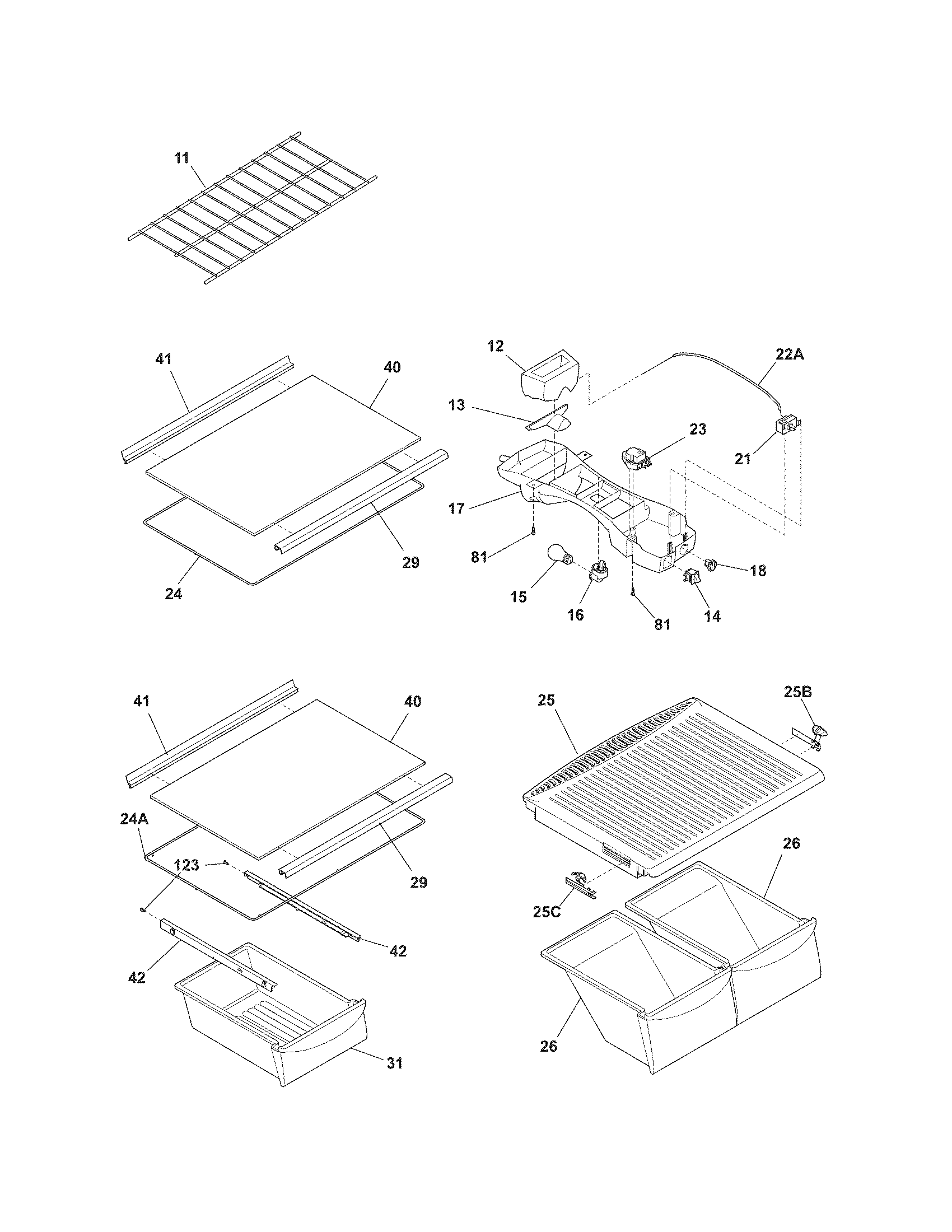

• Freezer shelves or a wire rack for frozen foods
• A freezer temperature control or shared control with the fresh-food section
• An ice maker area (on models equipped with an ice maker)
• Door bins for smaller frozen items
• Air vents that circulate cold air to help maintain temperature

Freezer vs fresh-food compartment (quick comparison)

Compartment	Common name	Typical temperature	Main purpose
Upper section (top-mount)	Freezer	0°F	Long-term frozen storage, ice making
Lower section	Refrigerator (fresh food)	37°F to 40°F	Short-term chilled storage

Why it matters

Knowing the correct compartment name helps when ordering parts, following setup steps, and troubleshooting cooling issues. For example, freezer airflow and door sealing affect both freezer performance and how well cold air moves into the refrigerator section.

Helpful tips for best freezer performance

• Set the freezer close to 0°F and the refrigerator close to 37°F.
• After changing temperature settings, wait 24 hours before adjusting again.
• Keep the toe grille area clear for proper airflow.
• Make sure the freezer door seals fully all the way around.
• If your unit has an ice maker, keep it OFF until the household water supply is connected.

Last updated: January 2026

A top-mount refrigerator like the Frigidaire FFHT1715LWZ is usually affordable and efficient, but the main disadvantages are convenience and layout: fresh-food items sit lower (more bending), freezer access is at eye level, and features like in-door ice and water are less common on this style.

Common disadvantages (what most owners notice)

• More bending for daily items: the refrigerator compartment is below the freezer, so produce, drinks, and leftovers often sit lower.
• Less “premium” organization: many top-mount designs have fewer adjustable bins, drawers, and specialty zones than bottom-mount models.
• Fewer dispenser options: in-door water and ice dispensers are less common on top-mount units.
• Smaller freezer usability: the top freezer can feel tight for bulky items, even when total capacity is fine.
• Door swing and placement limits: if the hinge side is near a wall, you may need extra clearance to open the door wider.

What to check on your FFHT1715LWZ before deciding

Use the FFHT1715LWZ owner’s manual to confirm your exact features and setup options. These quick checks help you decide if the “disadvantages” will matter in your kitchen:

• Measure how often you access crisper drawers and lower shelves (daily vs. occasional).
• Confirm you have enough installation clearance for airflow and door swing.
• Verify the refrigerator is leveled and slightly tilted back so doors close reliably.
• If your model has an ice maker, confirm whether a household water line is connected.

Why it matters

Most complaints about top-mount refrigerators come down to ergonomics and kitchen workflow. If you use fresh food more than frozen food, bending for the refrigerator section can be the biggest day-to-day drawback.

Quick comparison

Feature	Top-mount (FFHT1715LWZ style)	Bottom-mount style
Fresh-food access	Lower, more bending	Higher, easier reach
Freezer access	Higher, easy reach	Lower drawer style
Dispenser options	Less common	More common
Cost and simplicity	Often better	Often higher cost

Last updated: January 2026

If your Frigidaire FFHT1715LWZ top-mount freezer is not freezing, the most common causes are incorrect temperature control settings, restricted airflow from frost buildup or blocked vents, or a cooling-system issue such as a failed evaporator fan. Start by confirming controls are set correctly and the unit is actually running. See the FFHT1715LWZ owner's manual for the exact control locations and operating checks.

Quick checks we recommend first

• Make sure the refrigerator/freezer control is not set to “0”; on this model, “0” turns off the compressor (cooling stops).
• Allow time after any adjustment; temperature changes can take up to 24 hours to stabilize.
• Confirm the freezer door closes fully and nothing is holding it open.
• Check for heavy frost on the freezer back wall (a sign of a defrost problem or airflow restriction).
• Listen for the evaporator fan; if it is not running, cold air will not circulate.

Temperature and airflow basics (what “normal” looks like)

Item	What to expect	What it suggests if not met
Compressor running	Hums on and off	If never runs, control may be at “0” or power issue
Freezer airflow	Steady cold air movement	Weak or none points to fan or frost blockage
Stabilization time	Up to 24 hours	Testing too soon can look like “not freezing”

Parts that commonly affect freezing

If the freezer is warm but the refrigerator section is also struggling, these parts are common suspects:

• Evaporator fan system: a damaged blade can reduce airflow; see refrigerator evaporator fan blade 5308000010.
• Defrost system: a failed thermostat can allow frost to build up and block airflow; see refrigerator defrost bi-metal thermostat 5303918634.
• Condenser fan (if equipped on your configuration): poor heat removal can reduce cooling; see condenser motor 242018301.

Why it matters

A freezer that is not freezing is usually an airflow or control-setting problem first, and a component failure second. Catching frost buildup, a stopped fan, or a control set to “0” early helps prevent food loss and reduces strain on the compressor.

Related DIY help

• Use how to fix your evaporator cooling fan if you suspect weak airflow or fan noise.
• If your model displays a fault, check Frigidaire refrigerator error codes for guidance.

Last updated: January 2026

The most common Frigidaire refrigerator complaint is not cooling well enough (fresh food warm, freezer soft, or both). On the Frigidaire FFHT1715LWZ top-mount refrigerator, the quickest wins are confirming the controls are set correctly, the unit has steady power, and airflow is not blocked; then check for frost buildup and fan operation using the FFHT1715LWZ owner's manual.

Most common issues we see (and what they look like)

• Not cooling or weak cooling: temperatures drift up, food spoils faster
• Frost buildup in the freezer: thick frost on the back wall, reduced airflow to the refrigerator section
• Runs constantly: long run times, warm kitchen air leaking in, dirty condenser area, or airflow restrictions
• No interior light: door opens but light stays off (often a bulb issue)

Quick checks before replacing parts

1. Verify power and controls
   • Plug is fully seated in the outlet
   • Breaker is not tripped; fuse is good (15-amp time-delay is commonly specified)
   • Controls are not set to “0” or “Off”
2. Give temperatures time to stabilize
   • After changes, allow about 24 hours for temperatures to settle
3. Check airflow basics
   • Do not block vents with food packages
   • Make sure doors close fully and gaskets seal

Common symptoms and likely causes (at-a-glance)

Symptom	Most likely category	What to check first
Fresh food warm, freezer OK	Airflow/evaporator fan issue	Listen for fan; check for frost wall
Both sections warm	Power, controls, sealed system, condenser airflow	Outlet, settings, condenser fan
Heavy frost in freezer	Defrost system issue	Frost pattern; defrost components
Light out	Lighting circuit	Bulb, socket, door switch

Parts that often relate to these problems on FFHT1715LWZ

If your troubleshooting points to a specific failure, these model-matched parts are commonly involved:

• Cooling airflow: refrigerator evaporator fan motor 241854301 and refrigerator evaporator fan blade 5308000010
• Frost/defrost complaints: refrigerator defrost bi-metal thermostat 5303918634 and refrigerator defrost timer 215846604
• No light: refrigerator light bulb 316538904

Why it matters

A refrigerator that is even a few degrees too warm can shorten food life quickly, and frost buildup can choke airflow so the freezer looks “cold” while the refrigerator section warms up. Catching airflow and defrost issues early helps protect the compressor and keeps temperatures stable.

Helpful DIY reference

• Use our Frigidaire refrigerator error codes guide if your unit displays an error or you suspect an electronic control issue.

Last updated: January 2026
