Kenmore
Gas Grill

Model # 14116225 Official Kenmore lp gas grill

Here are the diagrams and repair parts for Official Kenmore 14116225 lp gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Gas Grill Gas Collector Box And Igniter P02608001A
#13

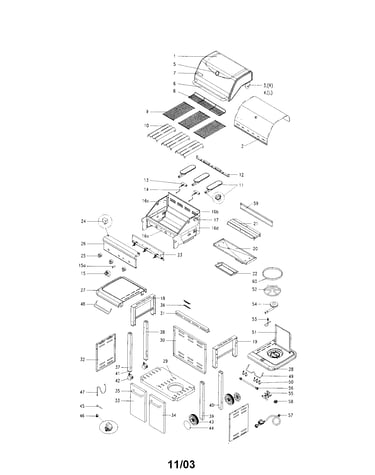

Gas grill diagram

Gas grill gas collector box and igniter

Part #P02608001A

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Rear Burner Bracket P02203021B
#12

Gas grill diagram

Gas grill rear burner bracket

Part #P02203021B

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Warming Rack P01504001E
#8

Gas grill diagram

Gas grill warming rack

Part #P01504001E

The manufacturer no longer makes this part, and there's no substitute part

Electric Grill Wheel P05101001A
#43

Gas grill diagram

Electric grill wheel

Part #P05101001A

The manufacturer no longer makes this part, and there's no substitute part

Towel Rack P05209001A
#48

Gas grill diagram

Towel rack

Part #P05209001A

The manufacturer no longer makes this part, and there's no substitute part

Cart Leg P00911004C
#38

Gas grill diagram

Cart leg

Part #P00911004C

The manufacturer no longer makes this part, and there's no substitute part

Lid P00138016A
#1

Gas grill diagram

Lid

Part #P00138016A

The manufacturer no longer makes this part, and there's no substitute part

Cart Leg P00913004C
#40

Gas grill diagram

Cart leg

Part #P00913004C

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder P05514003F
#49

Gas grill diagram

Tool holder

Part #P05514003F

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Temperature Gauge P00601174A
#5

Gas grill diagram

Gas grill temperature gauge

Part #P00601174A

The manufacturer no longer makes this part, and there's no substitute part
