Electric Range

Model # LRE3083ST/01 Official LG electric range

Here are the diagrams and repair parts for Official LG LRE3083ST/01 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLRE3083ST/01 Ranges

  • Lg Range Dual Radiant Element MEE62385201
    #3302

    Cooktop parts diagram

    Lg range dual radiant element

    Part #MEE62385201

    Replaced by #MEE64286201

    ?
    Manufacturer substitution
    This part replaces MEE62385201. Substitute parts can look different from the original.
    BEST SELLER
    $359.87
    In Stock
  • Range Display Control Board EBR77562702
    #2006

    Controller parts diagram

    Range display control board

    Part #EBR77562702

    Replaced by #EBR77562705

    ?
    Manufacturer substitution
    This part replaces EBR77562702. Substitute parts can look different from the original.
    BEST SELLER
    $482.80 |
    $12.00 OFF Phone Price : $494.80
    In Stock
  • Range Oven Relay Control Board EBR74164805
    #5070

    Cavity parts diagram

    Range oven relay control board

    Part #EBR74164805

    This item is not returnable
    $237.46 |
    5% OFF Phone Price : $249.46
    In Stock
  • Lg Range Main Top Assembly AGU73969703
    #3056

    Cooktop parts diagram

    Lg range main top assembly

    Part #AGU73969703

    $489.01 |
    $12.00 OFF Phone Price : $501.01
    In Stock
  • Range Anti-tip Bracket MAZ61859001
    #8511

    Cavity parts diagram

    Range anti-tip bracket

    Part #MAZ61859001

    $20.78 |
    22% OFF Phone Price : $26.78
    In Stock
  • Range Oven Door Inner Glass 4890W1N005A
    #1018

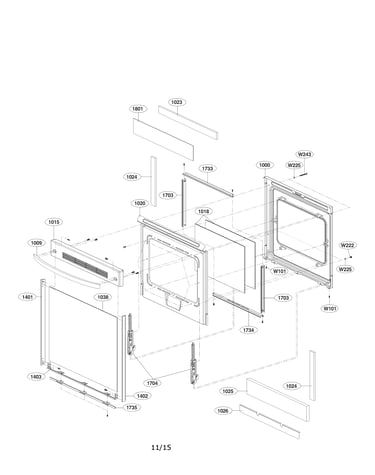

    Door parts diagram

    Range oven door inner glass

    Part #4890W1N005A

    Replaced by #4890W1N009H

    ?
    Manufacturer substitution
    This part replaces 4890W1N005A. Substitute parts can look different from the original.
    $168.92
    In Stock
  • Range Wire Harness 6877W1N024F
    #5032

    Cavity parts diagram

    Range wire harness

    Part #6877W1N024F

    $14.67 |
    12% OFF Phone Price : $16.67
    In Stock
  • Microwave Screw 1SBF0402418
    #W101

    Door parts diagram

    Microwave screw

    Part #1SBF0402418

    This item is not returnable
    $9.22 |
    10% OFF Phone Price : $10.22
    In Stock
  • Washer 1WZZW3Z003B
    #W225

    Door parts diagram

    Washer

    Part #1WZZW3Z003B

    This item is not returnable
    $9.22 |
    10% OFF Phone Price : $10.22
    In Stock
  • Range Wire Harness EAD34822910
    #2042

    Controller parts diagram

    Range wire harness

    Part #EAD34822910

    $42.42 |
    12% OFF Phone Price : $48.42
    In Stock
