Craftsman 917258563 tractor Parts

For a Craftsman front-engine lawn tractor like model 917258563, we typically find the model number and serial number on an ID label under the seat area (on the frame) or on the underside of the seat. Once you have the full model number, you can match parts from the list for your tractor or search by model on Sears PartsDirect.

Check these common label locations first:

• On the frame directly under the seat (lift the seat and look down at the chassis rails)
• On the underside of the seat pan
• Near the rear fender or seat bracket area
• On the frame near the engine compartment (less common)
• On the mower deck shell (occasionally a separate deck tag)

Write down the information exactly as shown on the label.

• Model number: the full number (example: 917258563)
• Serial number: used to identify production range (helpful for part variations)
• Product number (if listed): sometimes appears on outdoor power equipment tags

Craftsman tractors often have multiple versions that look similar, and small differences can change which drive belt, blade, or steering part fits. Using the exact model number helps you avoid ordering the wrong replacement part.

Once you confirm the model number, these are examples of parts customers often replace on this tractor family:

• Deck blade (for mulching or standard cutting)
• Ground drive belt
• Blade drive belt
• Mandrel components (housing, shaft, pulley)
• Tires and wheel hardware

If you are replacing a deck blade for this model, the parts list includes the husqvarna lawn tractor mulching blade, 21-in 532134149.

Last updated: February 2026

On a Craftsman riding mower like model 917258563, the serial number format depends on the manufacturer and the ID tag style. A very common date-code style is MMDDYY (month, day, year), so a serial starting with 072811 reads as July 28, 2011. Use the parts list for 917258563 to confirm you are matching the correct tractor and deck components, then order what you need through Sears PartsDirect.

Most Craftsman front-engine lawn tractors place the model and serial information on a sticker or metal tag in one of these spots:

• Under the seat pan (lift the seat)
• On the frame near the rear wheels
• Under the hood near the engine compartment
• On the mower deck shell (sometimes a separate deck tag)

Serial numbers are not universal across all Craftsman-built units, but these patterns are the most common on riding mowers:

Use these checks before you buy parts or schedule repairs:

• Confirm the model number is 917258563 on the tag (model matters more than serial for parts lookup).
• If the “month” value is over 12, you are not looking at an MMDDYY date code.
• If the “day” value is over 31, you are not looking at a valid date code.
• Compare the decoded year to the tractor’s design and parts style (deck, grille, steering parts).

The model number 917258563 is what we use to match the correct diagrams and replacement parts (belts, blades, mandrel parts, steering parts). The serial number is mainly helpful for identifying production date and confirming you are working on the exact unit.

Last updated: February 2026

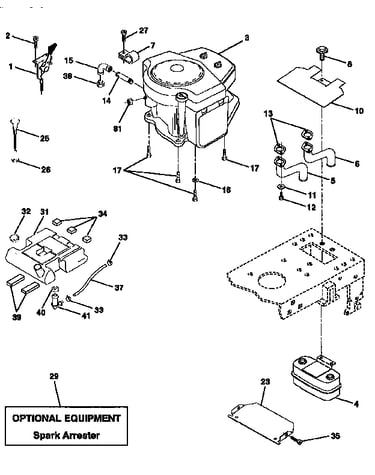

On a Craftsman riding tractor like model 917258563, the engine is a group of systems that store and deliver fuel, mix air and fuel, create spark, and convert combustion into rotating power to drive the mower and deck. The exact layout varies by engine family, but the core components are consistent.

• Fuel tank and fuel line: stores fuel and feeds it to the engine
• Carburetor (or fuel injection on some models): meters fuel into the incoming air
• Air filter and intake: cleans air before it enters the engine
• Choke and throttle controls: help starting and set engine speed
• Ignition system: typically an ignition coil and spark plug that create spark
• Flywheel: helps smooth engine rotation; often contains magnets for charging/ignition timing
• Starter system: starter motor and solenoid (or recoil starter on smaller engines)
• Engine block/crankcase: houses the crankshaft, bearings, and oil

On riding mowers, several major items are driven by the engine but are not part of the engine itself:

Knowing whether a problem is in the engine (spark, fuel, air, compression) or in the drivetrain/deck drive (belts, pulleys, mandrels) helps you buy the right parts and avoid replacing good components.

• If it cranks but will not start, focus on fuel, spark, and air
• If it clicks but will not crank, focus on battery, cables, solenoid, and safety switches
• If it runs but will not move or mow, inspect belts, idlers, and mandrels
• Stock common wear items and hardware so repairs go faster (see riding mower parts and supplies to stock up on video)
• Order replacement parts for model 917258563 from the parts list for this tractor, or search by model on Sears PartsDirect

Last updated: February 2026

Craftsman model 917258563 was built during the LT1000-era production run (typically late 1990s through mid-2000s). The exact build year is tied to the tractor’s product identification label (usually under the seat or on the frame) and is the most reliable way to pin down the specific year for your unit.

We use the tractor’s ID label information to match the correct production date and parts configuration.

• Lift the seat and look for a model/serial label on the fender pan or frame
• Write down the serial number exactly as shown
• Note the engine brand and model (Briggs & Stratton or Kohler are common on this series)
• Confirm whether you have a 42-inch deck (common for this model family)

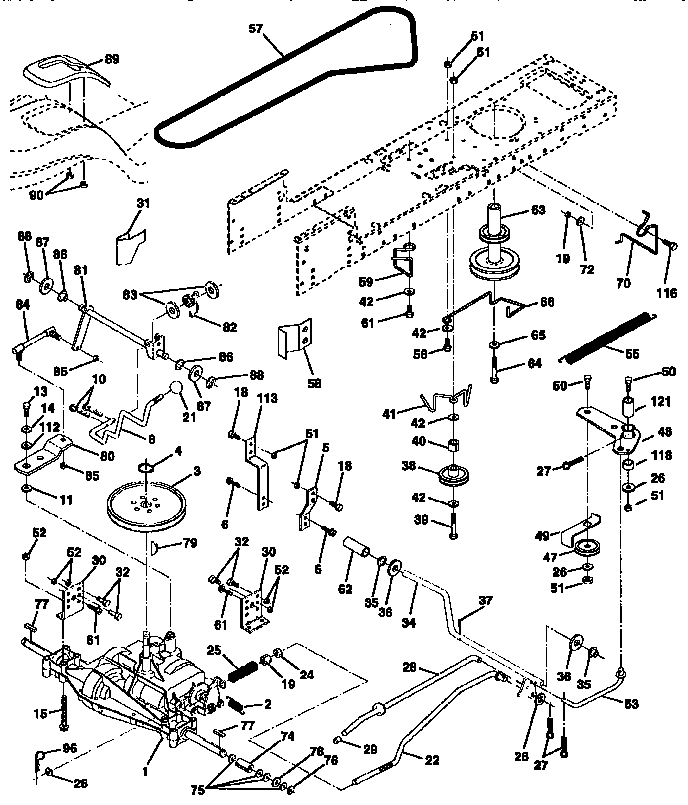

• Match your deck and drive setup to the parts list (blade drive belt vs ground drive belt)

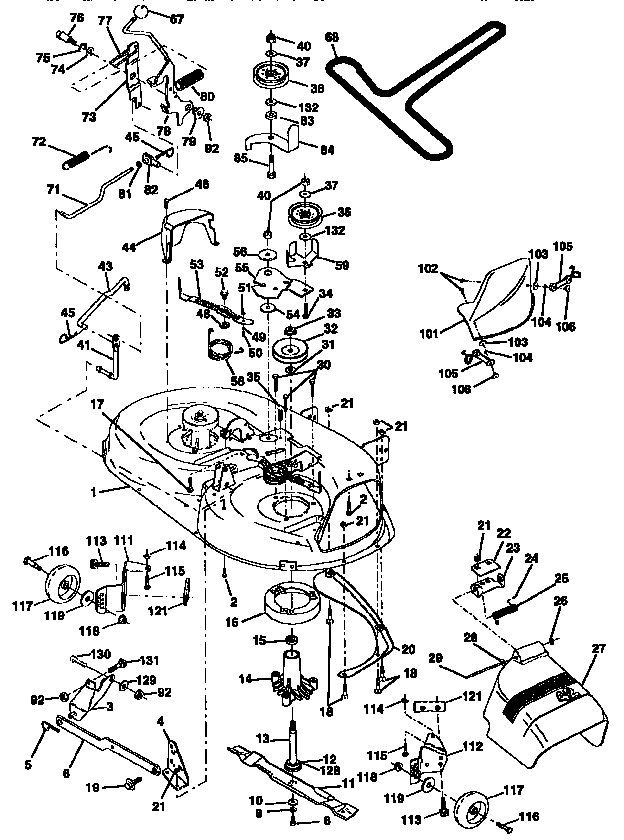

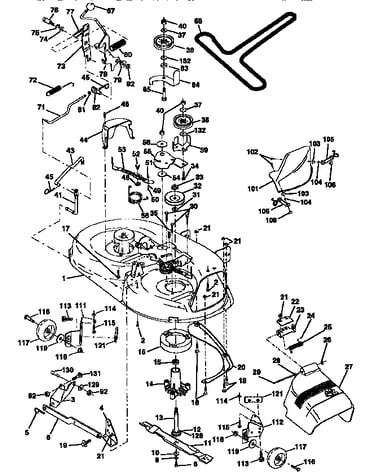

Even when two tractors share the same model family, deck and drive components can vary by production batch. These parts are commonly associated with a 42-inch deck setup:

• Husqvarna lawn tractor mulching blade, 21-in 532134149
• Lawn tractor drive belt 532144200
• V-belt 532138255

Knowing the correct build year helps us match the right diagrams and avoid ordering the wrong belt, mandrel, or deck hardware. Small changes across years can affect belt length, pulley style, and mandrel assemblies.

We recommend ordering replacement parts directly from the parts list for model 917258563, or searching by model number on Sears PartsDirect if you are cross-checking components.

Last updated: February 2026
