Kenmore 79578416800 refrigerator Parts

Kenmore refrigerator model 79578416800 is a bottom-freezer refrigerator in the Kenmore 795.7840_ / 795.7841_ model family. For exact exterior dimensions (width, depth, and height), use the specifications section in the 79578416800 owner's manual.

How to find the exact dimensions for your unit

We recommend confirming size from the model’s specifications because dimensions can vary by door style, handle type, and whether measurements include hinges.

• Check the specifications/dimensions page in the manual first.
• Measure width at the widest point (often the hinge area).
• Measure height from floor to the top hinge cover.
• Measure depth two ways: cabinet-only and with doors/handles.
• If you are fitting into a cutout, allow space for door swing and airflow clearance.

Typical size range for Kenmore 795 bottom-freezer refrigerators

If you are planning space before pulling the manual, most Kenmore 795 bottom-freezer units are in this general range.

Measurement	Typical range (approx.)	What can change it
Width	30 to 33 in.	door style, hinge geometry
Height	67 to 70 in.	leveling legs, hinge cover
Depth	30 to 35 in.	handles, door thickness

Why it matters

Correct dimensions help prevent installation problems like doors that cannot open fully, poor ventilation that reduces cooling performance, or a water line that kinks when the refrigerator is pushed back.

If you are also planning a water hookup, the manual notes common installation needs such as 1/4-inch OD copper tubing and adequate clearance to move the refrigerator out for service. See the 79578416800 owner's manual for the full installation guidance.

Last updated: January 2026

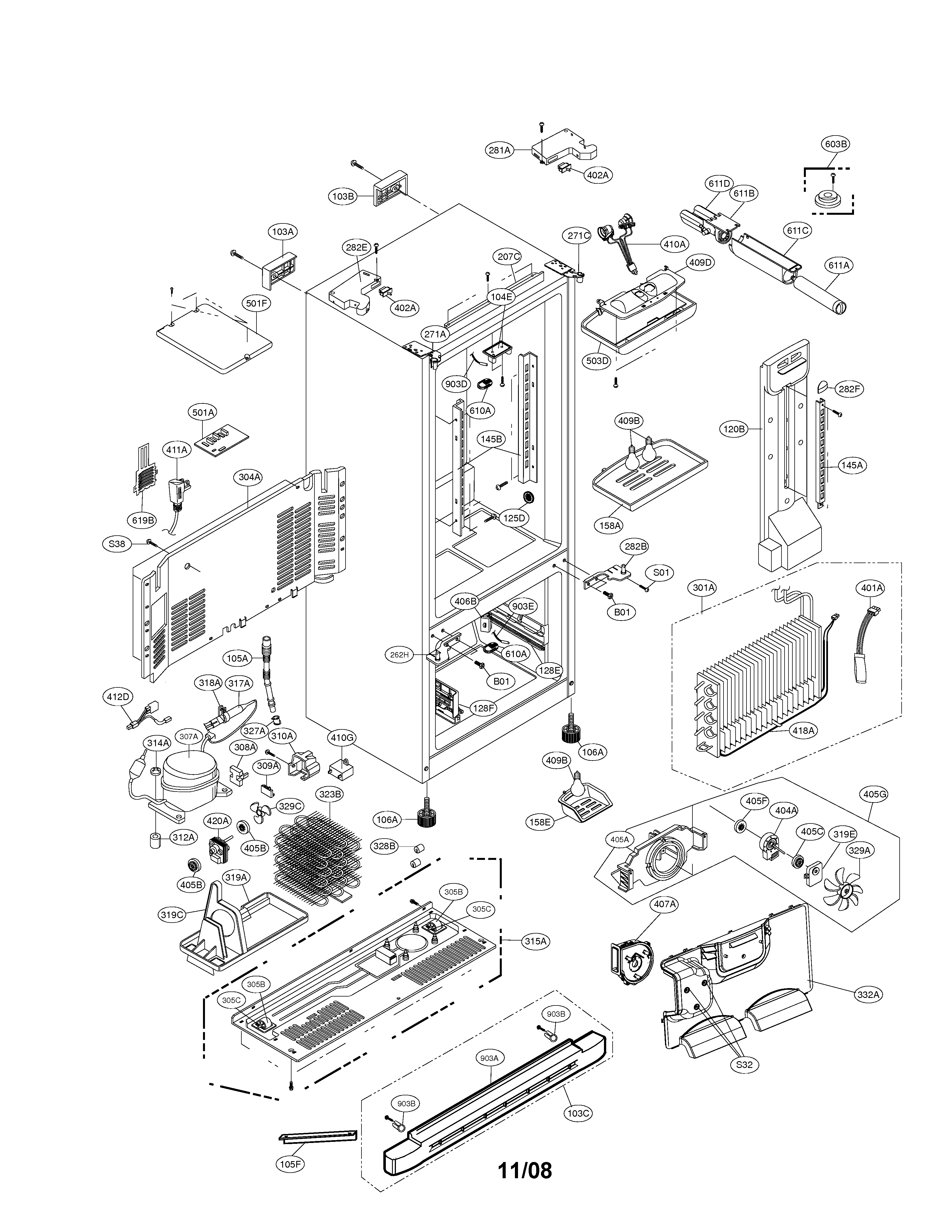

On the Kenmore 79578416800 bottom-mount refrigerator, the “bottom part” is most often the base grille on the front and the machine compartment behind it, where key cooling parts (like the compressor and condenser fan area) are located.

Common names you will hear

Depending on what you are pointing to, the bottom area may be called one of these:

• Base grille: the removable front grille at the bottom (used for access and airflow)
• Machine compartment: the space behind the base grille where cooling components sit
• Lower rear access cover (or back cover): a panel on the back lower section that shields components
• Drain pan: a pan underneath that catches defrost water so it can evaporate
• Kick plate: a common informal name for the base grille

For model-specific handling and safety notes, follow the steps in the 79578416800 owner's manual.

How to tell which “bottom part” you mean

Use this quick guide to match the name to what you see.

What you see	Most common name	What it does
Slotted panel at the very bottom front	Base grille	Allows airflow and provides access for cleaning/service
Components and wiring behind the grille	Machine compartment	Houses cooling system components
Shallow pan underneath	Drain pan	Collects defrost water for evaporation
Panel on the lower back	Back cover/access cover	Protects components and directs airflow

Why it matters

Using the right name helps you find the correct instructions and parts faster. For example, the manual includes specific cautions about working around the base grille and the bottom of the refrigerator to avoid injury or electrical shock.

Helpful tips before you remove anything

• Unplug the refrigerator before inspecting the machine compartment
• Avoid reaching into vents or the bottom opening with tools
• If you are removing the base grille, pull it straight toward you with both hands
• Keep the grille clips aligned when reinstalling so it snaps in securely
• Vacuum dust from the grille area to improve airflow and cooling efficiency

Last updated: January 2026

Common problems on Kenmore bottom-mount refrigerators like model 79578416800 include warm temperatures from dirty condenser coils, doors not sealing or closing fully, ice maker issues (slow or no ice, off-taste), and normal-to-loud operating noises. Our 79578416800 owner's manual troubleshooting tables walk you through the most likely causes.

Most common symptoms and what usually causes them

• Not cooling well: dirty condenser coils, doors not fully closed, airflow blocked by packages
• Doors will not close completely: refrigerator not level, bins or shelves out of position, sticky door gaskets
• Ice maker problems: ice room door not closing tightly, new installation (needs purge), old ice stored too long
• Bad-tasting or smelly ice: food odors migrating, dirty ice bin, mineral taste in water (filter needed)
• Noises: many sounds are normal; persistent buzzing or clicking can point to a compressor start issue

Quick checks we recommend first (10 to 20 minutes)

1. Confirm doors seal and close: push doors firmly shut; check for packages blocking the door.
2. Clean condenser coils: dirty coils reduce heat transfer and make the compressor work harder.
3. Level the refrigerator: an unlevel cabinet can prevent proper door closing.
4. Check ice room door closure: close it until you hear the “click” so cold air stays where it belongs.
5. Dump old ice and wash the bin: stale ice and a dirty bin are top causes of odor.

Common fixes and the parts that often solve them

If troubleshooting points to a failed component, these are common replacements for this model:

Symptom	Likely area	Example part for this model
Light stays off or door alarm behavior seems wrong	Door switch	Lg refrigerator door switch 6600JB1010A
Frost buildup, temperature swings	Defrost sensing	Refrigerator defrost sensor assembly 6615JB2005C
Warm fridge section, weak airflow	Evaporator fan	Motor,dc 4681JB1027C
Off-taste/odor in water or ice	Water filtration	Kenmore refrigerator water filter 9990 5231JA2006E

Why it matters

Most “Kenmore Elite refrigerator problems” start with airflow, sealing, or maintenance. Cleaning condenser coils and making sure doors close fully can restore cooling performance and prevent frost, ice maker trouble, and higher energy use.

Related DIY help

• How to replace the water filter in a Kenmore refrigerator
• Kenmore 795 model bottom freezer refrigerator error codes

Last updated: January 2026
